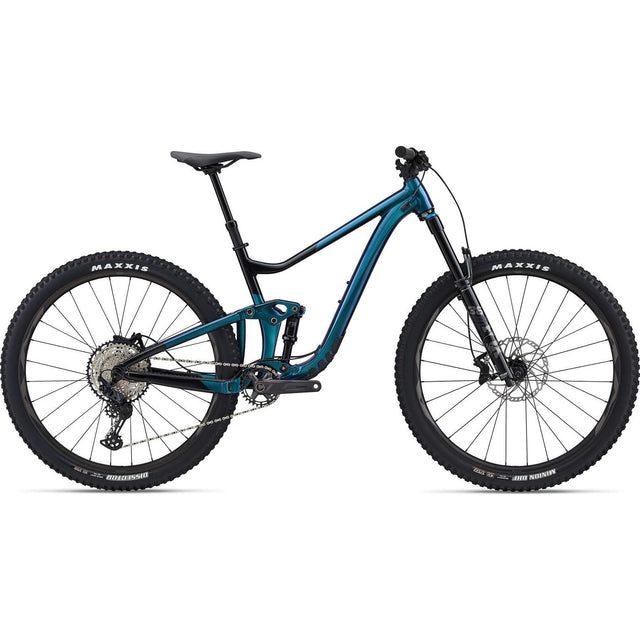

Giant Trance X 1 Chameleon Blue

MASTER THE MOUNTAIN

Chunky rock gardens, roots, and technical climbs. This powerful trail bike adapts to the terrain and gives you confidence and control on all types of singletracks.

29er Confidence and Control

29-inch wheels optimized to roll with balance and stability over technical terrain. This gives you more momentum on tricky climbs and confidence to fly on fast singletrack descents. Additional clearance for up to 2.5-inch tires.

Progressive Suspension

The Maestro rear suspension features a trunnion mount shock with longer travel and a smoother feel. With 135 mm of rear travel (and 150 mm at the front), it features an upper rocker arm made of Advanced Forged Composite for increased stiffness and strength, as well as a lower overall frame weight.

Adjustable Geometry

A flip-chip allows you to change the head tube and seat tube angles, as well as the bottom bracket height, to fine-tune the handling. You can choose the low position (65.5/77.2 head tube angle and 40 mm bottom bracket height) for fast, open terrain or the high position (66.2/77.9 head tube angle and 30 mm bottom bracket height) for slower, tighter singletracks.

Equipment:
Model Year: 2022
Frame: AluxX SL frame, Maestro rear triangle with geometry flip-chip, carbon rocker arm, 135 mm travel, 12x148 mm Max. tire clearance: 2.5" Max. chainring size: 34T
Fork: Fox 36 Float Performance, GRIP damping, 150 mm travel, Boost 15x110mm
Shock: Fox Float DPS Performance, 185x55 mm, trunnion mount, custom tuned
Crankset: Shimano M511, 30T chainring, 52mm chainline
Bottom Bracket: Shimano Pressfit
Chain: KMC X-12
Cassette: Shimano SLX M7100, 10-51T
Rear Derailleur: Shimano SLX M7100 Shadow+, 12-speed
Shifters: Shimano SLX M7100
Brakes: Shimano BR-MT520 (4-piston), 203/180 mm
Brake Levers: Shimano BL-MT501
Pedals: not included
Saddle: GIANT Romero
Seatpost: GIANT Contact Switch Vario Post 30.9 mm (S:125mm, M:150mm, L-XL:170mm)
Stem: GIANT Contact SL 35
Handlebar: GIANT Contact TR35, 20 mm rise
Grips: GIANT Tactal Pro Single Lock-On
Hubs: RD02F / ED260-R
Spokes: Sapim
Rims: GIANT AM 29, Tubeless Ready, 30 mm internal width
Tires (F/R): Maxxis Minion DHF 29x2.5WT, 60 TPI, EXO, TR / Maxxis Dissector 29x2.4WT, 60 TPI, EXO, TR delivered tubeless
Tubeless Kit (sealant, valves, tire levers, valve core remover, instructions)

* Specification may vary in details in exceptional cases, depending on the manufacturer.
