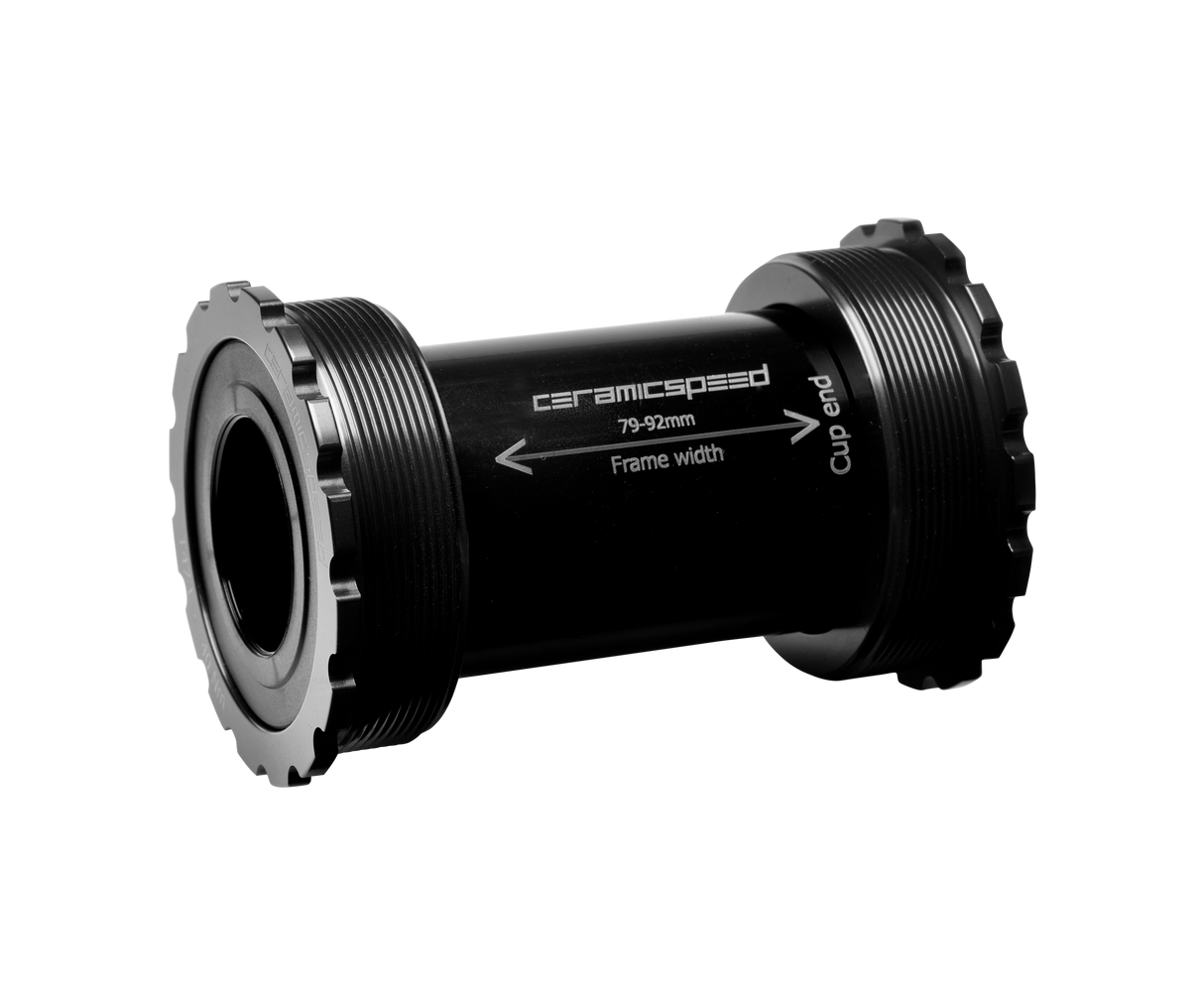

CeramicSpeed T47/86 Inboard Bottom Bracket for Shimano Gravel - Black

T47 is a newer bottom bracket shell design that utilises the oversized interface of PF30 and EVO386, but with the advantage and reliability of a threaded interface. This bottom bracket allows the installation of Shimano and other cranks with a 24 mm diameter through axle in a T47 shell. It is compatible with 86 mm wide frames as well as with TREK T47 85.5 mm wide frames.

CeramicSpeed bearings are built into the cups and connected through the shell. Our Gravel bottom brackets are made with CeramicSpeed Coated bearings and equipped with UFO Long Life Grease – for maximum durability and protection in all environments.

CeramicSpeed Coated Bearings feature an additional characteristic: a 3-micrometer thick metallic layer over the races. This layer makes the races harder and smoother, reduces resistance and increases ht lifespan.

Bottom bracket installation tool: BBT-47.

Features:

• Discipline: Gravel and Cross
• Crank brand: Shimano
• Crank diameter: 24.0
• Crank width: 90.5
• Bottom bracket type: T47 86mm
• Net weight: 112 g



Included:

• 2 threaded cups with built-in CeramicSpeed bearings
• 2 dust caps
• Spacer
• Long Life Grease
• Stickers
