Giant Trance X 1 Panther

Rugged stone fields, gnarled roots, and steep, technical climbs – the brand new Trance X 29 is designed for those who look forward to the toughest trail sections the most. With more suspension travel and adjustable geometry, this bike is always on the hunt for challenging singletrack fun.

This brand new 29er has one mission above all: It wants to help you master even the toughest trails faster and with more flow. For this, it features a stable and stiff aluminum frame with 29-inch specific geometry and a plush suspension with new, improved tuning. The Maestro rear suspension now offers 135 mm of active travel, which perfectly matches the 150 mm fork. The Advanced Forged Carbon rocker arm features a flip-chip that allows you to adjust the geometry and thus optimally adapt the riding characteristics to your riding style and terrain. You can adjust a steeper/flatter head and seat angle and at the same time adjust the bottom bracket drop to 30 mm or 40 mm. The entire bike is perfectly tuned to its 29-inch wheels and offers plenty of tire clearance (up to 2.5 inches) so you can enjoy maximum grip even on rough trails.

29er for Confidence and Control

29-inch wheels roll very balanced and stable even in rough terrain. This allows you to carry more momentum into the climb and gain confidence to let the bike really fly on fast, rough singletracks. Thanks to increased tire clearance, the frame accommodates tires up to 2.5 inches wide.

Progressive Suspension

The new Maestro rear suspension is equipped with a trunnion shock mount that allows for more travel and better responsiveness. You have 135 mm of travel available at the rear (as well as 150 mm at the front), and you can adjust the geometry in two positions via flip-chip. The “Advanced Forged” rocker arm provides more stiffness and stability while reducing weight.

Adjustable Frame Geometry

The lightweight aluminum frame features adjustable geometry with a head angle of 66.2 degrees or 65.5 degrees and a seat angle of 77.9 degrees or 77.2 degrees. Depending on the setting, a bottom bracket drop of 30 mm or 40 mm results. This allows the bike to be perfectly tuned for fast trail fun.

Equipment:
Model Year: 2022
Frame: AluxX SL frame, Maestro rear suspension with geometry flip-chip, carbon rocker arm, 135 mm travel, 12x148 mm Max. Tire Clearance: 2.5" Max. Chainring Size: 34T

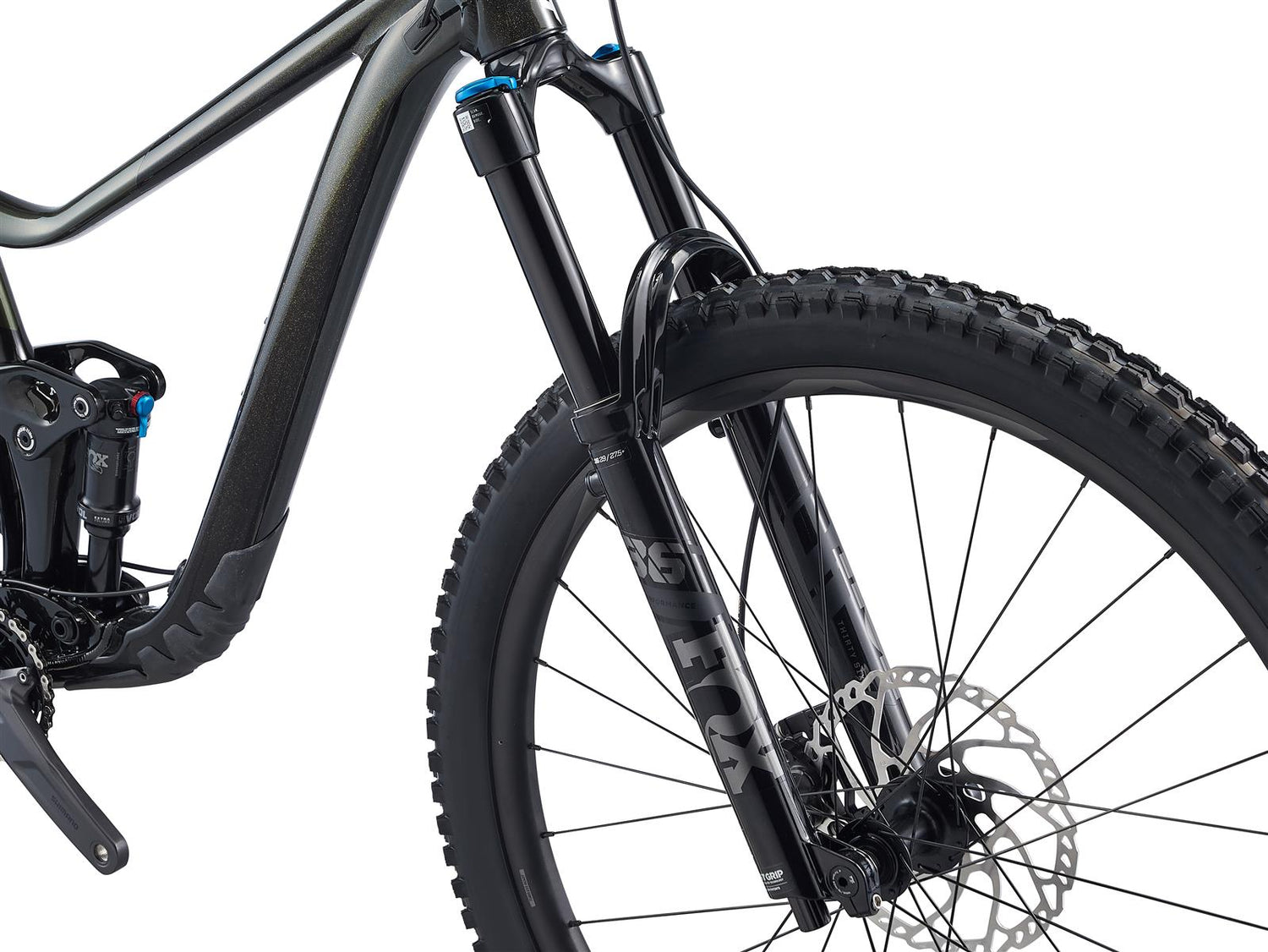

Fork: Fox 36 Float Performance, GRIP damping, 150 mm travel, Boost 15x110mm
Shock: Fox Float DPS Performance, 185x55 mm, trunnion mount, custom tuned
Crankset: Shimano M511, 30T chainring, 52mm chainline
Bottom Bracket: Shimano Pressfit
Chain: KMC X-12
Cassette: Shimano SLX M7100, 10-51T
Rear Derailleur: Shimano SLX M7100 Shadow+, 12-speed
Shifters: Shimano SLX M7100
Brakes: Shimano BR-MT520 (4-piston), 203/180 mm
Brake Levers: Shimano BL-MT501
Pedals: not included
Saddle: GIANT Romero
Seatpost: GIANT Contact Switch Vario Support 30.9 mm (S:125mm, M:150mm, L-XL:170mm)
Stem: GIANT Contact SL 35
Handlebar: GIANT Contact TR35, 20 mm rise
Grips: GIANT Tactal Pro Single Lock-On
Hubs: RD02F / ED260-R
Spokes: Sapim
Rims: GIANT AM 29, Tubeless Ready, 30 mm internal width
Tires (F/R): Maxxis Minion DHF 29x2.5WT, 60 TPI, EXO, TR / Maxxis Dissector 29x2.4WT, 60 TPI, EXO, TR delivered tubeless
Tubeless Kit (fluid, valves, tire levers, valve core remover, instructions)

* Specification may vary in details in exceptional cases, depending on the manufacturer.
