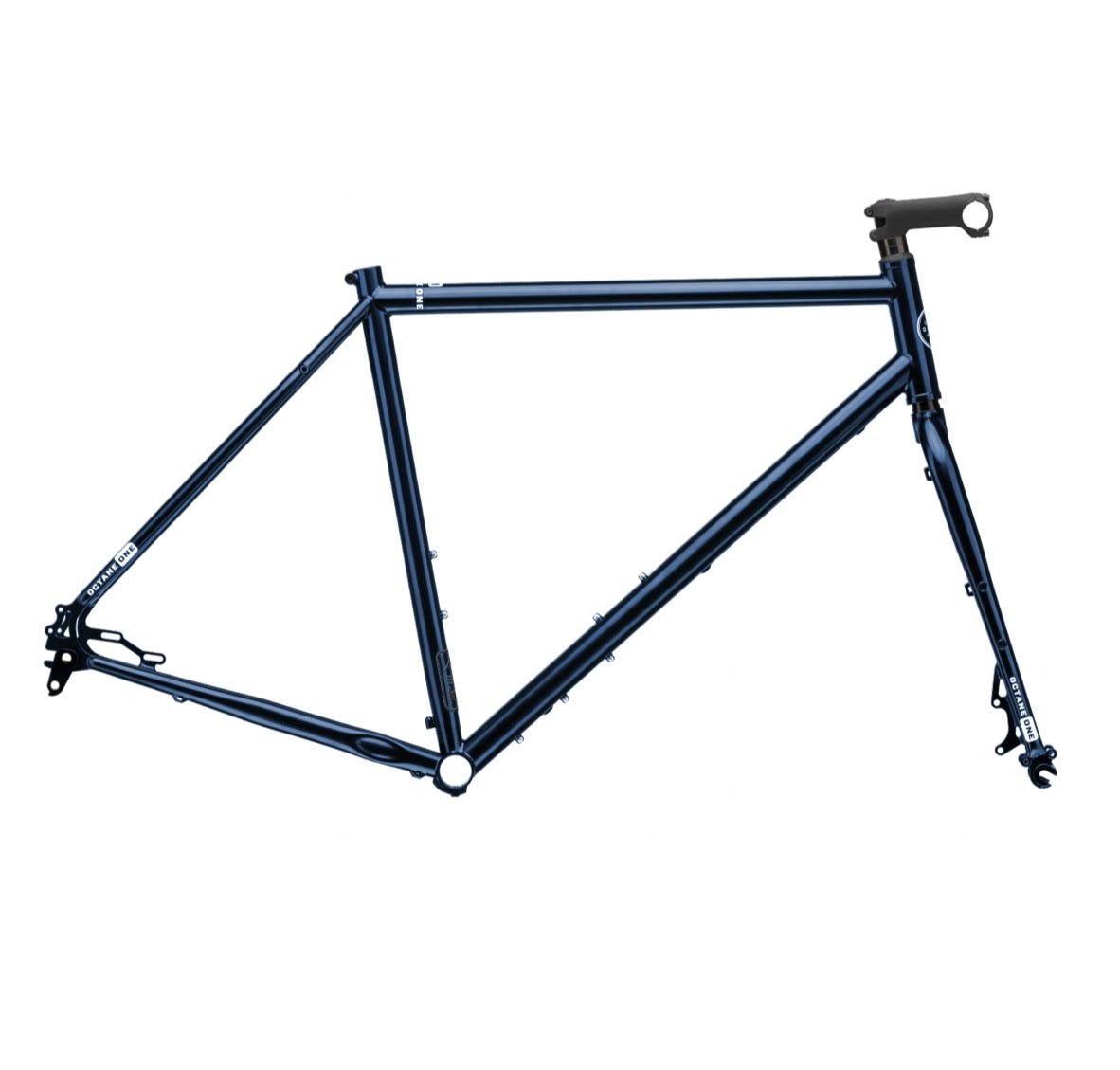

Octane One Kode Commuter/Cross Frame Set - Blue

KODE is a great base to build a versatile commuter/cross bike. Wide range of applications: hardcore commuting, gravel, CX, winter bike, adventure, endurance road… you name it. Robust frame and fork set made of Cromoly. Compatible, fixed, single-speed drivetrain. Ready for 1x and derailleur drives. Fenders, rack mounts, 3 bottle mounts. The frame set comes with an IS disc brake mount and a standard 1.125-inch head tube and classic 135 x 10 horizontal dropouts and plenty of tire clearance (up to 40c). Removable derailleur hanger available. Recommended hubs – bolt-on only (horizontal dropouts)

Equipment:

Integrated seat post clamp
Derailleur compatible, clamp size 28.6 mm
Frame material: Tange CroMo steel
Fork material: Tange CroMo steel, 1 1/8'', IS disc brake mount
Matching headset: 1 1/8 inch EC34/28.6 / EC34/30 (Note: headset not included)
Hub spacing: 135 x 10 mm O.L.D.
Head tube: 1 1/8''
Head tube length: 115 mm (S)
Head tube length: 130 mm (M)
Head tube length: 152 mm (L)
Rear disc brake mount: IS
Bottom bracket shell: BSA 68 mm
Maximum recommended tire size: 700 x 40c
Seat post size: 27.2 mm
Weight: 2.1 kg frame, 980 g fork
