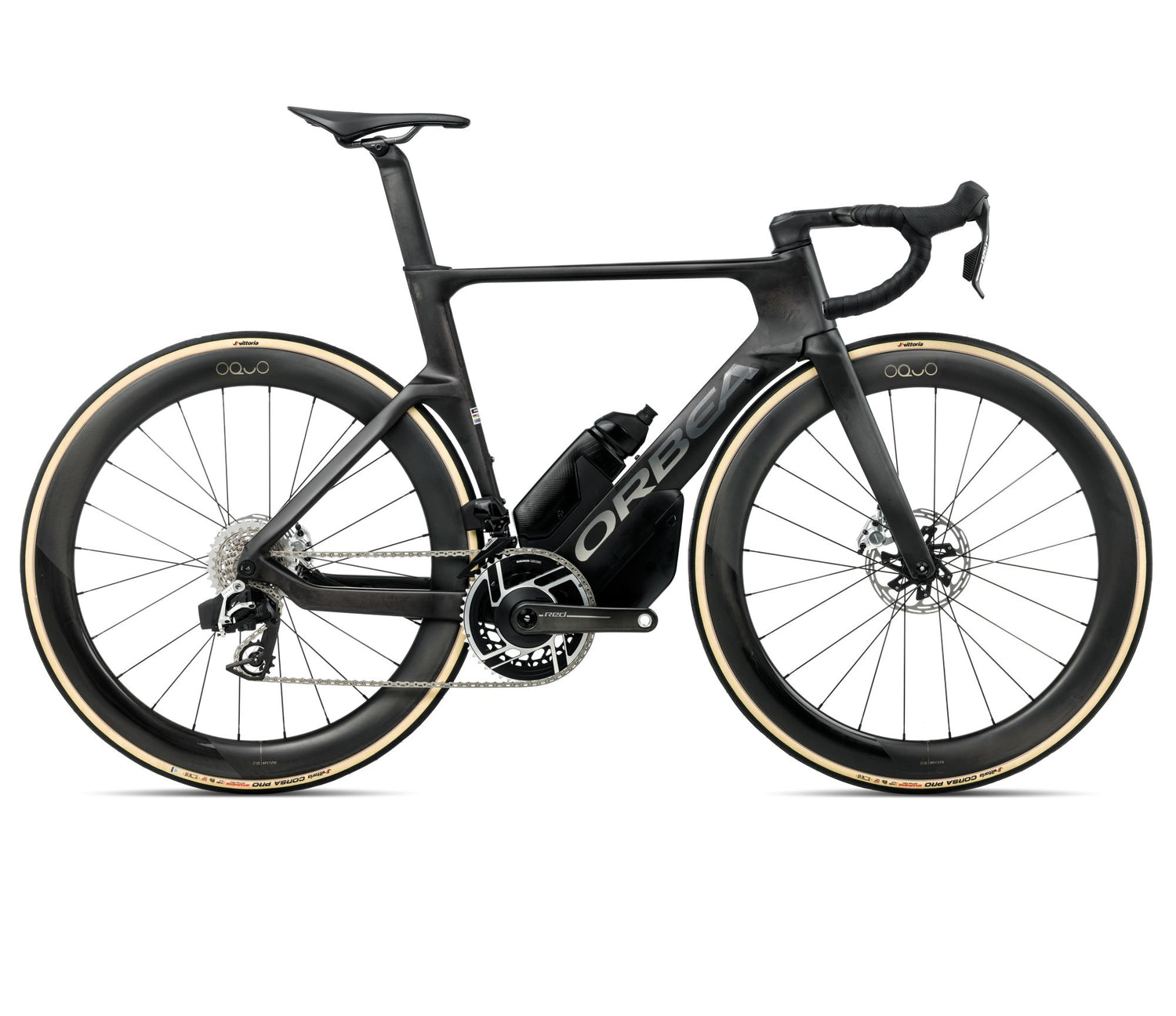

Orbea ORCA AERO M21eLTD - Carbon Raw - Titanium (Matt)

LONG LIVE AERO

The Orca Aero is pure speed, with aerodynamic shaping, top power transfer, and precise handling. Designed for those who chase every single watt.

OMX CARBON
Our top OMX frame consists of fewer carbon layers. This means fewer overlaps and less weight. The layup process is significantly more complex, but the frame is also almost 300 grams lighter without sacrificing stiffness.

AIRFLOW AROUND THE REAR WHEEL
Less air resistance at the rear wheel due to the alignment of the upper part of the seat tube with the airflow.

AERODYNAMIC FORK
Redesigned aero fork, optimised for high-profile wheels.

TIRE CLEARANCE
With space for 30c tires, the Orca Aero proves that speed can also feel comfortable.

ORCA AERO OMX SEATPOST
Our new aero seatpost allows adjustments of up to 25 mm in setback and +/-10° in angle. The 50 mm deep post is particularly light and compact.

Specifications:
Frame: Orbea Orca Aero Carbon OMX disc, monocoque construction, HS 1.5", BB386, power meter compatible, 12x142 mm thru-axle rear (M12x2 P1), Speed Release compatible, internally routed cables, EC/DC compatible
Fork: Orbea Orca Aero OMX ICR, full carbon, 1-1/8"–1.5" tapered, 12x100 mm thru-axle, M12x2 P1, Speed Release compatible dropouts
Headset: FSA 1-1/2" Integrated Aluminium Cup
Crank: Sram Force DUB 35x48t
Shifter: Sram FORCE AXS
Cassette: Sram XG-1270 10–33t, 12-Speed
Rear Derailleur: Sram Force AXS 12s
Front Derailleur: Sram Force eTAP AXS
Chain: Sram Force 12-13 Speed
Handlebar: Integrated Bar and Stem OC SH-RA10, Road Aero Carbon, Reach 80, Drop 125
Brakes: Sram FORCE AXS
Brake Rotors: 160 mm (front) / 140 mm (rear)
Wheelset: Oquo Road Performance RP45LTD
Tires: Vittoria Corsa N.Ext G2.0 Foldable 700x28c
Front Axle: Orbea Thru Axle 12x100mm M12x2 P1 Lite
Rear Axle: Orbea Thru Axle 12x142mm M12x2 P1 Lite
Seatpost: OC Road Aero RA10 Carbon Ultralight, SB0/25, with micro-tilt adjustment
Seat: Prologo Scratch-M5 Pas T2.0, 140mm
Handlebar Tape: Orbea Anti-Slippery/Shock Proof
Hydration: OC Aero Bottle RA10 (550ml) + Carbon Cage Kit RA10
Storage: OC Aero Toolbox TB01PP

* In rare cases, our manufacturers deliver bicycles with modified but equivalent components.
