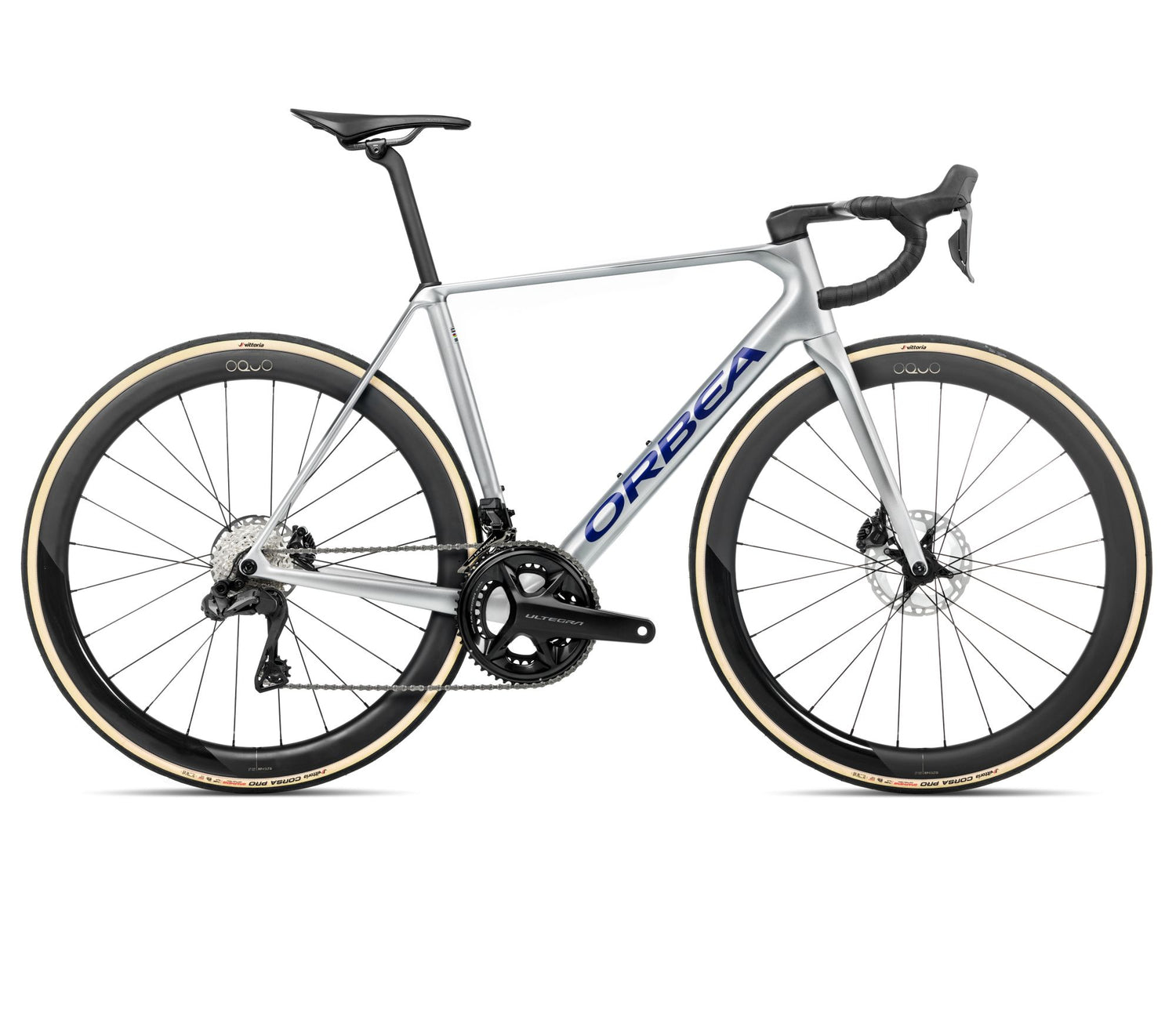

Orbea ORCA M20iLTD PWR - Spark Silver - Titain Grey (Gloss)

PRAISE THE LIGHT

Nothing feels better than a lightweight, efficient bike. This rapid acceleration, vibration absorption, and agile handling is enabled by a frame that is light or stiff where it needs to be.

The Orca is our lightweight carbon climbing machine, made for those seeking the perfect partner for any ascent.

OMX CARBON
Our top carbon frame OMX consists of fewer carbon layers. This means fewer overlaps and less weight. The layup process is significantly more complex, but the frame is also nearly 300 grams lighter without sacrificing stiffness.

SIZE-DEPENDENT STIFFNESS
We adjust the carbon layup for each frame size to ensure that every Orca feels equally good. The effort is much higher, but it’s the little things like this that you feel while riding.

POWERSPLINE
The strongest lateral forces and torsional forces act on the lower part of the frame.

ICR PLUS
Thanks to ICR Plus, cables and hoses run neatly under the stem and through the headset into the frame. No rubbing or rattling. The system is optimized for mechanical and electronic shifting.

32 MILLIMETRES TYRE CLEARANCE
It is now widely known that wide tyres are advantageous on rough roads.

Specifications:
Frame: Orbea Orca carbon OMX 2024, monocoque construction, HS 1.5", BB386, power meter compatible, 12x142 mm thru axle rear (M12x2 P1), internally routed cables
Fork: Orbea Orca OMX ICR 2024, full carbon, 1-1/8"–1.5" tapered, 12x100 mm thru axle, M12x2 P1
Headset: FSA 1-1/2" Integrated Aluminium Cup
Crankset: Shimano Ultegra R8100 36x52T with 4iiii power meter (left side)
Shifters: Shimano ST-8170
Cassette: Shimano Ultegra R8100 11–30t, 12-Speed
Rear Derailleur: Shimano Ultegra Di2 R8150
Front Derailleur: Shimano Ultegra Di2 R8150
Chain: Shimano M8100
Handlebar: Integrated Bar and Stem OC SH-RA10, Road Aero Carbon, Reach 80, Drop 125
Brakes: Shimano R8170 Hydraulic Disc
Brake Rotors: 160 mm (front) / 140 mm (rear)
Wheelset: Oquo Road Performance RP45LTD
Tyres: Vittoria Corsa Pro 29-622 TLR wide rim G2.0 OEM HP
Front Axle: Orbea Thru Axle 12x100mm M12x2 P1 Lite
Rear Axle: Orbea Thru Axle 12x142mm M12x2 P1 Lite
Seatpost: OC Performance XP10-S Carbon, 27.2mm, Setback 20
Saddle: Fizik Vento Antares R1 Carbon Rail 140mm
Handlebar Tape: Orbea Anti-Slippery/Shock Proof

* In rare cases, our manufacturers deliver bikes with modified but equivalent components.
