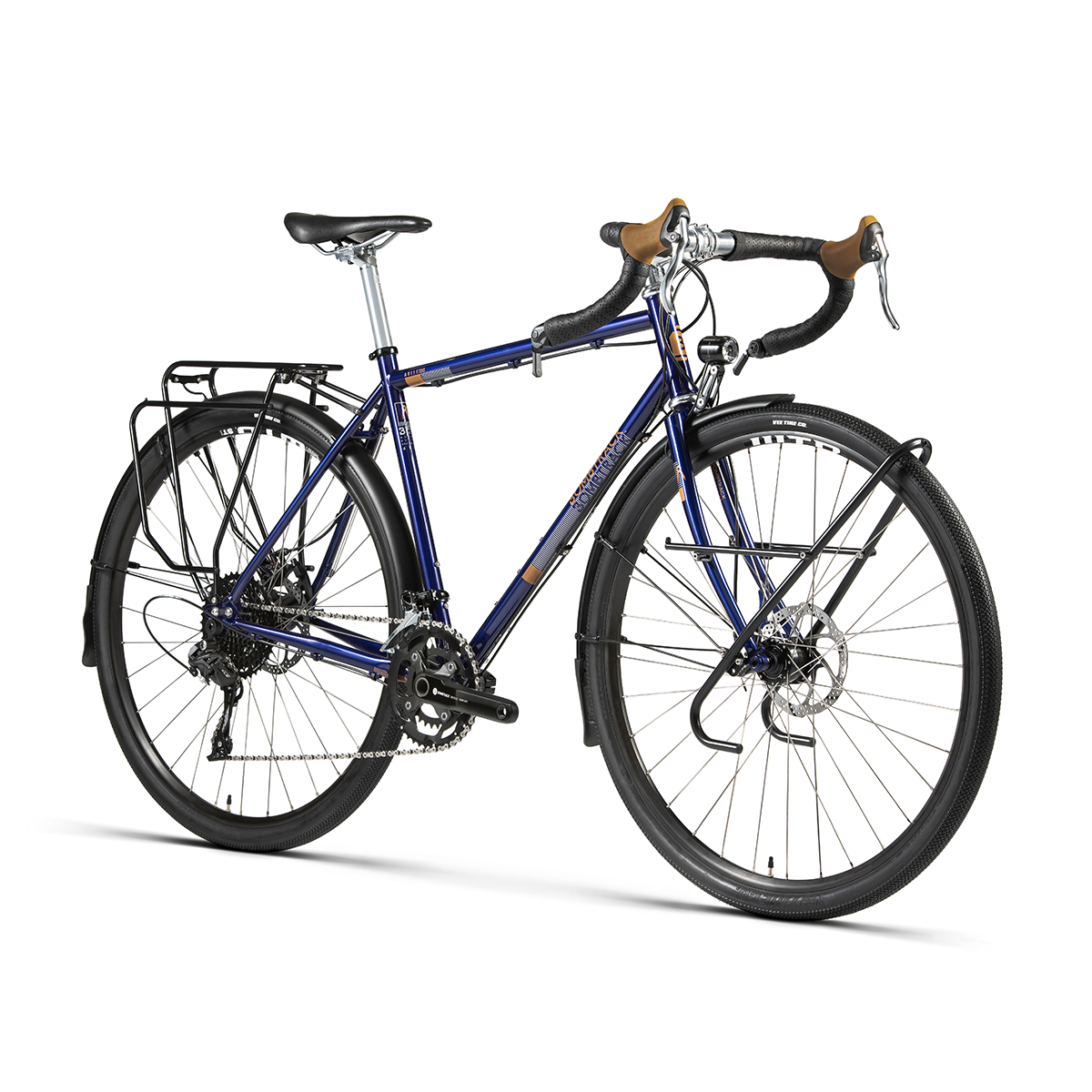

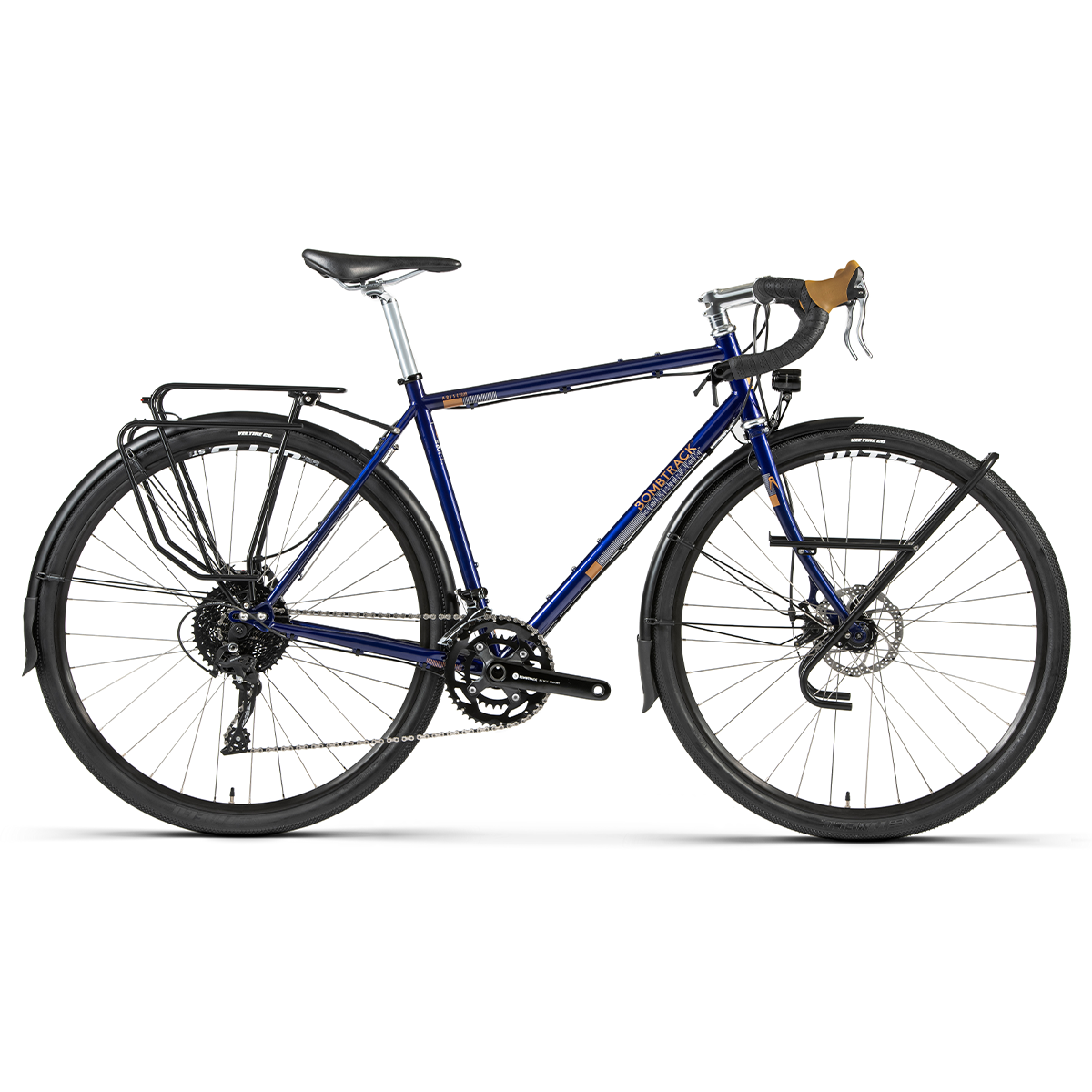

Bombtrack Arise Tour - Metallic Blue

Our adaptable and durable Arise is equipped with a wish list of touring equipment. Two Tubus luggage racks, mudguards, and Supernova dynamo lighting ensure that the Arise Tour leads directly from the bike shop into the wilderness. With our Ames crankset with 46/30 teeth and a huge 11 - 42 teeth cassette, you will never run out of gears even when transporting heavy loads. They are operated by simple bar-end shifters that outlast all alternatives and are incredibly easy to use under all conditions.

Customer Information: For safety reasons, in the interest of your physical integrity, we advise that every bike should be professionally assembled by a trained mechanic!

Equipment:
Frame: 4130 Chromoly frame
Fork: 4130 Chromoly fork
Headset: Neco H282, EC34

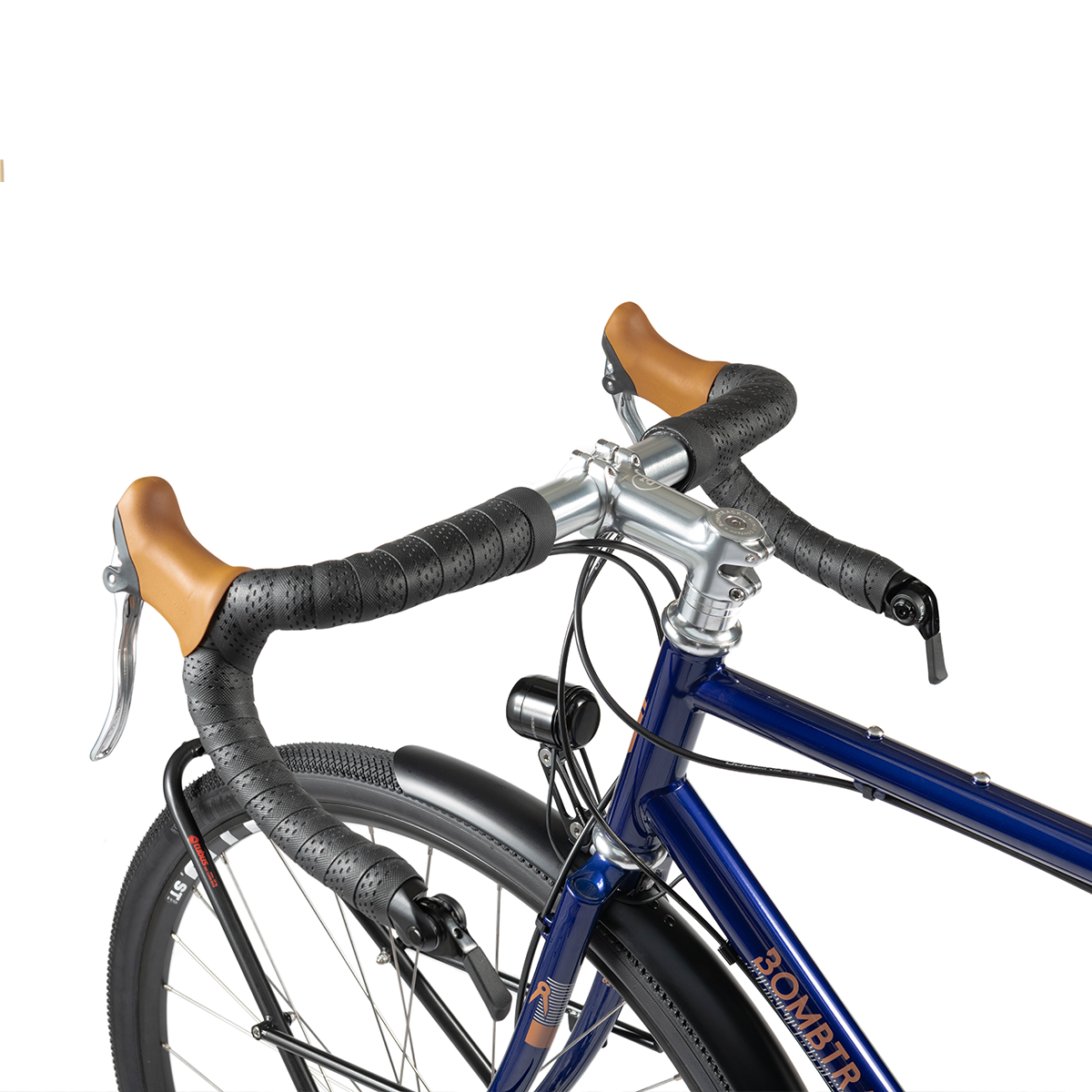

Handlebar: Bombtrack CX-10, 31.8 mm, 10° flare, width (XS/S/M 420 mm, L/XL 440 mm)
Handlebar tape: Bombtrack Escape
Stem: Bombtrack Roam, -7°, length (XS/S 80 mm, M 90 mm, L/XL 100 mm)
Saddle: Bombtrack Origin
Seatpost: Bombtrack Beech, 27.2 x 300 mm
Brake levers: Tektro RL-340
Brakes: TRP Spyre C mechanical disc brake with 160 mm discs
Shifters: Microshift BS-M10, bar-end shifters, 2 x 10-speed
Crankset: Bombtrack Ames, 46/30 teeth, length (XS 165 mm, S/M 170 mm, L/XL 175 mm)
Bottom bracket: BSA, external cups
Front derailleur: Microshift FD-R552-B
Rear derailleur: Microshift RD-M62L, long cage, 10-speed
Chain: KMC X10
Cassette: Microshift CS-H103, 11 - 42 teeth, 10-speed

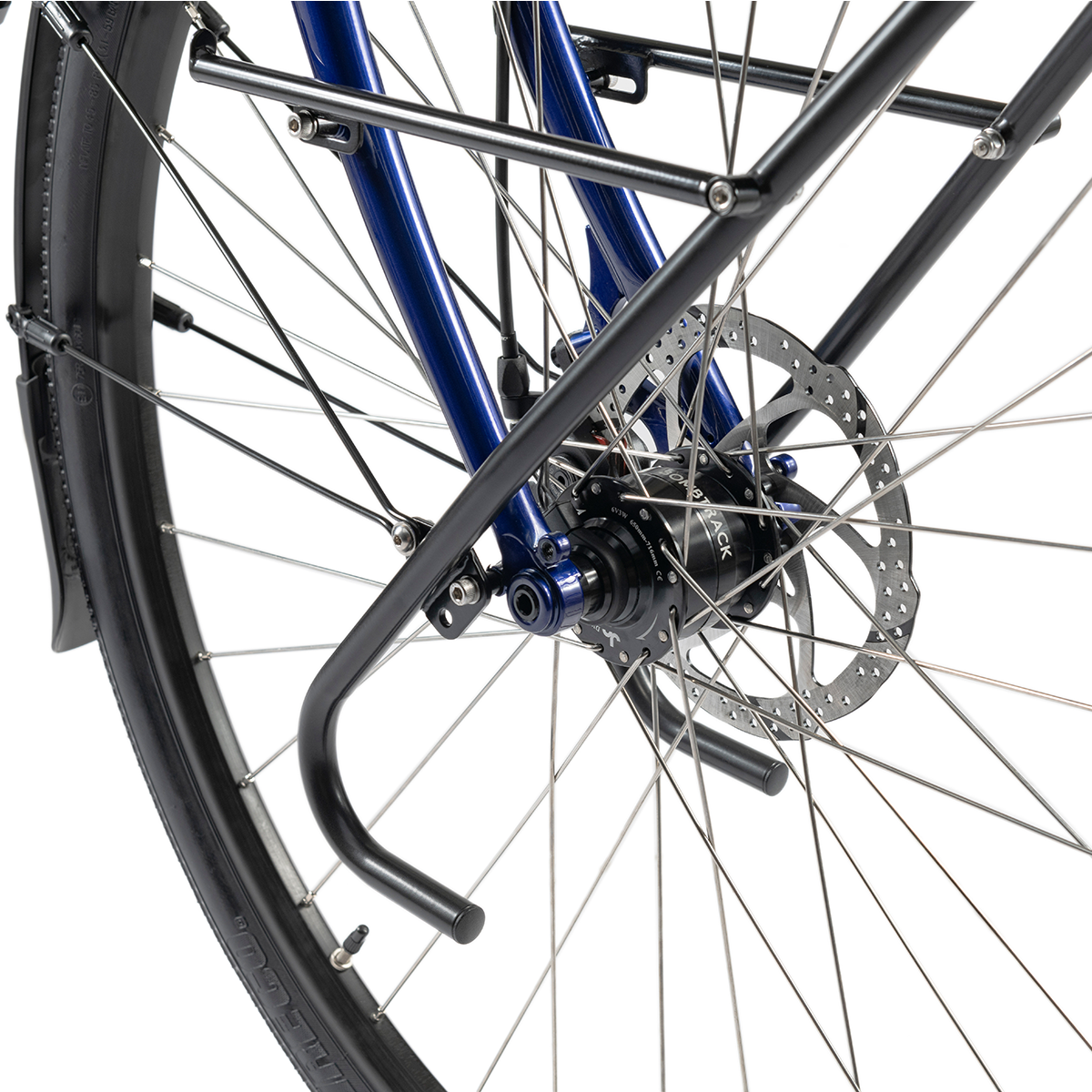

Hubs: KT hub dynamo 12 x 100 mm front, Bombtrack Arc 12 x 142 mm rear
Rims: WTB ST i19, TCS 2.0, 32 holes
Tires: Vee Speedster 38 - 584 / M - XL: Vee Speedster 40 - 622 (XS/S)
Mudguards: Bombtrack Pipe 50 mm

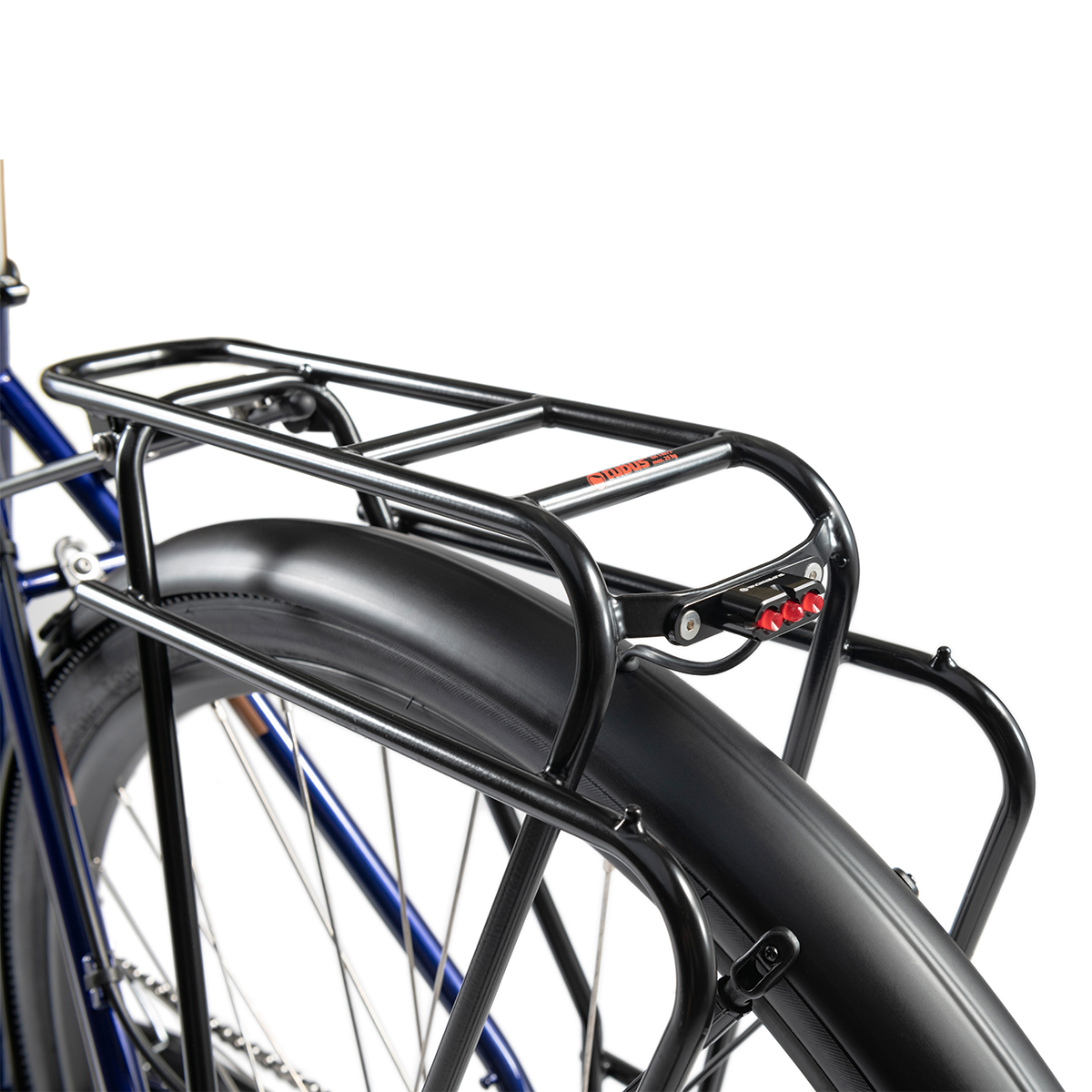

Luggage rack (front/rear): Tubus Tara, Tubus Logo Evo
Headlight: Supernova E3 Pure 3
Taillight: Supernova E3 Tail Light 2
Weight: 14.7 kg (size M)
max. rider weight: 130 kg including equipment
max. tire width: 650B x 42C, M - XL: 700C x 42C (XS/S)
max. chainring size: 44 teeth (single), 52/36 teeth (double)

* Specification may vary in details in exceptional cases, depending on the manufacturer.
