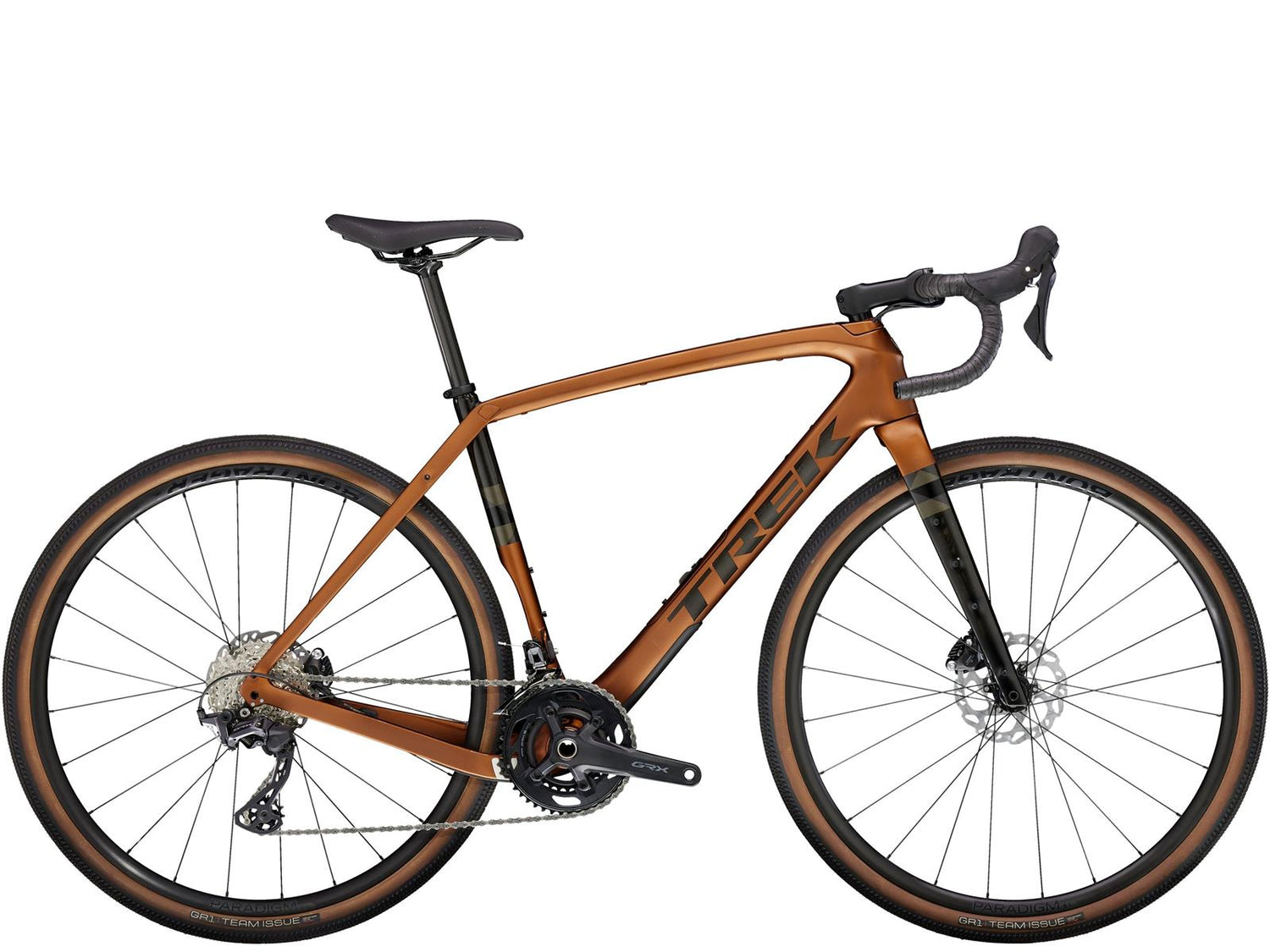

Trek Checkpoint SL 5 Matte Pennyflake

The Checkpoint SL 5 is a carbon gravel bike for epic adventures. It is made from lightweight OCLV Carbon, equipped with a Shimano GRX 2x12 drivetrain, offers plenty of comfort thanks to damped IsoSpeed, is based on a progressive, agile yet stable geometry, and comes with internal storage and numerous mounting options for accessories. All of this makes the Checkpoint a great gravel bike for your longest and toughest rides and your most ambitious bikepacking trips.

Trek offers you a frame made of 500 Series OCLV Carbon with damped IsoSpeed at the rear, Carbon Armor, and progressive geometry that is stable at high speeds and efficient on steep climbs. Furthermore, it comes with an internal storage compartment, hidden cables that don't interfere with your bags, and integrated mounting points on the frame and fork for bags, racks, and fenders. You also get a carbon fork, a Shimano GRX 2x12 drivetrain with small gears for steep climbs and deep gravel, as well as powerful Paradigm SL wheels. The frame even accommodates a dropper post so you can benefit from more space on descents.

• The robust, gravel-specific Shimano GRX 2x12 drivetrain is ready for the less traveled paths.
• Thanks to the enormous tire clearance, you can ride tires up to 45C for more traction and stability under all conditions.
• Mounting points on the frame and fork for bags, racks, and fenders allow for the transport of equipment for spontaneous day trips and extended bikepacking adventures.
• A sleek, frame-integrated storage compartment allows for the storage of tools and equipment.
• The damped IsoSpeed decoupler with controlled rebound absorbs tiring bumps and prevents a "bouncing" rear end.



Equipment:

Frame: 500 Series OCLV Carbon, IsoSpeed, internal cable routing, downtube storage, 3S chain guide, T47 bottom bracket, rack and fender mounts, integrated mounting elements for frame bag, flat mount disc brake mount, compatible with dropper post, 142 x 12 mm thru axle
Fork: Trek Checkpoint, full carbon, tapered carbon steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle
Weight: 56 - 9.65 kg / 21.28 lbs (with TLR tire sealant, without tubes)
Max. Weight: This bike has a maximum weight limit (bike, rider, and load) of 125 kg.
Shift levers: Shimano GRX RX610, 12-speed
Front derailleur: Shimano GRX RX820, braze-on, Down Swing
Rear derailleur: Shimano GRX RX820, max. 36T on largest cog
*Crank Size: 49: Shimano GRX RX610, 46/30T, 165 mm crank arm length
Size 52: Shimano GRX RX610, 46/30T, 170 mm crank arm length
Size 54, 56: Shimano GRX RX610, 46/30T, 172.5 mm crank arm length
Size 58, 61: Shimano GRX RX610, 46/30T, 175 mm crank arm length
Bottom bracket: Praxis, T47, threaded, internal bearing
Cassette: Shimano 105 7100, 11-36T, 12-speed
Chain: Shimano SLX M7100, 12-speed
Max. Chainring size: 1x: 46T, 2x: 50/37
Front wheel: Bontrager Paradigm SL, Tubeless-Ready, 21 mm internal width, 100 x 12 thru axle
Rear Wheel: Bontrager Paradigm SL, Tubeless-Ready, 21 mm internal width, 142 x 12 mm thru axle
Front Hub: Bontrager, aluminum, sealed bearing, Center Lock disc mount, 100 x 12 mm thru axle
Front Quick Release: Bontrager Switch thru axle, removable lever
Rear Hub: Bontrager, aluminum, sealed bearing, Center Lock disc mount, 11-speed freehub from Shimano, 142 x 12 mm thru axle
Rear Quick Release: Bontrager Switch thru axle, removable lever
Rim: Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm internal width, Presta valve
Tire: Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 TPI, 700 x 40C
Tire Spare Part: Bontrager TLR Sealant, 177 ml
Rim Tape: Bontrager Aeolus XXX Rim Tape
Max. Tire Size: 700 x 45 mm/650 x 2.10
*Saddle Size: 49, 52: Bontrager Verse Comp, steel rails, 155 mm width
Size 54, 56, 58, 61: Bontrager Verse Comp, steel rails, 145 mm width
Seat Post: Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length
*Handlebar Size: 49: Bontrager Elite Gravel, 38 cm width
Size 52: Bontrager Elite Gravel, 40 cm width
Size 54, 56: Bontrager Elite Gravel, 42 cm width
Size 58, 61: Bontrager Elite Gravel, 44 cm width
Handlebar Tape: Bontrager Supertack Perf Handlebar Tape
*Stem Size: 49: Bontrager Elite, 31.8 mm clamp diameter, Blendr compatible, 7 degrees, 70 mm length
Size 52, 54: Bontrager Elite, 31.8 mm clamp diameter, Blendr compatible, 7 degrees, 80 mm length
Size 56, 58: Bontrager Elite, 31.8 mm clamp diameter, Blendr compatible, 7 degrees, 90 mm length
Size 61: Bontrager Elite, 31.8 mm clamp diameter, Blendr compatible, 7 degrees, 100 mm length
Brake: Shimano RX410 hydraulic disc, flat mount
Brake Disc: Shimano RT70, Center Lock, 160 mm
Brake Disc Diameter: Max. brake disc diameter: 160 mm front & rear
Bag: Bontrager BITS Integrated Frame Bag

*Please note - the specification applies to all sizes unless otherwise noted
