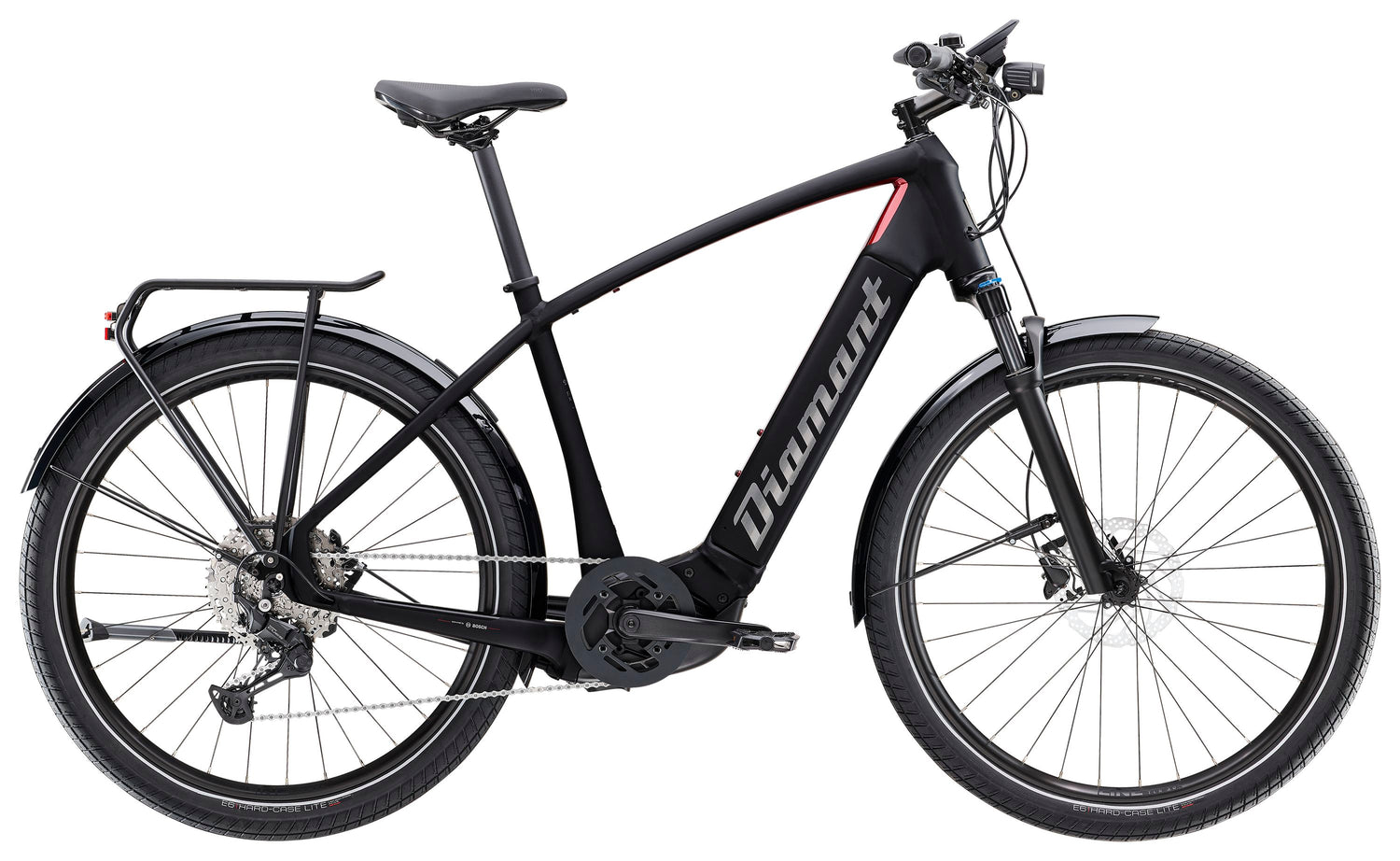

Diamant Rad Zouma (CUES) (Entry: high) - Deep Black 625Wh

Organic shapes and electric power: The Zouma combines beauty with performance. The motor and battery are designed for long distances and frequent use. You remove the battery from the side of the Zouma: it's easy, but you can still use the frame triangle for accessories.

Frame set

• Frame: High-performance hydroformed aluminium tubes, removable integrated battery (RIB), internal cable routing, Motor Armour, Post Mount disc brake mount, 135 x 5 mm quick-release axle
• Fork: SR Suntour XCR32, steel spring, adjustable spring preload

Wheels

• Front hub: Shimano QC300, Centerlock
• Rear hub: Shimano QC400, 32 holes, Centerlock, 135x5 mm quick-release
• Rim: Bontrager Line TLR 30, Tubeless Ready, 32 holes, Presta valve
• Tires: Bontrager E6 Hard-Case Lite, reflective strip, 27.5 x 2.40

E-System

• Battery: Bosch PowerTube 625 Wh, Smart System
• Charger: Bosch Standard charger 4 A, 230 V, Smart System
• Controller: Bosch Kiox 500, smart system
• Computer: Bosch LED remote, Smart System
• Motor: Bosch Performance Line CX, Smart System, magnesium motor housing, 85 Nm

Drivetrain

• Shifter: Shimano CUES U6000 with optical gear display, 10-speed
• Rear derailleur: Shimano CUES U6000 GS
• Crank:
  • Size: M: ProWheel, aluminium, 170 mm crank arm length
  • Size: L, XL: ProWheel, aluminium, 175 mm crank arm length
• Chainring: ProWheel, 40 T, Narrow/Wide, steel, with aluminium guard
• Cassette: Shimano CUES LG400, LINKGLIDE, 11-48 teeth, 10-speed
• Chain: Shimano Ultegra HG701, 11-speed
• Pedal: Bontrager City pedals

Components

• Saddle: Selle Royal Vivo Moderate Ergo
• Seat post:
  • Size: M: Bontrager aluminium, 31.6 mm, 12 mm offset, 330 mm length
  • Size: L, XL: Bontrager aluminium, 31.6 mm, 12 mm offset, 400 mm length
• Handlebar: Aluminium low riser, 31.8 mm, 25 mm rise, 11 degree bend, 690 mm width
• Grips: Bontrager Satellite Elite, aluminium clamp
• Stem:
  • Size: M: Bontrager Comp, 31.8 mm, Blendr compatible, 7 degrees, 70 mm length
  • Size: L: Bontrager Comp, 31.8 mm, Blendr compatible, 7 degrees, 90 mm length
  • Size: XL: Bontrager Elite, 31.8 mm clamp diameter, Blendr compatible, 7 degrees, 110 mm length
• Headset: Integrated FSA headset, sealed cartridge bearing, 1 1/8" top, 1.5" bottom
• Brake: Hydraulic disc brake Shimano MT200
• Brake disc:
  • Shimano RT30, Centerlock disc mount, 180 mm
  • Shimano EM300, Centerlock disc mount, 180 mm

Accessories

• Light:
  • Headlight Herrmans H-Black MR9-E, 60 Lux, LED
  • Rear light Spanninga Pimento XE
• Kickstand: Pletscher Comp Flex 18
• Carrier: MIK-compatible rear carrier made of aluminium, max. load 25 kg
• Fender:
  • SKS Plastic, front
  • SKS Plastic, rear

Weight

• Weight: L - 27.30 kg / 60.19 lbs
• Max. weight: This bike has a maximum weight limit (bike, rider, and load) of 136 kg.

* In rare cases, our manufacturers deliver bikes with modified but equivalent components.
