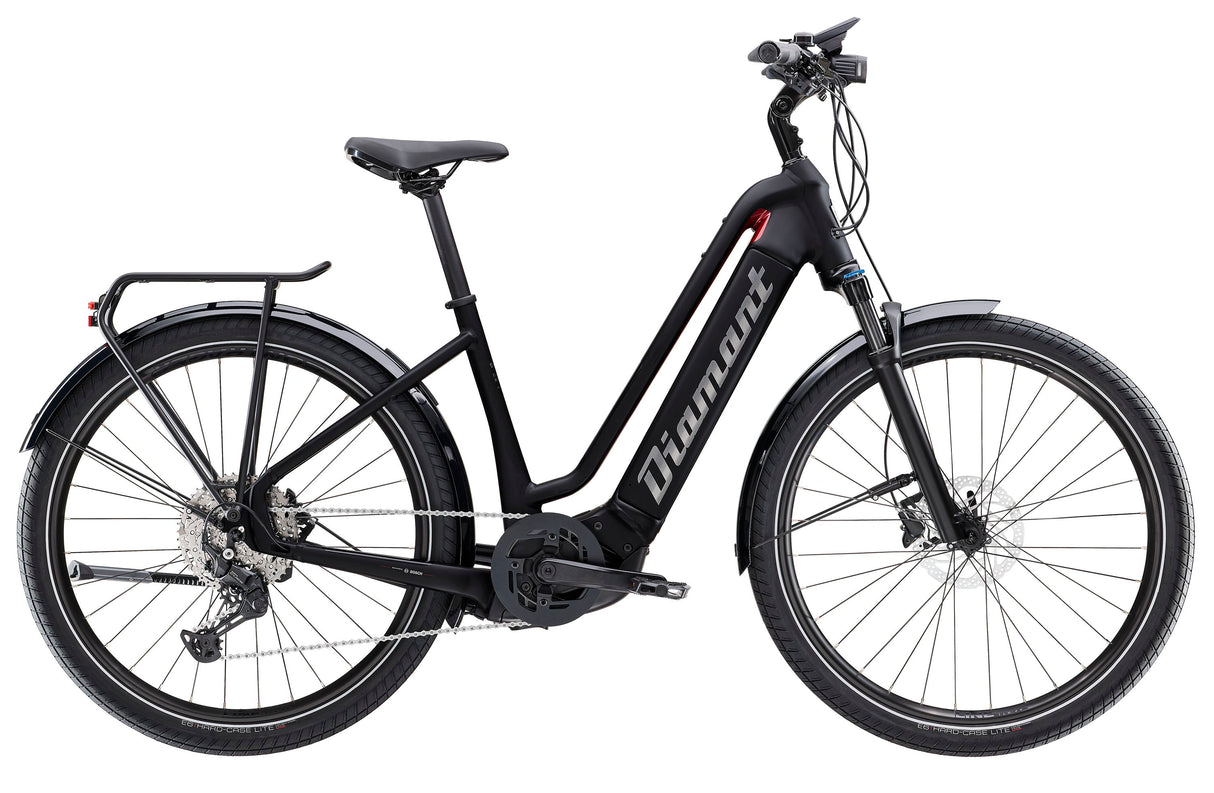

Diamant Rad Zouma (CUES) (Entry: low) - Deep Black 625Wh

Organic shapes and electric power: The Zouma combines beauty with performance. The motor and battery are designed for long distances and frequent use. You can remove the battery from the Zouma from the side: It's easy, but you can still use the frame triangle for accessories.

Frame Set

• Frame: High-performance hydroformed aluminum tubes, removable integrated battery (RIB), internal cable routing, Motor Armour, post mount disc brake mount, 135 x 5 mm quick-release axle
• Fork: SR Suntour XCR32, steel spring, adjustable preload

Wheels

• Front Hub: Shimano QC300, Centerlock
• Rear Hub: Shimano QC400, 32 hole, Centerlock, 135x5 mm quick release
• Rim: Bontrager Line TLR 30, Tubeless Ready, 32-hole, Presta valve
• Tire: Bontrager E6 Hard-Case Lite, reflective stripe, 27.5 x 2.40

E-System

• Battery: Bosch PowerTube 625 Wh, Smart System
• Charger: Bosch Standard charger 4 A, 230 V, Smart System
• Controller: Bosch Kiox 500, smart system
• Computer: Bosch LED-Remote, Smart System
• Motor: Bosch Performance Line CX, Smart System, magnesium motor housing, 85 Nm

Drive

• Shifter: Shimano CUES U6000 with optical gear display, 10-speed
• Derailleur: Shimano CUES U6000 GS
• Crank:
  • Size: S, M: ProWheel, aluminum, 170 mm crank arm length
  • Size: L: ProWheel, aluminum, 175 mm crank arm length
• Chainring: ProWheel, 40 T., Narrow/Wide, steel, with aluminum guard
• Cassette: Shimano CUES LG400, LINKGLIDE, 11-48 teeth, 10-speed
• Chain: Shimano Ultegra HG701, 11-speed
• Pedal: Bontrager City Pedals

Components

• Saddle: Selle Royal Vivo Moderate Ergo with Royalgel
• Seatpost:
  • Size: S, M: Bontrager aluminum, 31.6 mm, 12 mm offset, 330 mm length
  • Size: L: Bontrager aluminum, 31.6 mm, 12 mm offset, 400 mm length
• Handlebar: Aluminum lowriser, 31.8 mm, 25 mm rise, 11-degree sweep, 660 mm width
• Grips: Bontrager Satellite Elite, aluminum clamp
• Stem: Bontrager aluminum, 31.8 mm, adjustable, Blendr compatible
• Headset: Integrated FSA headset, sealed cartridge bearing, 1 1/8" top, 1.5" bottom
• Brake: Hydraulic disc brake Shimano MT200
• Brake Disc:
  • Shimano RT30, Centerlock disc mount, 180 mm
  • Shimano EM300, Centerlock disc mount, 180 mm

Accessories

• Light:
  • Headlight Herrmans H-Black MR9-E, 60 Lux, LED
  • Taillight Spanninga Pimento XE
• Kickstand: Pletscher Comp Flex 18
• Rack: MIK-compatible rear rack made of aluminum, max. Load capacity 25 kg
• Mudguard:
  • SKS Plastic, front
  • SKS Plastic, rear

Weight

• Weight: M - 26.90 kg / 59.31 lbs
• Max. Weight: This bike has a maximum weight limit (bike, rider, and load) of 136 kg.

* Specification may vary in details in exceptional cases due to the manufacturer.
