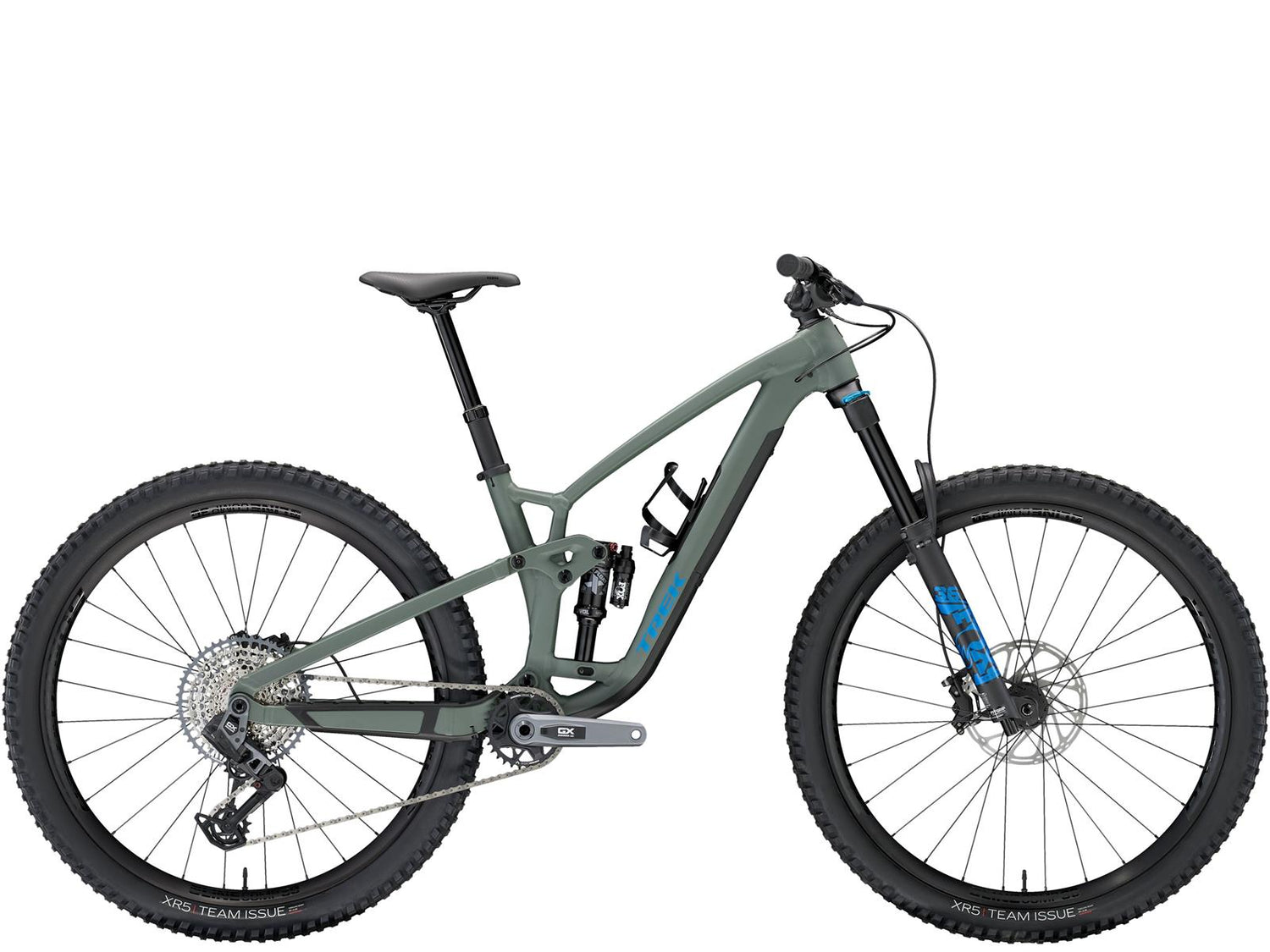

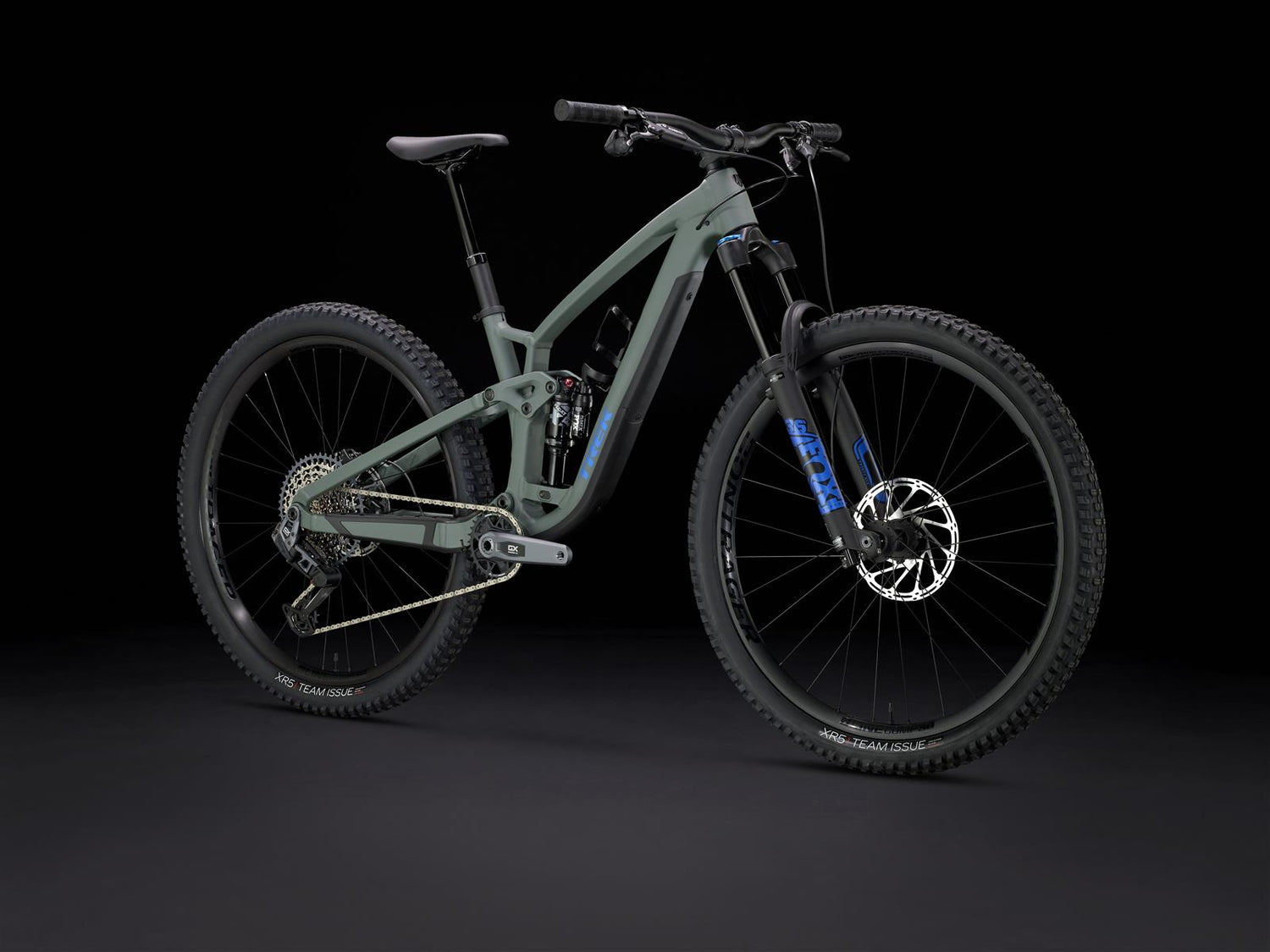

Trek Fuel EX 8 GX AXS Matte Keswick

The Fuel EX 8 GX AXS is an advanced trail bike for those who not only plunge down wild descents but also ride back up to experience the thrill all over again. The lightweight aluminum frame is equipped with a wireless, electronic, precisely shifting SRAM GX Eagle 12-speed drivetrain and a smooth FOX Rhythm fork with 150 mm of travel. With the integrated storage compartment in the frame and adjustable geometry, you benefit from all the advantages of the carbon model without having to dig too deep into your pocket.

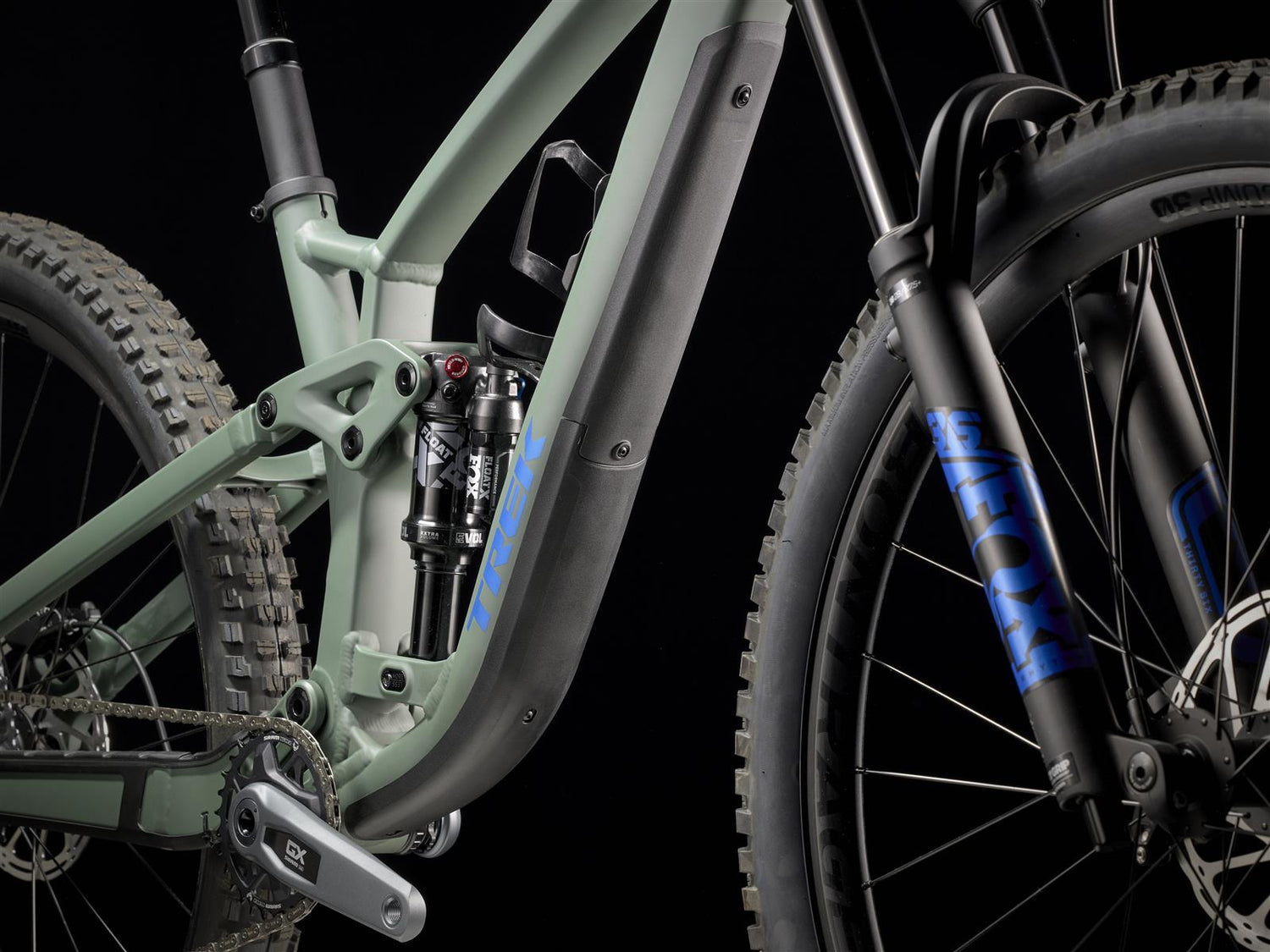

Trek offers you a lightweight and stiff aluminum frame, a FOX Rhythm fork with 150 mm of travel, Float EVOL air spring, and GRIP damping for optimized performance on smaller bumps, as well as a FOX Performance Float X rear shock. You also get SRAM's innovative wireless and precisely shifting GX Eagle AXS 12-speed drivetrain and reliable tubeless-ready wheels from Bontrager. And thanks to the adjustable geometry, you always have full control over your setup.

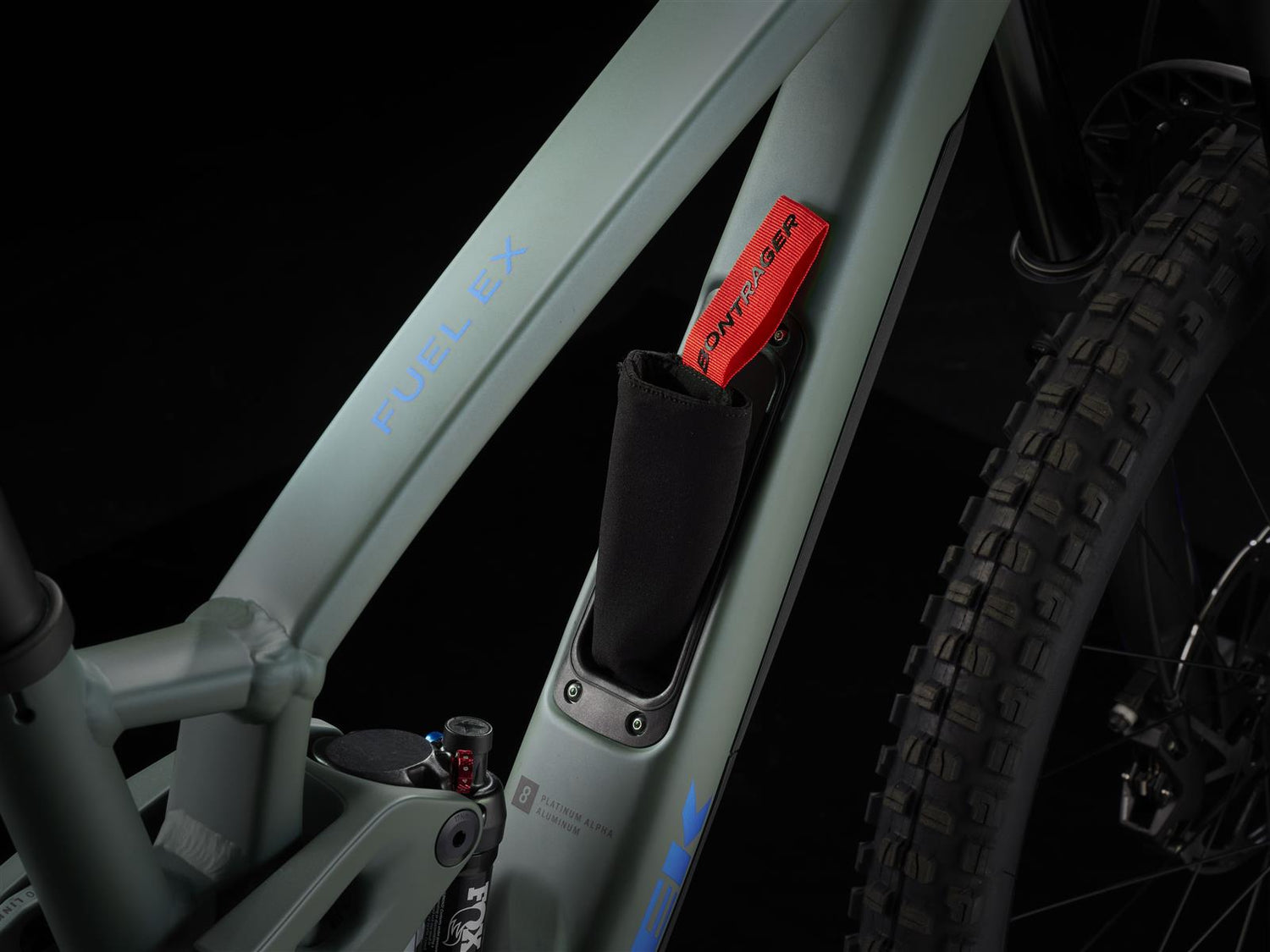

• The Fuel EX Gen 6 features 150 mm front and 140 mm rear travel, plenty of adjustment options, and stable handling, and scores with a more robust frame with internal storage.
• With SRAM's latest wireless, electronic GX Eagle AXS drivetrain, you get high-quality components that make a noticeable difference on the trail.
• Thanks to the adjustable headset (angled headset cups are available separately) and Mino Link, six different geometry configurations are possible.
• Thanks to the dropper post, you can lower the saddle while riding so it doesn't get in the way on descents.
• Thanks to our extended size range, all riders benefit from a better fit. Additionally, each frame size gets the best-fitting wheel size: XS frames roll on 27.5" wheels, size S frames can choose between 27.5" or 29" wheels, and frames from size M get 29" wheels.


Equipment:

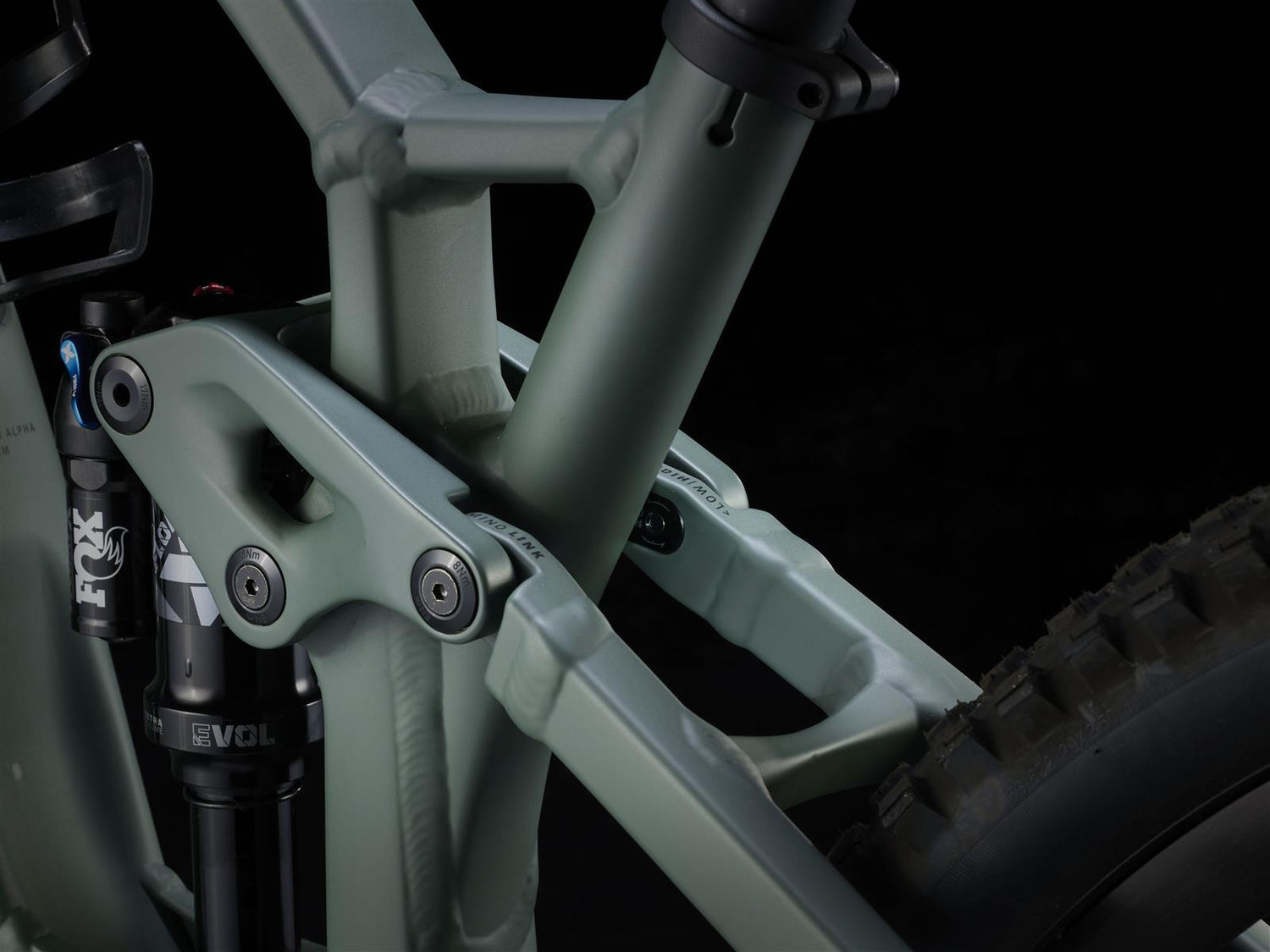

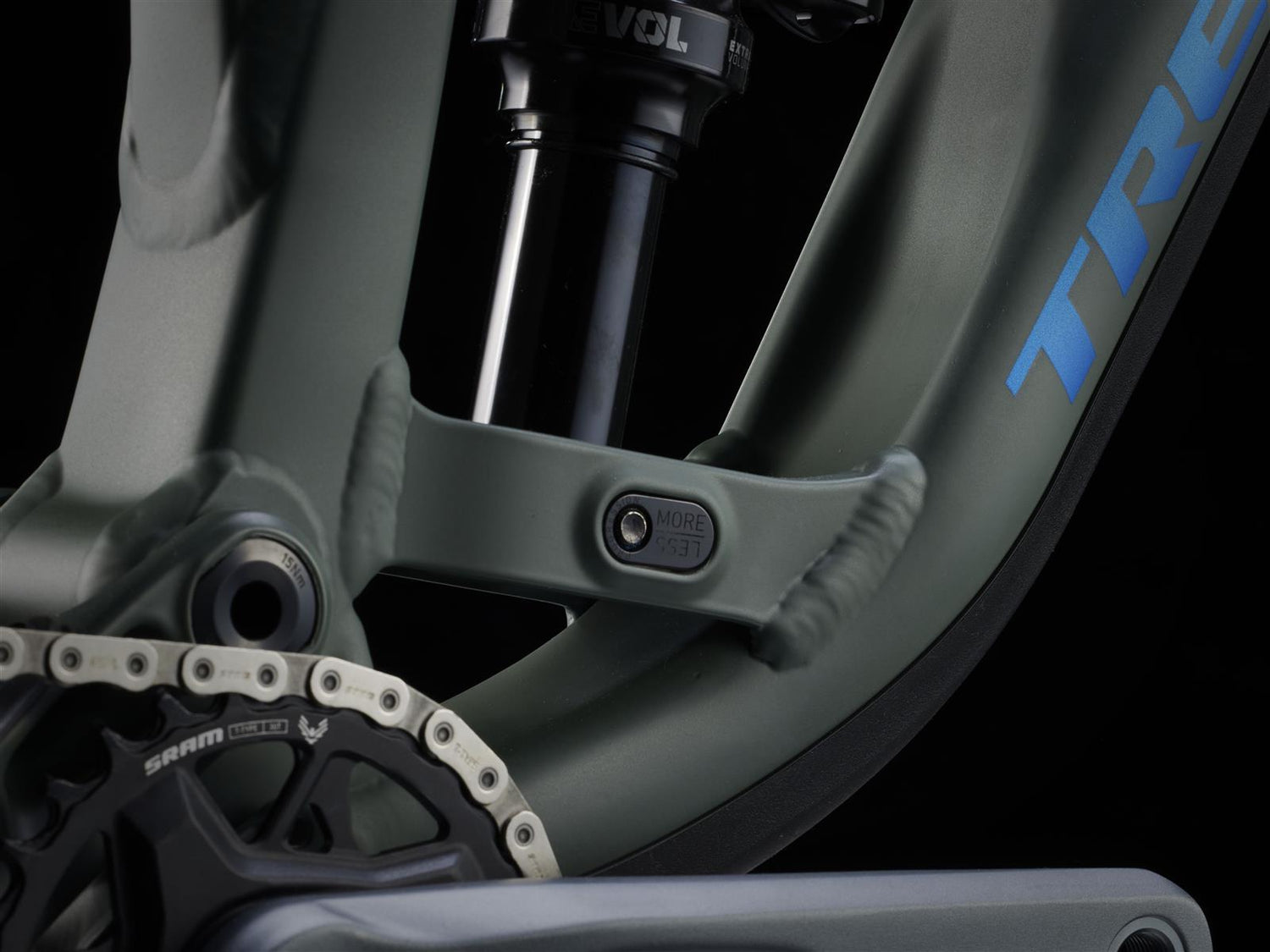

Frame: Alpha Platinum Aluminum, integrated storage compartment, adjustable headset angle, geometry adjustable via Mino Link, adjustable progression, guided internal cable routing, magnesium rocker link, seat tube diameter 34.9 mm, ISCG 05, 55 mm chainline, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140 mm travel
*Fork Size: S (27.5 inches): FOX Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 140 mm travel
Size S, M, ML, L, XL, XXL: FOX Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 150 mm travel

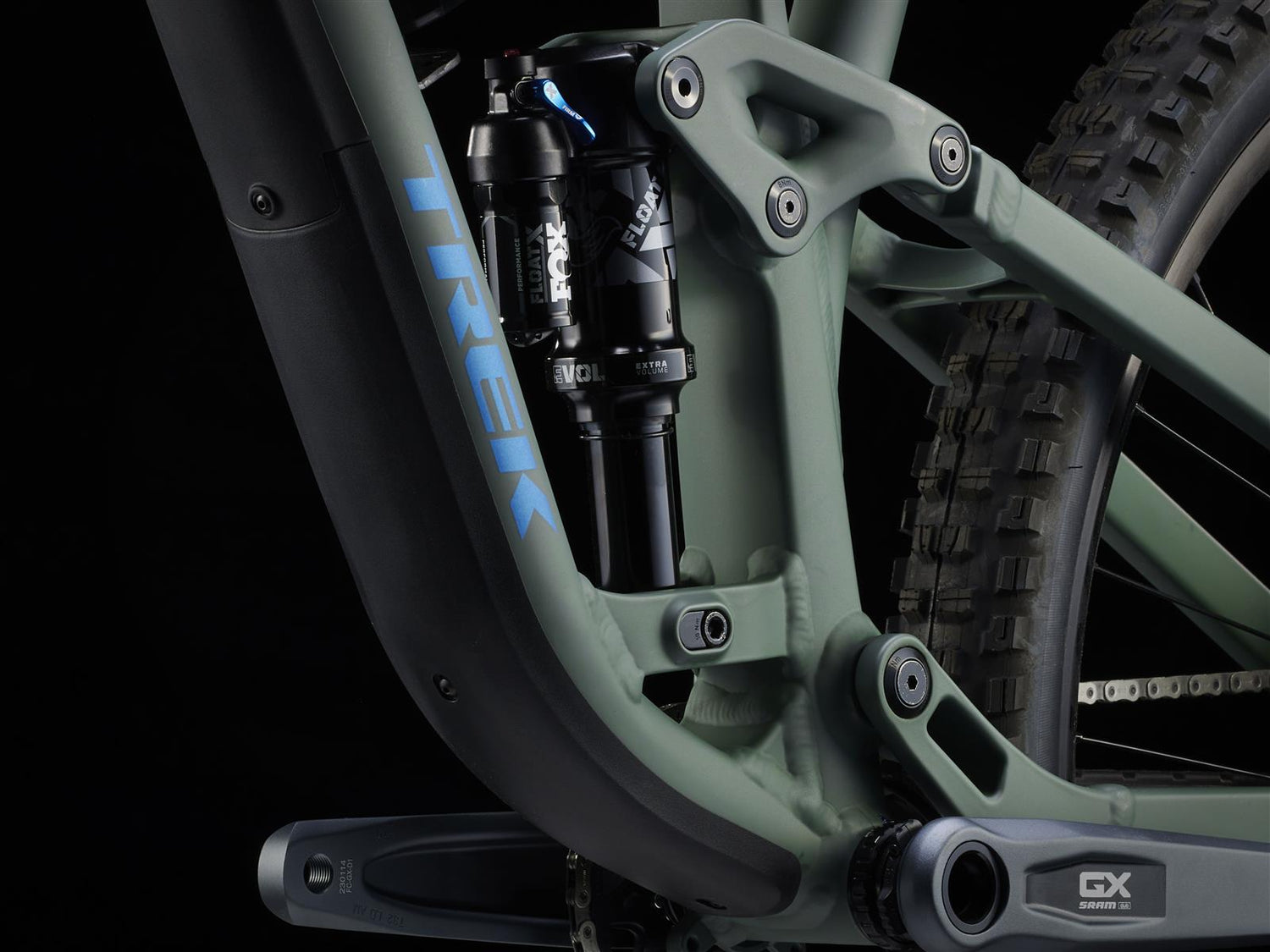

Shock: FOX Performance Float X, 2-position damping, 185 x 55 mm
Max. compatible fork travel: 160mm

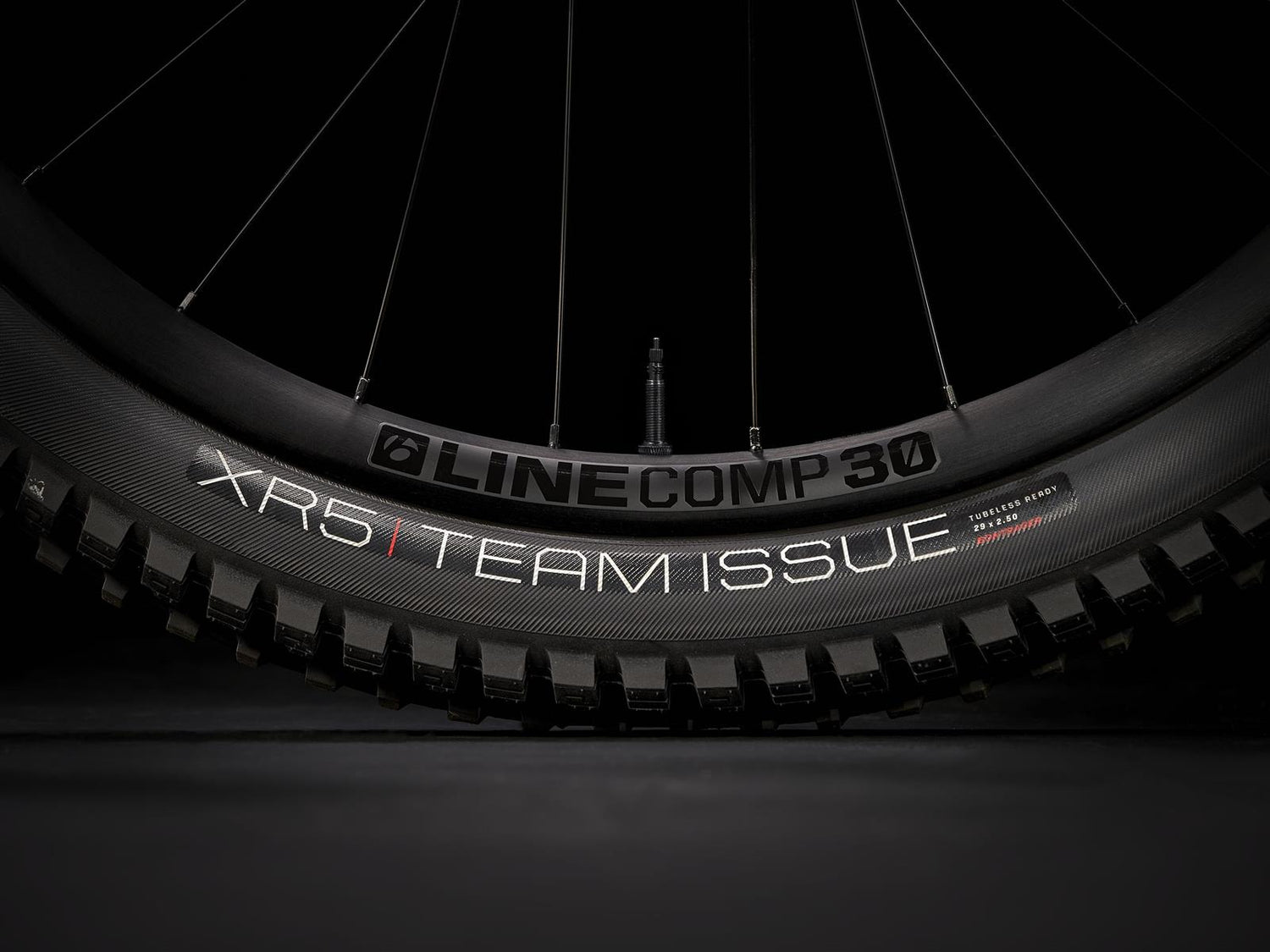

Front Wheel: Bontrager Line Comp 30, Tubeless Ready, 6-bolt disc mount, Boost110, 15 mm thru axle
Rear Wheel: Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt disc mount, Boost148, 12 mm thru axle
*Tire Size: S (27.5 inches): Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, Aramid bead core, 60 TPI, 27.5 x 2.50
Size S, M, ML, L, XL, XXL: Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, Aramid bead core, 60 TPI, 29 x 2.50
Tire Spare Part: Bontrager TLR Sealant, 177 ml
Sealant: Bontrager TLR Sealant, 177 ml
Max. Tire Size: Frame: 29 x 2.50" (XS & S: 27.5 x 2.50"), Fork: See Manufacturer
Shift Lever: SRAM Eagle AXS POD

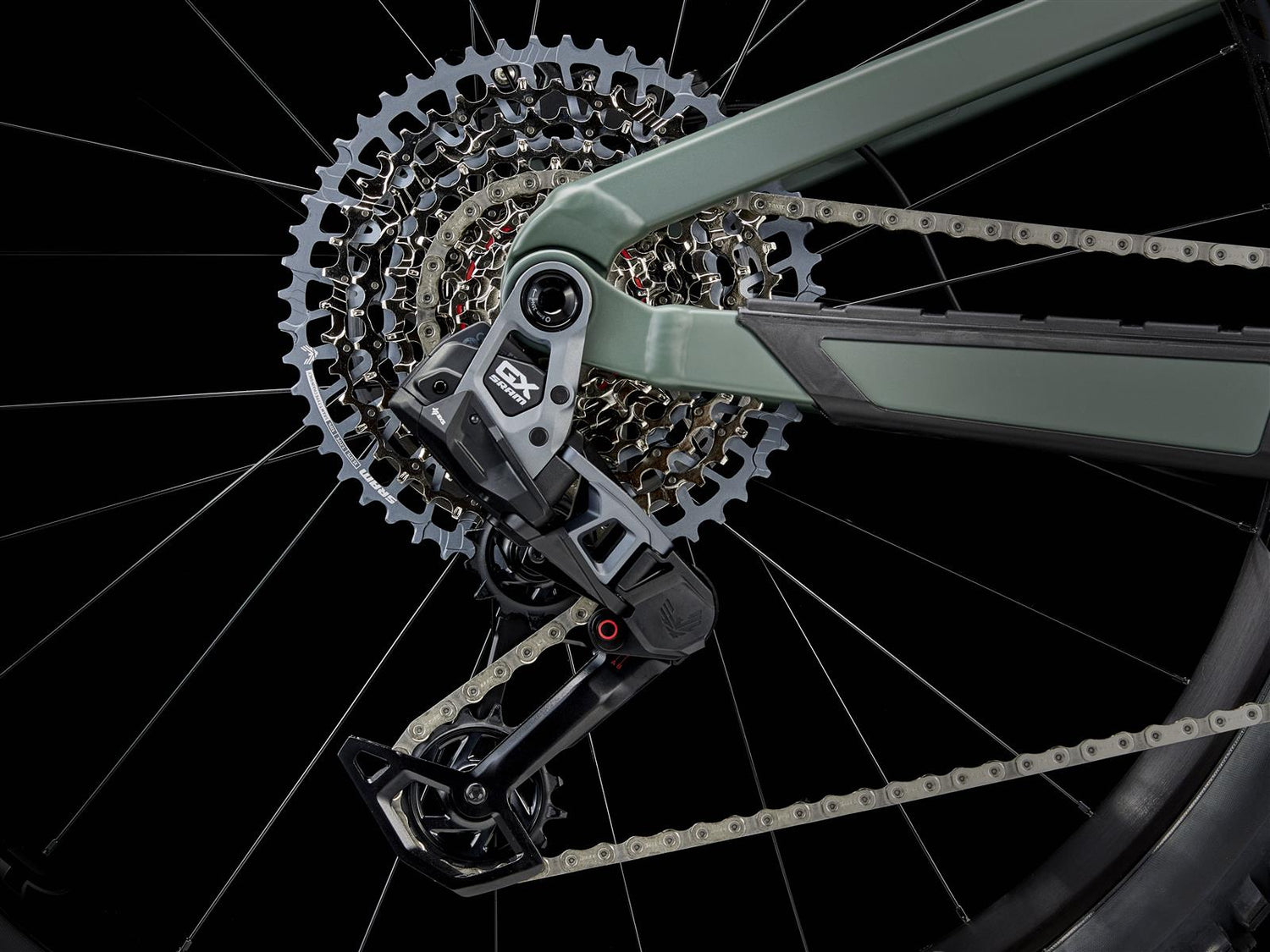

Derailleur: SRAM GX Eagle AXS, T-Type
Crank: SRAM GX Eagle, T-Type, DUB, 30 T, 55 mm chainline, 170 mm crank arm length
Bottom Bracket: SRAM DUB MTB Wide, 73 mm, BSA thread
Cassette: SRAM Eagle XS-1275, T-Type, 10-52 T, 12-speed
Chain: SRAM GX Eagle, T-Type, 12-speed
Max. Chainring Size: 1x: 34 teeth, oval - 32 teeth, min.: 28 teeth
Saddle: Bontrager Arvada, rails made of CrMo tube, 138 mm width
*Seatpost Size: S: TranzX JD-YSP39, 100 mm travel, internal cable routing, 34.9 mm
Size M, ML: TranzX JD-YSP39, 150 mm travel, internal cable routing, 34.9 mm
Size L, XL, XXL: TranzX JD-YSP39, 170 mm travel, internal cable routing, 34.9 mm
*Handlebar Size: S: Bontrager Line, Aluminum, 35 mm, 27.5 mm rise, 750 mm width
Size M, ML, L, XL, XXL: Bontrager Line, Aluminum, 35 mm, 27.5 mm rise, 780 mm width
Grips: Bontrager XR Trail Elite, nylon clamp
*Stem Size: S: Bontrager Elite, 35 mm, 0 degree, 35 mm length
Size M, ML, L, XL, XXL: Bontrager Elite, 35 mm, 0 degree, 45 mm length

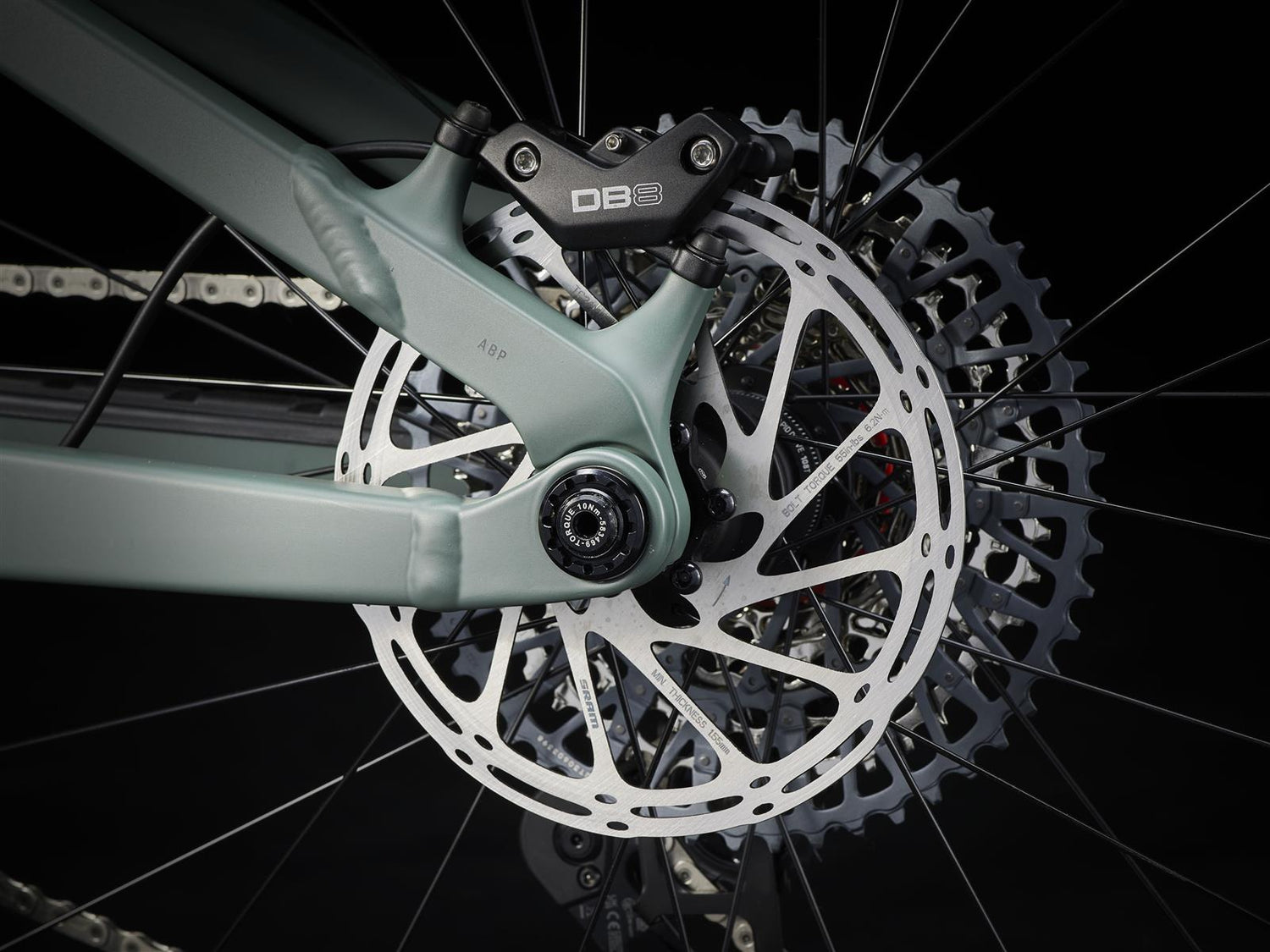

Brake: Hydraulic 4-piston disc brake SRAM DB 8
*Brake Disc Size: S, M, ML, L, XL, XXL: SRAM CenterLine, 6-bolt disc mount, rounded edge, 180 mm
Size S, M, ML, L, XL, XXL: SRAM CenterLine, 6-bolt disc mount, rounded edge, 200 mm
Brake Disc Diameter: Max. brake disc diameter - Frame: 203mm, Fork: see fork manufacturer
Battery: SRAM eTap battery pack (with charger)
Weight: M - 15.70 kg / 34.62 lbs (with TLR tire sealant, without tubes)
Max. Weight: This bicycle has a maximum weight limit (bicycle, rider, and load) of 136 kg.

*Please note - the specification applies to all sizes unless otherwise listed
