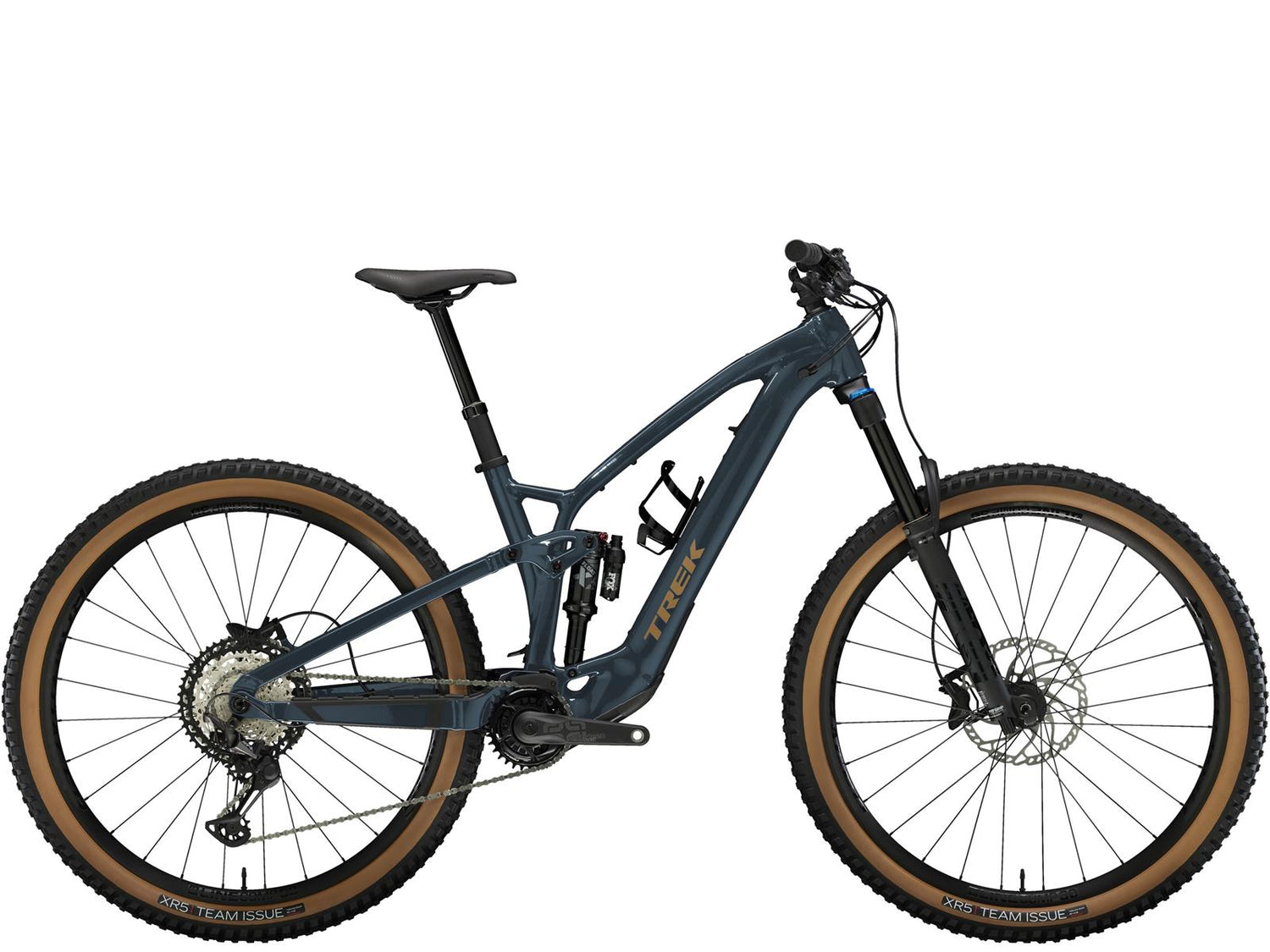

Trek Fuel EXe 8 XT Nautical Navy

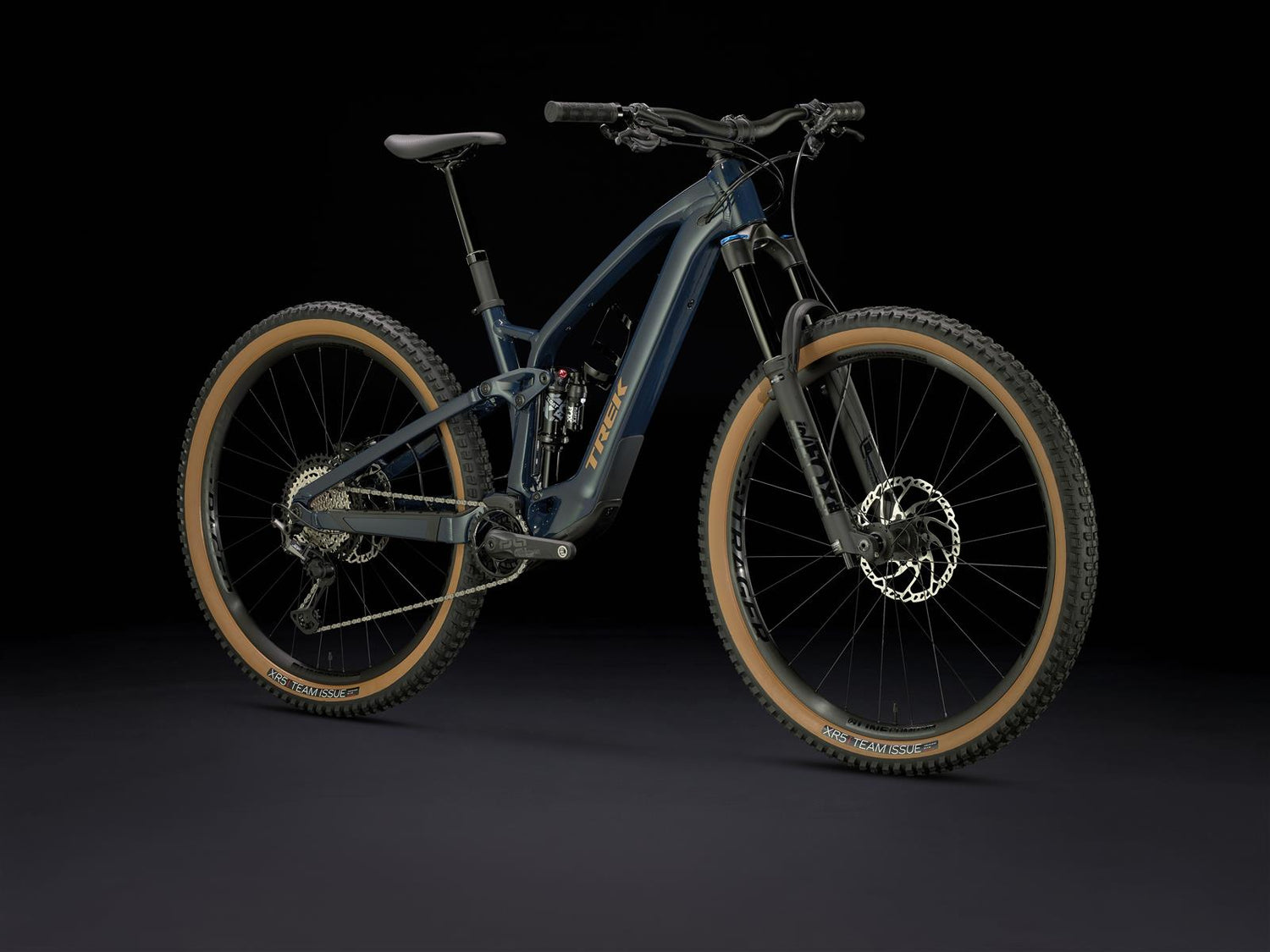

The Fuel EXe 8 is a trail-capable e-mountain bike with an aluminum frame that quietly assists you on climbs so you still have enough energy for the downhill. Just like its carbon siblings, the look and handling are reminiscent of non-assisted trail bikes – but with the support of a small but powerful Harmonic Pin-Ring drive, complete with an elegant top tube display and compact handlebar remote. Additionally, it comes with high-quality, trail-specific equipment, such as a FOX suspension, wide Bontrager Line Comp Tubeless-Ready wheels, and a Shimano XT 12-speed drivetrain.

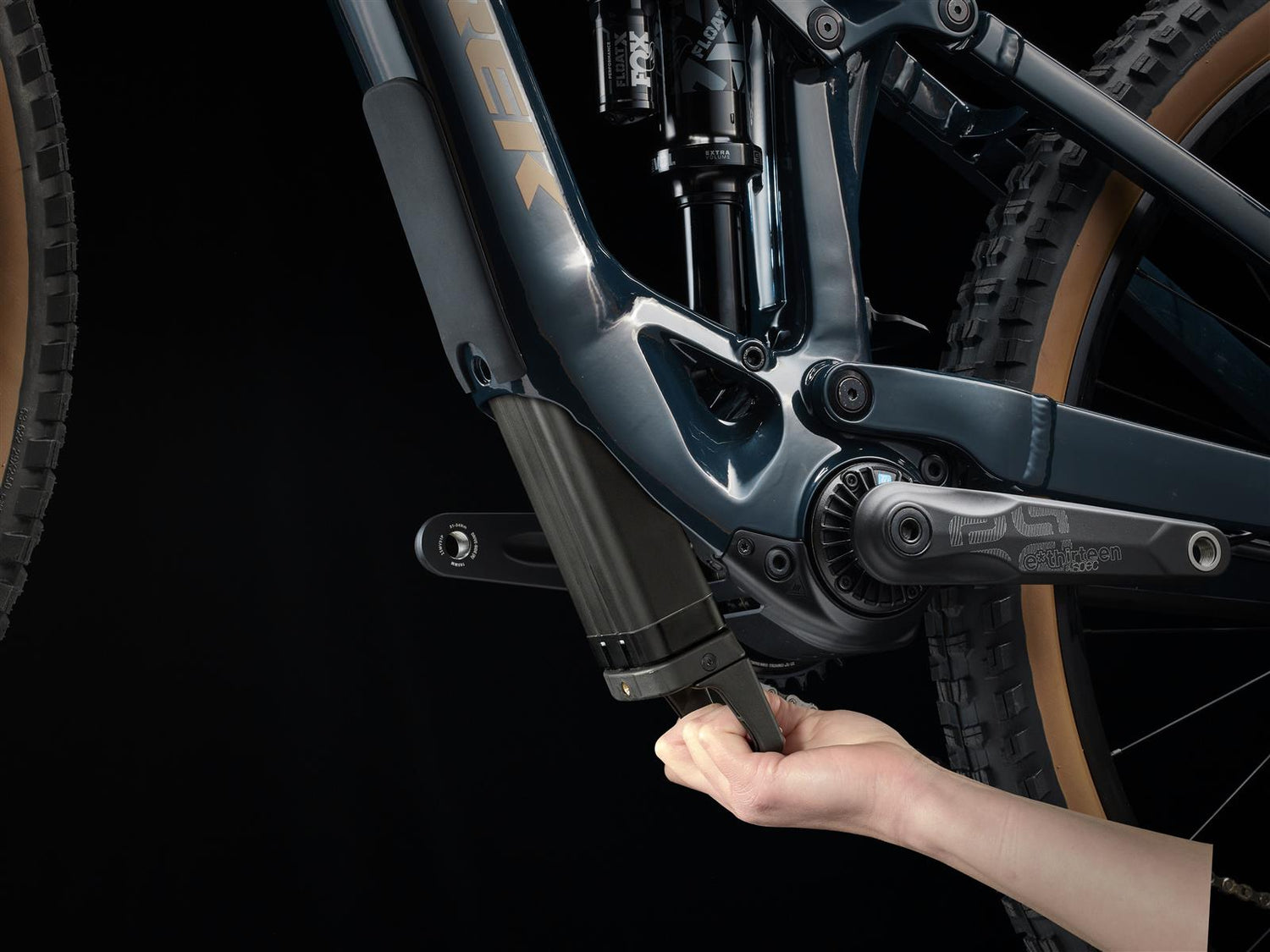

Trek offers you a frame made from Alpha Platinum Aluminum with a TQ HPR50 Harmonic Pin-Ring gearbox with a fully integrated, removable 360-Wh battery with a smart charging port. At the same time, an integrated LED display and a handlebar-mounted remote control ensure intuitive user-friendliness, while a FOX Rhythm 36 fork with 150 mm travel, Float EVOL air suspension, and GRIP damping, and a FOX Performance Float X rear shock with 140 mm travel form a high-performance suspension system. Wide Bontrager Line Comp 30 Tubeless-Ready wheels, a Shimano XT 12-speed drivetrain, hydraulic disc brakes, and a dropper post complete the high-quality equipment.

• You get the technology of our light-assist top models without the sometimes hard-to-digest price for carbon.
• Its higher-quality FOX suspension smooths out all trails, while the Shimano XT 12-speed drivetrain guarantees clean gear changes even under load.
• Its compact yet powerful TQ motor is perfectly tuned to the trail, providing a particularly quiet and natural power delivery for an uninterrupted riding experience.

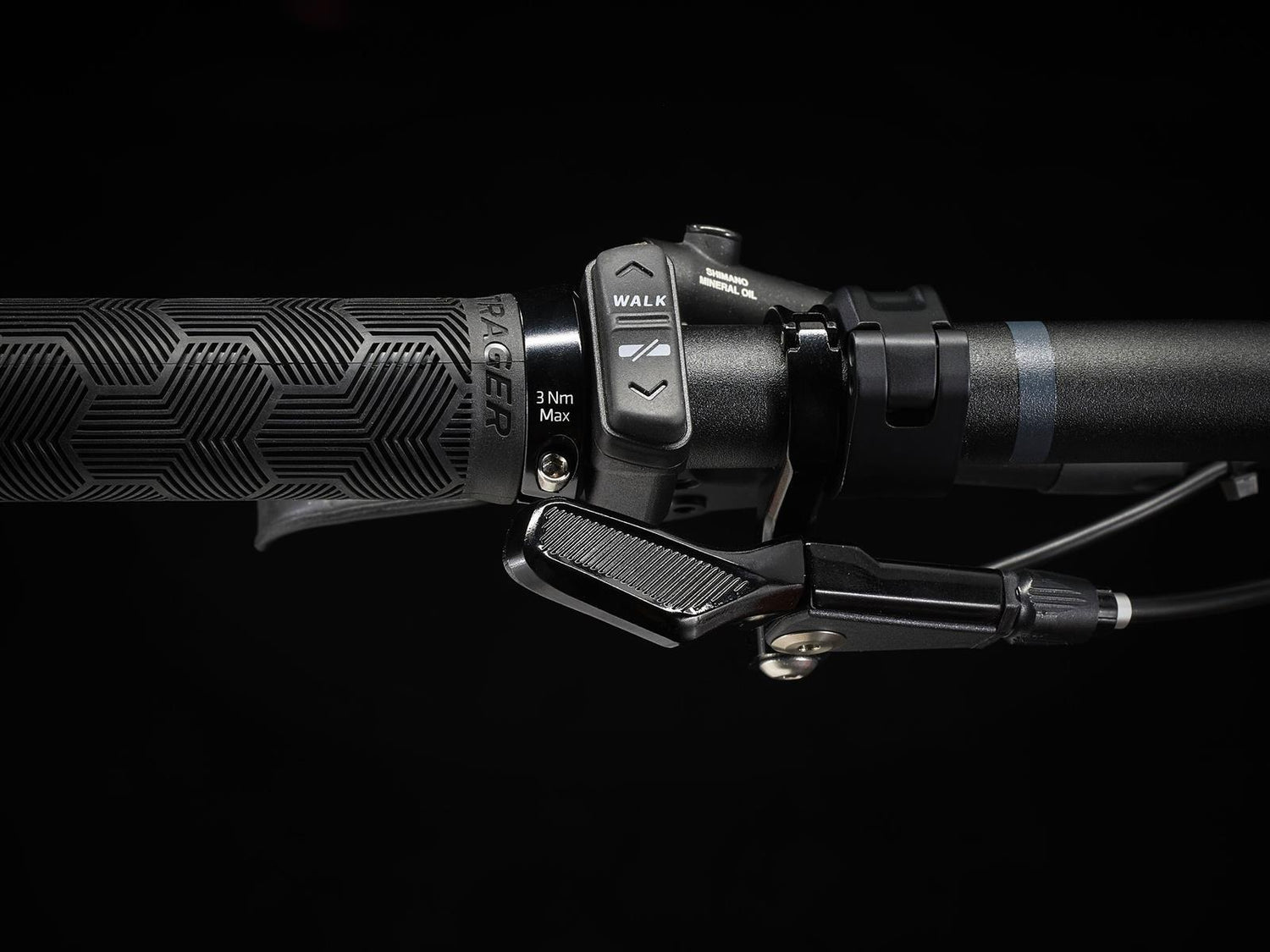

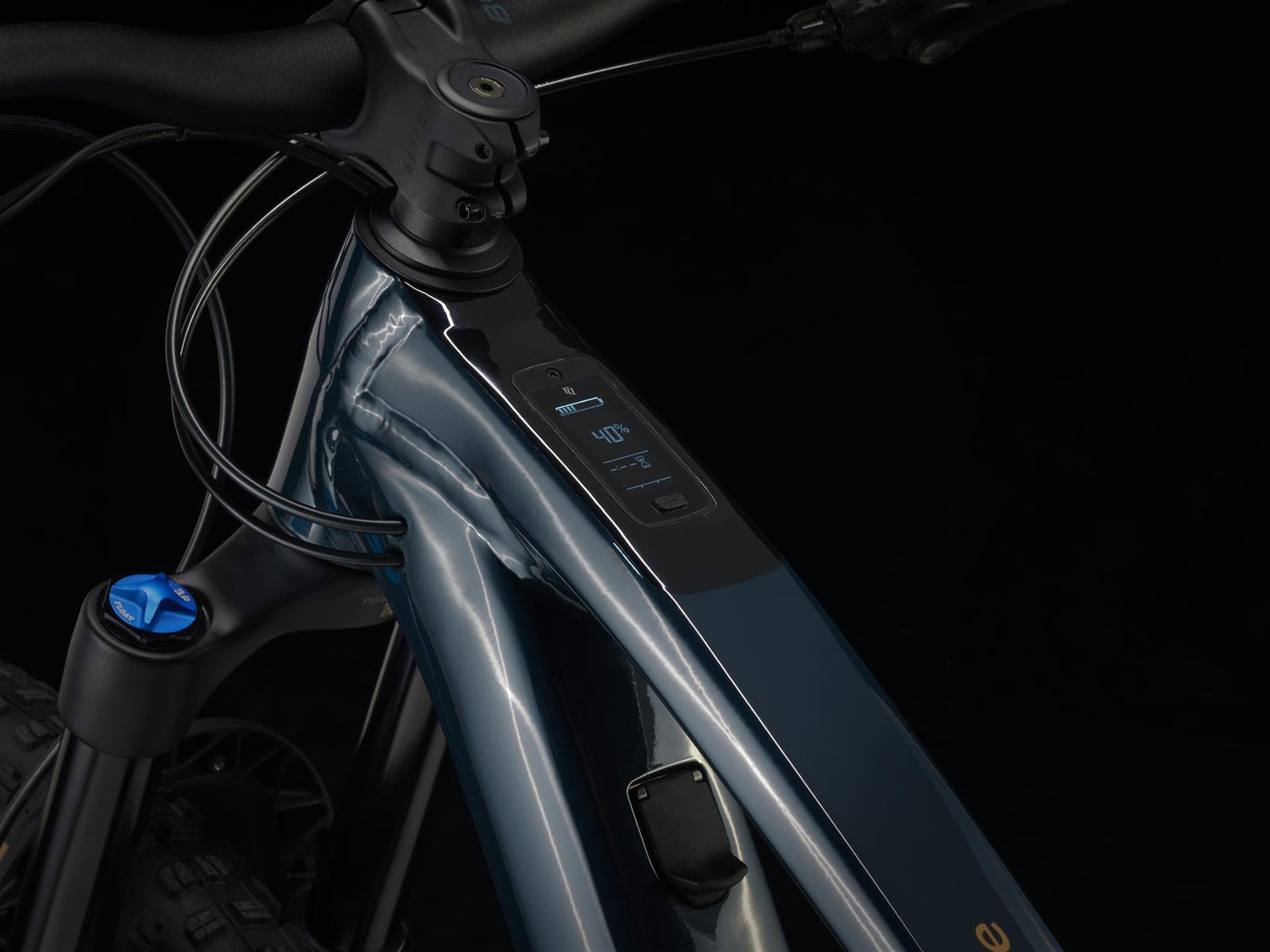

• The elegantly integrated display, smart charging port, and intuitive controls are extremely user-friendly and contribute to the sleek Look of the bike.

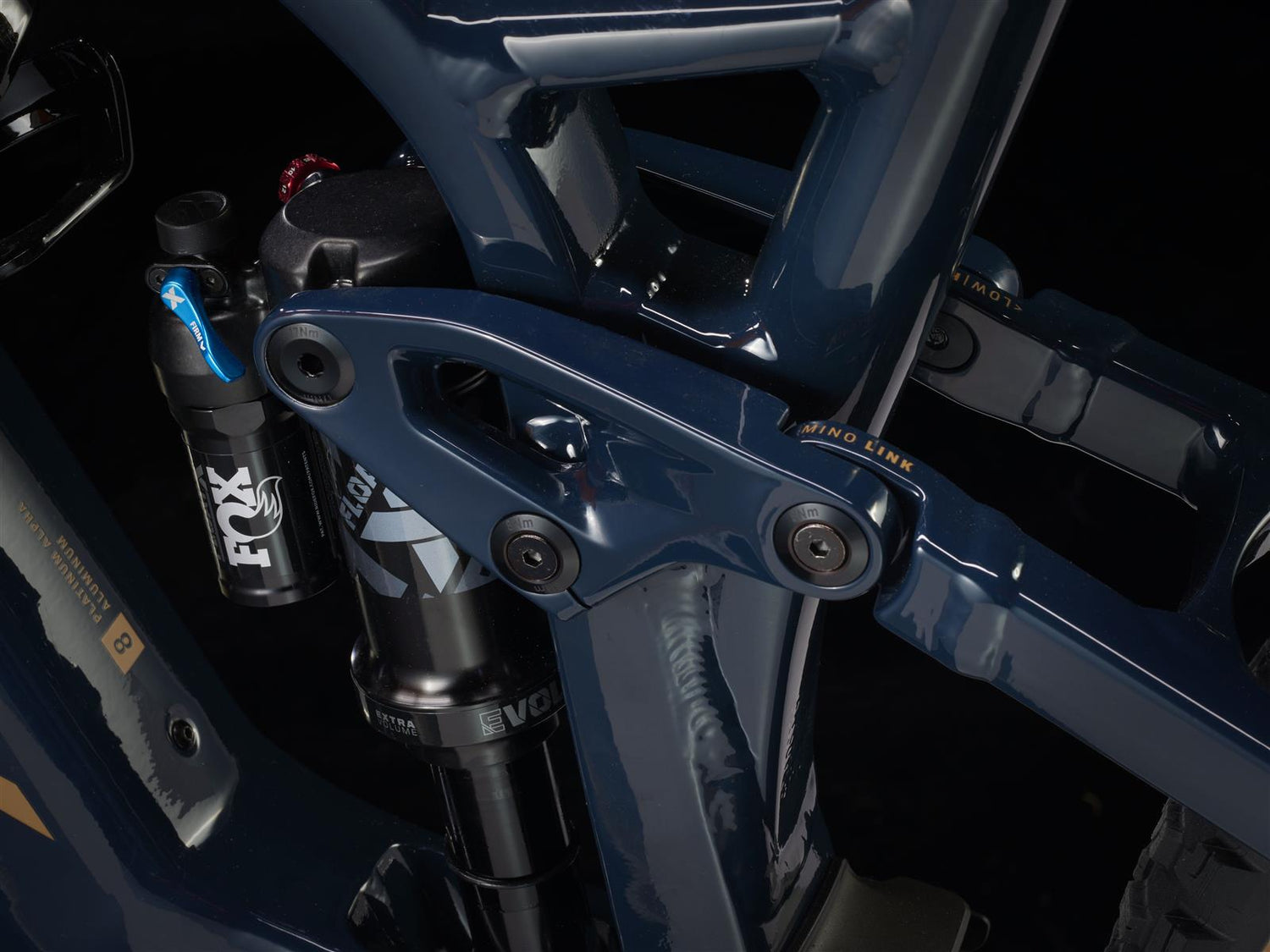

• Customize the bike even more to your liking with Mino Link and an optionally available headset with adjustable angle.


Equipment:

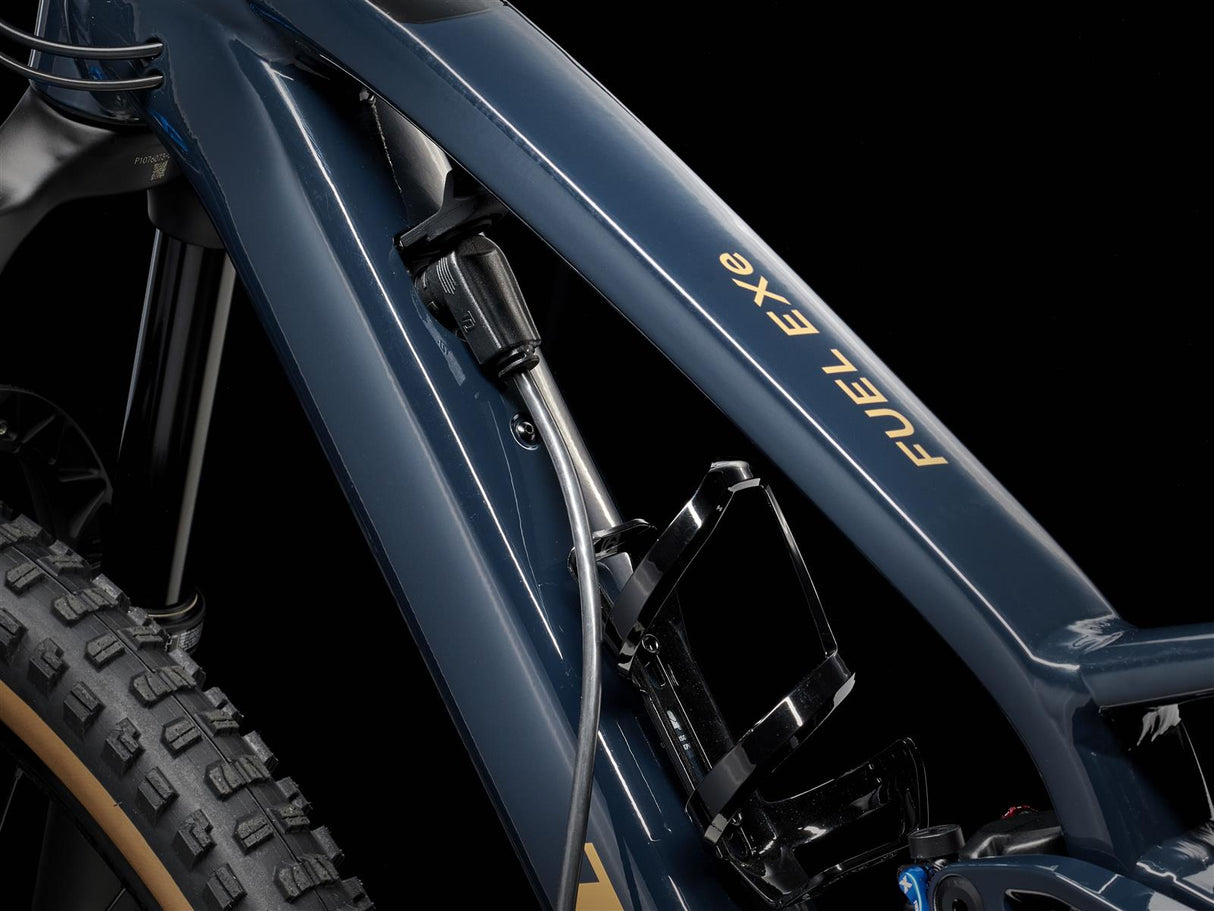

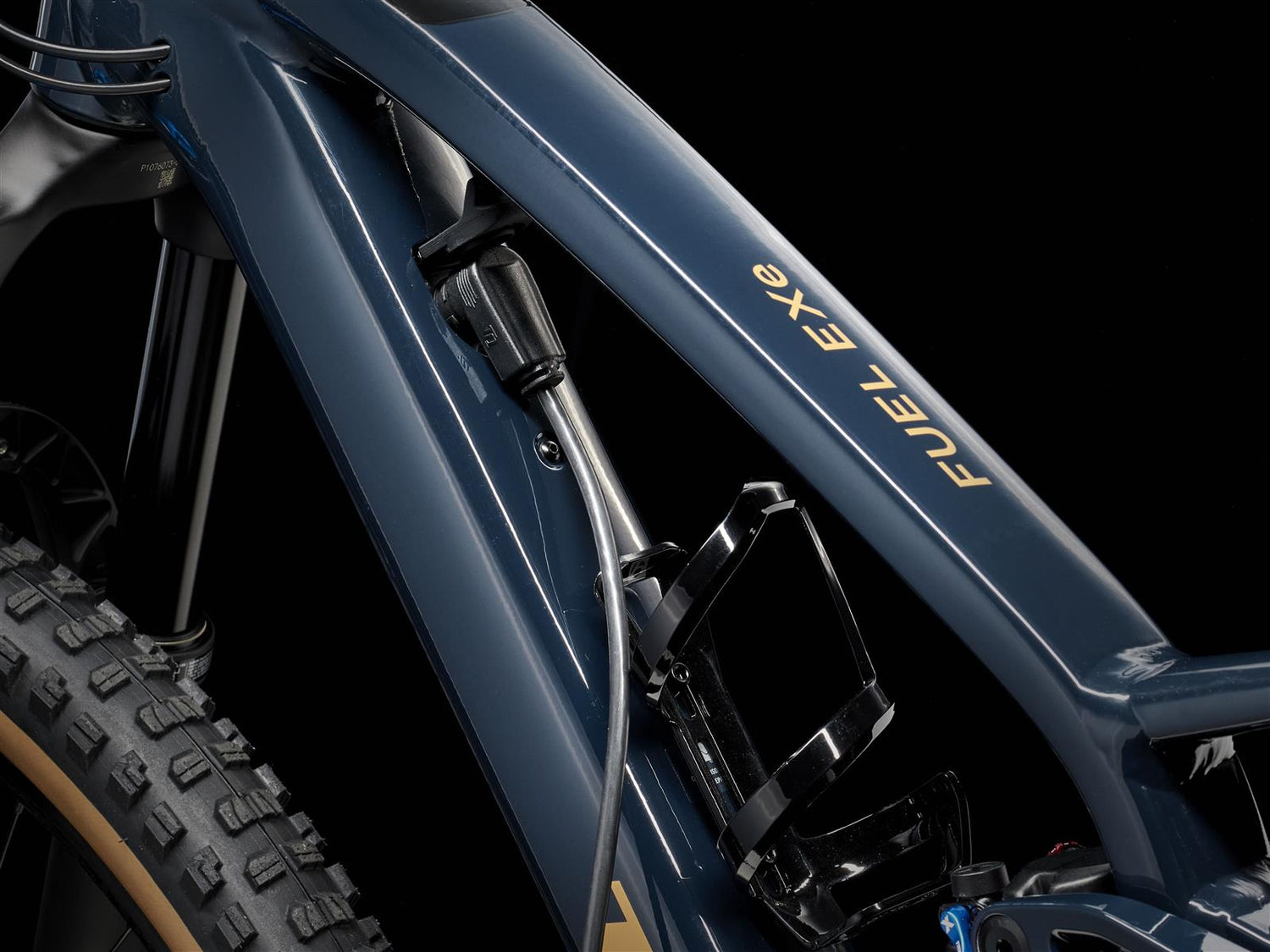

Frame: Alpha Platinum Aluminum, removable battery, internal cable routing, aluminum link, 34.9 mm seat tube diameter, mount for upper chain guide, 55 mm chainline, Mino Link, ABP, Boost148, UDH, 140 mm travel
Fork: FOX Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 150 mm travel

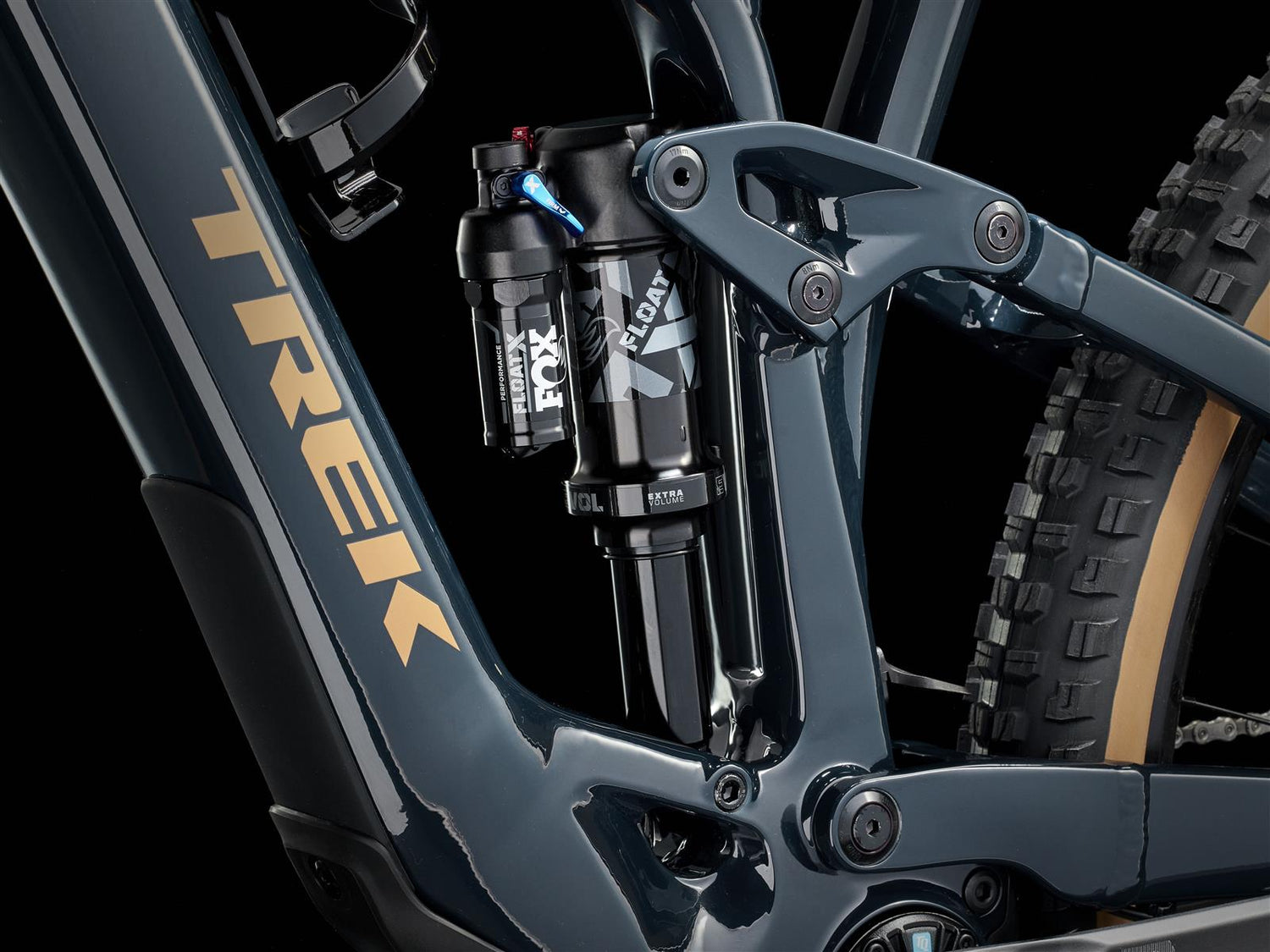

Shock: FOX Performance Float X, 2-position damping, 205 x 60 mm
Max. compatible fork travel: 160mm (575mm axle to crown)
Front wheel: Bontrager Line Comp 30, Tubeless Ready, 6-bolt disc mount, Boost110, 15 mm thru axle
Rear hub: Bontrager, aluminum, sealed bearing, 6-bolt disc mount, Rapid Drive 108, Shimano MicroSpline freehub, Boost148, 12 mm thru axle
Rear quick release: Bontrager Switch thru axle, removable lever
Rim: Bontrager Line Comp 30, Tubeless Ready, 28-hole, Presta valve
Tire: Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 TPI, 29 x 2.50
Tire replacement part: Bontrager TLR sealant, 177 ml
Sealant: Bontrager TLR sealant, 177 ml
Rim tape: Bontrager TLR
Max. Tire Size: Frame: 29 x 2.50", Fork: See Manufacturer
Shifters: Shimano XT M8100, 12-speed
Derailleur: Shimano XT M8100, long cage
Crank: e*thirteen e*spec Plus, 165 mm crank arm length
Chainring: E*thirteen E*spec, 32 T aluminum chainring, 55 mm chainline
Cassette: Shimano XT M8100, 10-51 T, 12-speed
Chain: Shimano SLX M7100, 12-speed
Max. Chainring Size: 1x: 34 teeth, min. 30 teeth
Saddle: Bontrager Arvada, CrMo rail, 138 mm width
*Seatpost Size: S: TranzX JD-YSP39, 100 mm travel, internal cable routing, 34.9 mm
Size M TranzX JD-YSP39, 150 mm travel, internal cable routing, 34.9 mm
Size L, XL TranzX JD-YSP39, 170 mm travel, internal cable routing, 34.9 mm
Handlebar: Bontrager Line, aluminum, 35 mm, 27.5 mm rise, 780 mm width
Grips: Bontrager XR Trail Elite, nylon clamp
Stem: Bontrager Elite, 35 mm, 0 degree, 45 mm length

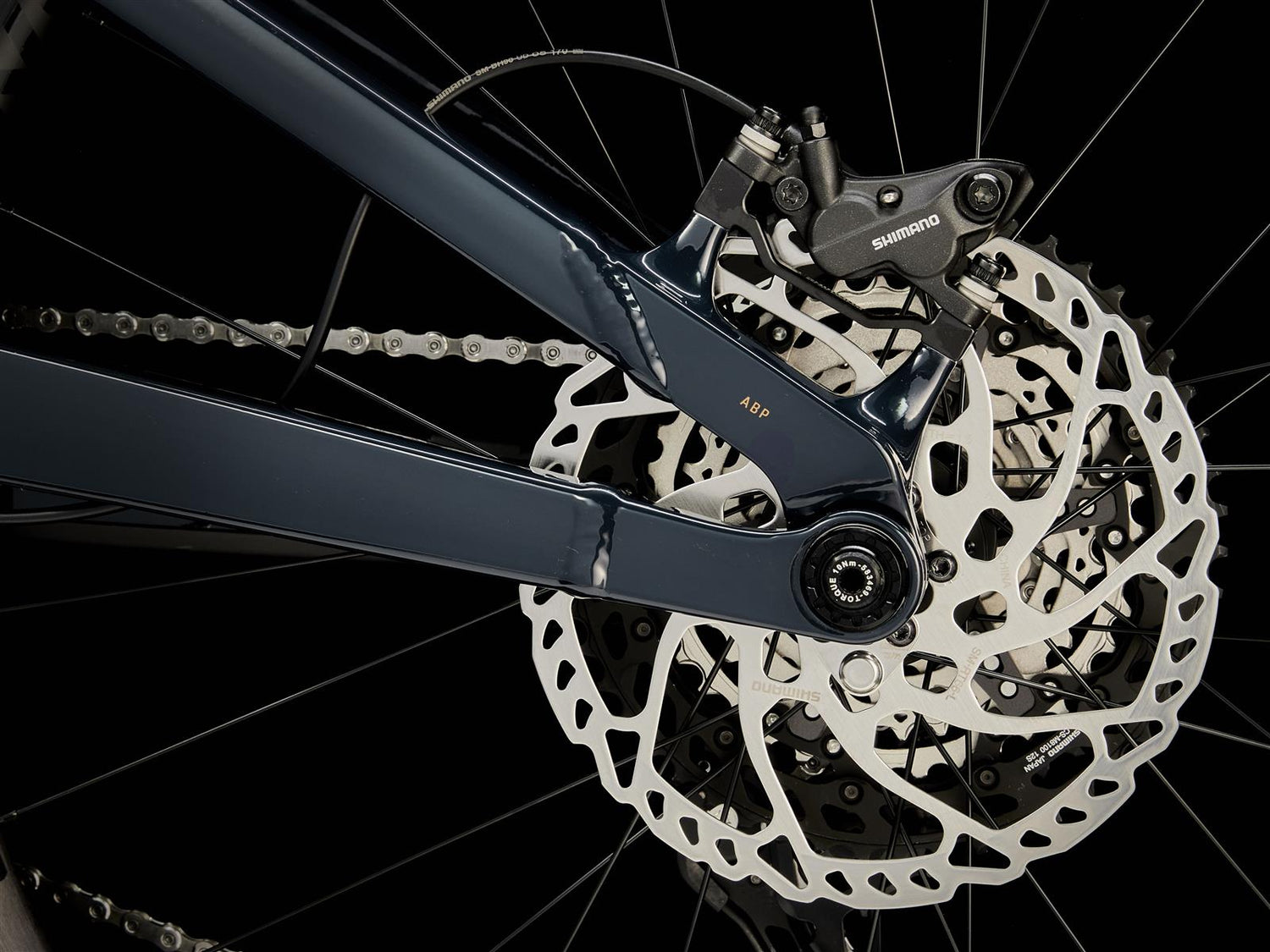

Brake: Hydraulic 4-piston disc brake by Shimano, M6100 brake lever, M6120 caliper
Brake Disc: Shimano RT66, 6-bolt disc mount, 203 mm
Brake Disc Diameter: Max. brake disc diameter - Frame: 203mm, Fork: see fork manufacturer
Battery: TQ 360 Wh

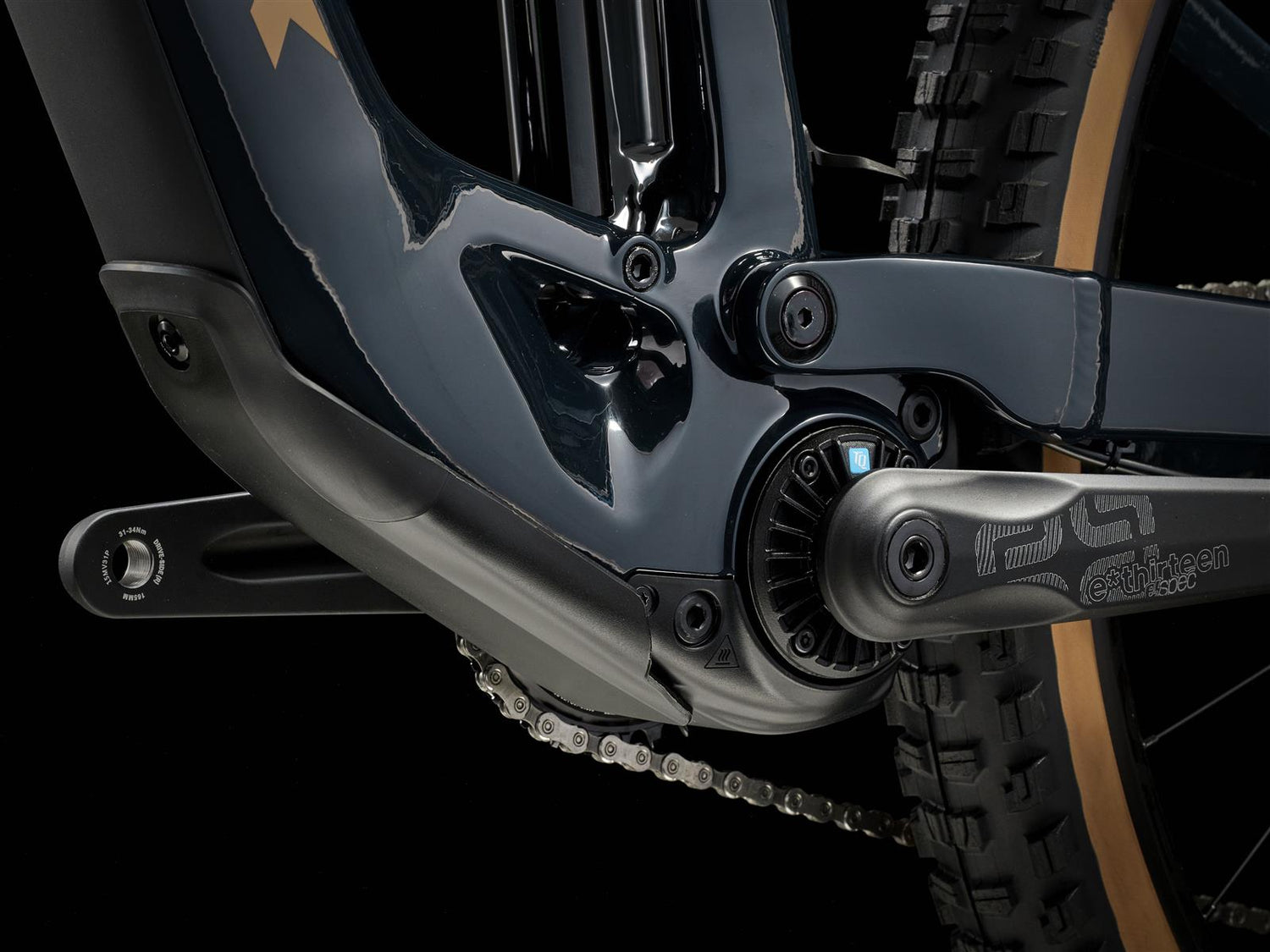

Motor: TQ HPR50, 50 Nm, 250 W max. rated power, 300 W max. power

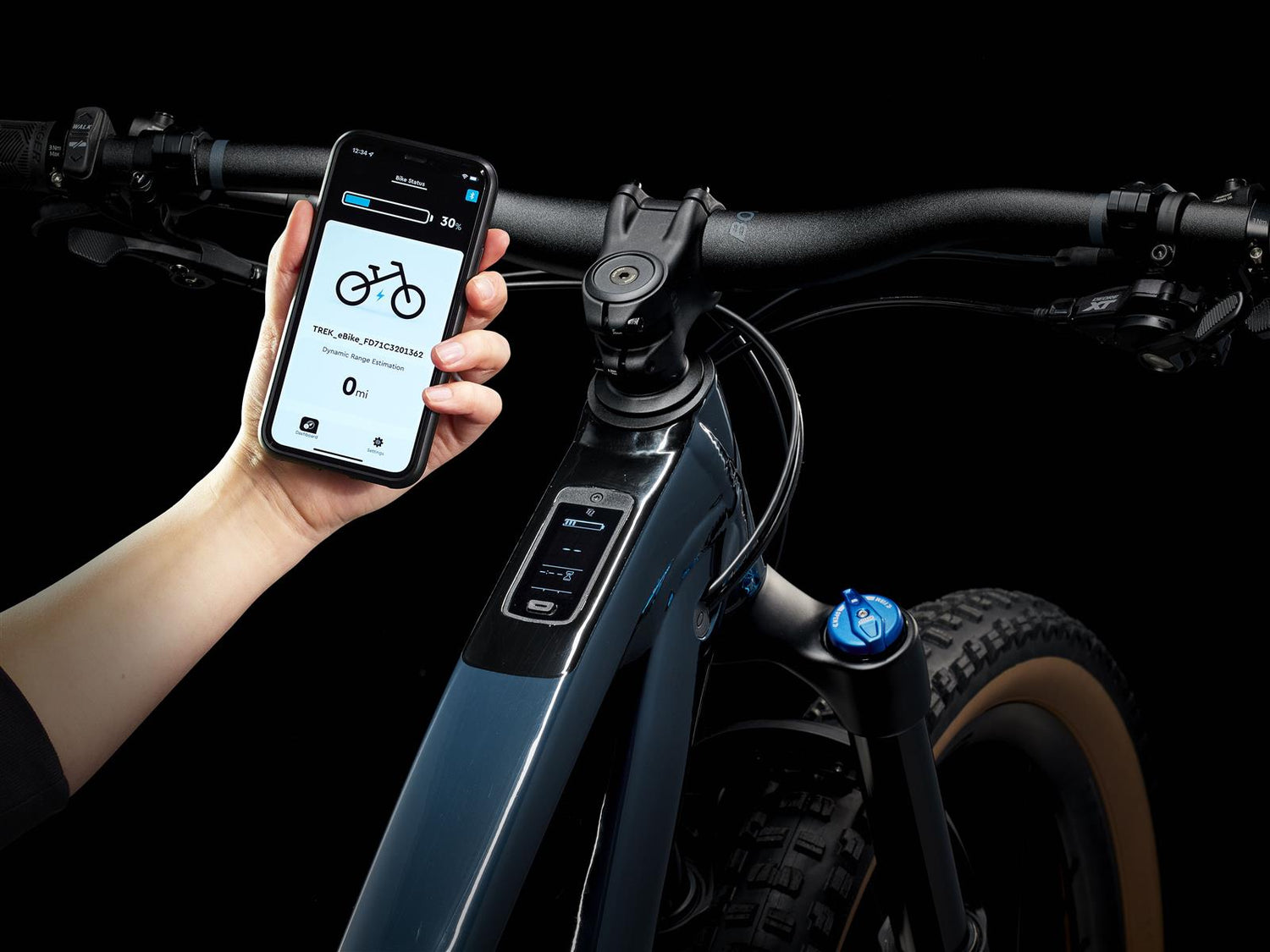

Computer: TQ LED display with Bluetooth & ANT+ connectivity
Electronics: TQ charger, 4 A
Weight: M - 20.10 kg / 44.32 lbs (with TLR tire sealant, without tubes)
Max. Weight: This bicycle has a maximum weight limit (bicycle, rider, and load) of 136 kg.

*Please note - the specification applies to all sizes unless otherwise stated
