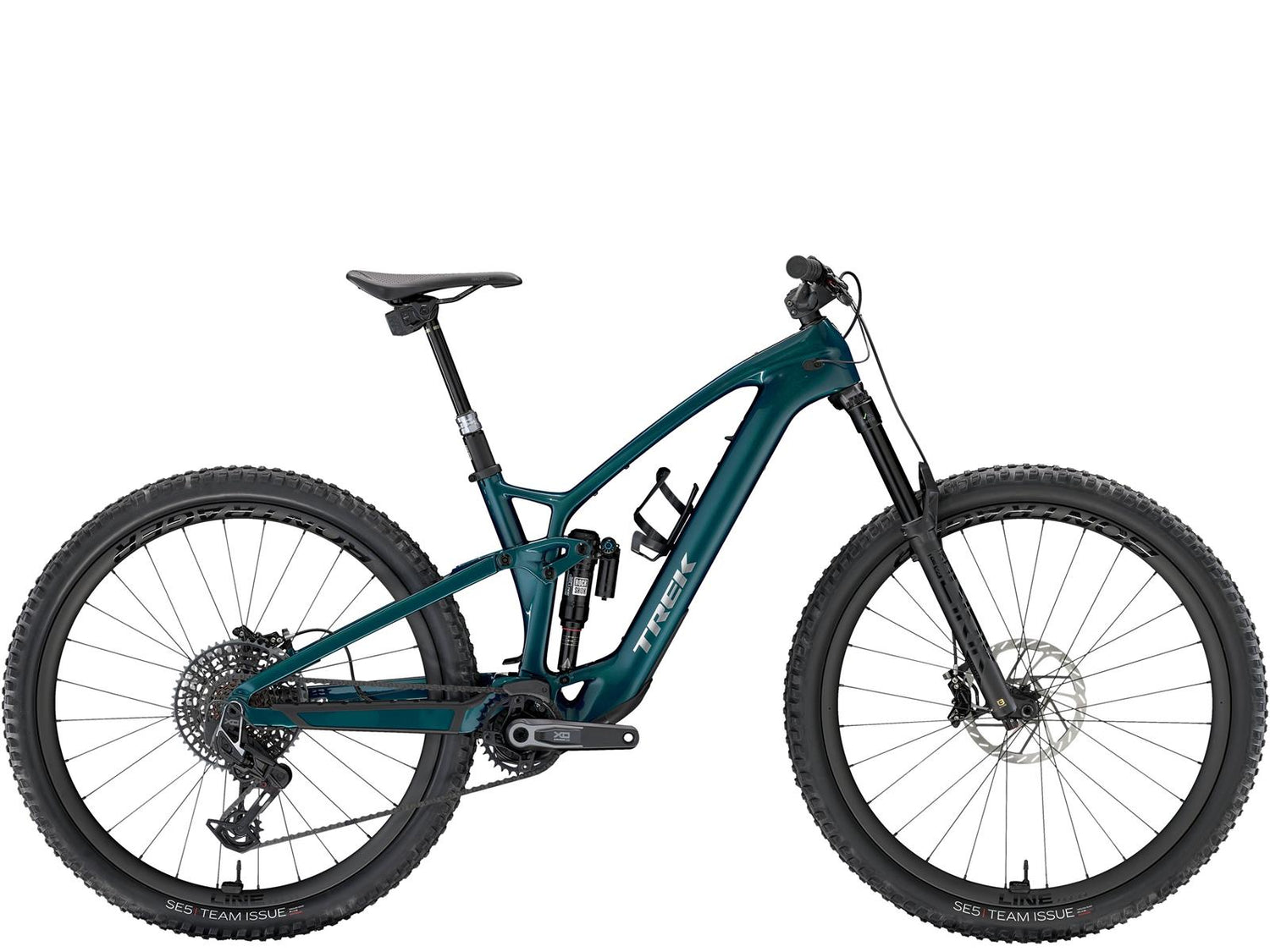

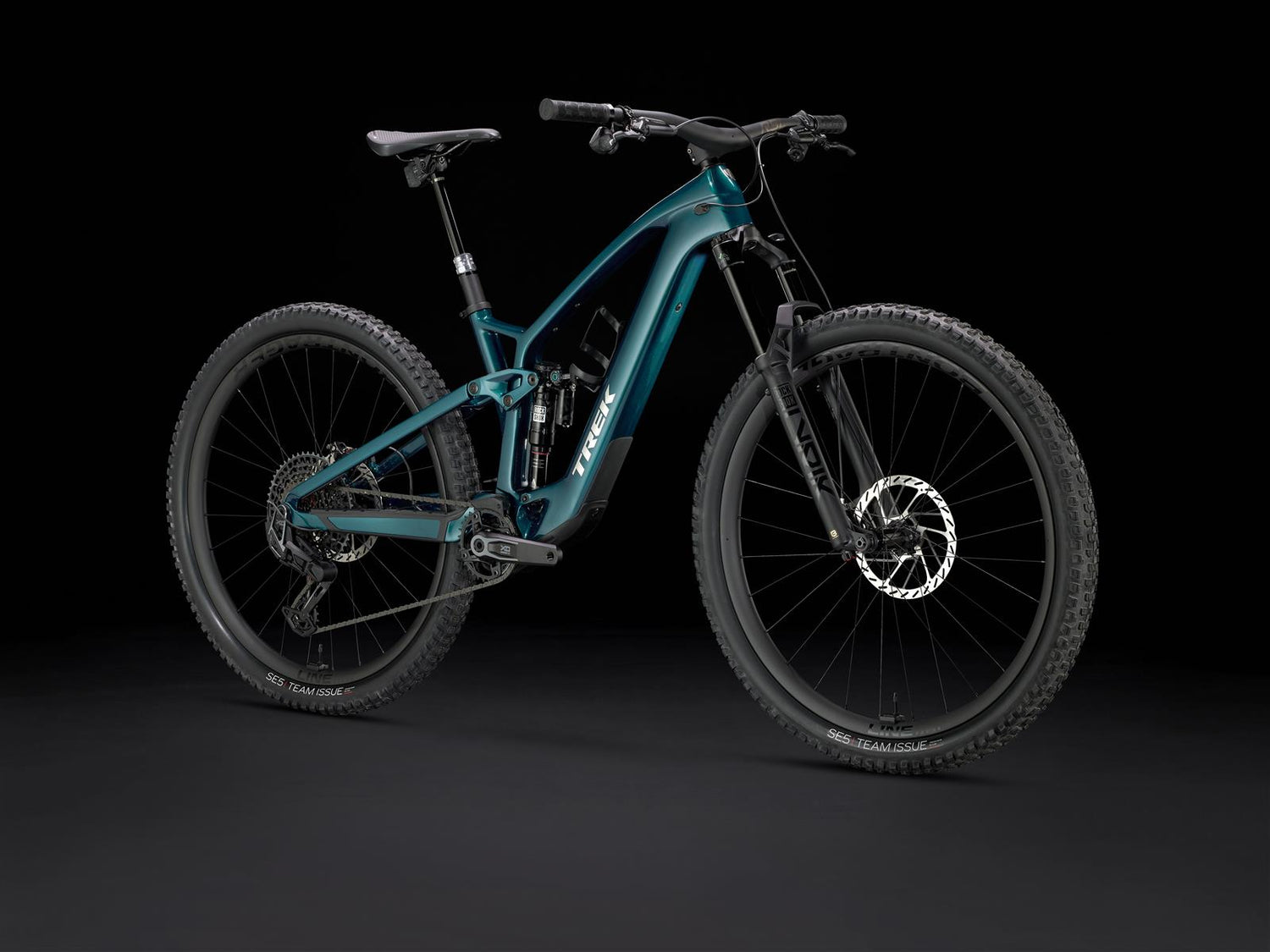

Trek Fuel EXe 9.9 XO AXS Dark Aquatic 360Wh

The Fuel EXe 9.9 X0 AXS enables mountain biking on a whole new level. It explores previously untouched terrain between traditional mountain bikes and e-bikes – with a new support technology that lets you enjoy the tranquility of nature while the best components in the industry guarantee unparalleled riding fun. With its lightweight carbon frame, stiff carbon wheels, and compact yet powerful TQ motor, the Fuel EXe 9.9 is meant to be raced over the trails. For this bike, only the best is good enough, like the precise and robust SRAM X0 AXS drivetrain and the ultimate RockShox suspension package with AirWiz technology for a perfect setup at any time.

Trek offers you a frame made of OCLV Mountain Carbon with a fully integrated 360 Wh battery and state-of-the-art Harmonic Pinring Motor from TQ with a clever charging port, integrated display in the top tube, and discreet remote control on the handlebar. It also comes with a RockShox Lyrik Ultimate suspension fork with 150 mm travel, AirWiz, DebonAir suspension, and Charger 3 RC2 damping, as well as a RockShox Super Deluxe Ultimate rear shock with 140 mm travel. Additionally, you get lightweight and stiff carbon wheels with a tubeless setup and SRAM's directly mounted, wireless, electronic X0 AXS drivetrain, which is robustly built and shifts smoothly even under load.

• Compromises? Not with this bike! You get the best carbon, the best components, and a motor that is barely noticeable on the trail.
• The wireless, trail-ready X0 AXS drivetrain from SRAM impresses with its precise shifting performance even under load.
• The RockShox suspension is equipped with AirWiz technology, making your suspension setup a breeze.
• Its compact yet powerful TQ motor is perfectly tuned to the trail, offering a particularly quiet and natural power delivery for an undisturbed riding experience.

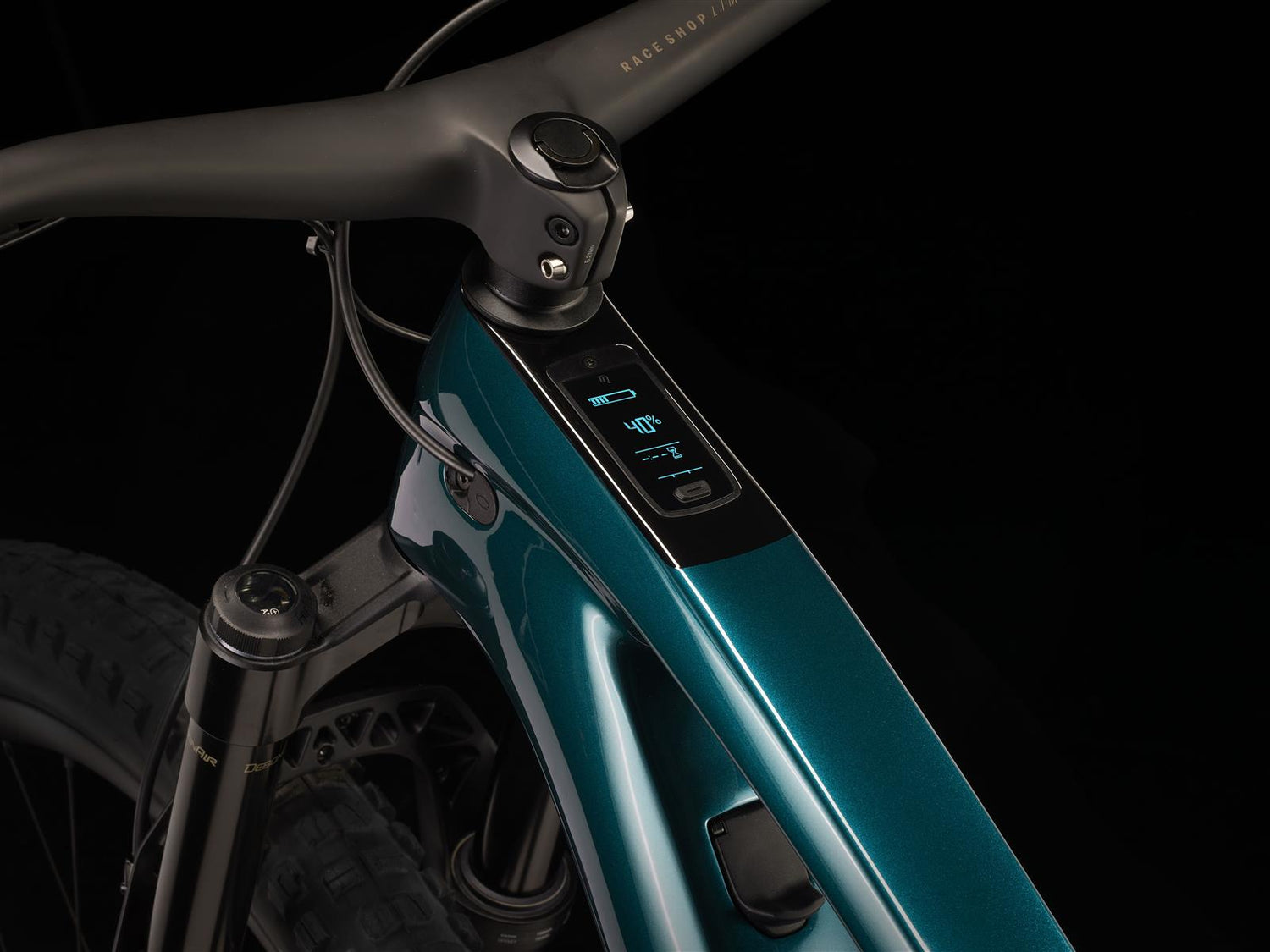

• The integrated display, charging port, and controls are user-friendly, intuitive, and elegant.


Equipment:

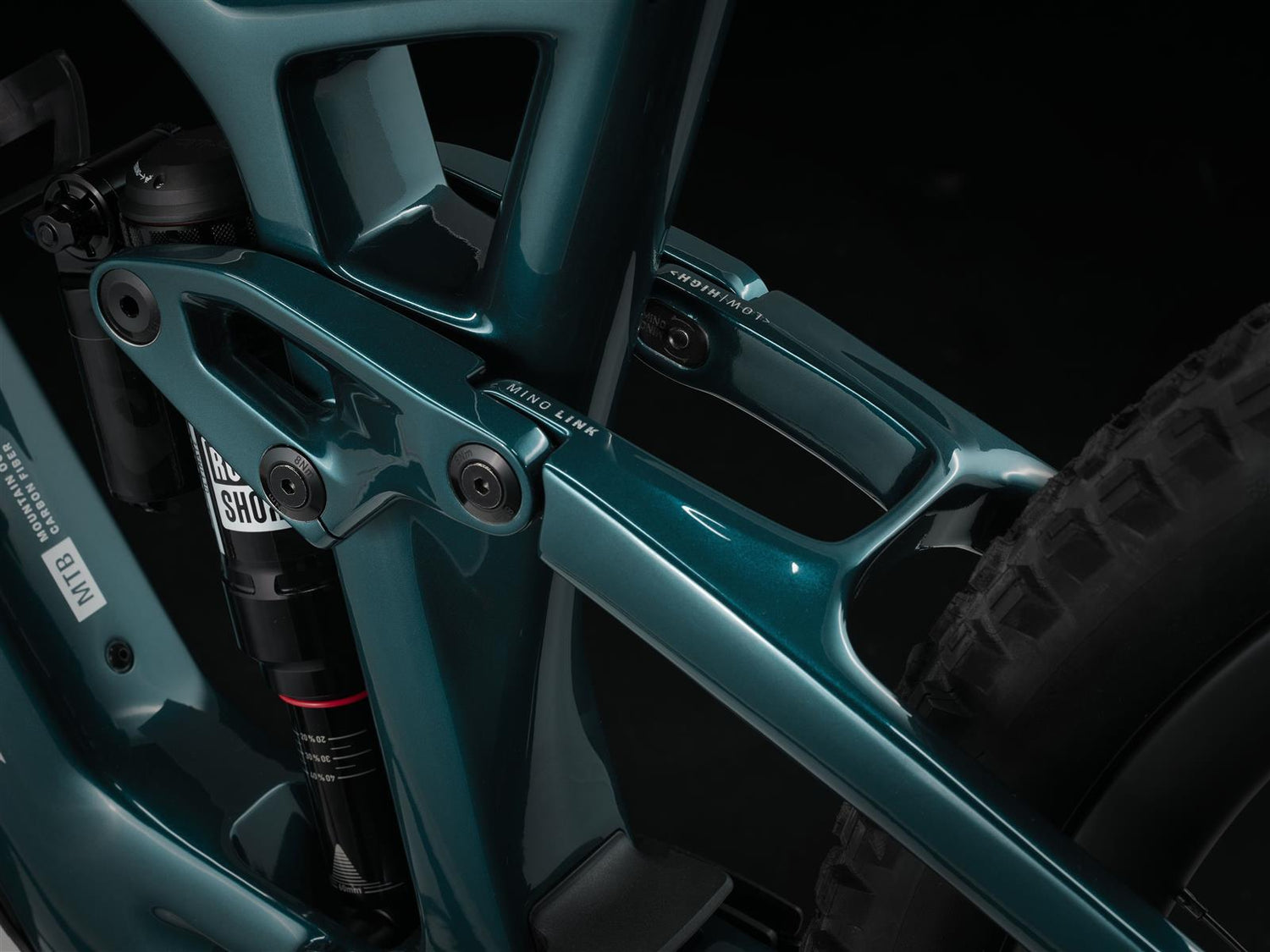

Frame: OCLV Mountain Carbon, removable battery, internal cable routing, aluminum rocker link, 34.9 mm seat tube diameter, mount for upper chain guide, 55 mm chainline, Mino Link, ABP, Boost148, UDH, 140 mm travel
Fork: RockShox Lyrik Ultimate, AirWiz, DebonAir spring, Charger 3 RC2 damper, 44 mm offset, Boost110, Maxle Stealth axle, 150 mm travel

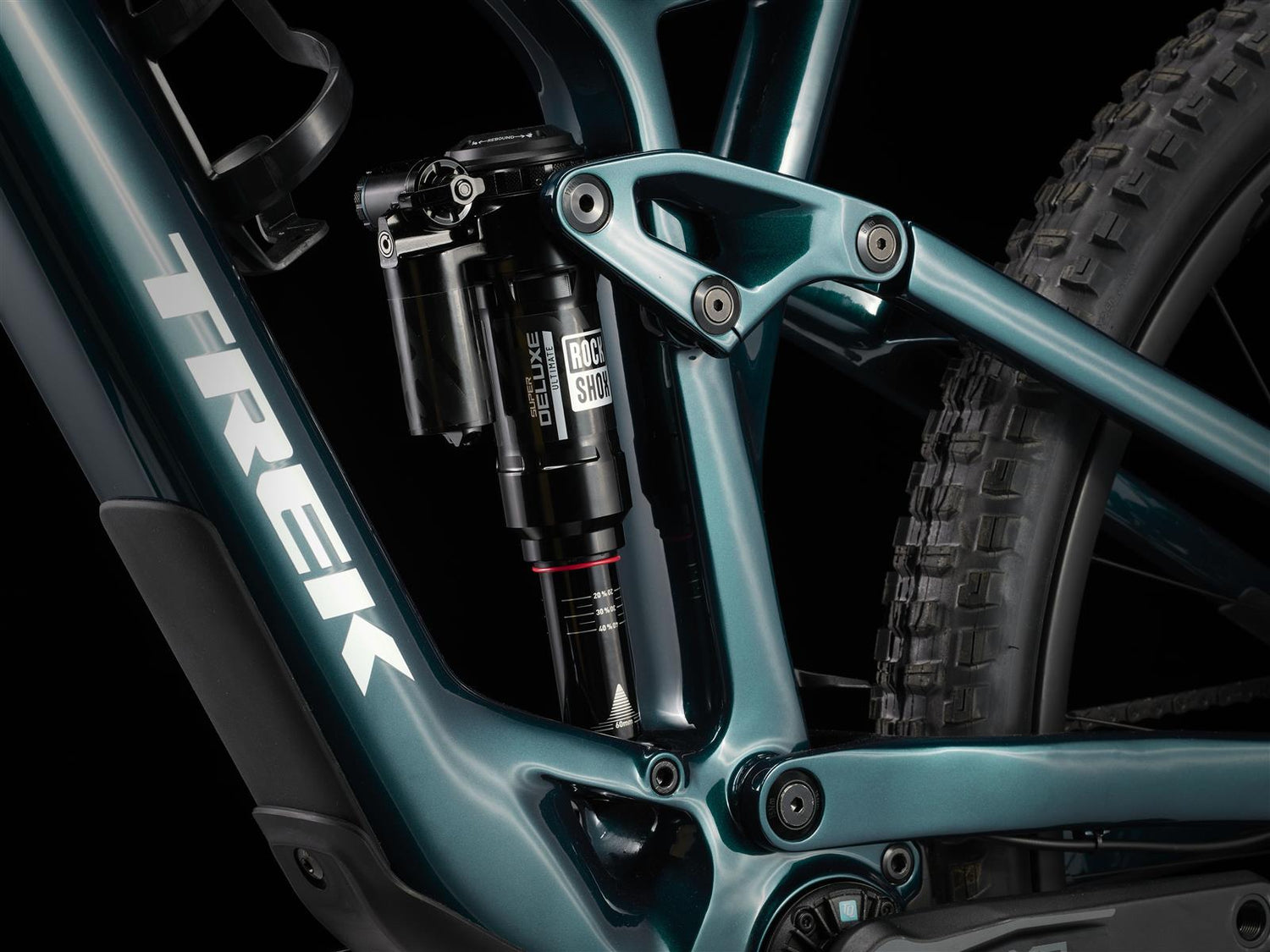

Shock: RockShox Super Deluxe Ultimate AirWiz, RCT2 damper, 205 x 60 mm
Max. compatible fork travel: 160mm (575mm axle to crown)
Front wheel: Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt disc mount, Boost110, 15 mm thru axle
Rear wheel: Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt disc mount, SRAM XD freehub body, Boost148, 12 mm thru axle
Rear quick release: Bontrager Switch thru axle, removable lever
Tires: Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewall protection, Aramid bead core, 120 TPI, 29 x 2.50
Tire spare part: Bontrager TLR sealant, 177 ml
Size S, M, L, XL: Quarq TyreWiz tire pressure sensors
Rim tape: Bontrager TLR
Max. tire size: Frame: 29 x 2.50", Fork: See manufacturer

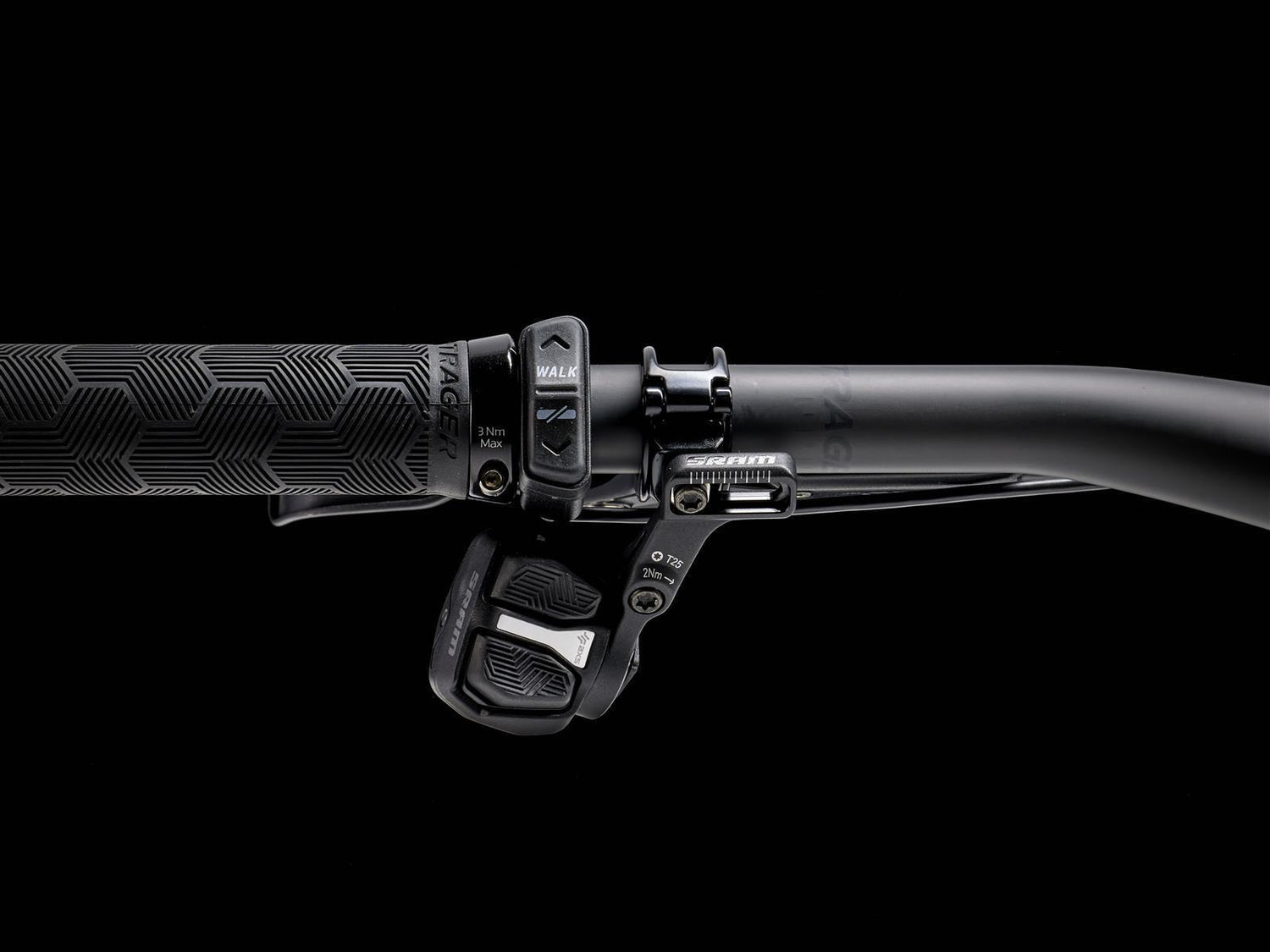

Shift Lever: SRAM AXS POD Ultimate
Derailleur: SRAM X0 Eagle AXS, T-Type
Crank: SRAM X0, 165 mm crank arm length
Chainring: SRAM X-SYNC 2, 32 T., Aluminum
Cassette: SRAM Eagle XS-1295, T-Type, 10-52 T., 12-speed
Chain: SRAM X0 Eagle, T-Type, 12-speed
Max. Chainring Size: 1x: 34 teeth, min. 30 teeth
Saddle: Bontrager Arvada, austenite rails, 138 mm width
*Seatpost Size: S: RockShox Reverb AXS, 100 mm travel, wireless, 34.9 mm, 340 mm length
Size M: RockShox Reverb AXS, 150 mm travel, wireless, 34.9 mm, 440 mm length
Size L, XL: RockShox Reverb AXS, 170 mm travel, wireless, 34.9 mm, 480 mm length
*Integrated Handlebar-Stem Unit Size: S: Bontrager RSL, integrated handlebar/stem unit, OCLV Carbon, 27.5 mm rise, 820 mm width, stem with 0 degree rise, 35 mm stem length
Size M, L, XL: Bontrager RSL, integrated handlebar/stem unit, OCLV Carbon, 27.5 mm rise, 820 mm width, stem with 0 degree rise, 45 mm stem length
Grips: Bontrager XR Trail Elite, nylon clamp
Headset: Integrated compact bearing, 1 1/8" top, 1.5" bottom
Brake: Hydraulic 4-piston disc brake SRAM Code Silver

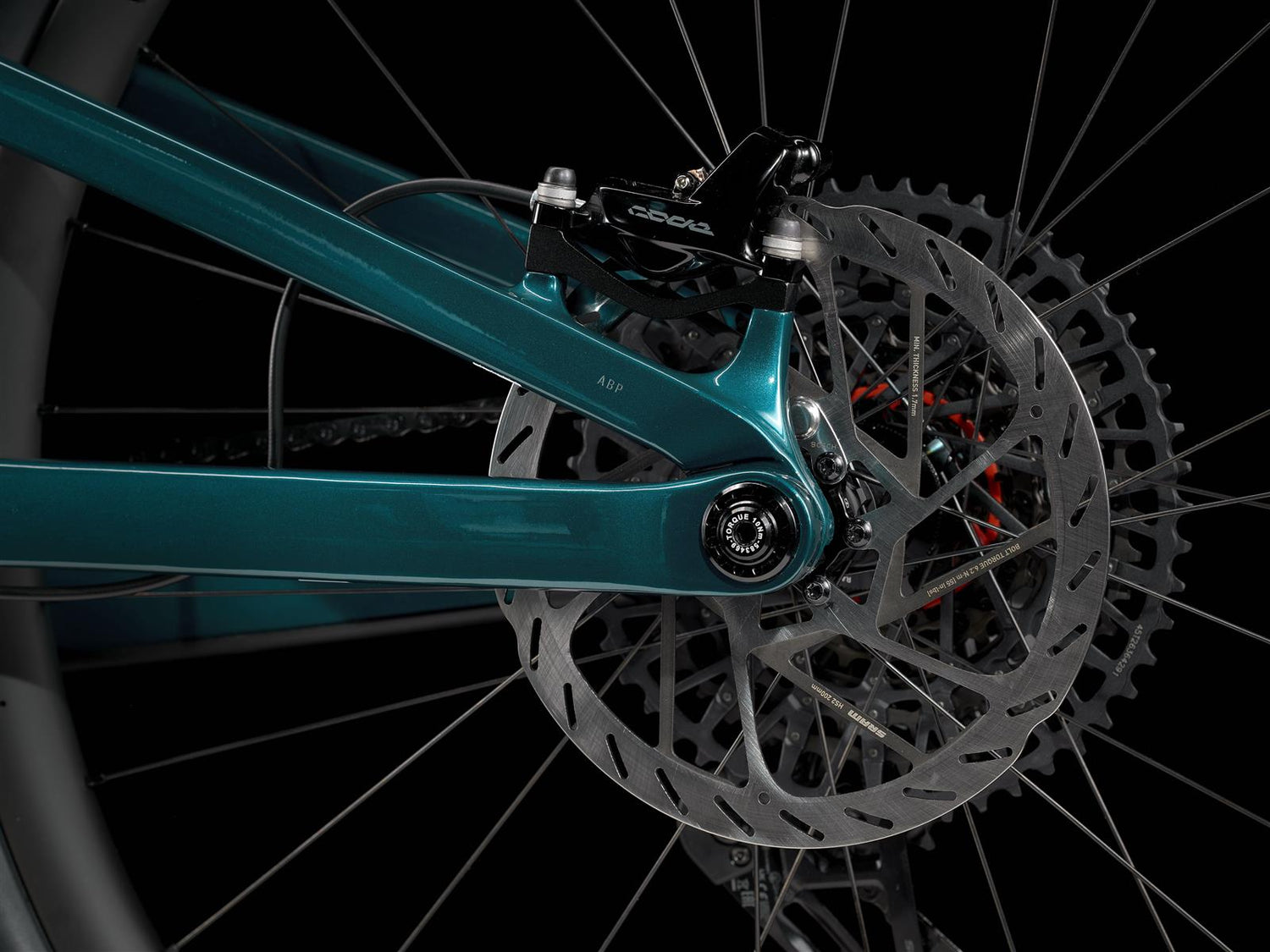

Brake Disc: SRAM, 6-bolt, 200 mm
Brake Disc Diameter: Max. brake disc diameter - Frame: 203mm, Fork: see fork manufacturer

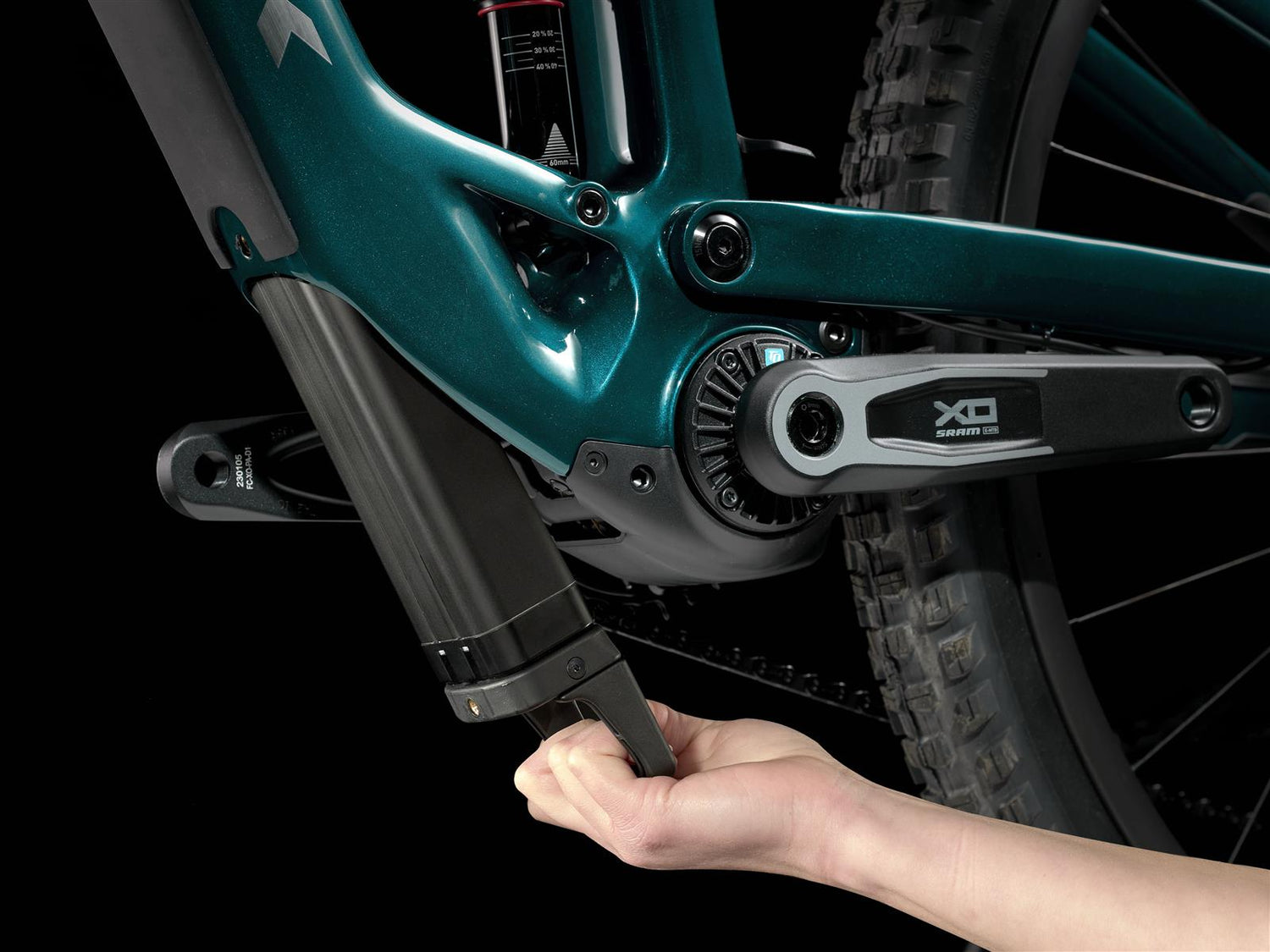

*Battery Size: S, M, L, XL: TQ 360 Wh
Size S, M, L, XL: SRAM eTap battery pack (with charger)

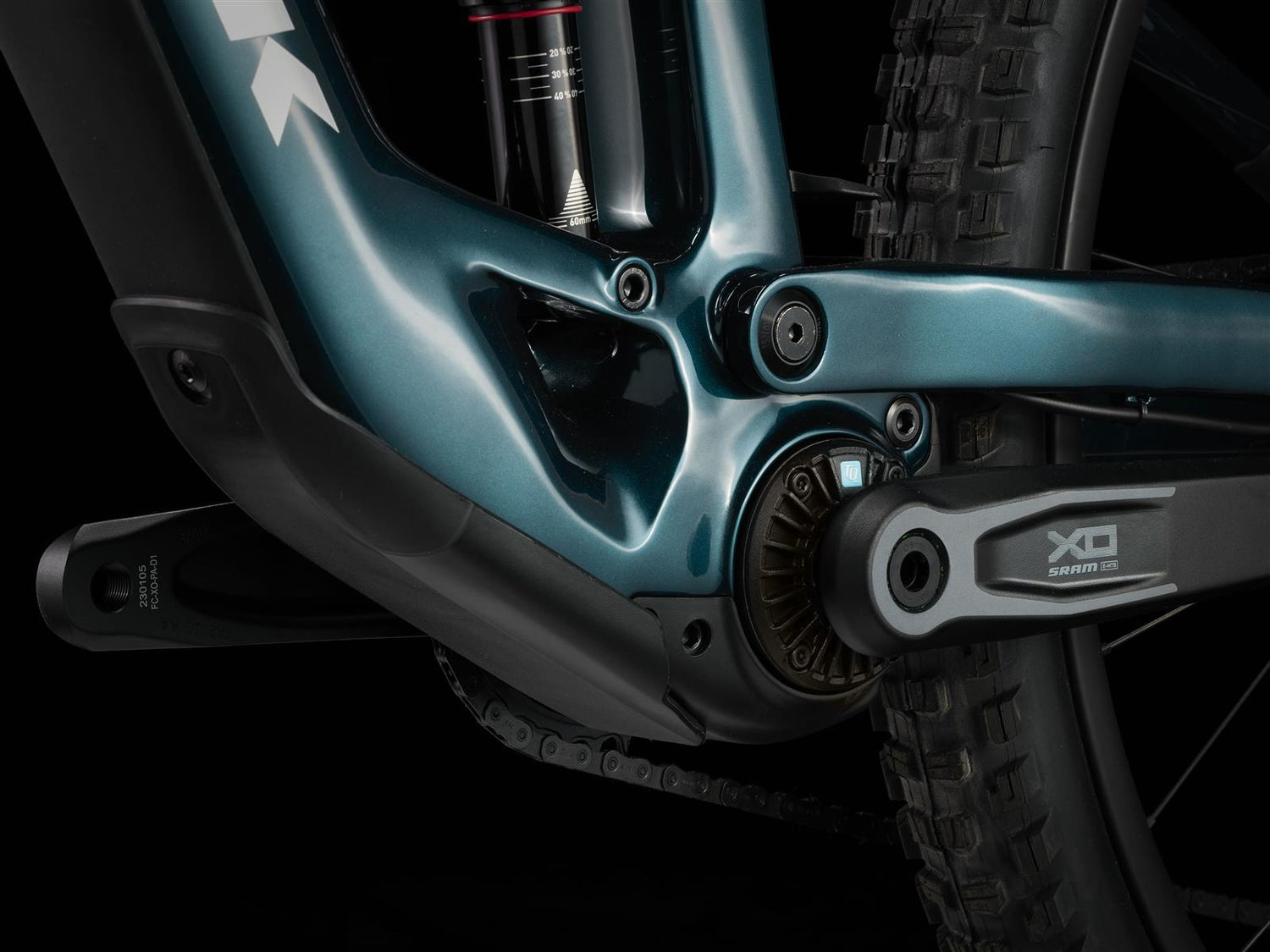

Motor: TQ HPR50, 50 Nm, 250 W max. rated power, 300 W max power

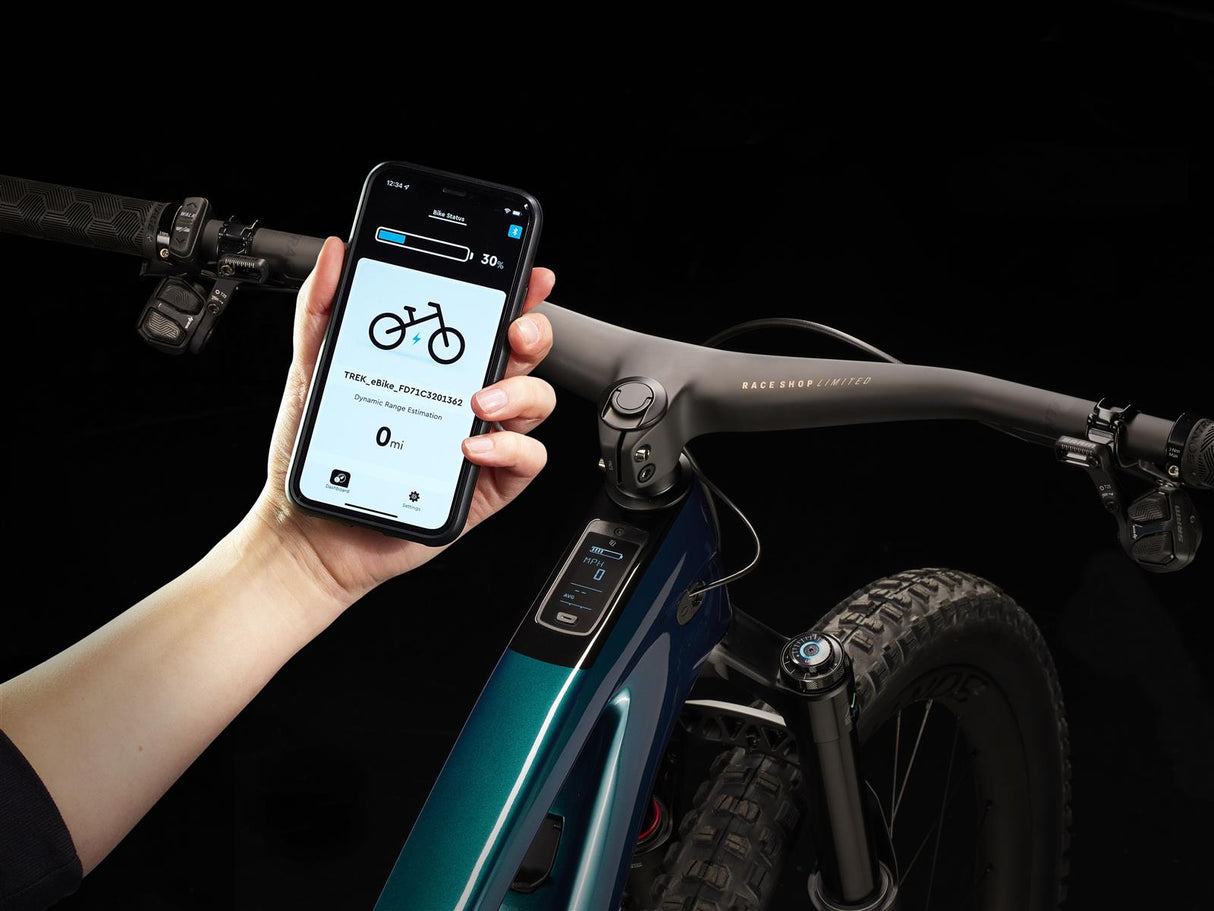

Computer: TQ LED display with Bluetooth & ANT+ connectivity
Electronics: TQ charger, 4 A
Tool: Bontrager BITS Integrated Multi-Tool
Weight: M - 18.95 kg / 41.78 lbs (with TLR tire sealant, without tubes)
Max. Weight: This bike has a maximum weight limit (bike, rider, and load) of 136 kg

*Please note - the specification applies to all sizes unless otherwise stated
