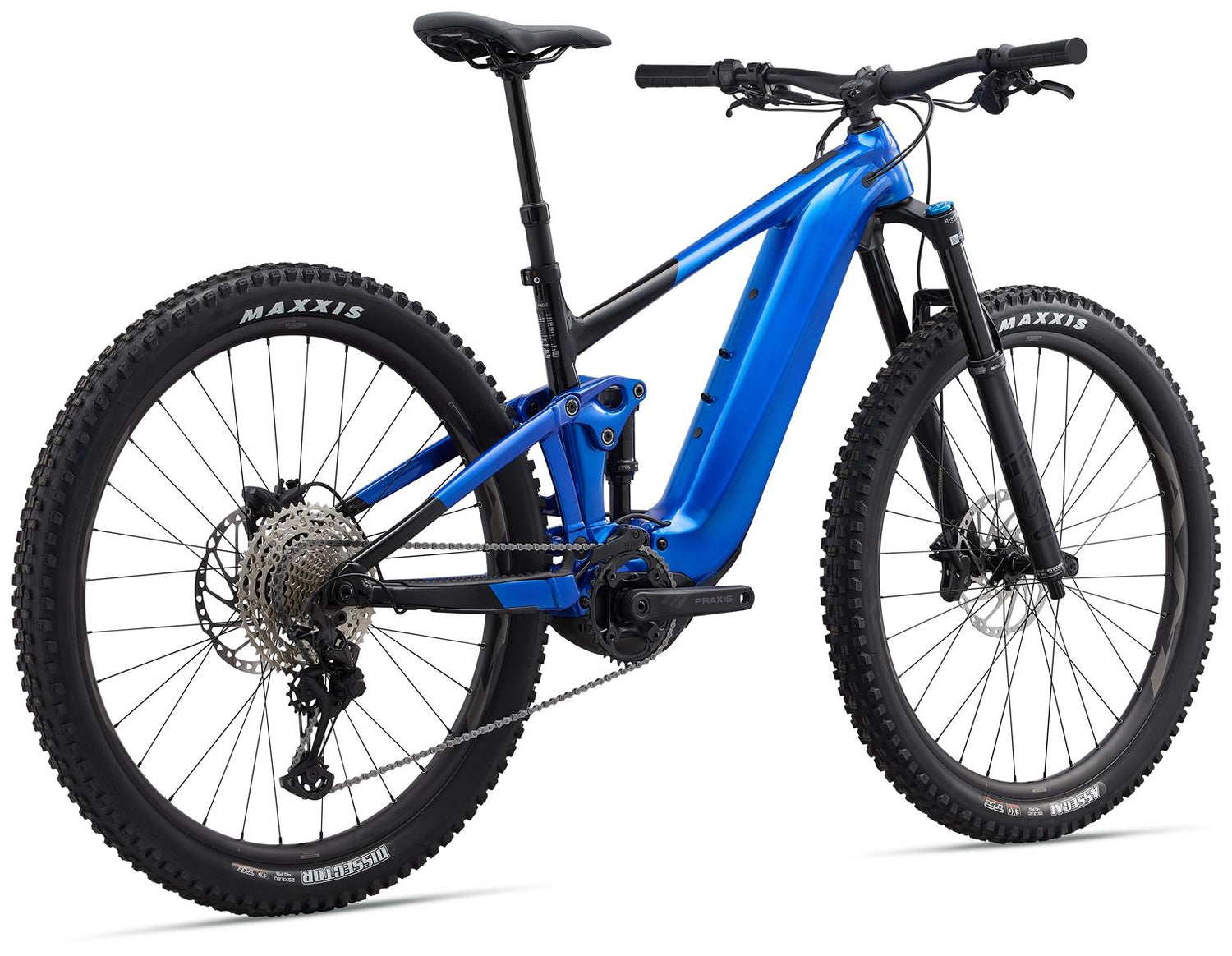

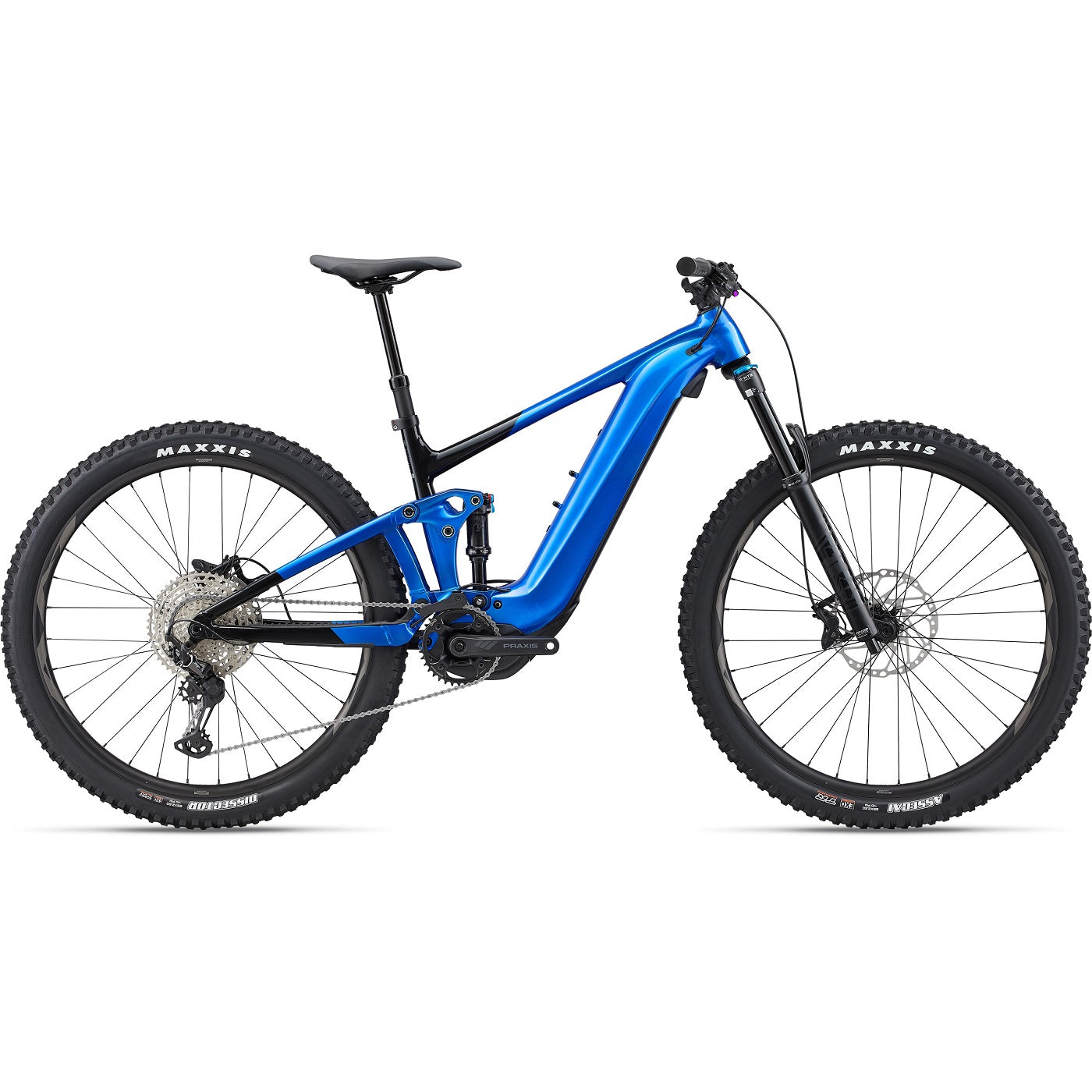

Giant Trance X E+ 2 (29''/Pro/750Wh)

TRAIL POWER

Faster climbs, longer loops, more singletrack fun every day. With this powerful, fun, and easy-to-handle e-bike, you can take your trail riding to the next level.

The new SyncDrive Pro2 motor delivers 85 Nm of torque, giving you the ability to ride the trails the way you want. The aluminum frame features 140 mm of rear suspension (and 150 mm in the front) and a flip-chip that allows you to adjust the frame geometry. A RideControl Go button on the top tube allows for easy on and off and switching between power modes. Additionally, the RideControl Ergo 3 controller can be mounted on either the left or right side of the handlebar.

Smooth, powerful support

The SyncDrive Pro2 motor delivers 85 Nm of torque and an adjustable support rate of up to 400%. The Smart Assist technology ensures smooth pedal assistance that kicks in immediately when human power is applied, providing you with reliable performance on steep climbs and at low speeds.

Control in trail riding

The optimized Maestro suspension for 29-inch wheels with 140 mm of rear travel and 150 mm in the front rolls balanced and stable over rough terrain, giving you more momentum for technical climbs and the confidence to master fast, rough singletrack descents.

Adaptable to the terrain

With the new flip-chip feature, you can change the angle of the head tube and seat tube as well as the bottom bracket height to adjust the ride characteristics to different trail conditions and your individual riding style. You can choose the low position for fast, aggressive terrain or the high position for a more XC-oriented riding position.

Equipment:
Model year: 2022
Frame: AluxX SL main frame, Maestro rear triangle with geometry flip-chip, carbon rocker arm, integrated speed sensor, EnergyPak Plus compatible, 140 mm travel, 12 x 148 mm
Control unit: RideControl GO + RideControl Ergo 3
Display: SG Display compatible, RideDash Plus compatible
Motor: SyncDrive Pro2, 85Nm, powered by Yamaha
Battery: EnergyPak Smart XL 750Wh EnergyPak Plus compatible
Charger: EnergyPak Smart Charger Compact, 4A
Fork: Fox 36 Float Rhythm, GRIP damping, 150mm travel, Boost 15x110mm, e-optimized
Shock: Fox DPS Performance EVOL,185x52.5mm Trunnion mount, custom tuned
Crank: Praxis e-Cadet+, Praxis Wave 36T chainring
Chain: KMC e.12 Turbo, EcoProteq, e-bike optimized
Cassette: Shimano Deore CS-M6100, 10-51T
Rear derailleur: Shimano Deore XT M8100 Shadow+, 12-speed
Front derailleur: MRP 1X HD2Custom chain guide
Shifter: Shimano Deore SLX M7100, I-spec EV
Brakes: Shimano Deore, BR-M6120 (4-piston), 203mm
Brake lever: Shimano Deore BL-M6100, I-spec EV
Pedals: Flat pedal
Saddle: GIANT Romero
Seatpost: GIANT Contact Switch Vario post 30.9mm (S:125, M: 150, L/XL:170)
Stem: GIANT Contact SL 35
Handlebar: GIANT Contact 35 Trail, 20mm rise
Grips: GIANT Tactal Pro lock-on
Hubs: Shimano MT410
Spokes: Sapim Race / Sapim E-Lite
Rims: GIANT AM 29", Tubeless Ready, 30mm internal width
Tires (F/R): Maxxis Assegai 29x2.6" foldable, Tubeless, EXO / Maxxis Dissector 29x2.6" foldable, Tubeless, EXO+ Delivery with tube
Tubeless Kit (fluid, valves, tire levers, valve core remover, instructions)

* Specification may vary in details in exceptional cases, depending on the manufacturer.
