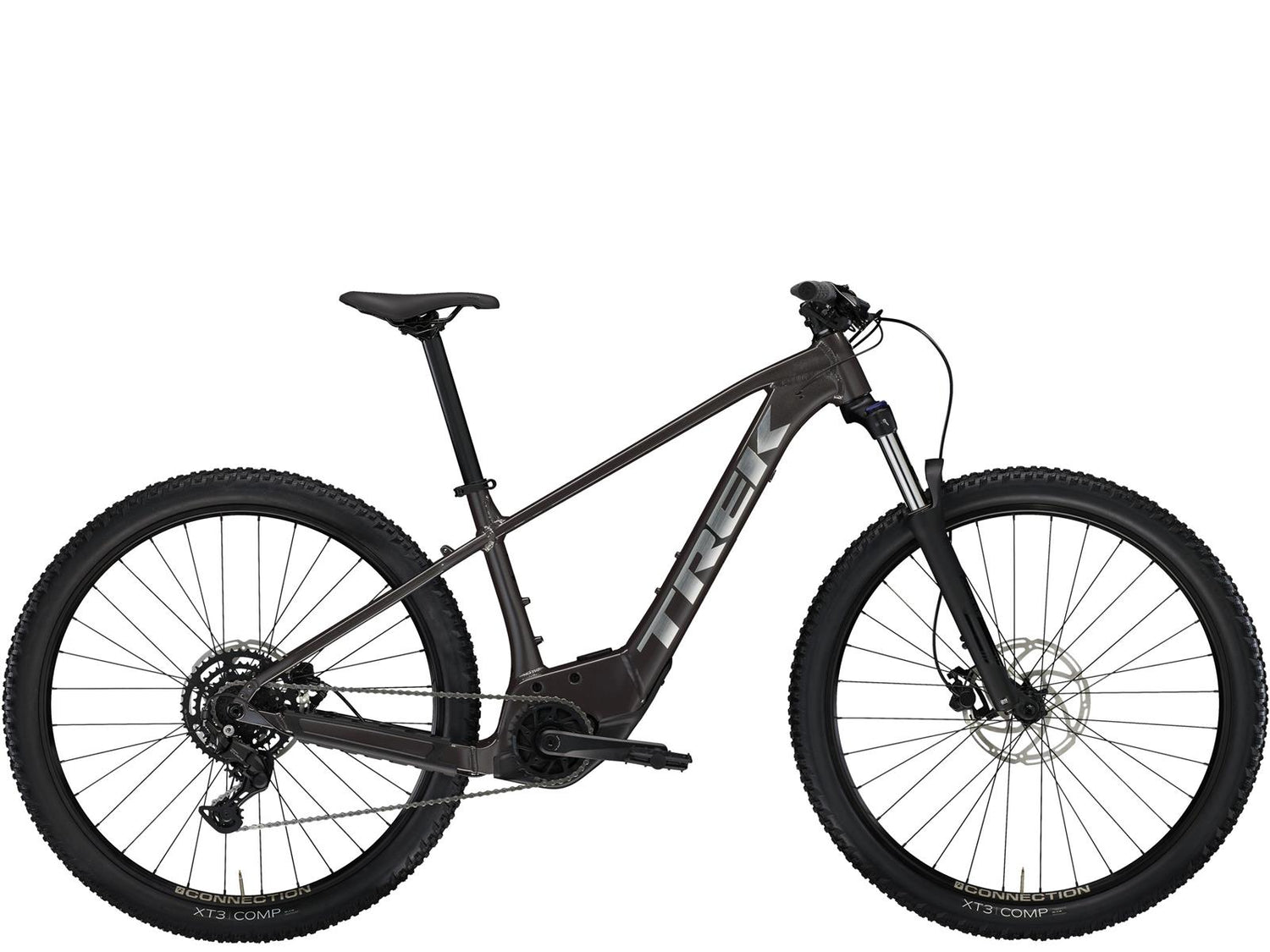

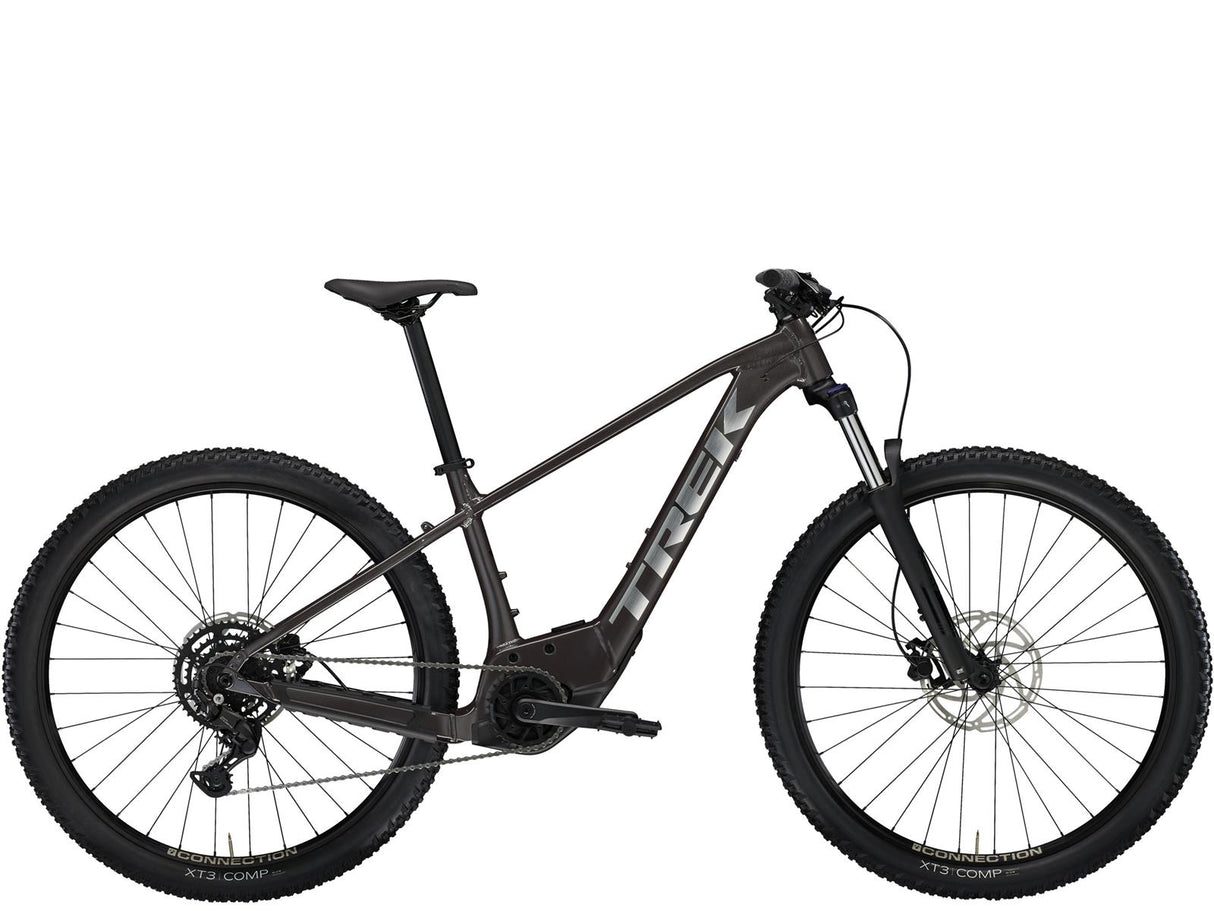

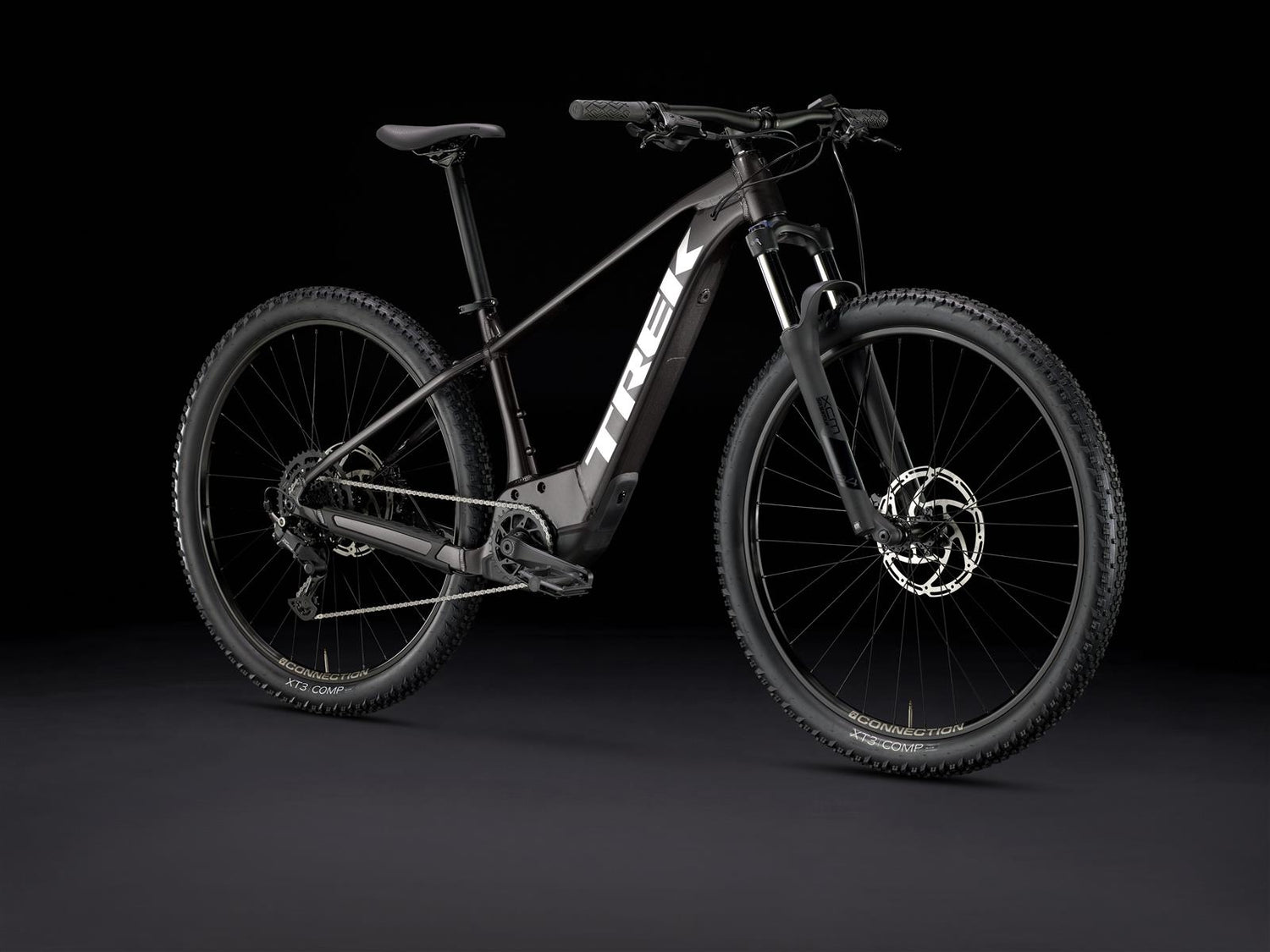

Trek Marlin + 6 Dnister Black 400Wh

The Marlin+ 6 is an electric mountain bike that reliably supports you on your trail adventures without breaking the bank. It is based on the sporty and confident geometry of the non-assisted Marlin, but scores with the additional boost from Bosch's Active Line Plus drive system. The 120 mm suspension fork smooths out rocks, roots, and potholes without comment, while the robust Shimano CUES 9-speed drivetrain shifts reliably everywhere and at all times.

Trek offers you a frame made of Alpha Platinum Aluminum with authentic mountain bike geometry and a 120 mm fork with coil spring. It is powered by a reliable Bosch Active Line Plus motor that supports you with its 50 Nm torque up to a speed of 25 km/h and is controlled by a compact Purion 200 remote with integrated display. The equipment is rounded off by powerful hydraulic disc brakes and a Shimano CUES 9-speed drivetrain that shifts reliably even under load.

• In AUTO mode, the E-system detects when you slow down, for example, on an ascent or in a headwind, and automatically adjusts the support.
• With its 120 mm travel, the fork ensures a smooth ride over bumps, roots, and rough terrain.
• Thanks to the uncomplicated controls and intuitive support, you can fully concentrate on the riding experience on the Marlin+.
• The trail-ready geometry ensures intuitive and safe handling both on single trails and on the road.
• Thanks to mounts for luggage racks and mudguards, it can be easily converted from a lively trail bike to a reliable commuter bike.

Equipment:

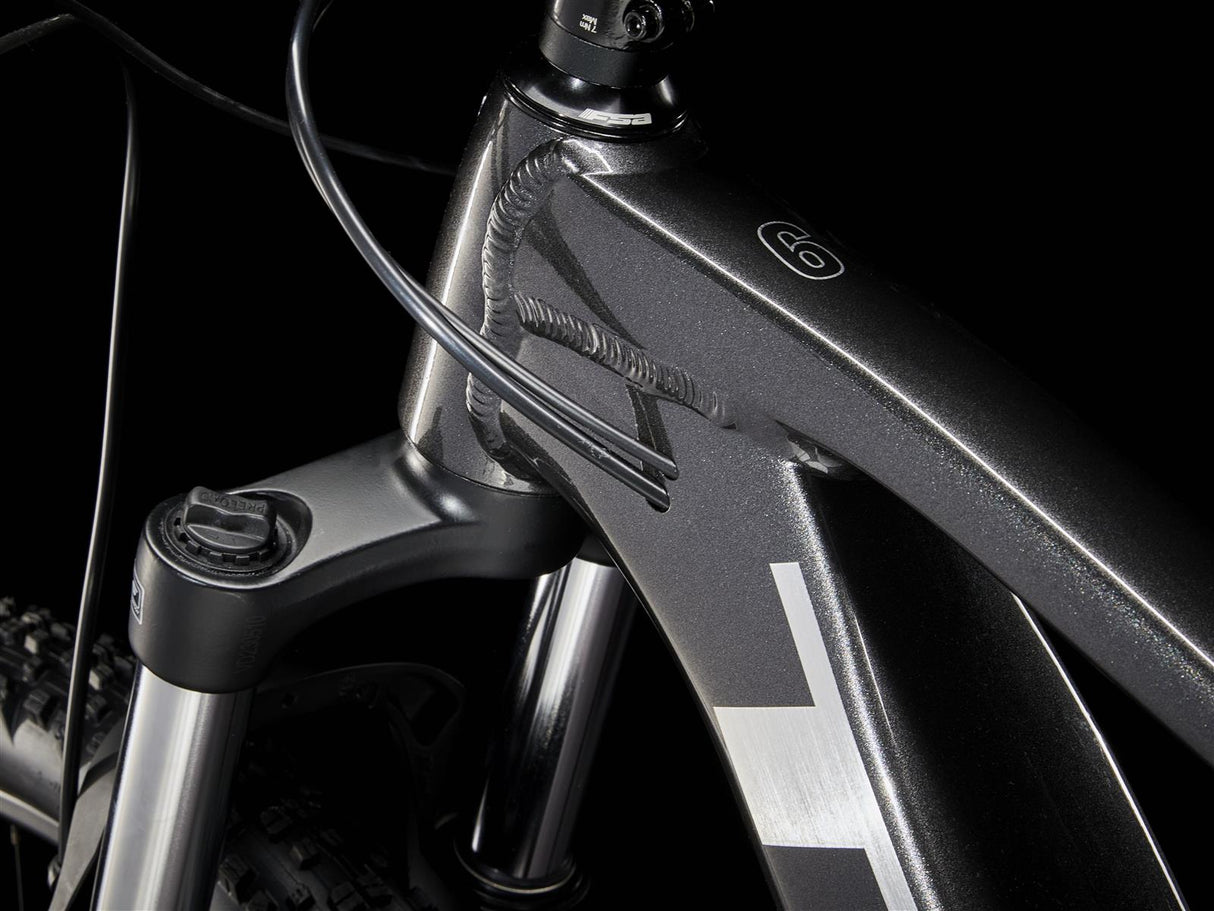

*Frame Size: XS: Alpha Platinum Aluminum, curved top tube, tapered head tube, internal cable routing, luggage rack, mudguard, and kickstand mounts, UDH, Boost148, 12 mm thru axle
Size S, M, L, XL: Alpha Platinum Aluminum, tapered head tube, internal cable routing, luggage rack, mudguard, and kickstand mounts, UDH, Boost148, 12 mm thru axle

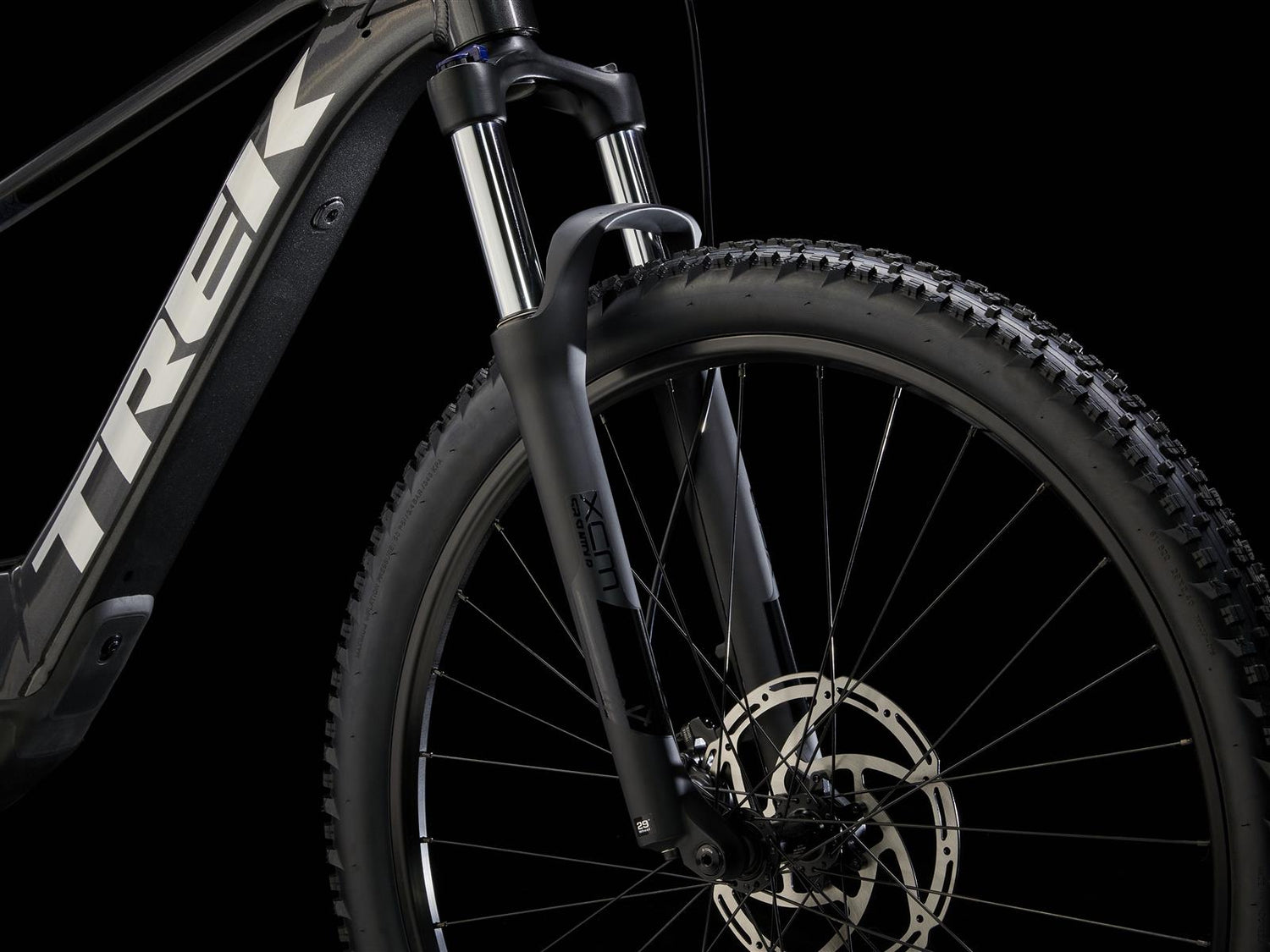

*Fork Size: XS: SR Suntour XCM 34, coil spring, adjustable preload, lockout, tapered steerer, 44 mm offset, Boost110, 15 mm thru axle, 100 mm travel
Size S: SR Suntour XCM 34, coil spring, adjustable preload, lockout, tapered steerer, 44 mm offset, Boost110, 15 mm thru axle, 120 mm travel
Size M, L, XL: SR Suntour XCM 34, coil spring, adjustable preload, lockout, tapered steerer, 44 mm offset, Boost110, 15 mm thru axle, 120 mm travel
Front Hub: Bontrager aluminum, sealed bearing, aluminum axle, center lock disc mount, Boost110, 15 mm thru axle
Rear Hub: Formula CL-3248, aluminum, center lock, Shimano 8/9/10-speed freehub, Boost148, 12 mm thru axle
Rear Quick Release: Bontrager Switch thru axle, removable lever
Rim: Bontrager Connection, double-walled rim, 32-hole, 20 mm internal width, Presta valve
*Tire Size: XS, S: Bontrager XT3 Comp, wire bead, 30 TPI, 27.5 x 2.40
Size M, L, XL: Bontrager XT3 Comp, wire bead, 30 TPI, 29 x 2.40
Shift Lever: Shimano U4000, 9-speed

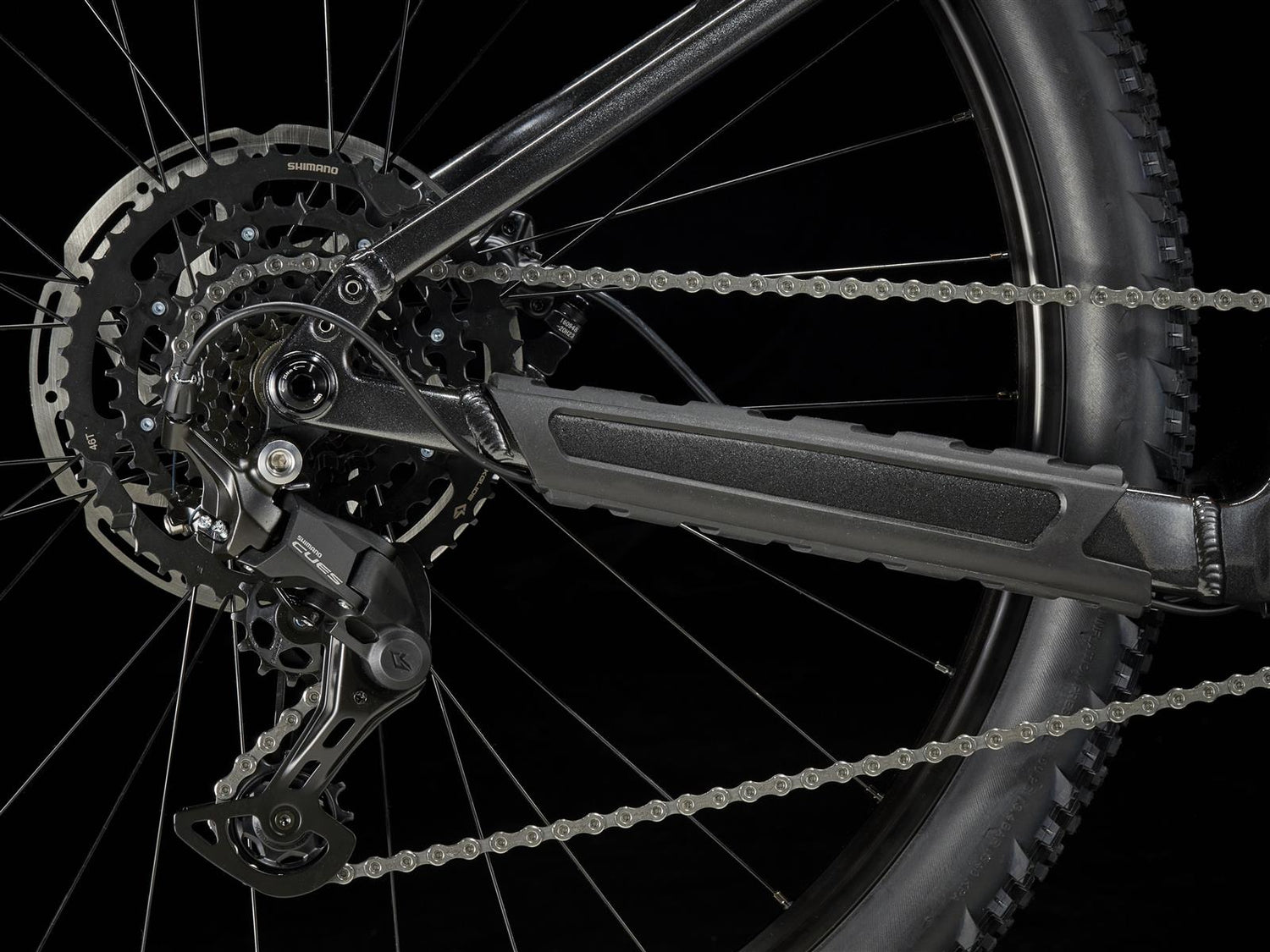

Rear Derailleur: Shimano CUES U4000
Crank: FSA CK-220, 165 mm crank arm length
Chainring: FSA, 32 T, steel
Cassette: Shimano LINKGLIDE LG300, 11-46 T, 9-speed
Chain: Shimano LG500, 9/10/11-speed
Pedal: VP-536, nylon platform

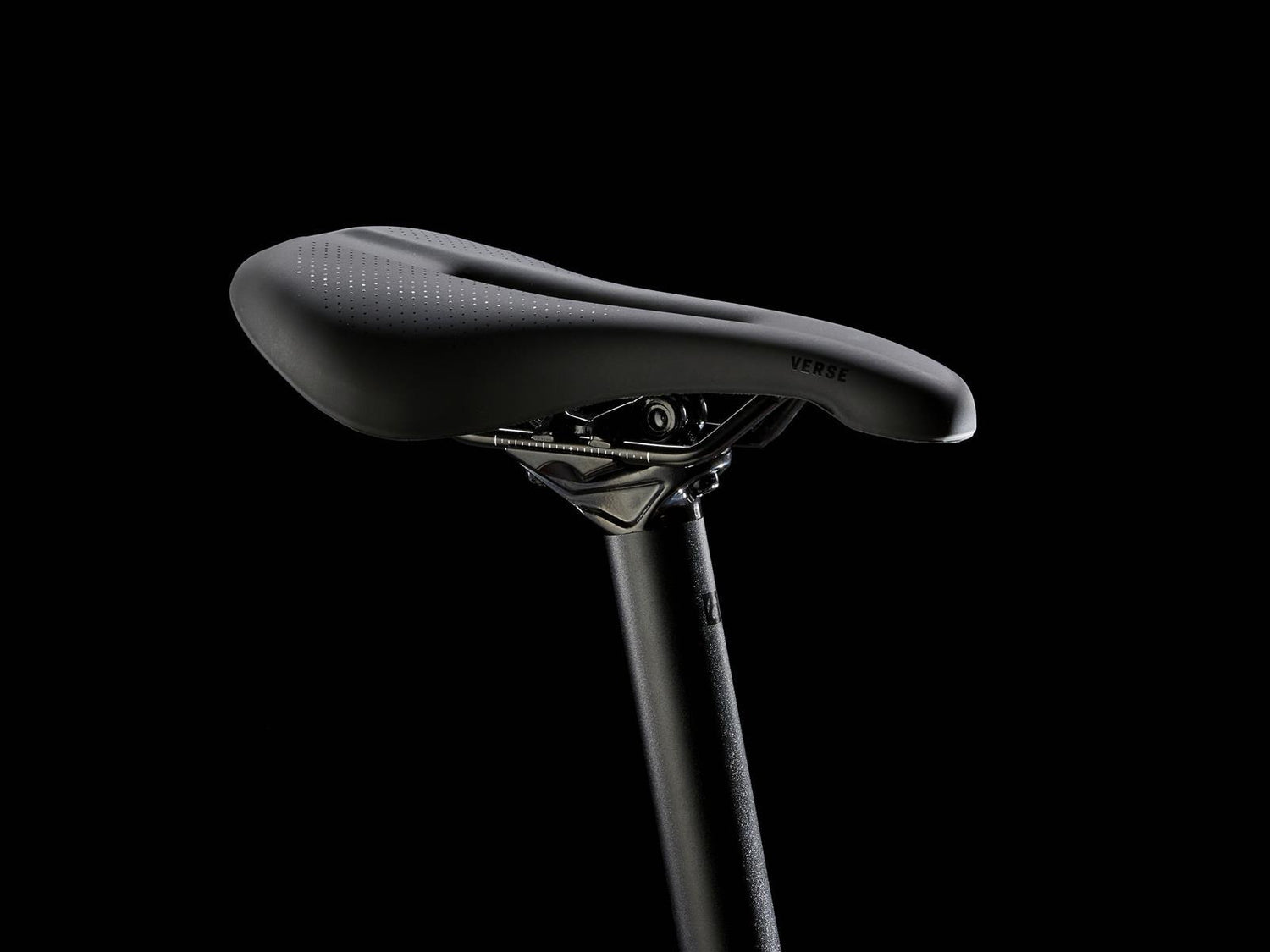

Saddle: Bontrager Arvada, steel rails, 138 mm width
*Seatpost Size: XS, S: Bontrager aluminum, 31.6 mm, 12 mm offset, 330 mm length
Size M: Bontrager aluminum, 31.6 mm, 12 mm offset, 360 mm length
Size L, XL: Bontrager aluminum, 31.6 mm, 12 mm offset, 400 mm length
*Handlebar Size: XS, S: Bontrager, aluminum, 31.8 mm, 15 mm rise, 720 mm width
Size M, L, XL: Bontrager, aluminum, 31.8 mm, 15 mm rise, 750 mm width
Grips: Bontrager XR Endurance Comp, lock-on
*Stem Size: XS, S: Bontrager aluminum, 31.8 mm, Blendr compatible, 7 degrees, 35 mm length
Size M, L: Bontrager, aluminum, 31.8 mm, Blendr compatible, 7 degrees, 50 mm length
Size XL: Bontrager, aluminum, 31.8 mm, Blendr compatible, 7 degrees, 60 mm length
Headset: Semi-integrated, open bearing, 1 1/8" top, 1.5" bottom
Brake Disc: Tektro, Center Lock, 203 mm
Brake Set: Tektro HD-M275, hydraulic disc brake

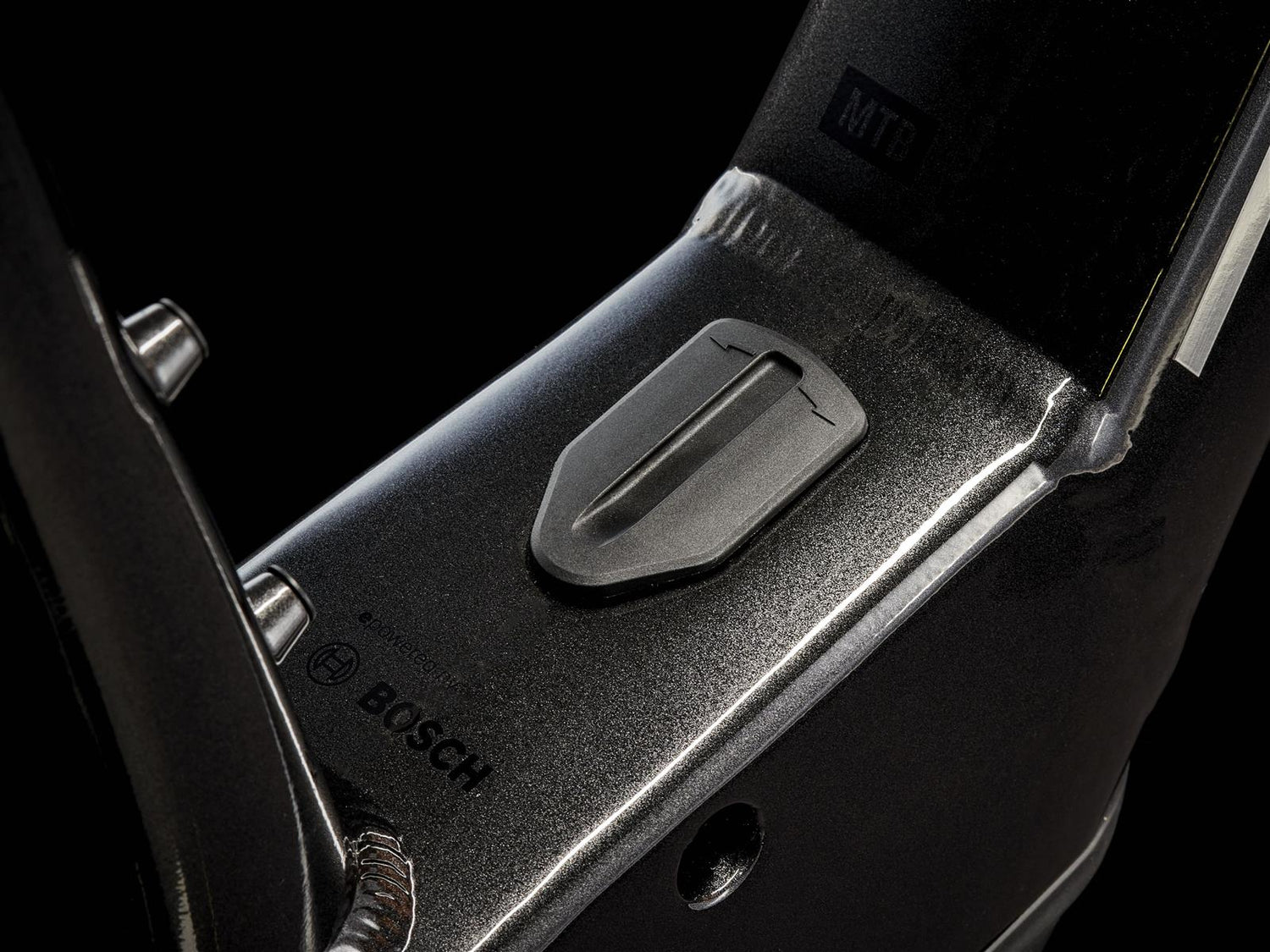

Battery: Bosch CompactTube 400 Wh
Charger: Bosch Standard charger 2 A, 230 V, Smart System

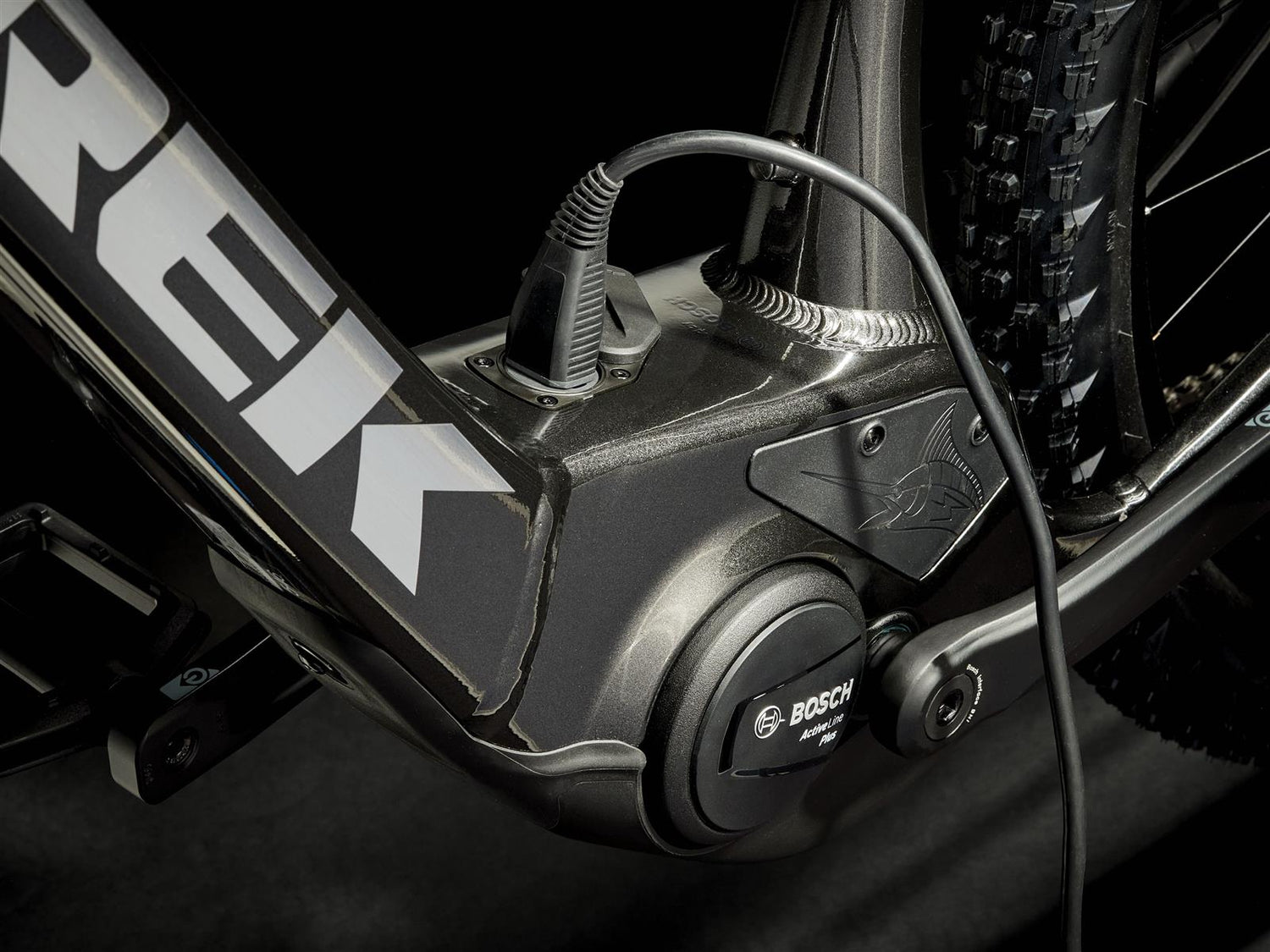

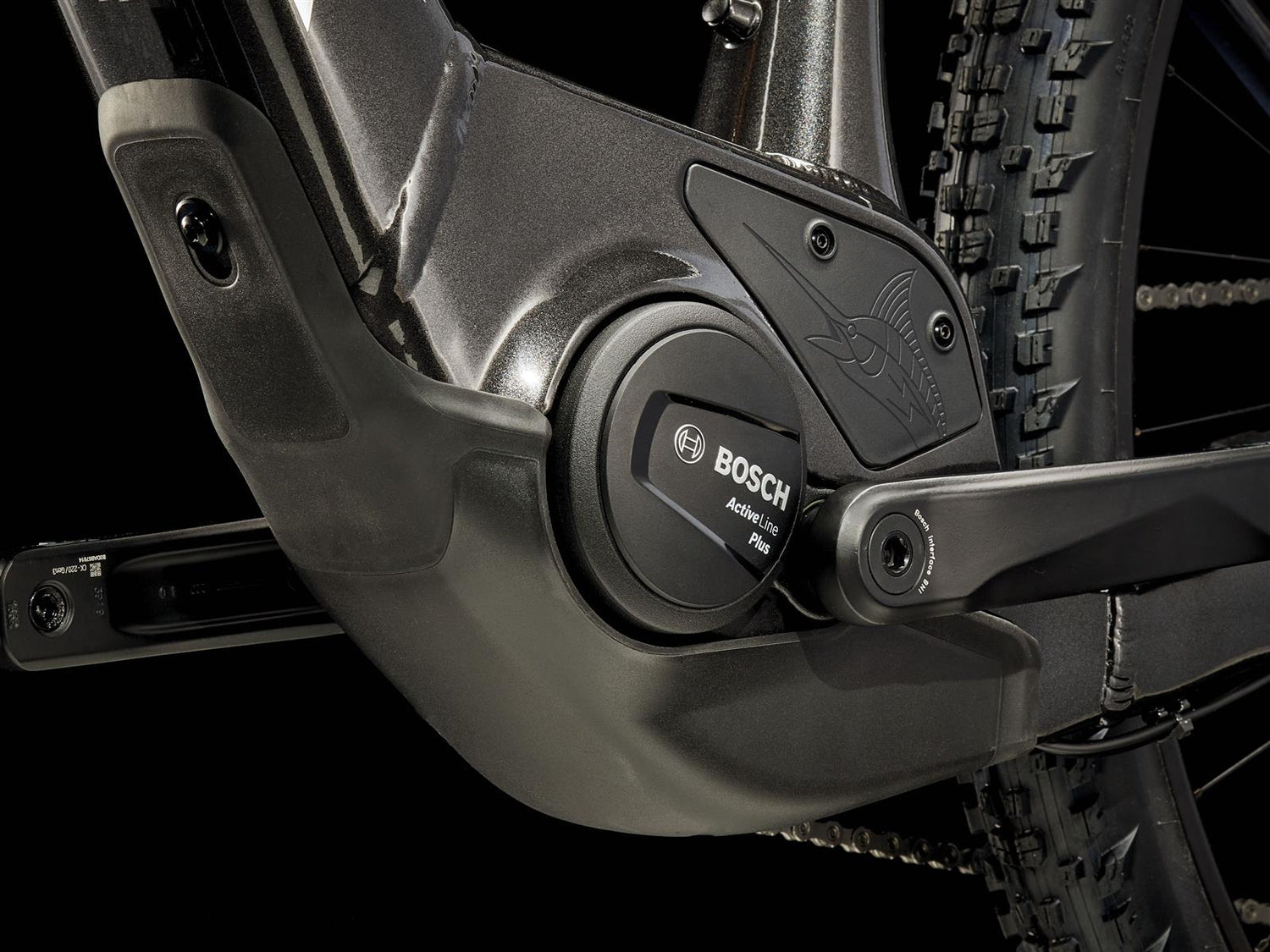

Motor: Bosch Active Line Plus, 50 Nm

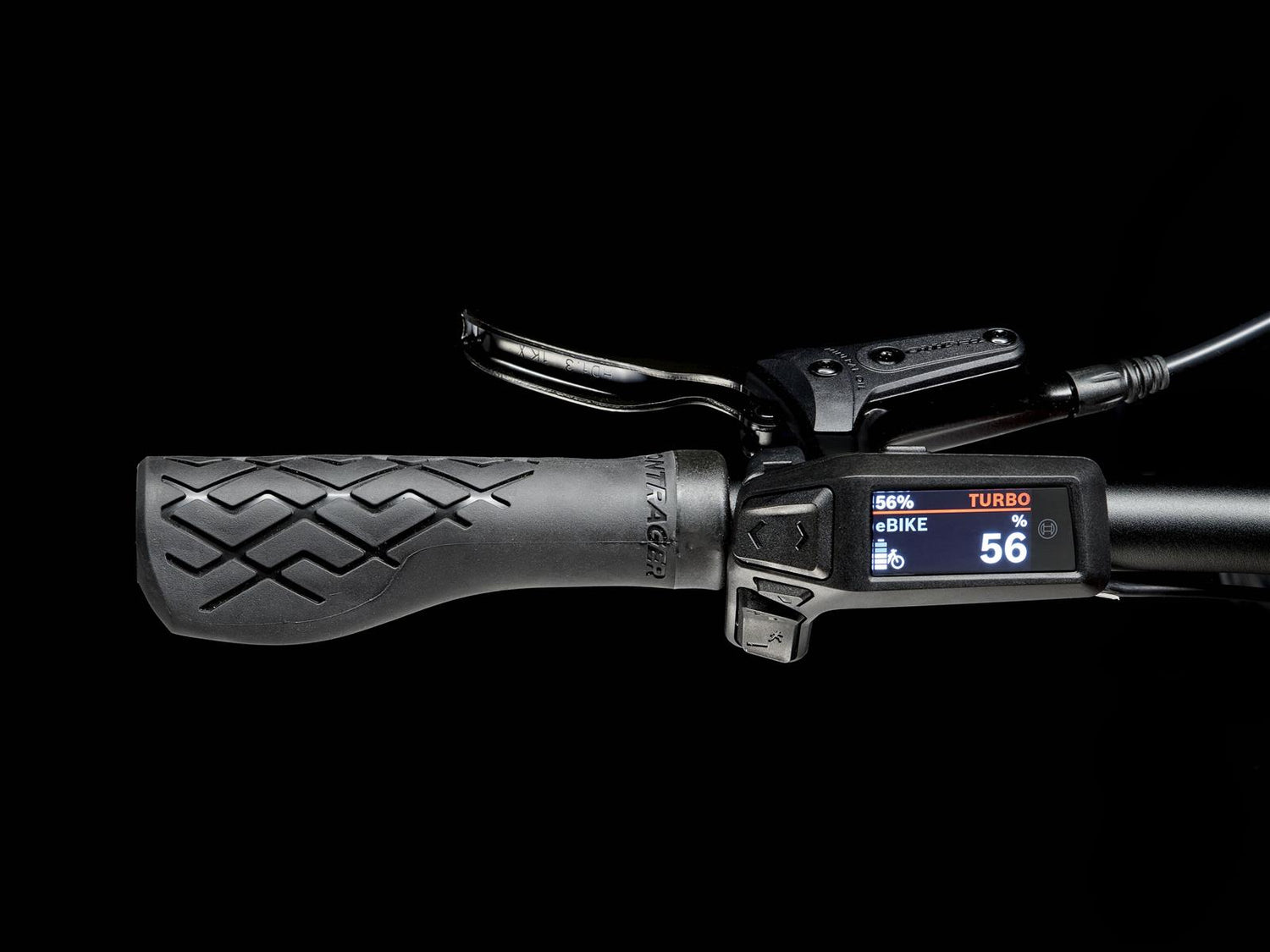

Computer: Bosch Purion 200
Weight: M - 22.45 kg / 49.5 lbs (with tubes)
Max. Weight: This bike has a maximum weight limit (bike, rider, and cargo) of 136 kg.

*Please note - the specification applies to all sizes unless otherwise noted
