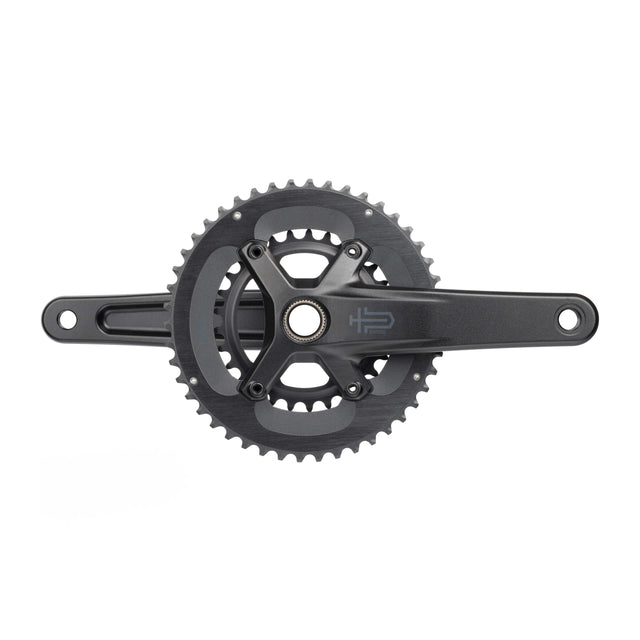

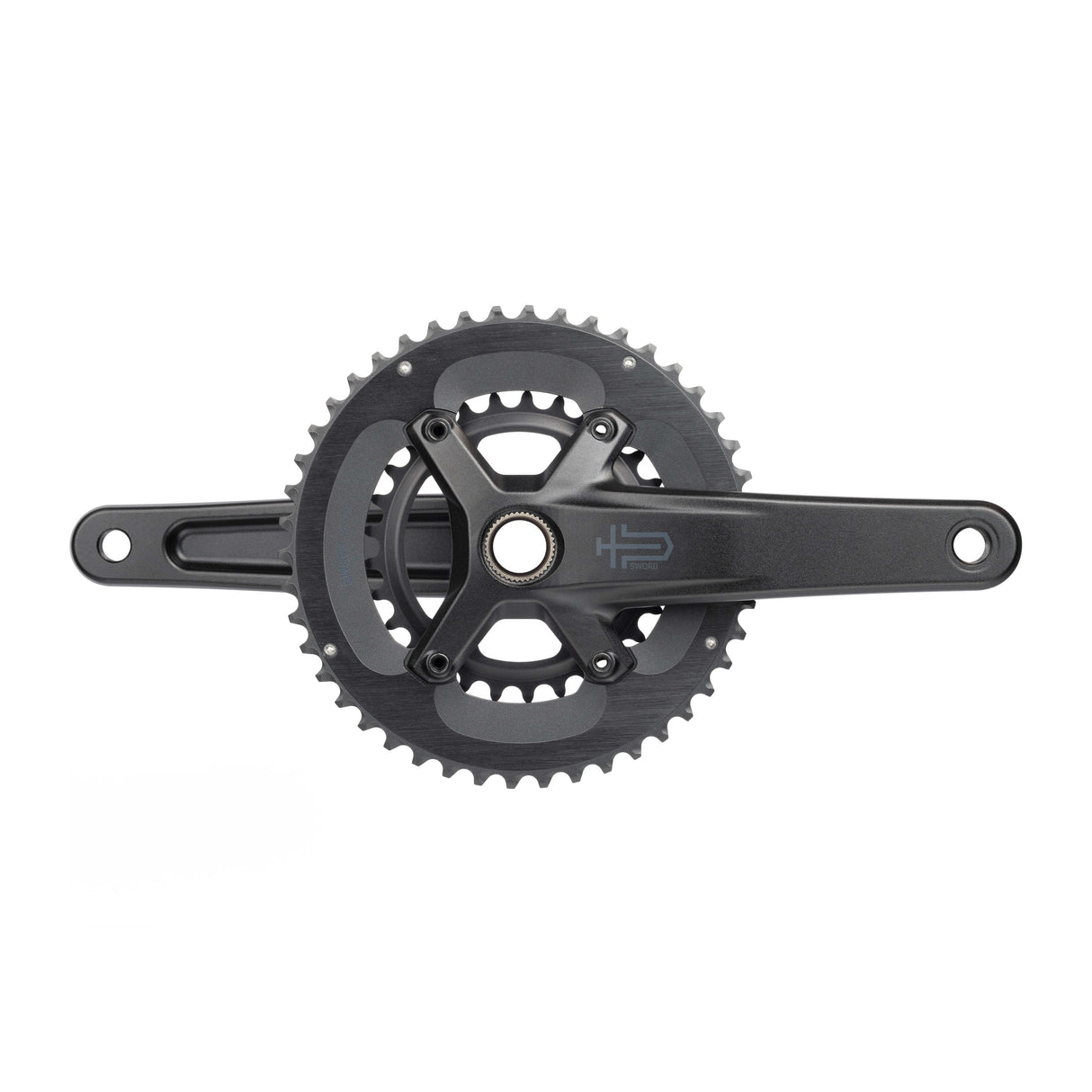

microSHIFT Sword 2x 46/29 Wide Crankset 2x10-speed

The Sword 2x crankset is designed for climbing. The two chainrings have a spacing of 17 teeth, which offers a lower gear ratio compared to other cranks, while also providing higher gears for fast descents. It has been designed to be as compatible and user-friendly as possible: The 24 mm spindle is compatible with many retrofit bottom brackets, and it can be easily converted from a 2x to a 1x crankset by simply installing a single chain guard in the outer position.

Features:

• Wide design, optimized for a chainline of 47 mm
• 24 mm spindle compatible with Shimano bottom brackets
• Larger gear range, tuned to the Sword derailleur and shifter system
• Easy conversion from 2x to 1x

Group: Sword
Speed: 10-speed
Number of chainrings: 2x (double)
Arm lengths: 165 mm, 170 mm, 172.5 mm, 175 mm
Chainring sizes: 46-29T
Chainline: Wide, 47 mm
Chainring bolt circle diameter (BCD): 110/80 asymmetric
Spindle interface: Standard 24 mm
Bottom bracket shell width: Press Fit 86.5 mm, Threaded 68 mm
Chainring material: Small chainring made of steel, large chainring made of aluminum
Weight: 925 g (172.5 mm)
