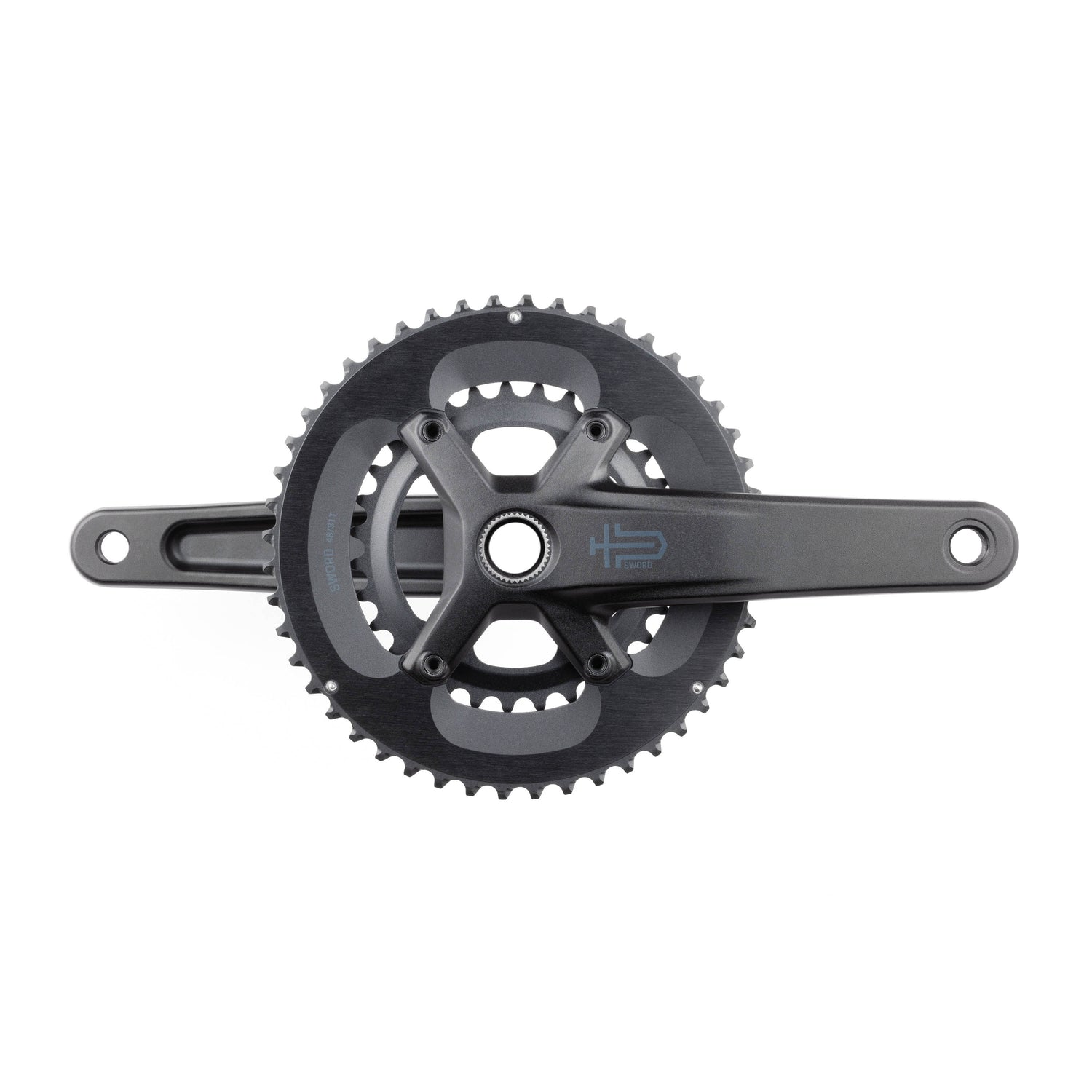

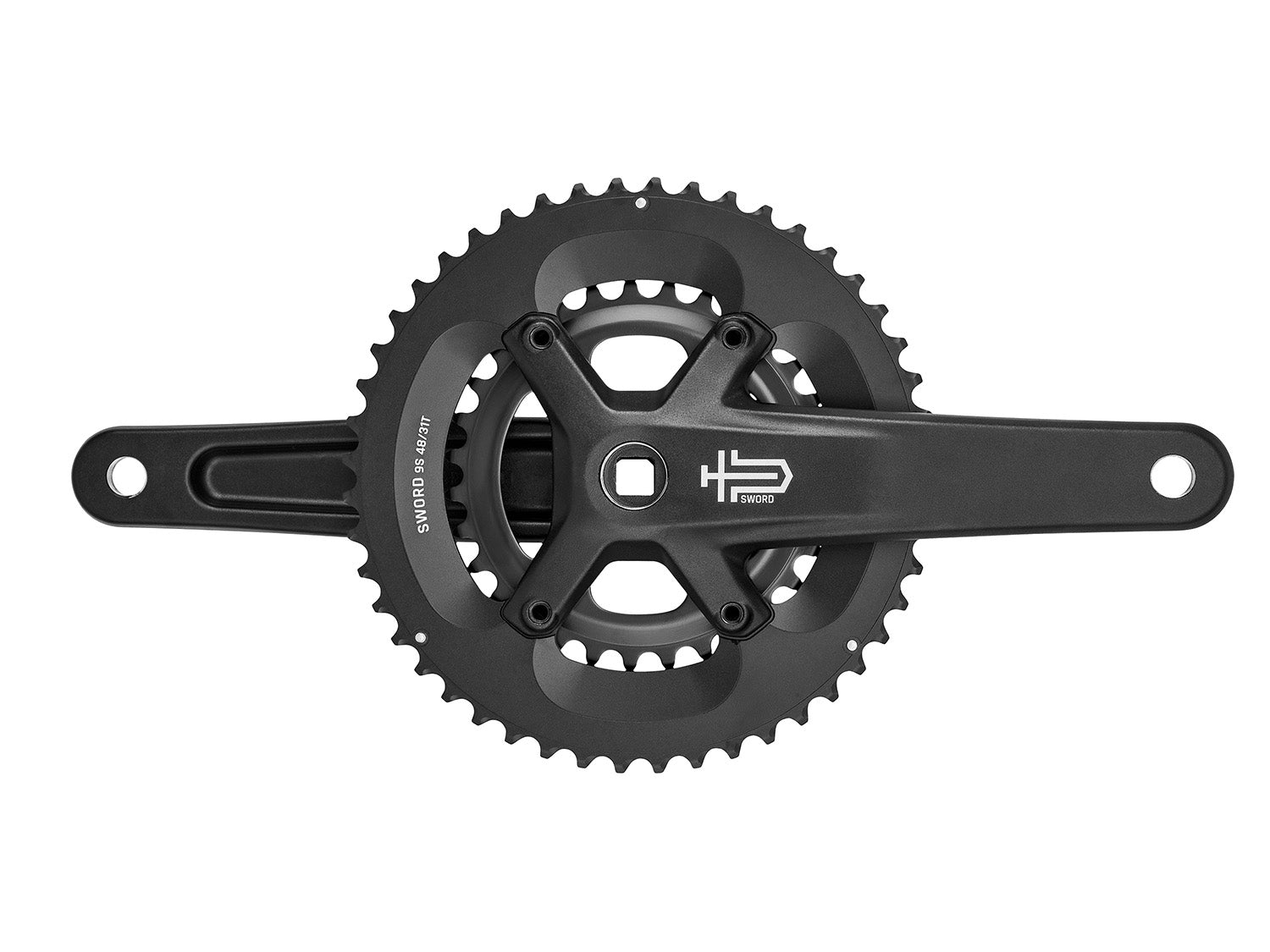

microSHIFT Sword 2x 48/31 Wide Crankset 2x10-speed

The Sword 2x crankset is specifically designed for climbing. The two chainrings have a difference of 17 teeth, providing a lower gear range than comparable cranks, while still offering enough speed for descents. It was developed to be as compatible and user-friendly as possible: The 24 mm spindle is compatible with a variety of bottom brackets, and it can be easily converted from a 2x to a 1x crankset by simply installing a single chainring in the outer position.

Features:

• Wide design, optimized for a chainline of 47 mm
• 24 mm spindle, compatible with Shimano bottom brackets
• Wider gear range, tuned for Sword derailleurs and shifters
• Easy conversion from 2x to 1x

Specifications:

Group: Sword
Speed: 10-speed
Number of chainrings: 2x (double)
Arm lengths: 165 mm, 170 mm, 172.5 mm, 175 mm
Chainring sizes: 48-31T
Chainline: Wide, 47 mm
Chainring bolt circle diameter (BCD): 110/80 asymmetrical
Spindle interface: Standard 24 mm
Bottom bracket shell width: Press Fit 86.5 mm, Threaded 68 mm
Chainring material: Small chainring made of steel, large chainring made of aluminum
