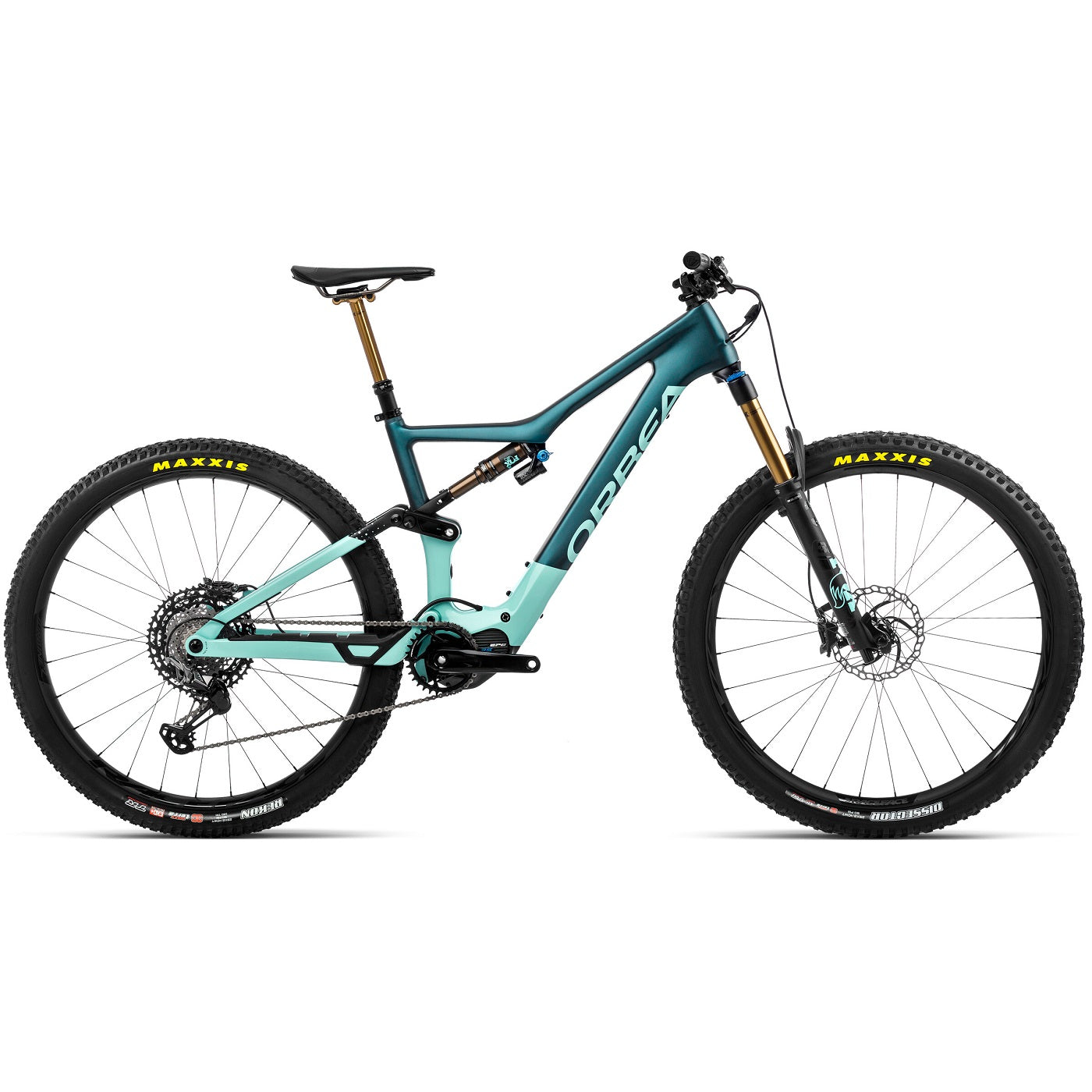

Orbea RISE M-TEAM Ice Green (Gloss) - Ocean (Matte)



Rise beyond

A machine designed to give you even more adventures on the trails and let you live in the moment. The Rise gives you that special feeling where less "E" means more "Bike". Whether you want to cover longer distances, reach epic locations, travel more efficiently, or experience great adventures more often: the Rise exceeds your expectations and sets a new mountain biking standard.

Rider Synergy (RS) Concept

A new riding experience that enriches the fun of traditional trail riding with smooth support that feels as natural and lively as if it were coming from your own legs.

Bike for big tours

The RS concept gives you a great day on the trails. Lower weight, reduced energy consumption, and support tailored to the rider's power input increase battery endurance to more than one and a half times.

Slim and expandable

Traditional e-bikes typically come with displays, sensors, extra cables, and large switches and buttons as unavoidable standards. However, for us, the aesthetics of a classic, clean bike were a central part of the RS philosophy.

The lightest in its class

The RS motor, battery, and electronics are more than half as light as other e-bike systems. RS describes a new philosophy where Orbea power, range, controls, and weight are understood as an integrated system. With its sleek, reduced, integrated appearance without bulky parts, it lets you forget time and experience the trail and the ride even more intensely.

The unique Shimano EP8 RS

Orbea had been searching for the best solution for quite some time. When Shimano announced plans for their new EP8 motor, they immediately knew: this exceptional motor would offer the perfect platform to implement the RS power concept. In close collaboration, Orbea developed their own electronics and batteries, while Shimano adapted their EP8 motor to run perfectly with the proprietary RS firmware.

Highly responsive

All the motor's power is only useful when applied precisely. The EP8 RS system delivers its power very smoothly and with first-class responsiveness.

The aesthetics of simplicity

Many athletes spend hours upon hours making their bikes a little lighter, eliminating distracting noises, or correcting visual imperfections. The benefits of bike computers and smartphones are undeniable, yet many riders prefer not to mount oversized displays on the handlebars or top tube.

OMR Frame

OMR frames combine high-modulus and high-strength carbon fibers with a standard layup to optimize the stiffness-to-weight ratio. The use of the so-called bladder molding process with EPS molds and polyurethane (PU) inserts at the head tube and bottom bracket prevents wrinkles and imperfections in critical areas of the frame. At the same time, carbon can be saved without compromising the frame's strength.



Components:
Model Year: 2022
Frame: Orbea Rise OMR 2021 140mm travel 29" C-Boost 12x148
Control unit: Shimano E7000 switch unit for assist
Motor: Shimano EP8-RS
Battery: Orbea RS Internal 360Wh
Charger: Orbea RS Charger (36V-2A)
Fork: Fox 36 Float Factory 150 Grip2 QR15x110 Kashima
Shock: Fox FLOAT X Factory 2-Position Evol LV Kashima custom tune 210x55mm
Crank: Shimano Steps EM900
Chainring: e*thirteen e*spec Direct Mount 32T Boost
Chain: Shimano CN-9100
Chainguide: Orbea Rise chainguide
Cassette: Shimano XTR M9100 10-51t 12-Speed
Rear Derailleur: Shimano XTR M9100 SGS Shadow Plus
Shifter: Shimano XTR M9100
Brakes: Shimano XTR M9120 Hydraulic Disc
Number of gears: 1x12
Wheel size: 29 inches
Wheels: Race Face TURBINE-R30 TLR 15/110mm IS
Tires: Maxxis Dissector 2.40" 60 TPI 3CMaxxTerra Exo TLR, Maxxis Rekon 2.40" 120 TPI 3CMaxxTerra Exo+ TLR
Seatpost: Fox Transfer Factory Kashima Dropper 31.6
Seatpost remote lever: Shimano SL-MT-800 I-Spec EV
Saddle: Fizik Taiga Kium rail
Headset: Acros Alloy 1-1/8 - 1-1/2" Integrated
Stem: Race Face Turbine R 35mm interface
Handlebar: Race Face Next R 35 20mm Rise 780mm



* Specifications may vary slightly in exceptional cases due to manufacturer-related details.
