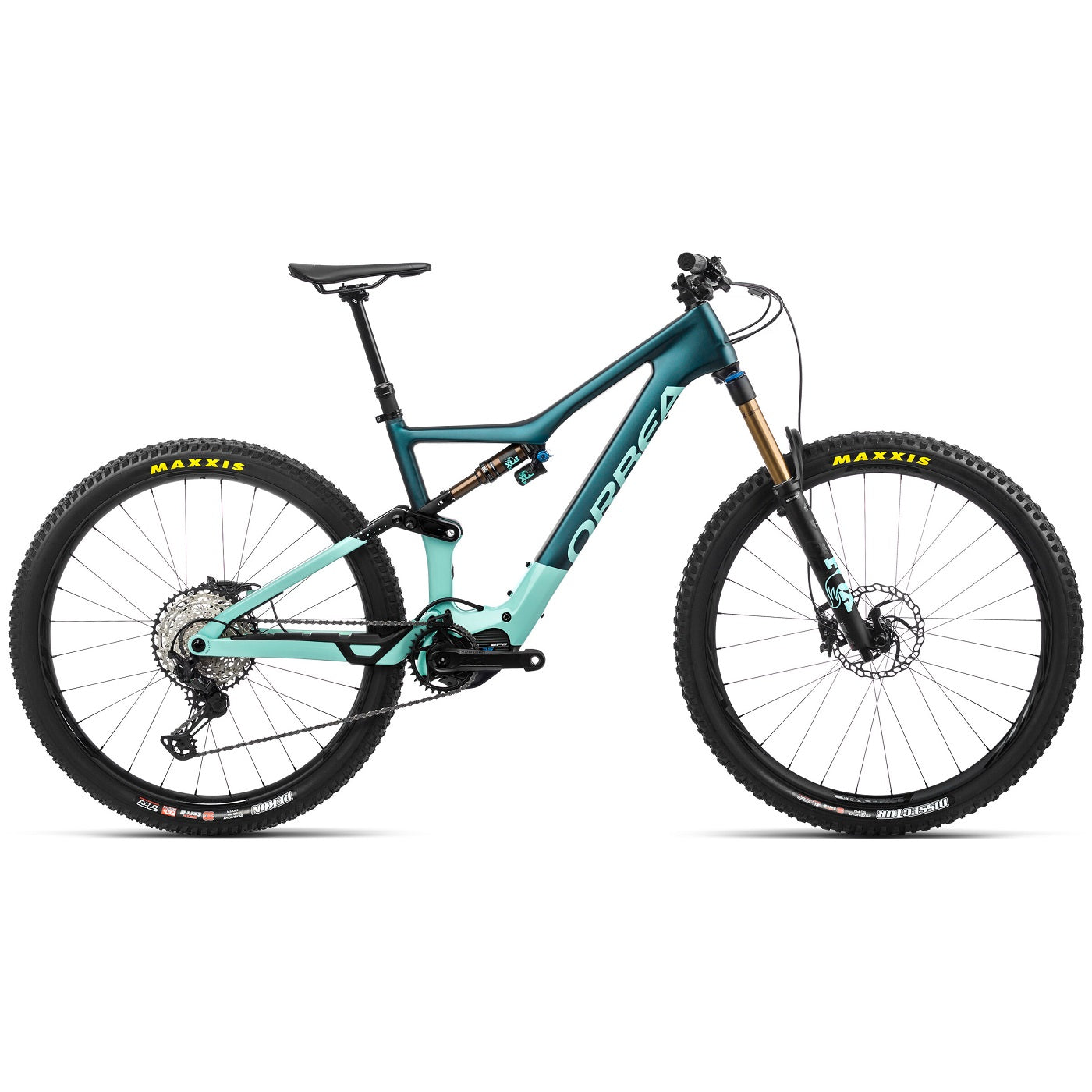

Orbea RISE M10 Ice Green (Gloss) - Ocean (Matte)

Rise beyond

A machine developed to let you experience even more adventures on the trails and to live the moment. The Rise gives you that special feeling where less "E" means more "Bike". Whether you want to cover longer distances, reach epic places, get around more efficiently, or experience great adventures even more often: the Rise exceeds your expectations and sets a new mountain bike standard.

Rider Synergy (RS) concept

A new riding experience that enriches the fun of conventional trail riding with gentle support that feels as natural and lively as if it came from your own legs.

Bike for big tours

The RS concept gives you a great day on the trails. Because low weight, lower energy consumption and support matched to the rider’s power output increase the battery’s endurance to more than one and a half times.

Slim and expandable

Conventional e-bikes have displays, sensors, additional cables and large switches and buttons as unavoidable standard. But for us, the look of a classic, clean bike was a central part of the RS philosophy.

The lightest in its class

RS motor, battery and electronics are more than half lighter than other E-Bike systems. RS describes a new philosophy in which Orbea power, range, the control elements and weight are understood as an integrated system. With its slim, reduced and integrated appearance without bulky parts, it makes you forget the time and experience the trail and the ride even more intensely.

The unique Shimano EP8 RS

For some time now, Orbea has been looking for the best solution. When Shimano then published the plans for its new EP8 motor, they knew right away: this exceptional motor offers the perfect platform to implement the RS Power concept. In close collaboration, Orbea handled the development of its own electronics and batteries, while Shimano adapted its EP8 motor so that it runs perfectly with the company’s own RS firmware.

Instant response

All the power of the motor only makes sense when it’s used in a targeted way. The EP8 RS system delivers its power very smoothly and with first-class response.

The aesthetics of simplicity

Many riders spend hours and hours making their bike a little lighter, eliminating annoying noises or correcting visual imperfections. The advantages of bike computers and smartphones are undeniable, yet many riders don’t want to mount an oversized display on the handlebar or top tube.

OMR frame

OMR frames combine highly modular and highly strong carbon fibres with a standard layup, optimising the ratio of stiffness to weight. Using the so-called bladder-moulding process with EPS moulds and polyurethane inserts (PU) at the head tube and bottom bracket prevents creases and unevenness in critical areas of the frame. At the same time, carbon can be saved without affecting the frame’s strength.

Equipment:
Frame: Orbea Rise OMR 2021 140mm travel 29" C-Boost 12x148
Control unit: Shimano E7000 switch unit for assist
Motor: Shimano EP8-RS
Battery: Orbea RS Internal 360Wh
Charger: Orbea RS Charger (36V-2A)
Fork: Fox 36 Float Factory 150 Grip2 QR15x110 Kashima
Shock: Fox FLOAT X Factory 2-Position Evol LV Kashima custom tune 210x55mm
Crank: e*thirteen Plus Alu
Crankset: e*thirteen e*spec Direct Mount 32T Boost
Chain: Shimano M7100
Chain guide: Orbea Rise chainguide
Cassette: Shimano CS-M7100 10-51t 12-Speed
Rear derailleur: Shimano XT M8100 SGS Shadow Plus
Shifter: Shimano XT M8100 I-Spec EV
Brakes: Shimano XT M8120 Hydraulic Disc
Number of gears: 1x12
Wheel size: 29 inch
Wheels: Race Face TURBINE-R30 TLR 15/110mm IS
Tyres: Maxxis Dissector 2.40" 60 TPI 3CMaxxTerra Exo TLR, Maxxis Rekon 2.40" 120 TPI 3CMaxxTerra Exo+ TLR
Seatpost: OC2 Dropper 31.6mm
Remote lever for seatpost: Shimano SL-MT500 I-Spec EV
Saddle: Fizik Taiga S-alloy rail
Headset: Acros Alloy 1-1/8 - 1-1/2" Integrated
Stem: Race Face Aeffect R 35mm interface
Handlebar: Race Face Next R 35 20mm Rise 780mm

* In rare cases, our manufacturers supply bikes with modified but equivalent components.
