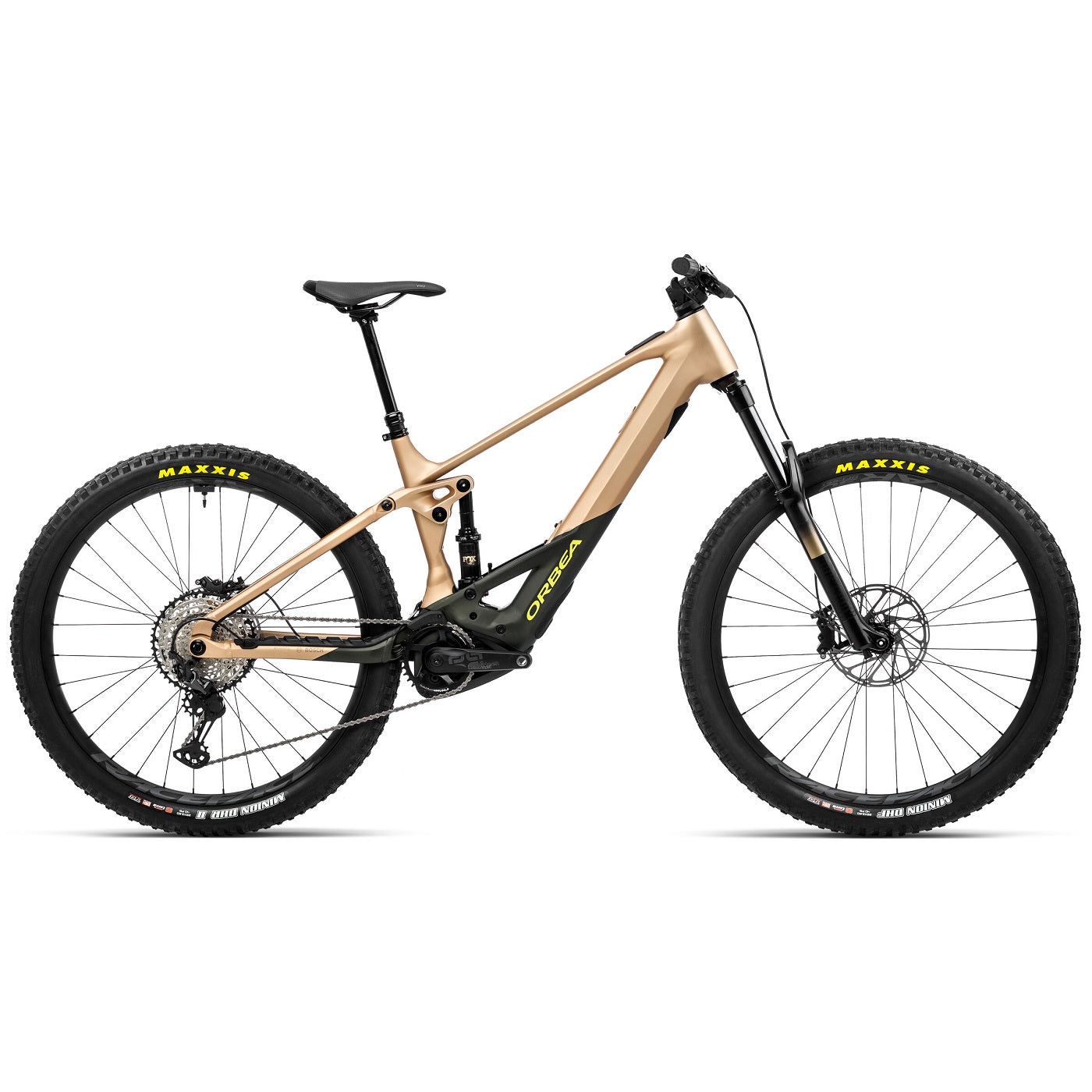

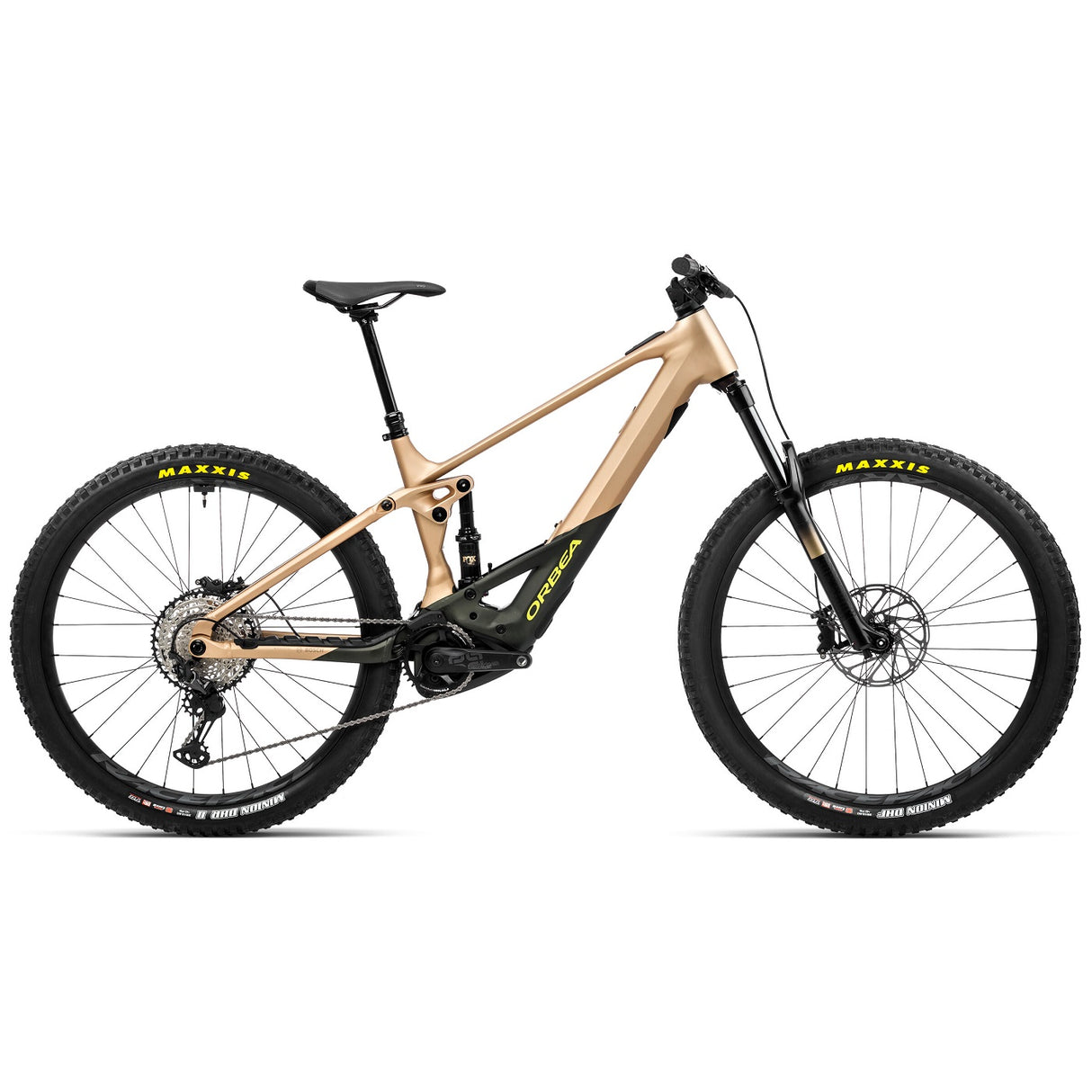

Orbea WILD H20 - Baobab Brown - Nori Green (Matt)

Orbea could tell you that the Wild has the strongest motor or the most powerful battery on the market, but that seems unnecessary, because this bike takes you to a world beyond performance, where experience is key and the trails are endless. Leave the heavy, insensitive e-bikes behind and unleash your Wild.

Secure Battery System

Removing the battery to charge it? Can be convenient. However, this feature also brings many structural disadvantages for the frame. For example, additional parts are needed for assembly, which not only makes the bike heavier but also more complicated. Additionally, removable batteries require large openings or recesses in the frame. Depending on the solution approach, compromises have to be made in one way or another. For example, through additional material use, reduced stiffness, or a higher center of gravity. Additionally, rattling covers can dampen the joy of riding.

Sealed, Integrated Cables

Thanks to the SIC system, the cables are invisible and routed in the best possible way through the headset, the integrated guides, and Orbea's Cable Pass from the cockpit to the rear of the bike.

Clean Cockpit

With a glance at the tidy cockpit of the WILD, you would hardly think that you are sitting on an e-bike. The remote control is wirelessly connected to the display in the top tube. All other cables run invisibly through the headset. Thanks to the SIC system, they are perfectly protected.

The Traction of a 29er with Optimized Chainstays

The integration of a motor often leads to the unwanted use of longer chainstays. The result is a stiffer, less agile handling. To counteract this effect, many manufacturers rely on 27.5-inch wheels. However, this impairs the traction on the rear wheel, which is so important for powerful e-bikes.

Equipment:
Frame: Orbea Wild Full Suspension Hydroformed Alloy 160mm Travel Boost 12x148 Bosch Gen4
Shock: Fox Float DPS Performance Trunnion 3-Position Evol LV custom tune 205x65mm
Fork: RockShox 35 Silver TK Crown adjust Q15x110 Solo Air 160mm
Motor: BOSCH Performance Line CX (25km/h) BDU3741
Battery: BOSCH Powertube 750Wh Horizontal BBP3770
Display: BOSCH System Controller BCR3100
Charger: Bosch Charger 4A (230V) BPC3400
Handlebar Control Unit: BOSCH Mini Remote BRC3300
Crank: e*thirteen Plus Alu
Derailleur: Shimano XT M8100 SGS Shadow Plus
Shifter: Shimano Deore M6100
Cassette: Shimano CS-M7100 10-51t 12-Speed
Chain: Shimano M6100
Chain Guide: e*thirteen Plus Bosch CX Gen4 32-38t
Brakes: SRAM DB8 Black Hydraulic Disc
Wheels: Race Face AR 30c Tubeless Ready
Wheel Size: 29 inches
Tires: Maxxis Minion DHF 2.60" 120 TPI FB 3C Maxx Terra Exo+ TR
Headset: FSA 1-1/2" Integrated Aluminium Cup
Seatpost: OC Mountail Control MC20, 31.6mm, Dropper
Seatpost Remote Lever: OC Horizontal
Saddle: Selle Royal Vivo 145x269mm
Stem: OC Mountain Control MC20, 0º
Handlebar: OC Mountain Control MC30, Rise20, Width 800



* Specification may vary in details in exceptional cases, depending on the manufacturer.
