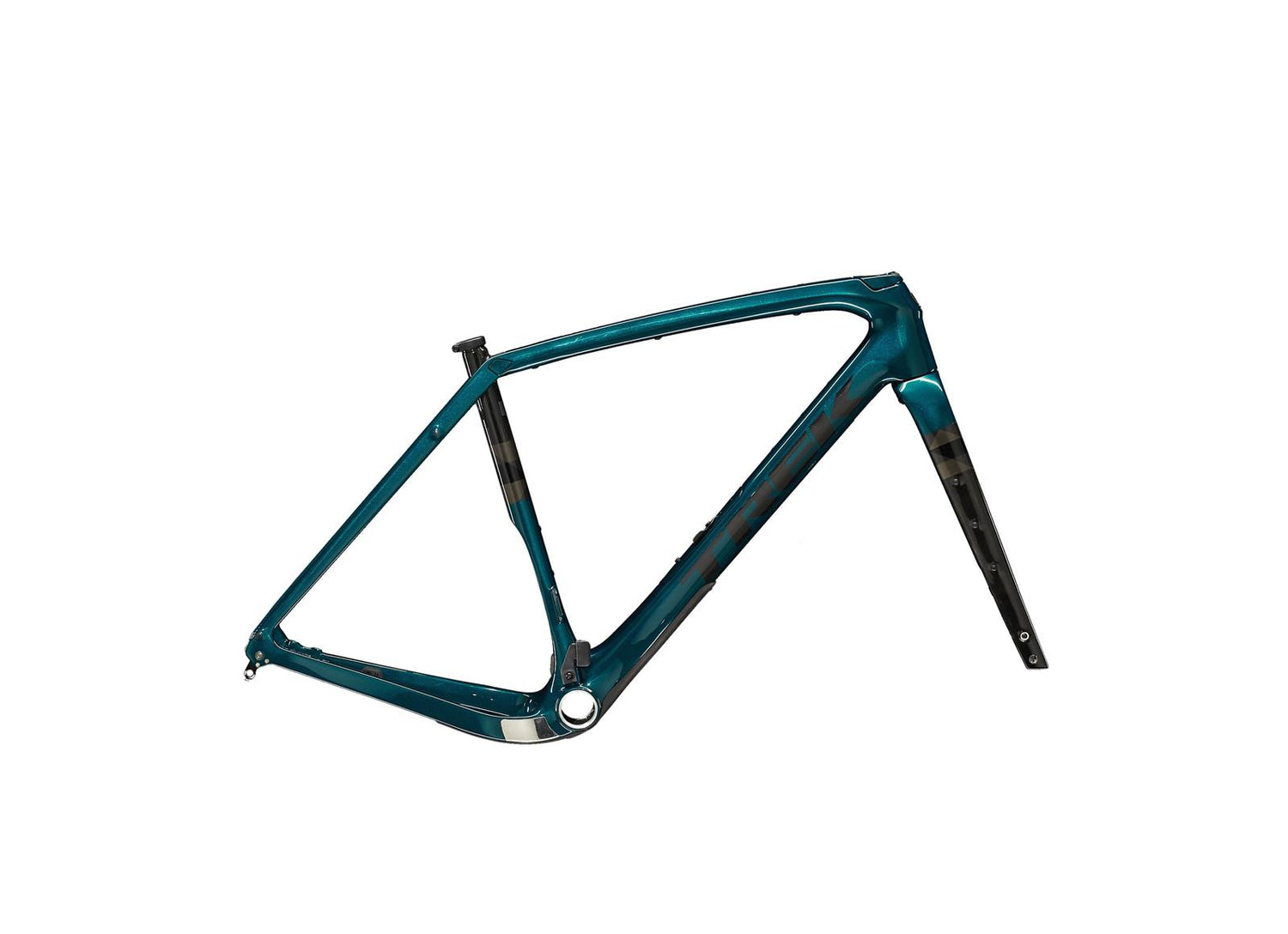

Trek Frame set Checkpoint SL F/S Dark Aquatic/Carbon Smoke

The Checkpoint SL frameset is a gravel-specific carbon frame for epic all-road adventures. The progressive, agile, yet stable geometry, the vibration-damping IsoSpeed decoupler, the internal storage compartment, the numerous mounting options for bags and equipment, and the massive tire clearance make it the ideal basis for building a lightweight and high-performance gravel bike.

Trek offers you a frame made of 500 Series OCLV Carbon with IsoSpeed at the rear, Carbon Armor, a carbon fork, and a progressive geometry that is stable at high speeds and efficient on steep climbs. It also includes an internal storage compartment, hidden cables that don't interfere with your bags, integrated mounting elements for a frame bag, as well as rack and fender mounts. This frameset comes with a headset and is designed for 12mm thru-axles, flat mount disc brakes, and T47 bottom brackets. The frame even accommodates a dropper post, giving you more space on descents. The frame provides space for tires up to a width of 45C.

• The IsoSpeed decoupler absorbs tiring bumps without annoying bobbing.
• The new progressive geometry is fast and agile and impresses with high stability and controllability even on rough descents.
• A sleek, frame-integrated storage compartment allows for the storage of tools and equipment.
• The integrated mounting options for a frame bag and the rack and fender mounts make it easier to transport additional equipment and water bottles.
• This bike is extremely versatile and covers a wide range of uses from gravel racing to bikepacking trips to daily commuting.

Equipment:
Frame: 500 Series OCLV Carbon, IsoSpeed, internal cable routing, downtube storage compartment, 3S chain guide, T47 bottom bracket, rack and fender mounts, integrated mounting elements for frame bag, flat mount disc brake mount, compatible with dropper post, 142 x 12 mm thru-axle
Fork: Trek Checkpoint, full carbon, tapered carbon steerer, rack and fender mounts, flat mount disc brake mount, 12 x 100 mm thru-axle
Frame Fit: Gravel
Weight: 1480g - 56cm (frame only, painted) 501g (fork only, painted)
Max. Weight: This bike has a maximum weight limit (bike, rider, and load) of 125 kg.
Max. Chainring Size: 1x: 46 teeth, 2x: 50/37
Front Quick Release: Bontrager Switch thru-axle, removable lever
Rear Quick Release: Bontrager Switch thru-axle, removable lever
Max. Tire Size: 700 x 45mm / 650 x 2.10"
Brake Disc Diameter: Max. brake disc diameter: 160mm front & rear

*Please note - the specification applies to all sizes unless otherwise noted
