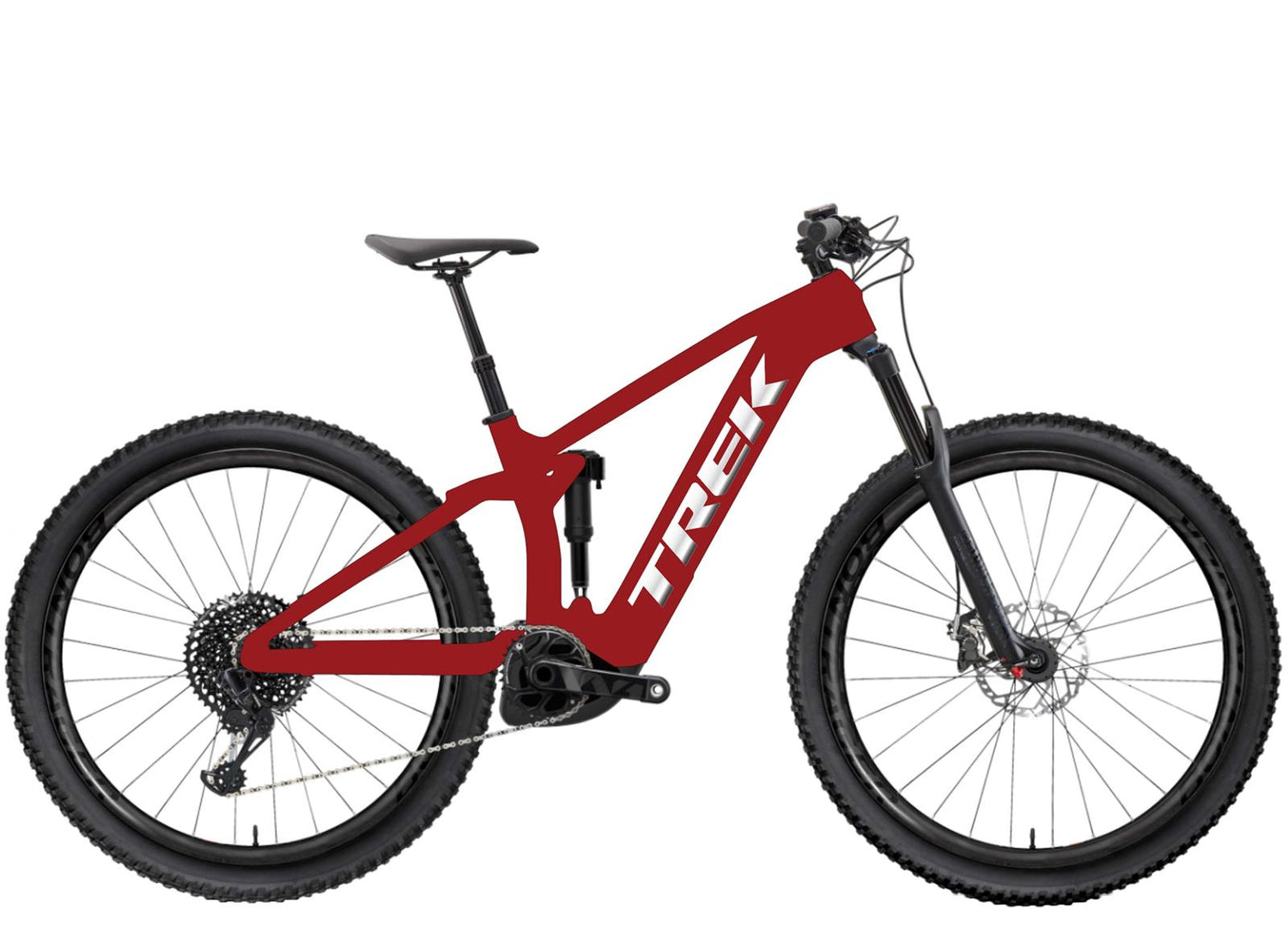

Trek Rail 5 Deore Gen 3 Rage Red

The Rail 5 625 is an e-mountain bike for rough terrain. It comes with the same high-end features as our non-electric trail bikes, but is propelled forward by the new powerful Bosch drive system.

Equipment:

Frame: Alpha Platinum Aluminum, removable integrated battery (RIB), tapered head tube, internal Control Freak cable routing, magnesium rocker link, Motor Armor, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel
Motor: Bosch Performance Line CX, Smart System, magnesium motor housing, 85 Nm, 32 km/h max. support speed (25 km/h max. support speed in EU and APAC)
Battery: Bosch PowerTube 625 Wh, Smart System
Charger: Bosch Standard charger 2 A, 230 V, Smart System
Fork: RockShox 35 Gold RL, DebonAir spring, Motion Control damping, lockout, tapered steerer, 44 mm offset, oversized fork crown for e-MTB, Boost110, 15 mm Maxle Stealth axle, 160 mm travel
Shock: RockShox Deluxe Select+ RT, 230 x 57.5 mm
Max. compatible fork travel: 170 mm (580 mm axle to crown)
Front hub: Bontrager, sealed bearing, aluminum axle, 6-bolt disc mount, Boost110, 15 mm thru axle
Rear hub: Bontrager, aluminum, sealed bearing, aluminum axle, 6-bolt disc mount, 8/9/10 freehub from Shimano, Boost148, 12 mm thru axle
Rear quick release: Bontrager Switch thru axle, removable lever
Rim: Alex MD35, tubeless ready, 32-hole, 35 mm internal width, Presta valve
Tire: Bontrager XR4 Comp, wire bead, 30 TPI, 29 x 2.60
Max. tire size: Frame: 29 x 2.60
Shifter: Shimano Deore M6100, 12-speed
Derailleur: Shimano Deore M6100, long cage
Crank: E*thirteen E*spec Plus, 34 T.
Cassette: SunRace CSMZ800 11-51, 12 speed
Chain: Shimano Deore M6100
Max. chainring size: 34 teeth
Saddle: Bontrager Arvada, steel rails, 138 mm width
Seatpost: TranzX JD-YSP18, 100 mm travel, internal cable routing, 31.6 mm, 361 mm length (S)
Seatpost: TranzX JD-YSP18, 130 mm travel, internal cable routing, 31.6 mm, 425 mm length (M/L/XL)
Handlebar: Bontrager aluminum, 31.8 mm, 15 mm rise, 750 mm width
Grips: Bontrager XR Trail Comp, nylon lock-on
Stem: Bontrager Rhythm Comp, Knock Block, 31.8 mm, 0 degree, 50 mm length
Brake: Hydraulic 4-piston disc brake Tektro HD-M745
Brake disc: Tektro, 6-bolt, 203 mm
Max. brake disc diameter frame: 203 mm
Max. weight: This bike has a maximum weight limit (bike, rider, and cargo) of 136 kg.

* Specification may vary in details in exceptional cases, depending on the manufacturer.
