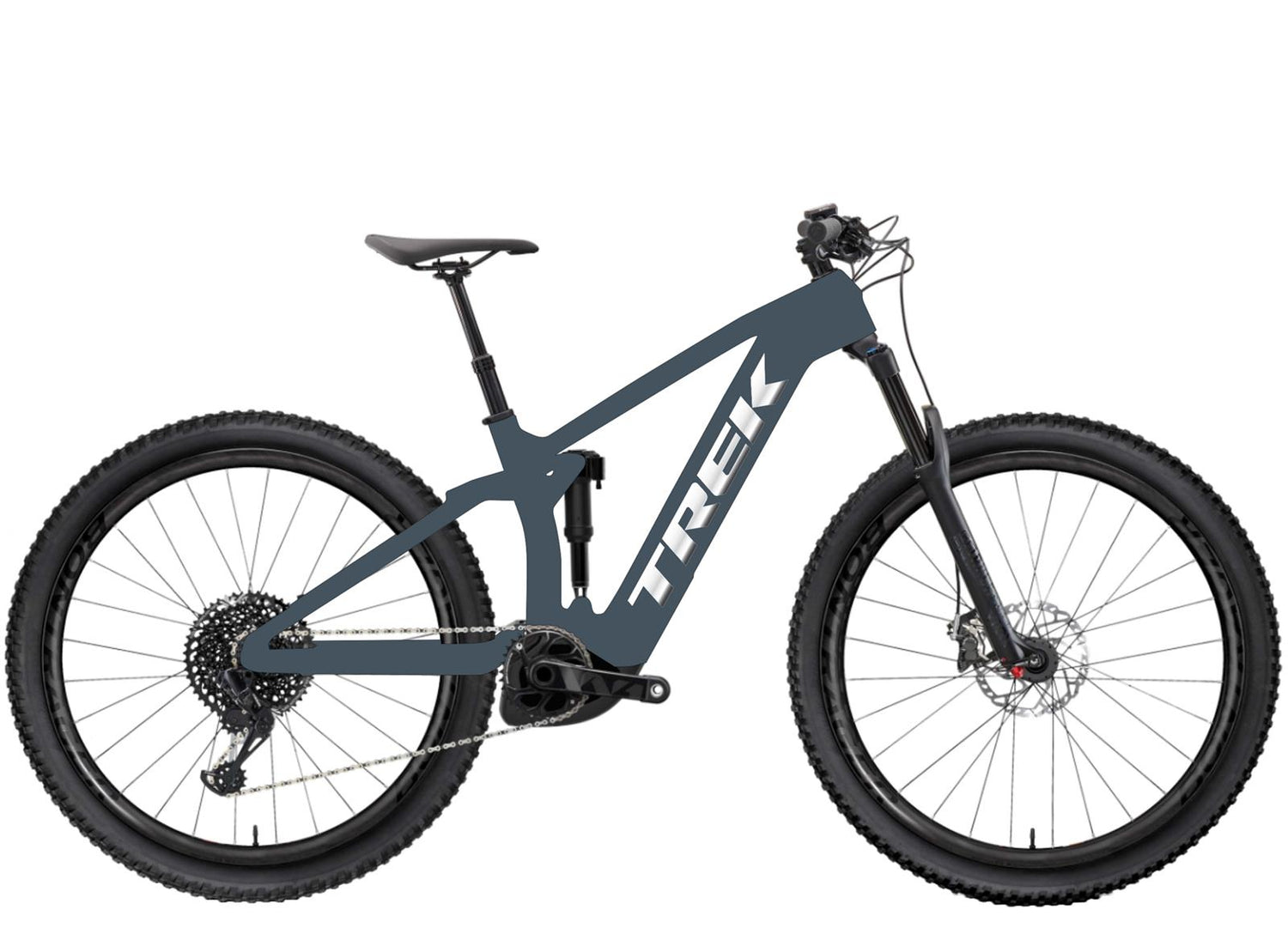

Trek Rail 9.7 Gen 4 Galactic Grey

The Rail 9.7 is an electric long-travel mountain bike that gets you to the really fun sections faster. Its high-quality frame offers more reach for tremendous stability on the trail, while the new Bosch Smart System drive unit with a powerful 750 Wh battery quickly takes you up the mountain and provides enough juice for nearly endless laps.

Equipment:

Frame: Main frame made of OCLV Mountain Carbon, 1.8" lower top tube, integrated control module display, removable integrated battery (RIB), Knock Block 2.0, internal cable routing, 34.9 mm seat tube, magnesium rocker link, Motor Armor, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel
Battery: Bosch PowerTube 625 Wh, Smart System (S)
Battery: Bosch PowerTube 750 Wh, Smart System (M/L/XL)
Charger: Bosch Standard charger 4 A, 230 V, Smart System
Controller: Bosch System Controller BRC3100, Smart System / Bosch LED Remote, Smart System
Motor: Bosch Performance Line CX, Smart System, magnesium motor housing, 85 Nm, 32 km/h max. support speed (25 km/h max. support speed in EU and APAC)
Fork: RockShox Domain RC, DebonAir, Motion Control damping, lockout, tapered 1.8" oversized steerer, 44 mm offset, oversized fork crown for E-MTB, Boost110, 15 mm Maxle Stealth axle, 160 mm travel
Shock: RockShox Deluxe Select+ RT, 230 x 57.5 mm
Max. compatible fork travel: 170 mm (580 mm axle to crown)
Front hub: Bontrager, aluminum, sealed bearing, aluminum axle, 6-bolt disc mount, Boost110, 15 mm thru axle
Rear hub: Bontrager, aluminum, sealed bearing, 6-bolt disc mount, Rapid Drive 108, Shimano MicroSpline freehub, Boost148, 12 mm thru axle
Rear quick release: Bontrager Switch thru axle, removable lever
Rim: Bontrager Line Comp 30, Tubeless Ready, 28-hole, Presta valve
Tire: Bontrager XR5 Team Issue, Tubeless Ready, aramid bead, 120 TPI, 29 x 2.50
Rim tape: Bontrager TLR
Max. tire size frame: 29 x 2.60
Shifter: Shimano SLX M7100, 12-speed
Rear derailleur: Shimano XT M8100, long cage
Crank: E*thirteen E*spec Plus, 34 T.
Cassette: Shimano SLX M7100, 10-51 T., 12-speed
Chain: Shimano SLX M7100, 12-speed
Max. chainring size: 34 teeth
Saddle: Bontrager Arvada, steel rails, 138 mm width
Seatpost: TranzX JD-YSP39, 100 mm travel, internal cable routing, 34.9 mm (S)
Seatpost: TranzX JD-YSP39, 150 mm travel, internal cable routing, 34.9 mm (M)
Seatpost: TranzX JD-YSP39, 170 mm travel, internal cable routing, 34.9 mm (L/XL)
Handlebar: Bontrager Comp, aluminum, 31.8 mm, 15 mm rise, 780 mm width
Grips: Bontrager XR Trail Comp, nylon clamp
Stem: Bontrager Rhythm Comp, Knock Block, 31.8 mm, 0 degrees, 50 mm length
Brake: Hydraulic 4-piston disc brake by Shimano, M6100 brake lever, M6120 caliper
Brake disc: Shimano RT76, 6-hole disc mount, 203 mm
Max. rear brake disc diameter: 203 mm
Max. Weight: This bicycle has a maximum weight limit (bicycle, rider, and cargo) of 136 kg.

* Specification may vary in details in exceptional cases, depending on the manufacturer.
