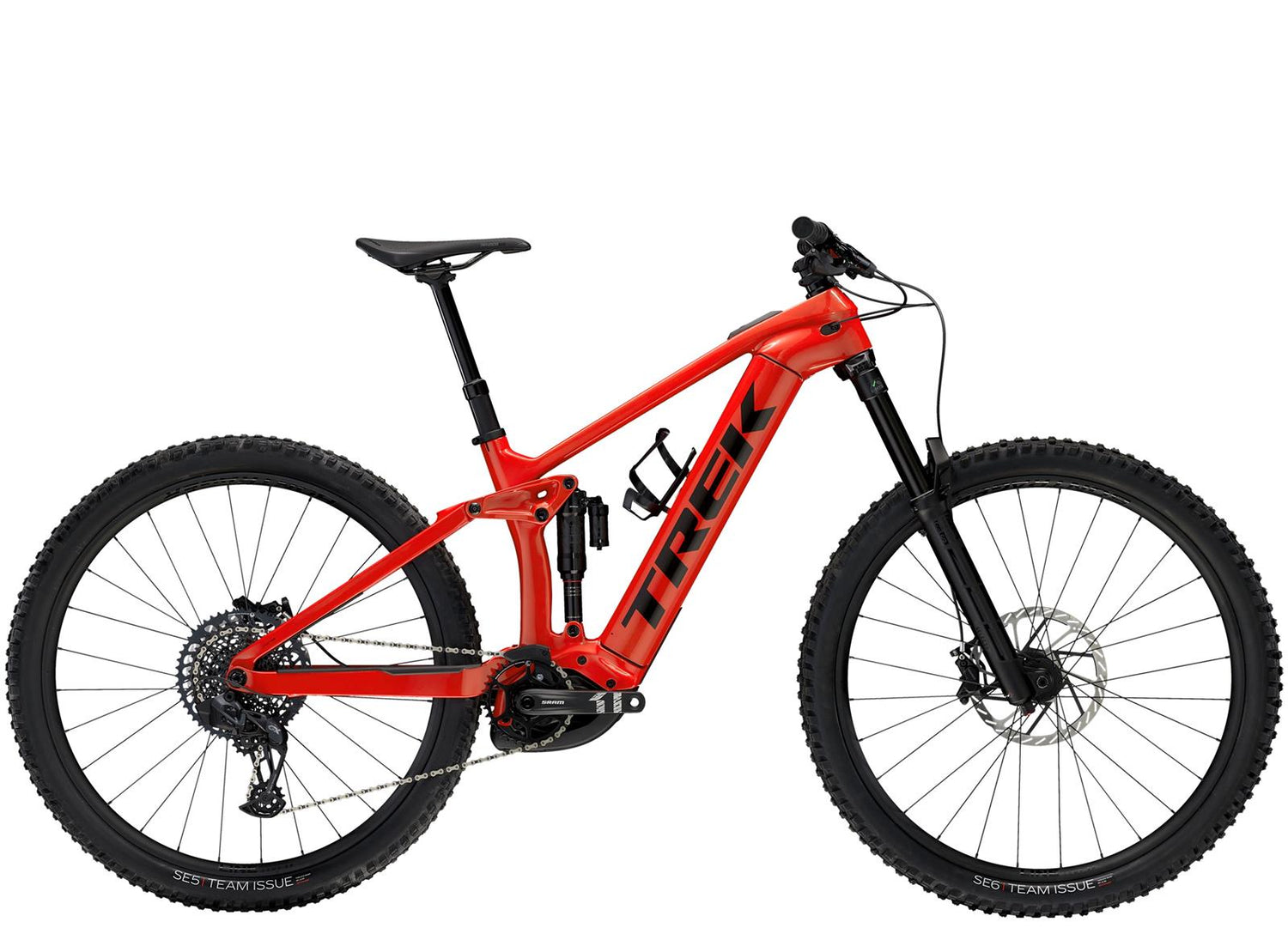

Trek Rail 9.8 GX AXS Lava 750Wh

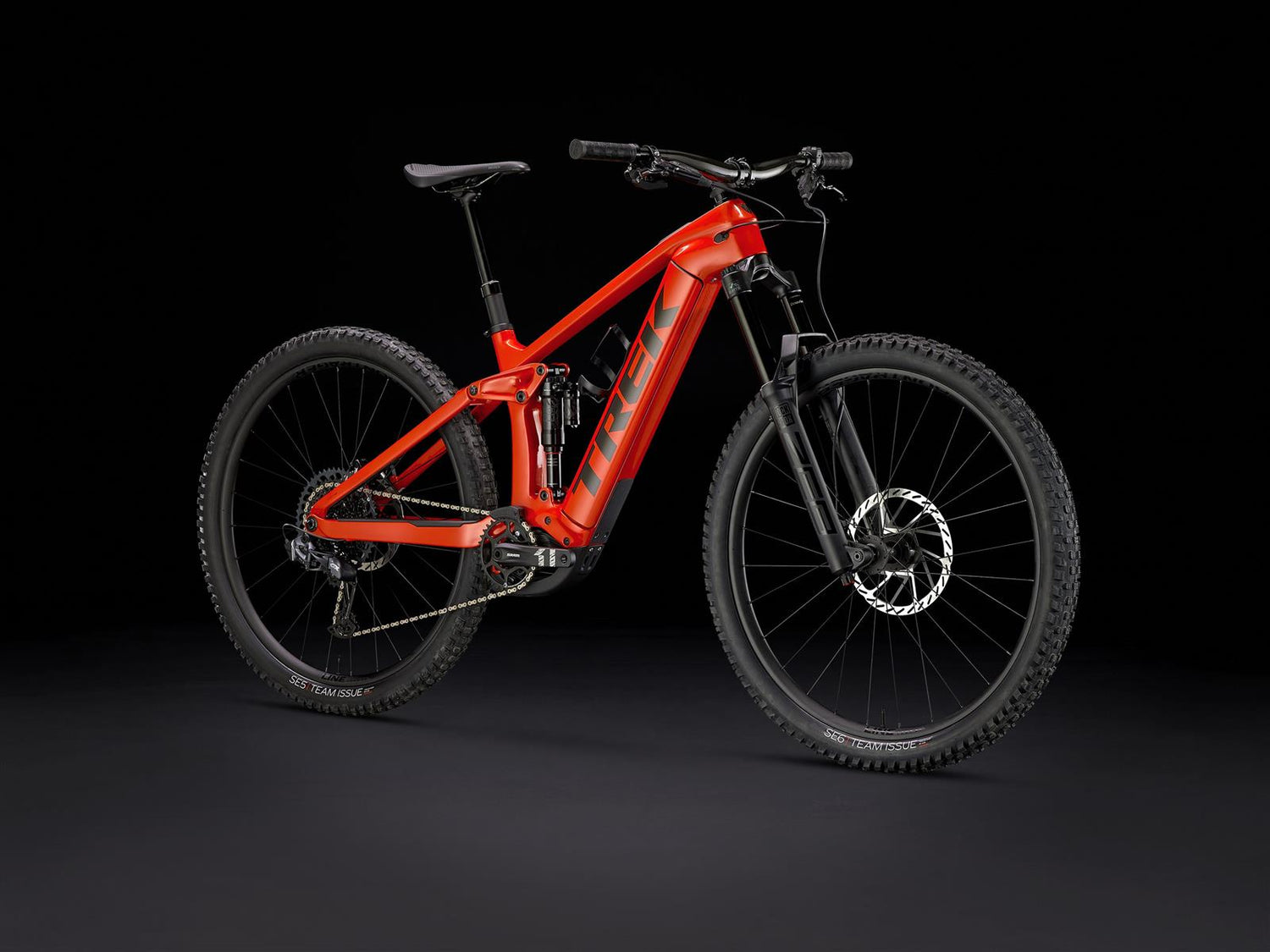

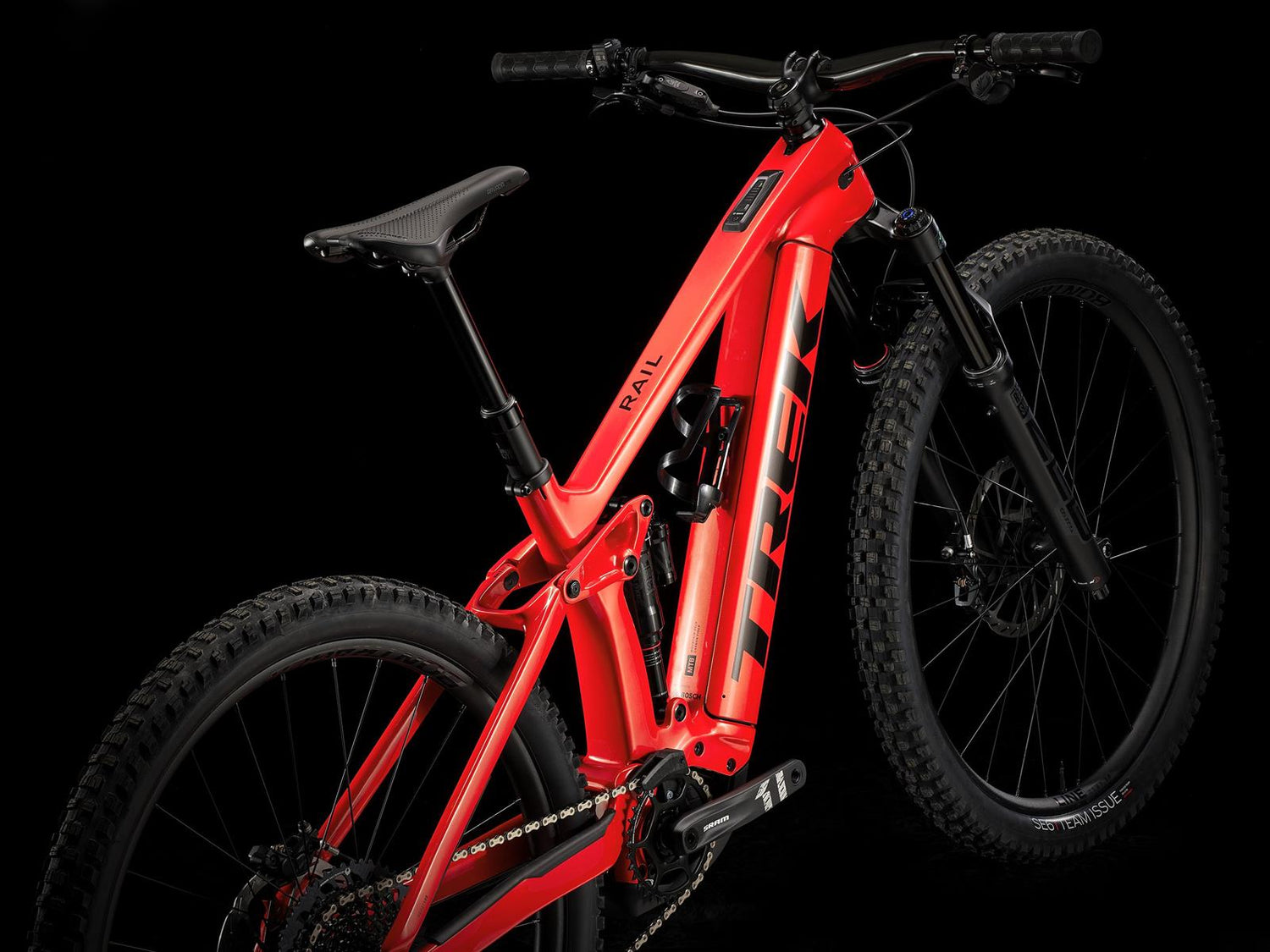

The Rail 9.8 GX AXS is a long-travel E-mountain bike with a carbon frame that scores with the performance of our burliest trail bikes and, thanks to motor assistance, climbs every mountain effortlessly with incredible momentum. Everything on this bike is an upgrade, including the frame for maximum fun on the roughest runs. Bosch's latest smart Performance Line CX system comes with a more powerful 750 Wh battery and cool features like activity tracking, navigation, and Bluetooth connectivity. The new system controller is elegantly integrated into the top tube for a sleek look, and the mini remote is just as discreet as it is intuitive.

Trek offers you a revised frame made of OCLV Mountain Carbon with longer reach as well as oversized head tube and seat tube for maximum stability. It also comes with an extremely long-range 750 Wh battery, a highly responsive RockShox ZEB Select+ fork, and a RockShox Super Deluxe Ultimate Thru Shaft shock. Additionally, you get electronic shifting with the GX AXS from SRAM and Bosch's latest Smart System Performance Line CX drive, including the Bluetooth® system controller integrated into the top tube and the compact mini remote for mode switching.

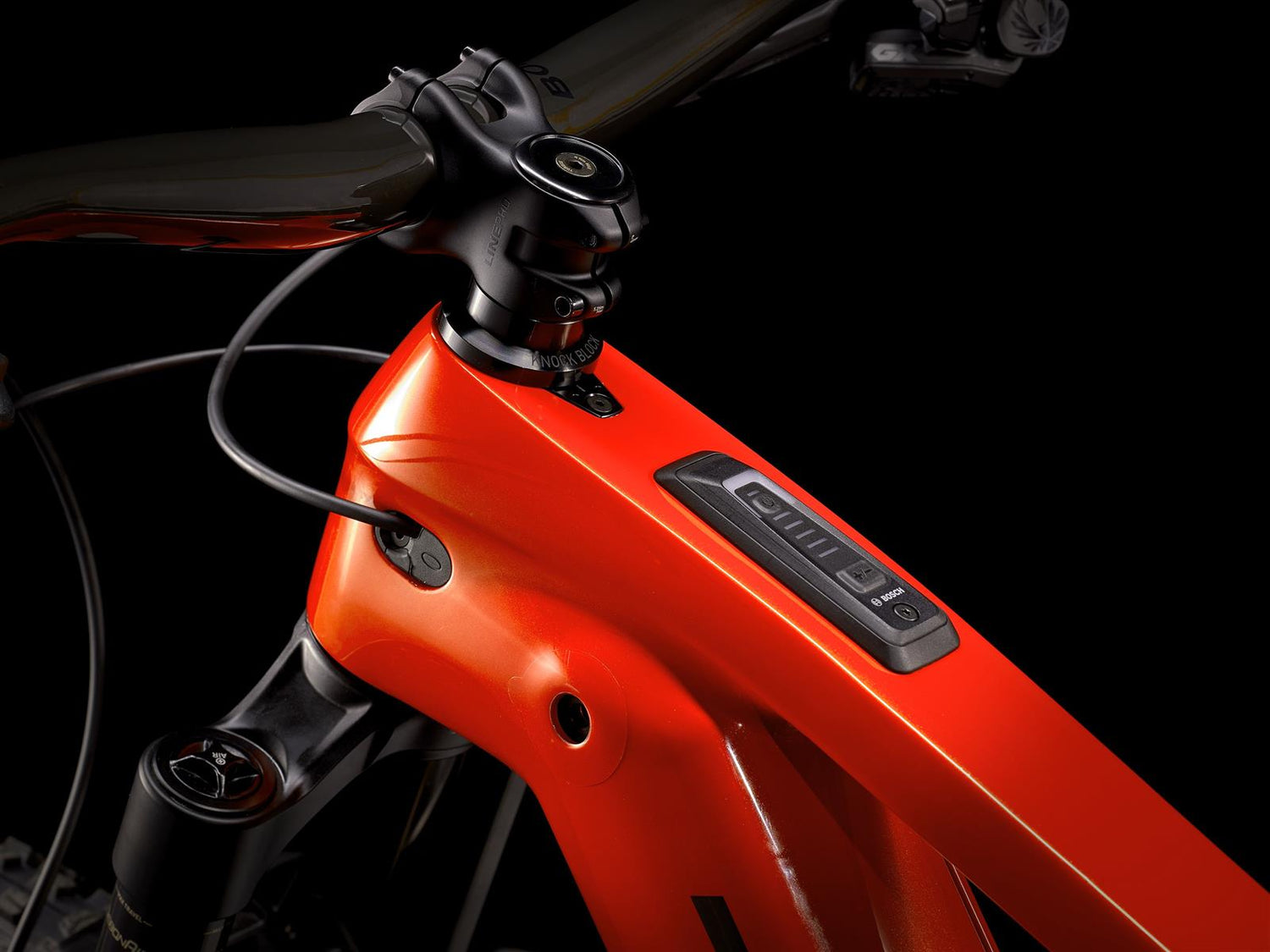

• The new system controller displays the currently selected support level and the remaining battery capacity. For maximum protection and a sleek look, it is elegantly integrated into the top tube.

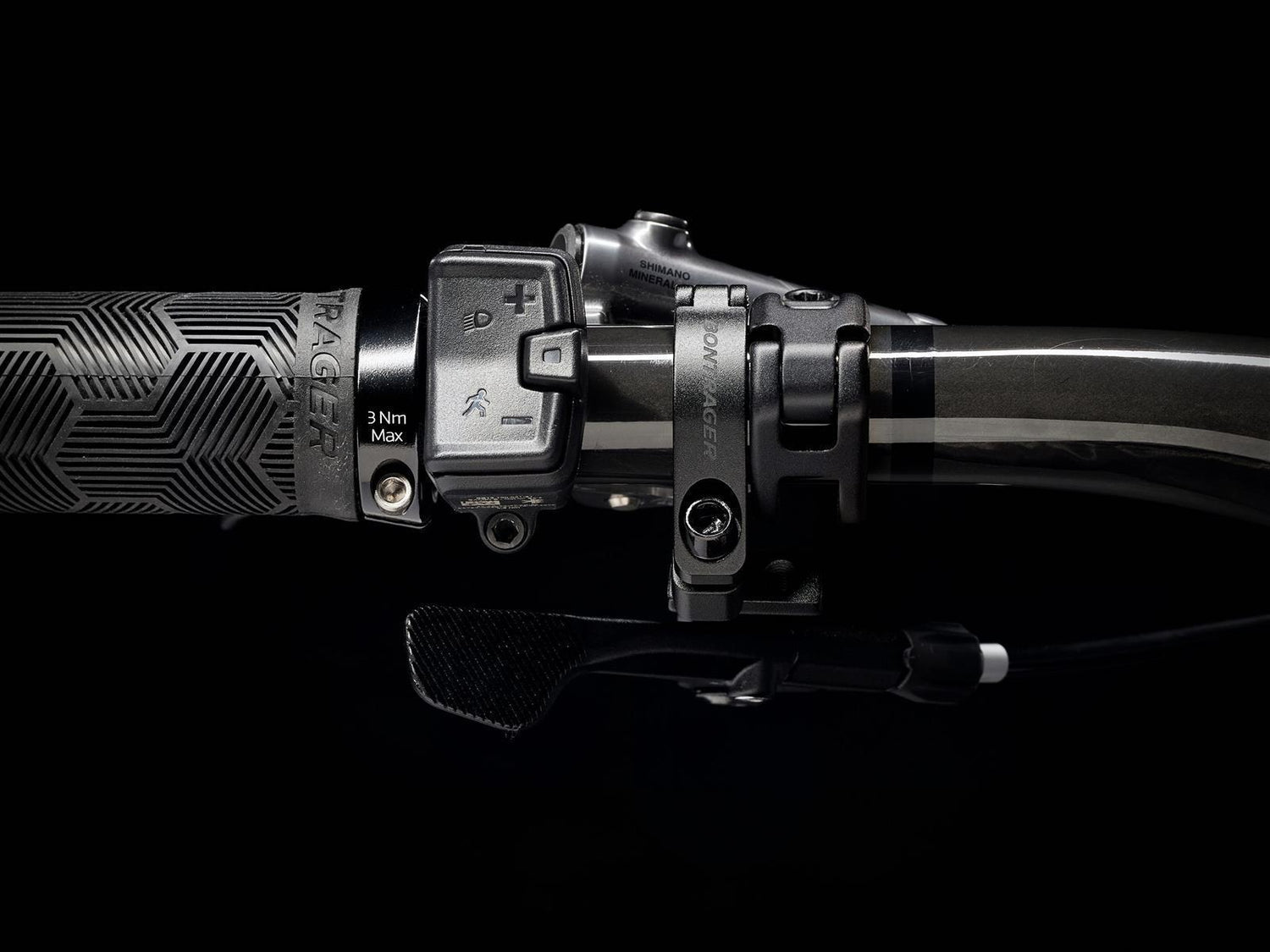

• Bosch's new smart system offers the same performance and responsiveness with a new, discreet mini remote that is elegantly reduced to the necessary controls to select support levels or activate walk assistance.
• The intelligent eMTB and eMTB Lite modes automatically adjust the support to your output to give you just the right boost for your ride.
• The new frame is extremely stable – with a 34.9 mm seat tube to accommodate more robust dropper posts and an oversized head tube for burly forks optimized for e-MTBs.

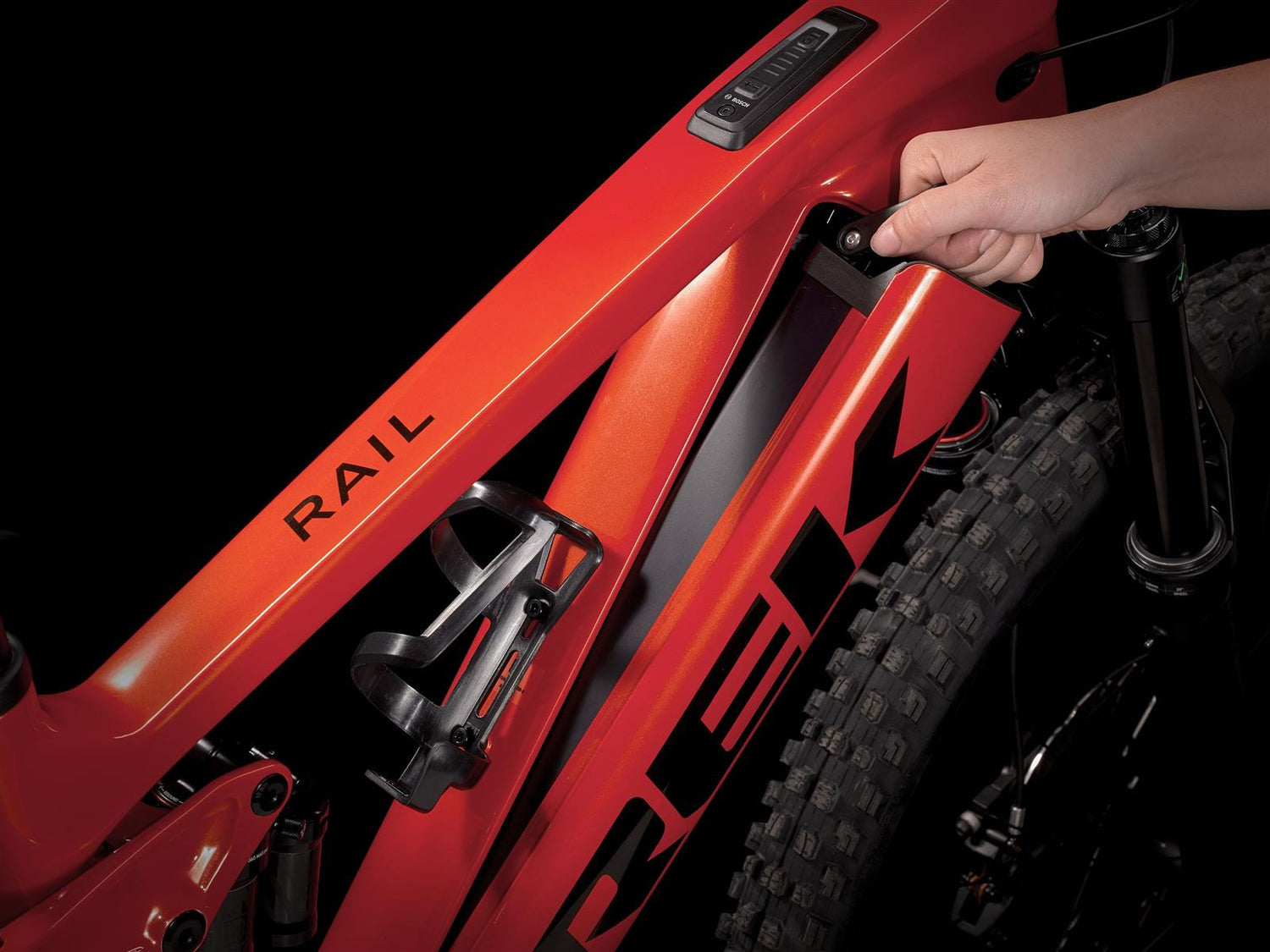

• Trek's Removable Integrated Battery System (RIB) looks good and is user-friendly: The battery is fully integrated into the frame and thus well protected, but can be easily removed without tools and offers space for a bottle holder.



Specifications:

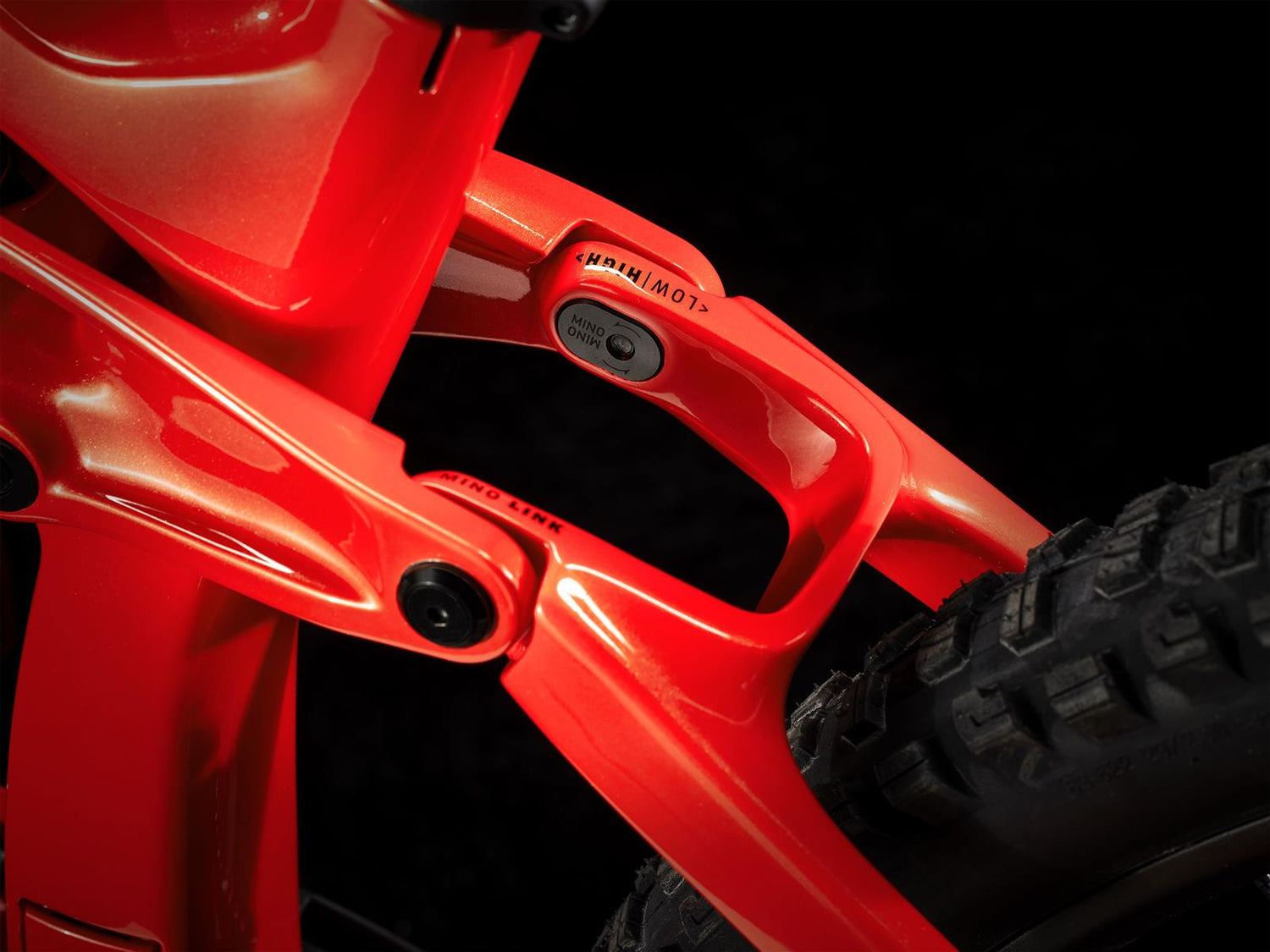

Frame: Main frame of OCLV Mountain Carbon, 1.8" lower top tube, compatible with Bosch system controller, Removable Integrated Battery (RIB), Knock Block 2.0, guided internal cable routing, 34.9 mm seat tube diameter, magnesium rocker link, Motor Armor, Mino Link, ABP, Boost148, 12 mm thru-axle, 150 mm travel
Fork: RockShox ZEB Select+, DebonAir spring, Charger 3 RC2 damper, tapered 1.8" oversized steerer, fork crown optimized for e-MTBs, 44 mm offset, Boost110, 15 mm Maxle Stealth axle, 160 mm travel

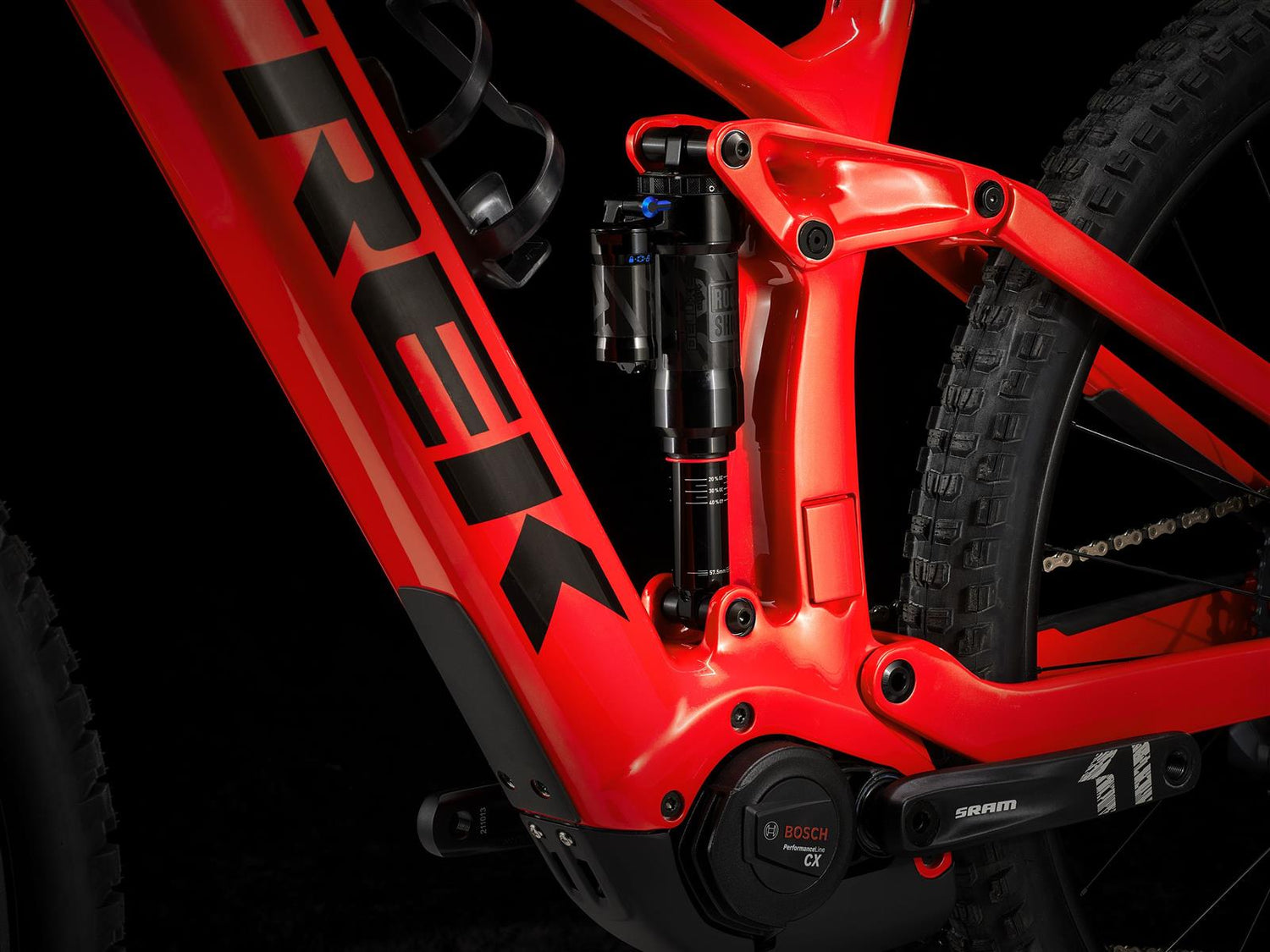

Shock: RockShox Super Deluxe Select+ RT, 230 x 57.5 mm
Max. compatible fork travel: 170mm (580mm axle to crown)
Front wheel: Bontrager Line Comp 30, Tubeless Ready, 6-bolt disc mount, Boost110, 15 mm thru-axle
Rear wheel: Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt disc mount, Boost148, 12 mm thru-axle
Rear quick release: Bontrager Switch thru-axle, removable lever
Tires: Bontrager SE6 Team Issue, Tubeless Ready, Core Strength sidewall protection, Aramid bead core, 120 TPI, 29 x 2.50
Tire replacement part: Bontrager TLR sealant, 177 ml
Sealant: Bontrager TLR sealant, 177 ml
Rim tape: Bontrager TLR
Max. tire size: Frame: 29 x 2.60", Fork: See manufacturer
Shift lever: SRAM GX Eagle AXS, 12 speed

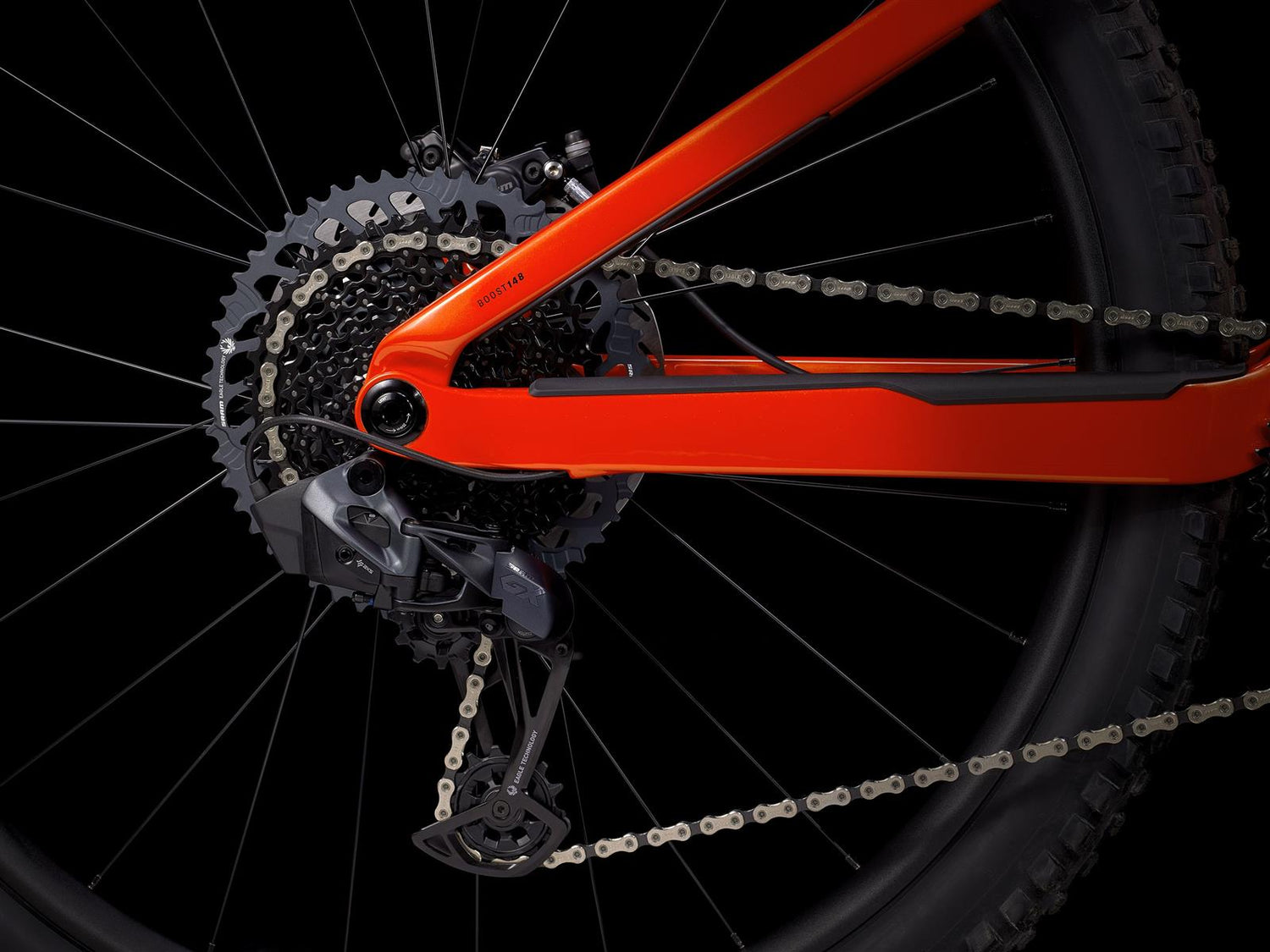

Derailleur: SRAM GX Eagle AXS
Crank: SRAM X1 1000, 34 T, 165 mm crank arm length
Chainring: SRAM X-SYNC, 34T, Aluminum
Cassette: SRAM Eagle XG-1275, 10-52 T, 12-speed
Chain: SRAM GX Eagle, 12-speed
Pedal: VP-536, Nylon platform
Max. chainring size: 1x: 34 teeth
Saddle: Bontrager Arvada, Austenite rails, 138 mm width
*Seatpost size: S: Bontrager Line Elite Dropper, 100 mm travel, MaxFlow, internal cable routing, 34.9 mm, 345 mm length
Size M: Bontrager Line Elite Dropper, 150 mm travel, MaxFlow, internal cable routing, 34.9 mm, 440 mm length
Size L: Bontrager Line Elite Dropper, 170 mm travel, MaxFlow, internal cable routing, 34.9 mm, 485 mm length
Size XL: Bontrager Line Elite Dropper, 200 mm travel, MaxFlow, internal cable routing, 34.9 mm, 550 mm length
Handlebar: Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 780 mm width
Grips: Bontrager XR Trail Elite, Nylon clamp
Stem: Bontrager Line Pro, 35 mm, Knock Block, Blendr compatible, 0 degrees, 45 mm length
Brake disc: SRAM HS2, 6-bolt, 220 mm
Brake set: SRAM Code R, hydraulic 4-piston disc brake
Brake disc diameter: Max. brake disc diameter - Frame: 200mm, Fork: see fork manufacturer
*Battery size: S: Bosch PowerTube 625 Wh, Smart System
Size M, L, XL: Bosch PowerTube 750 Wh, Smart System

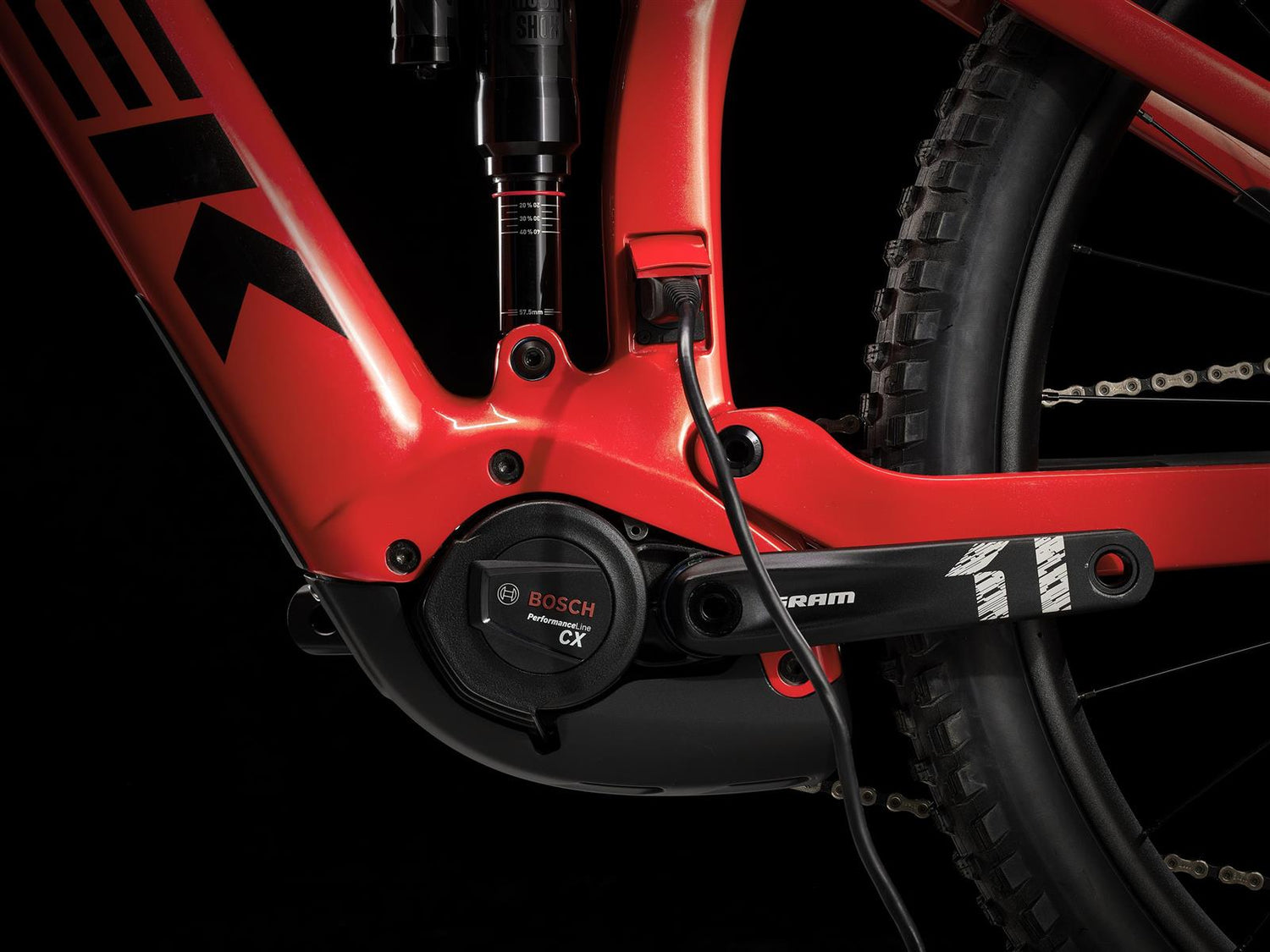

Charger: Bosch Standard charger 4 A, 230 V, Smart System
*Controller size: S, M, L, XL: Bosch System Controller BRC3100, Smart System
Size S, M, L, XL: Bosch Mini-Remote BRC3300, Smart System, 22.2 mm

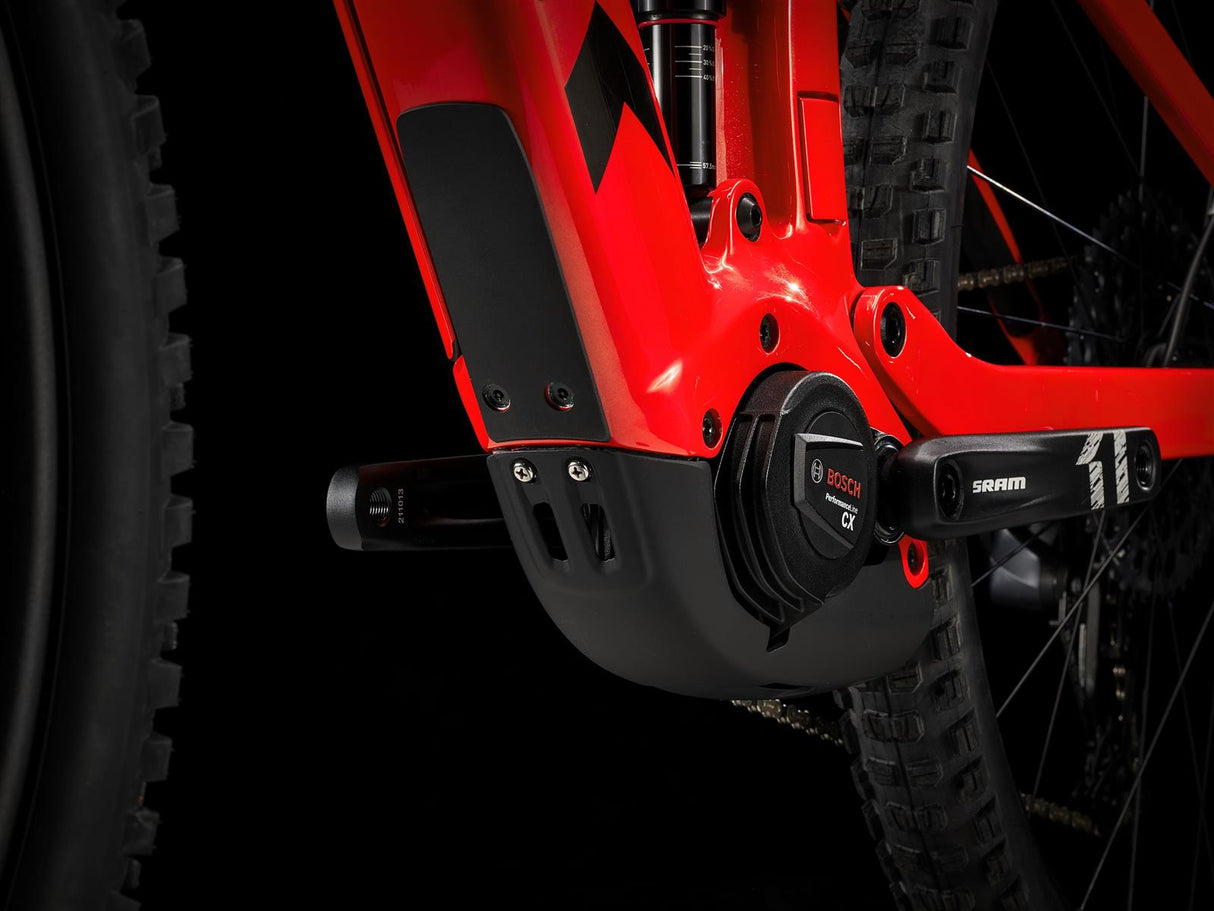

Motor: Bosch Performance Line CX, Smart System, Magnesium motor housing, 85 Nm
Electronics: SRAM AXS auxiliary power cable
Weight: M - 23.90 kg / 52.7 lbs
Max. weight: This bike has a maximum weight limit (bike, rider, and cargo) of 136 kg.

*Please note - the specification applies to all sizes unless otherwise noted
