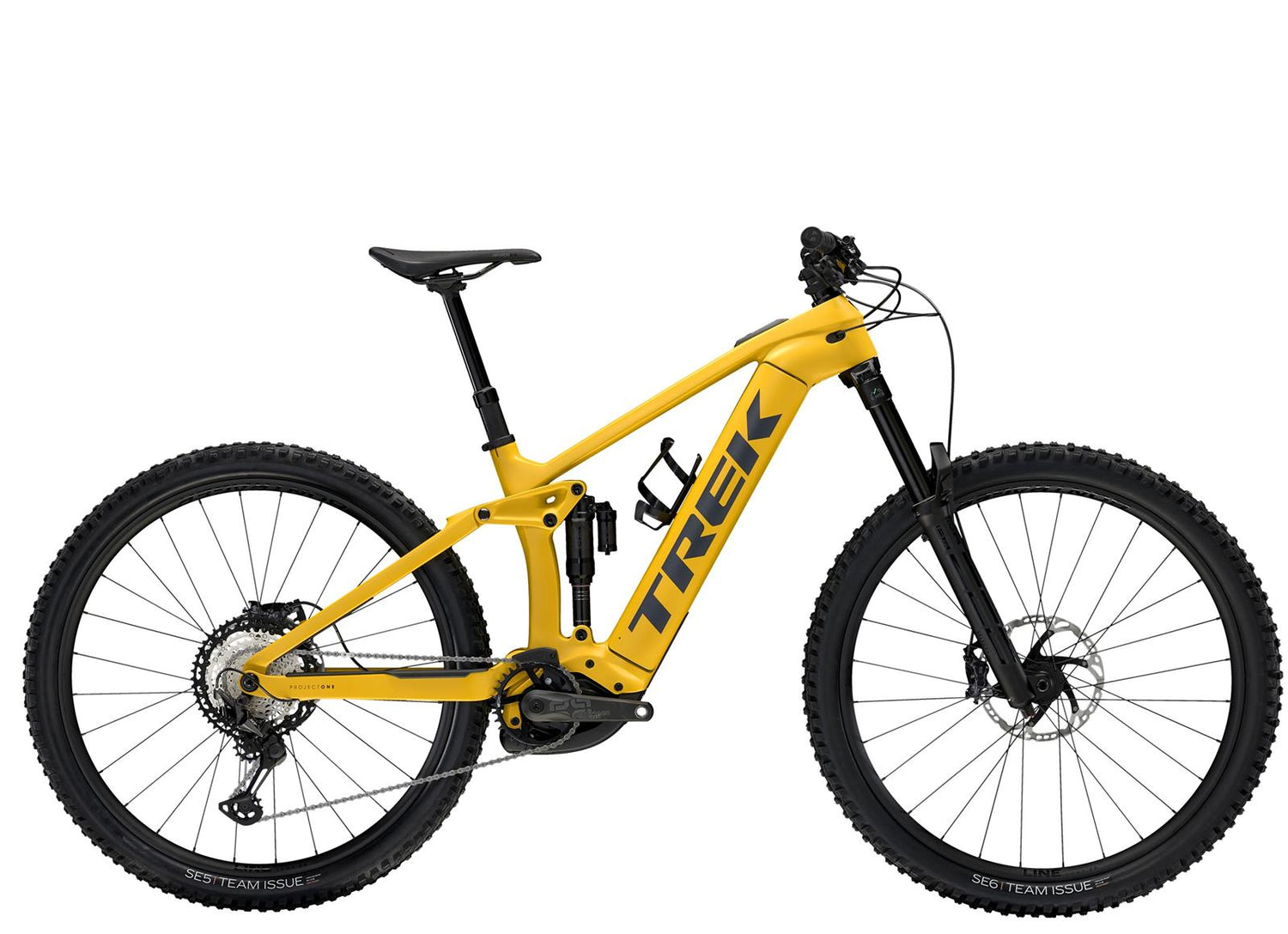

Trek Rail 9.8 XT Satin Baja Yellow 750Wh

The Rail 9.8 is a long-travel e-mountain bike with a carbon frame that scores with the unparalleled performance of our burliest trail bikes and, thanks to drive support, climbs every mountain with incredible momentum effortlessly. Everything about this bike is an upgrade, including the frame for maximum fun on the roughest runs. You also get Bosch's smart Performance Line CX system with a more powerful 750 Wh battery and cool features like activity tracking, navigation, and Bluetooth connectivity. The new System Controller is almost flush with the top tube for a sleek look, and the Mini Remote is as discreet as it is intuitive.

Trek offers you a revised frame made of OCLV Mountain Carbon with longer reach and oversized head and seat tube for maximum stability. It also comes with an extremely long-range 750 Wh battery, a highly responsive RockShox ZEB Select+ fork, a RockShox Super Deluxe Ultimate Thru Shaft shock, and a Shimano XT 1x12 drivetrain. You also get Bosch's latest Smart System Performance Line CX drive with a new Mini Remote and integrated Bluetooth® System Controller display in the top tube.

• The Rail with 4th generation carbon frame comes with the enduro-inspired geometry and the enduring battery of the previous generation, but thanks to a new mount in the top tube, it is compatible with Bosch's integrated System Controller and Mini Remote.

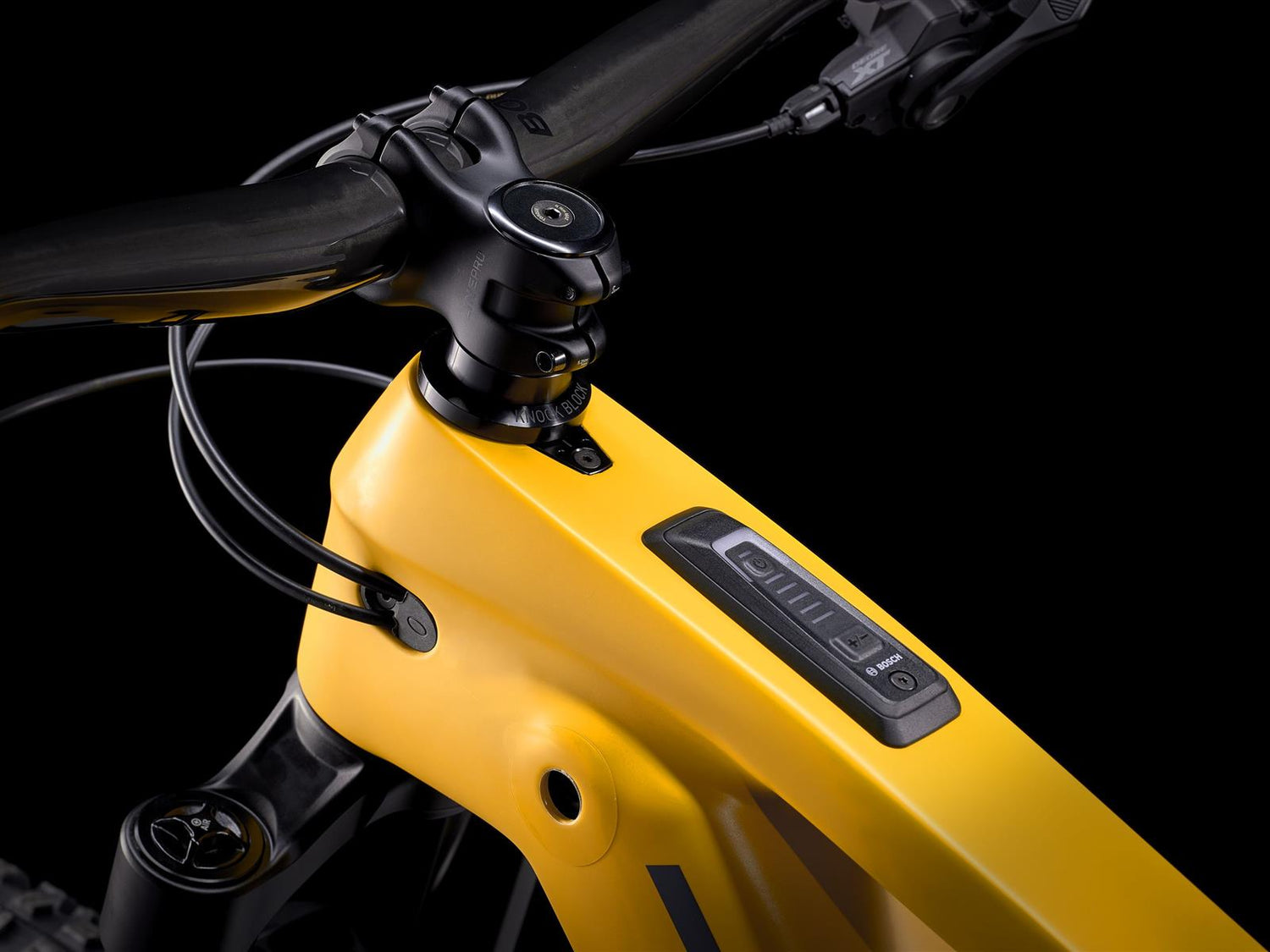

• The System Controller shows the currently selected support level and the remaining battery capacity. For maximum protection and a sleek look, it is beautifully integrated into the top tube.

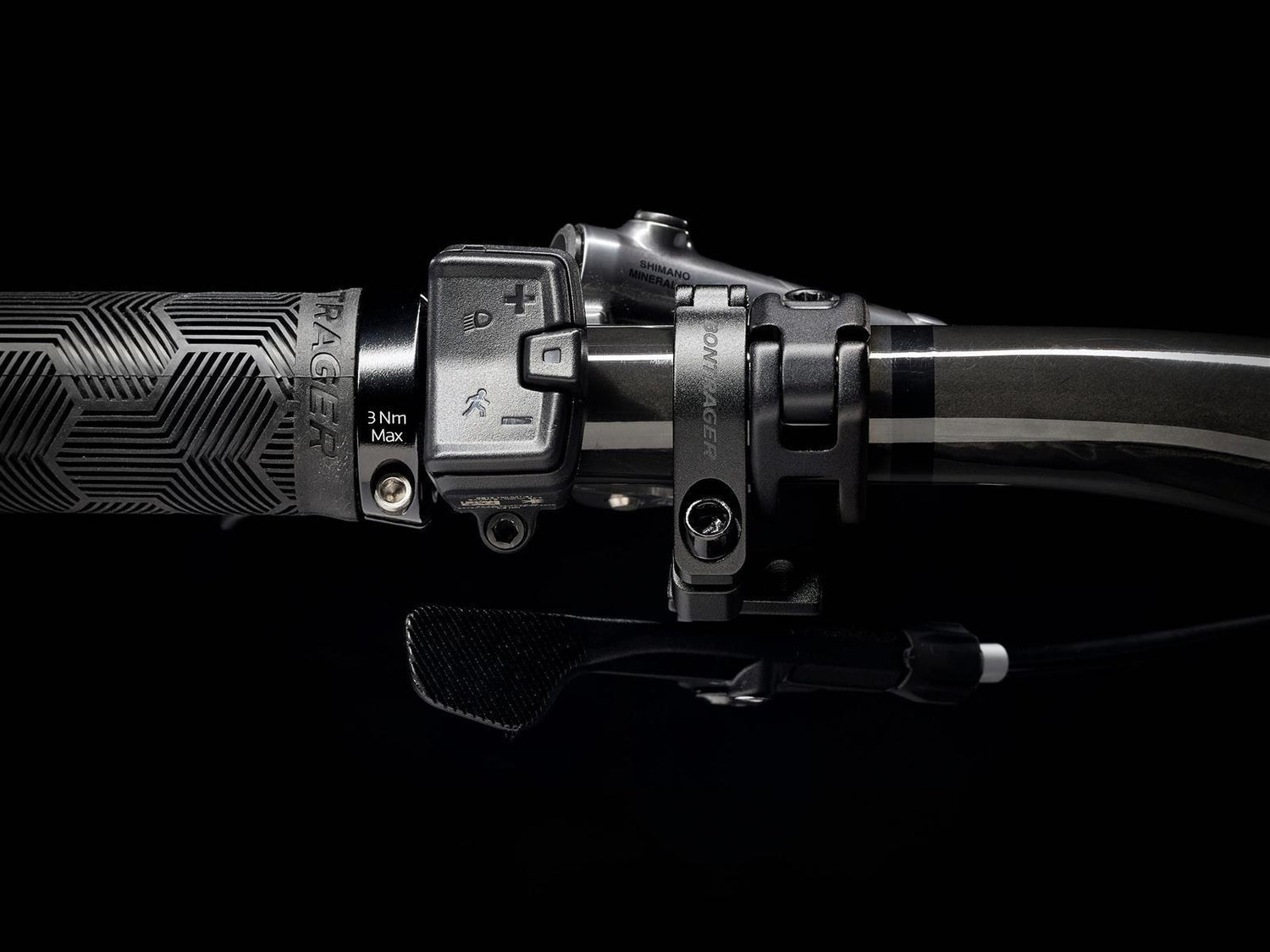

• Bosch's Smart System impresses with high performance and responsiveness and comes with a new discreet Mini Remote, which with its reduced, elegant controls allows the selection of support levels and the activation of the walk mode.
• The intelligent eMTB and eMTB Lite modes automatically adjust the support to your output to give you just the right boost for your ride.
• The new frame is extremely stable - with a 34.9 mm seat tube to accommodate more robust dropper posts and an oversized head tube for burly forks optimized for e-mountain bikes.

Equipment:

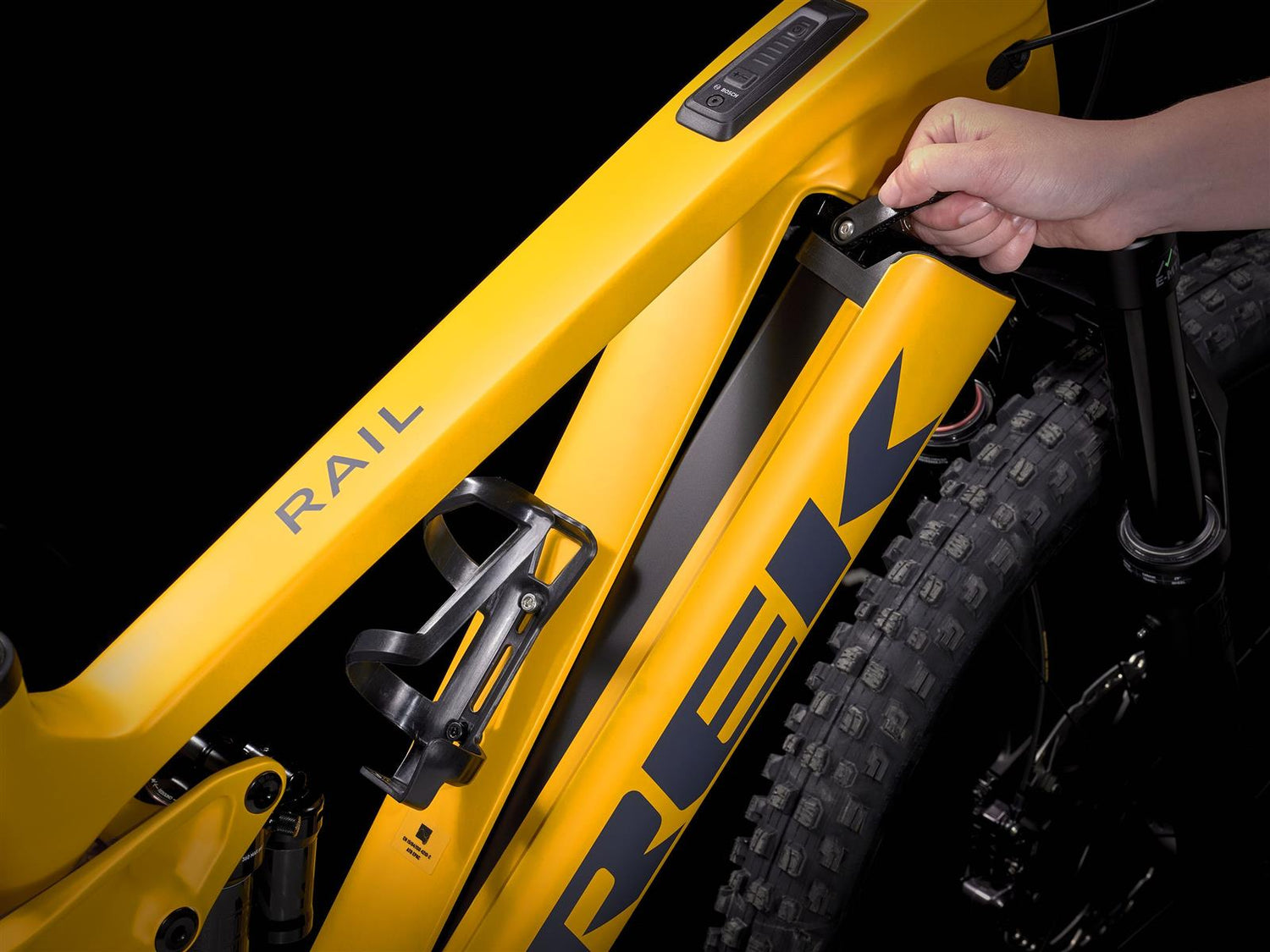

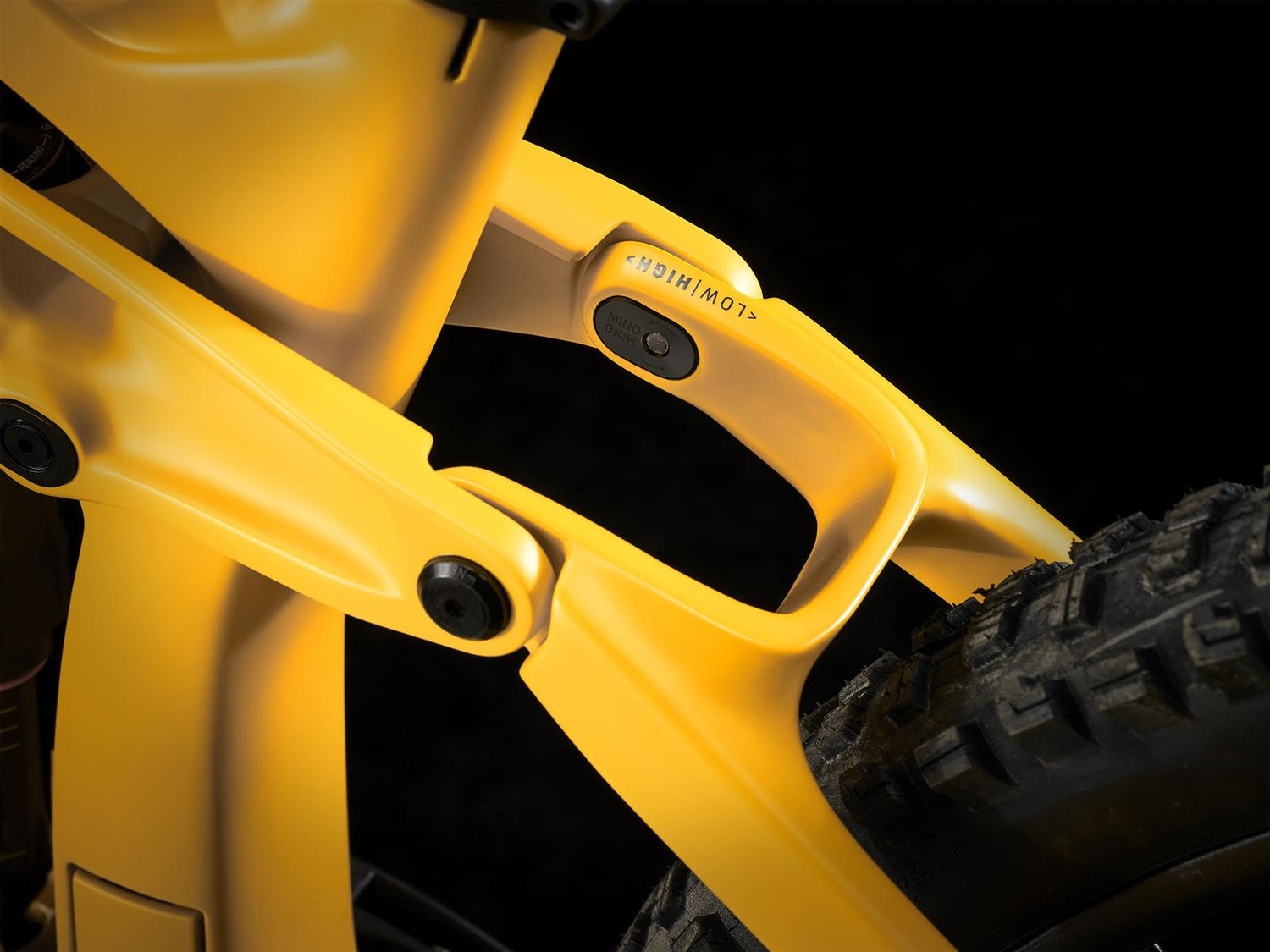

Frame: Main frame made of OCLV Mountain Carbon, 1.8" lower top tube, compatible with Bosch System Controller, Removable Integrated Battery (RIB), Knock Block 2.0, guided internal cable routing, 34.9 mm seat tube diameter, magnesium rocker link, Motor Armor, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel
Fork: RockShox ZEB Select+, DebonAir spring, Charger 3 RC2 damping, tapered 1.8" oversized steerer, fork crown optimized for e-MTB, 44 mm offset, Boost110, 15 mm Maxle Stealth axle, 160 mm travel

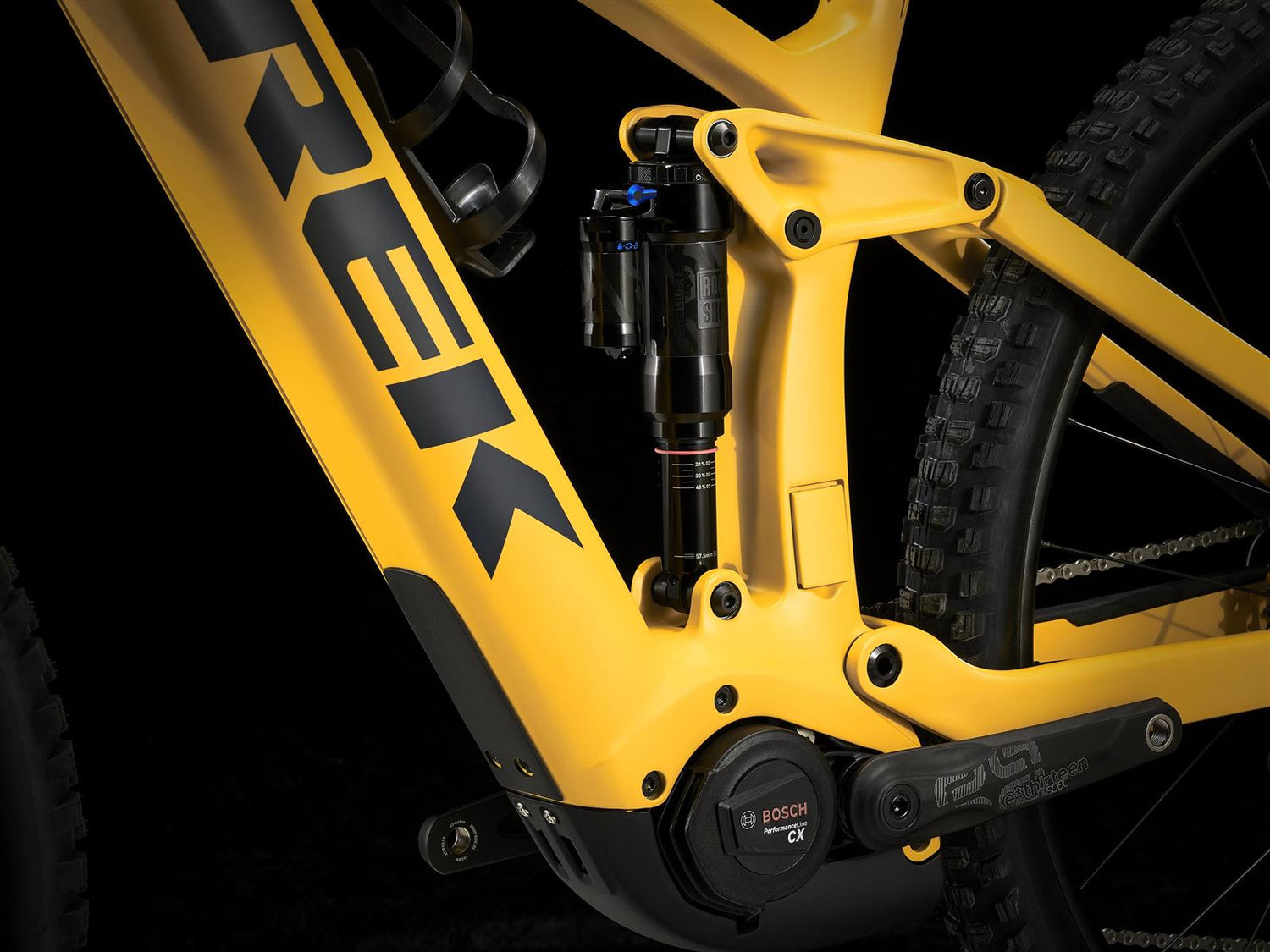

Shock: RockShox Super Deluxe Select+ RT, 230 x 57.5 mm
Max. compatible fork travel: 170mm (580mm axle to crown)
Front wheel: Bontrager Line Comp 30, Tubeless Ready, 6-bolt disc mount, Boost110, 15 mm thru axle
Rear wheel: Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt disc mount, Boost148, 12 mm thru axle
HR quick release: Bontrager Switch thru axle, removable lever
*Tire Size: S, M, L, XL: Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewall protection, Aramid bead core, 120 TPI, 29 x 2.50
Size S, M, L, XL: Bontrager SE6 Team Issue, Tubeless Ready, Core Strength sidewall protection, Aramid bead core, 120 TPI, 29 x 2.50
Tire Spare Part: Bontrager TLR Sealant, 177 ml
Rim Tape: Bontrager TLR
Max. Tire Size: Frame: 29 x 2.60", Fork: Refer to manufacturer
Shift Lever: Shimano XT M8100, 12-speed

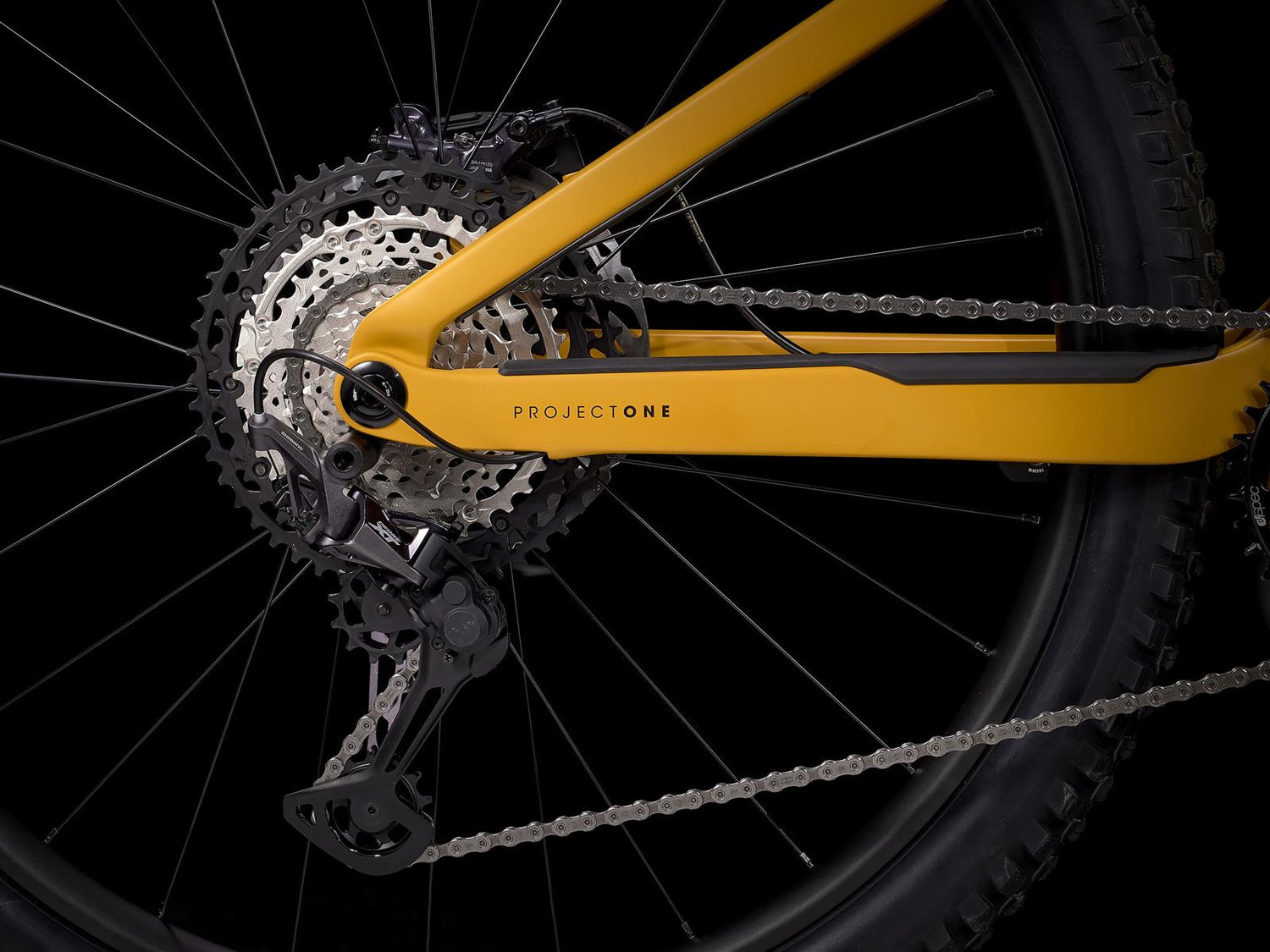

Rear Derailleur: Shimano XT M8100, long cage
Crank: e*thirteen e*spec Plus, 165 mm crank arm length
Chainring: E*thirteen E*spec, 34 T. Aluminum, 55 mm chainline
Cassette: Shimano XT M8100, 10-51 T., 12-speed
Chain: Shimano XT M8100, 12-speed
Pedal: VP-536, Nylon platform
Max. Chainring Size: 1x: 34 Teeth
Saddle: Bontrager Arvada, Austenite rails, 138 mm width
*Seatpost Size: S: Bontrager Line Elite Dropper, 100 mm travel, MaxFlow, internal routing, 34.9 mm, 345 mm length
Size M: Bontrager Line Elite Dropper, 150 mm travel, MaxFlow, internal routing, 34.9 mm, 440 mm length
Size L: Bontrager Line Elite Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 485 mm length
Size XL: Bontrager Line Elite Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 550 mm length
Handlebar: Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 780 mm width
Grips: Bontrager XR Trail Elite, Nylon clamp
Stem: Bontrager Line Pro, 35 mm, Knock Block, Blendr-compatible, 0 degrees, 45 mm length
Brake: Shimano XT M8120, hydraulic 4-piston disc brake
Brake Disc: Shimano RT76, 6-bolt disc mount, 203 mm
Brake Disc Diameter: Max. brake disc diameter - Frame: 200mm, Fork: see fork manufacturer
*Battery Size: S: Bosch PowerTube 625 Wh, Smart System
Size M, L, XL: Bosch PowerTube 750 Wh, Smart System
Charger: Bosch Standard charger 4 A, 230 V, Smart System
*Controller Size: S, M, L, XL: Bosch System Controller BRC3100, Smart System
Size S, M, L, XL: Bosch Mini-Remote BRC3300, Smart System, 22.2 mm

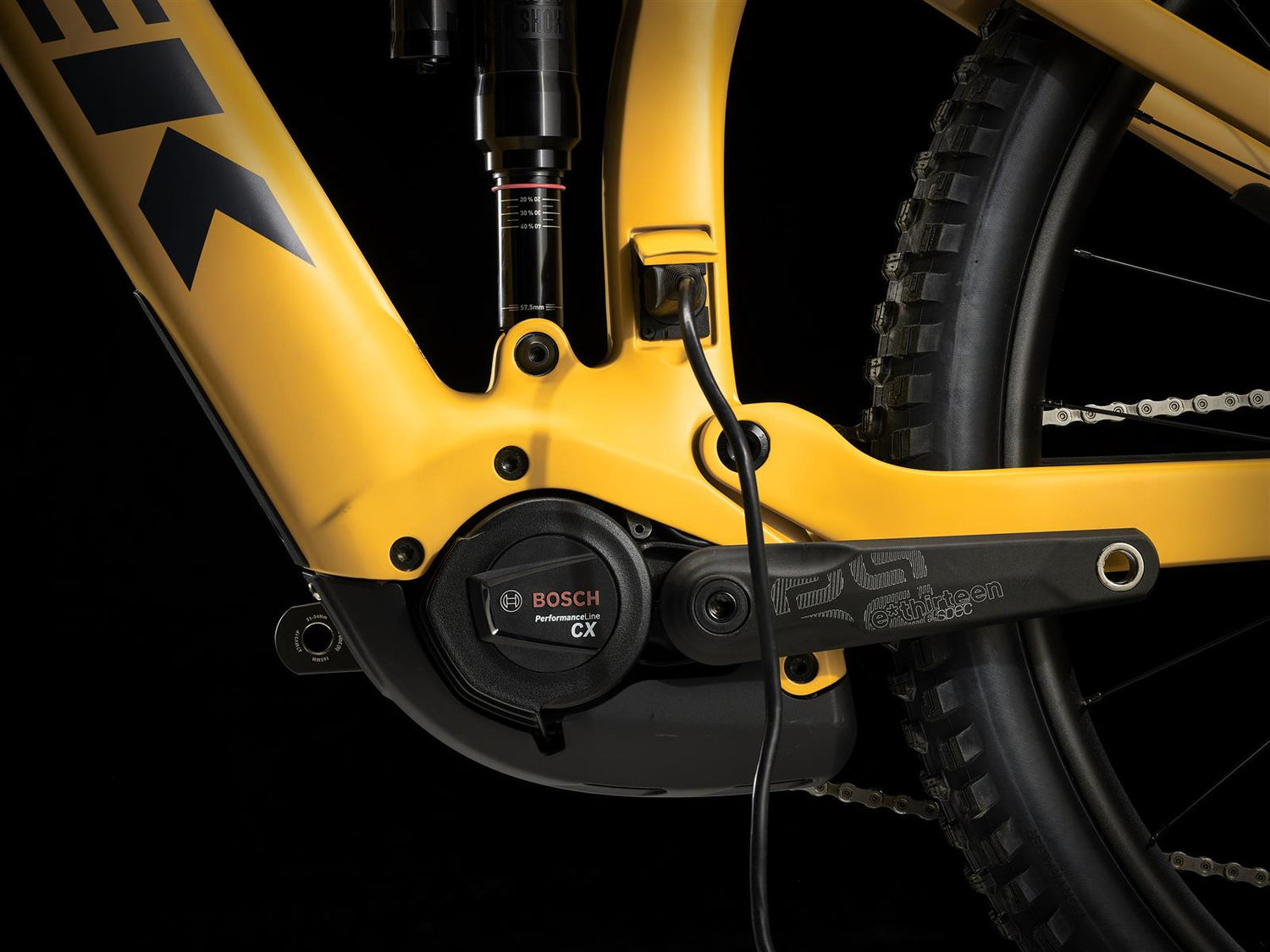

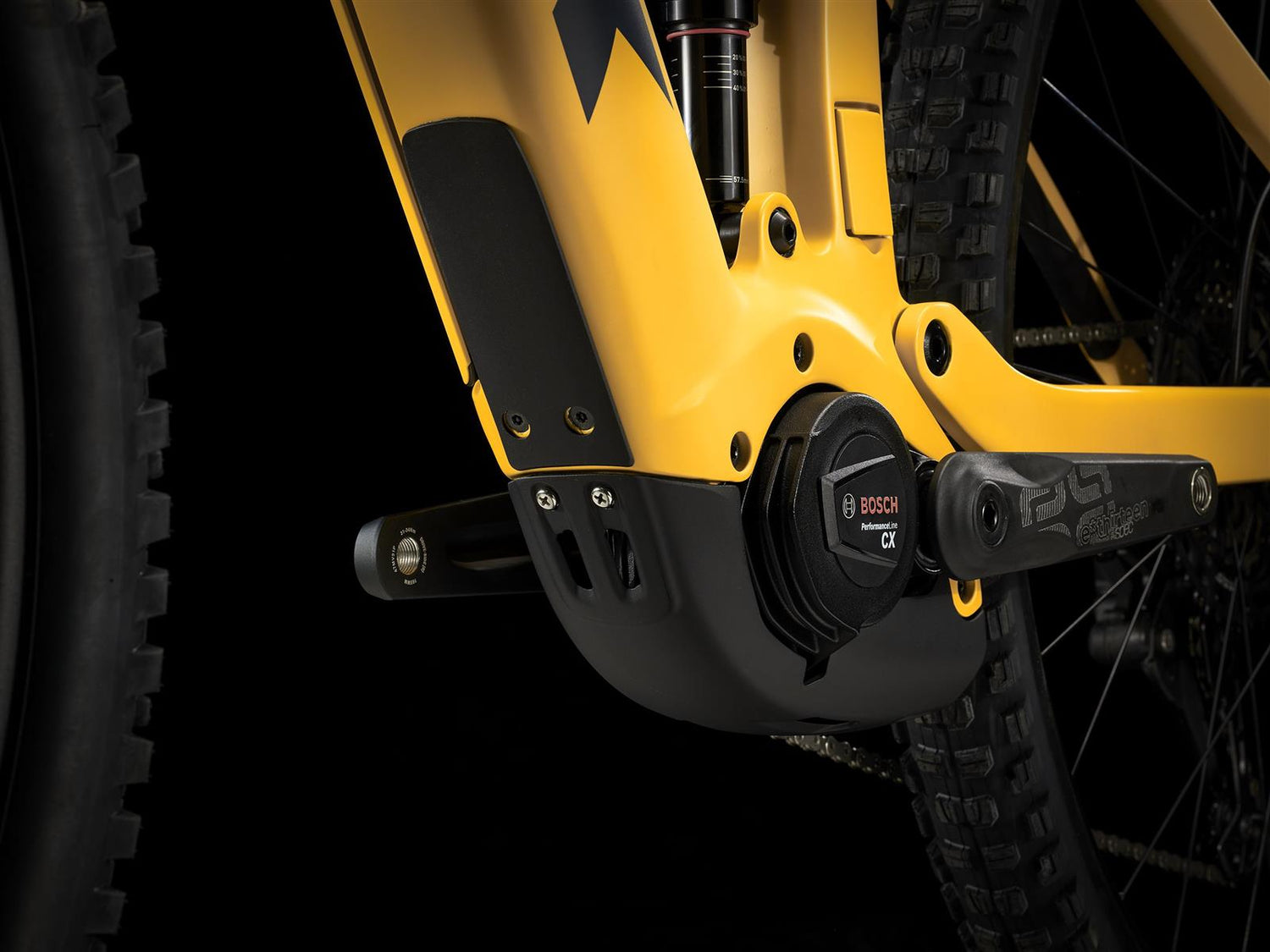

Motor: Bosch Performance Line CX, Smart System, Magnesium motor housing, 85 Nm
Weight: M - 23.50 kg / 51.81 lbs (with TLR tire sealant, without tubes)
Max. Weight: This bicycle has a maximum weight limit (bicycle, rider, and cargo) of 136 kg.

*Please note - the specification applies to all sizes unless otherwise noted
