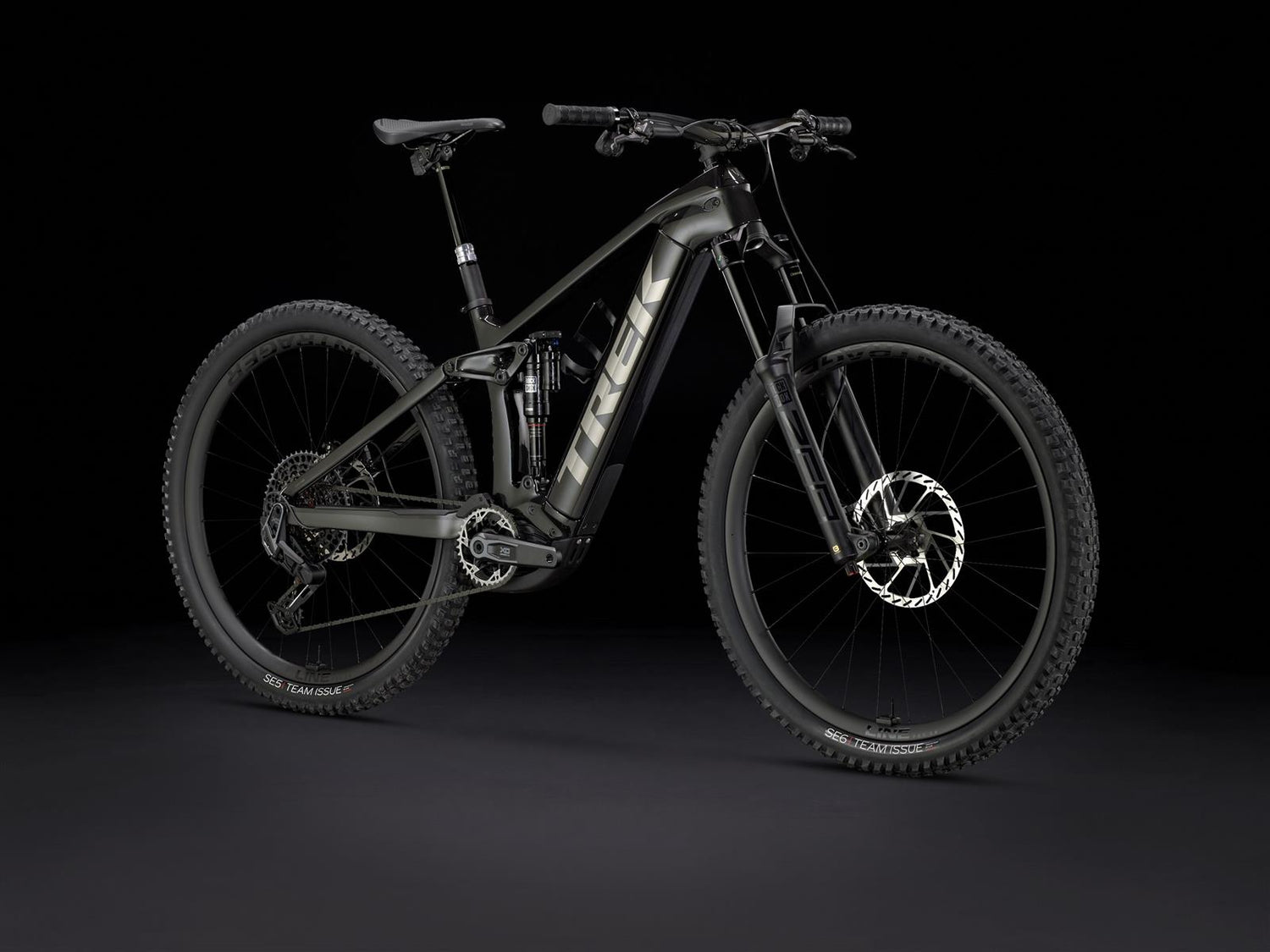

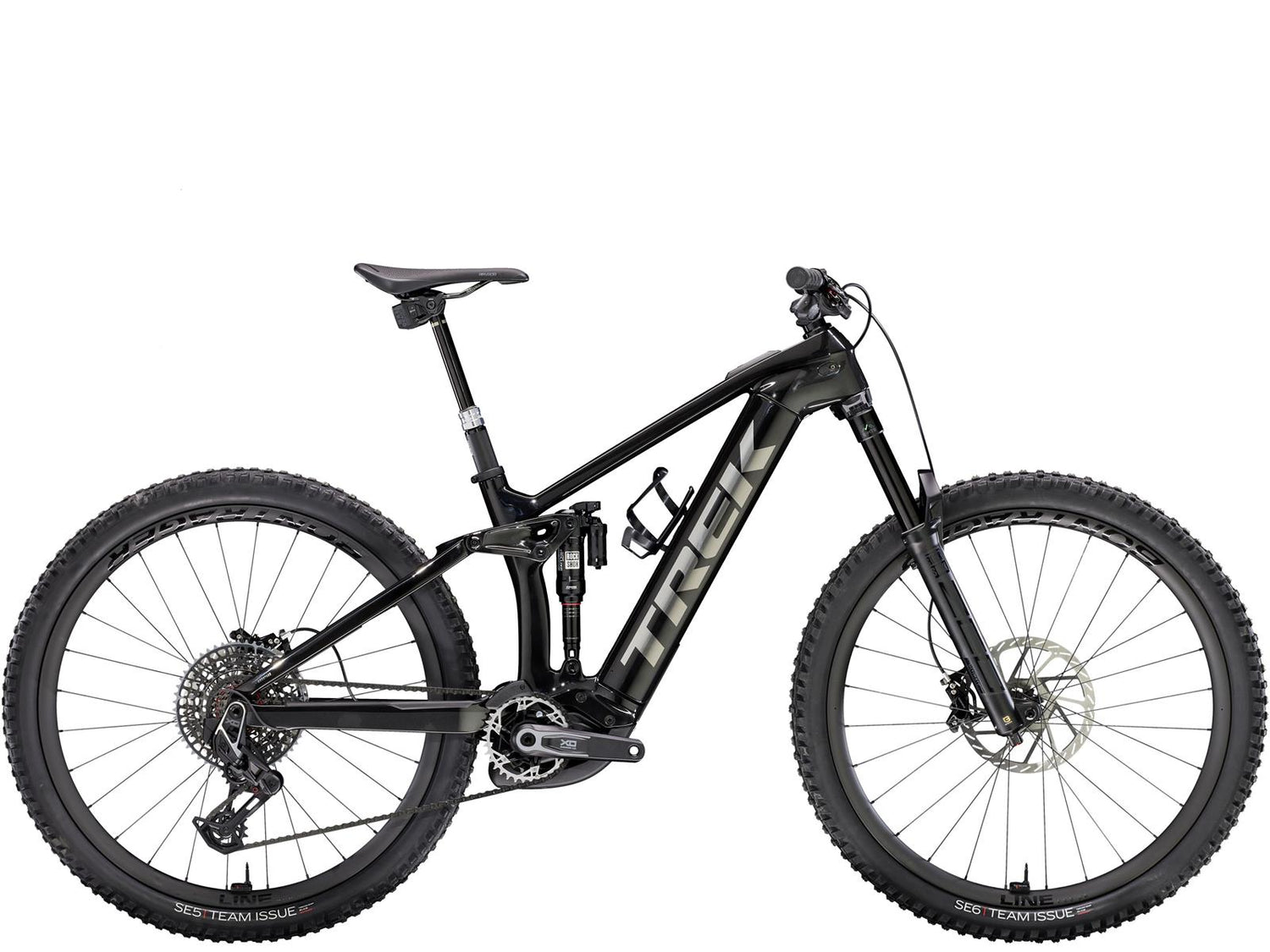

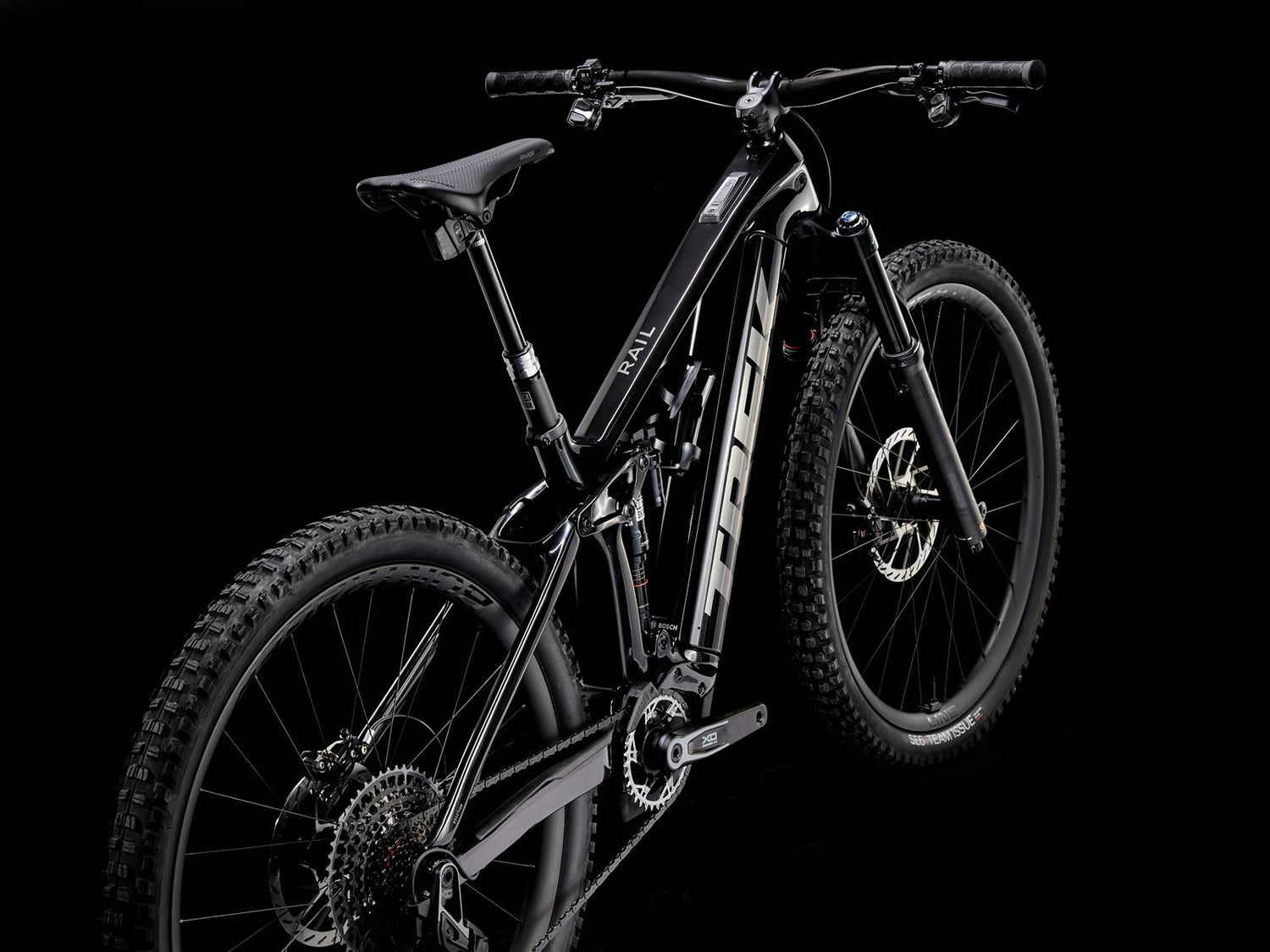

Trek Rail 9.9 XO AXS Deep Smoke 750Wh

The Rail 9.9 is our best long-travel e-mountain bike. You get an extremely robust carbon frame, an incredibly smooth RockShox suspension, SRAM's best wireless electronic drivetrain, and Bosch's powerful Performance Line CX motor with a particularly long-range battery and the new Mini Remote. The new System Controller is almost flush-mounted into the top tube for a clean look and is never in the way, even during tough use.

Trek offers you a revised frame made of OCLV Mountain Carbon with longer reach and oversized head and seat tube for maximum stability. Additionally, there is an extremely long-range battery with 750 Wh capacity, a fully adjustable RockShox ZEB Ultimate fork, a RockShox Super Deluxe Ultimate Thru Shaft shock, and a wireless SRAM X0 AXS drivetrain. You also get Bosch's Smart System Performance Line CX drive with the new Mini Remote and integrated Bluetooth® System Controller display in the top tube, as well as the AirWiz pressure monitoring.

• The Rail with 4th generation carbon frame comes with the enduro-inspired geometry and the enduring battery of the previous generation, but thanks to a new mount in the top tube, it is compatible with Bosch's integrated System Controller and Mini Remote.
• Its clean cockpit is minimalist and tidy, but thanks to the Smart System, a display can be easily added if needed.
• The intelligent eMTB and Tour+ modes automatically adjust the support to your output to give you exactly the right boost for your needs.
• SRAM's direct-mount, wireless T-Type drivetrain sets new performance standards with its precise shifting even under load and unparalleled robustness.

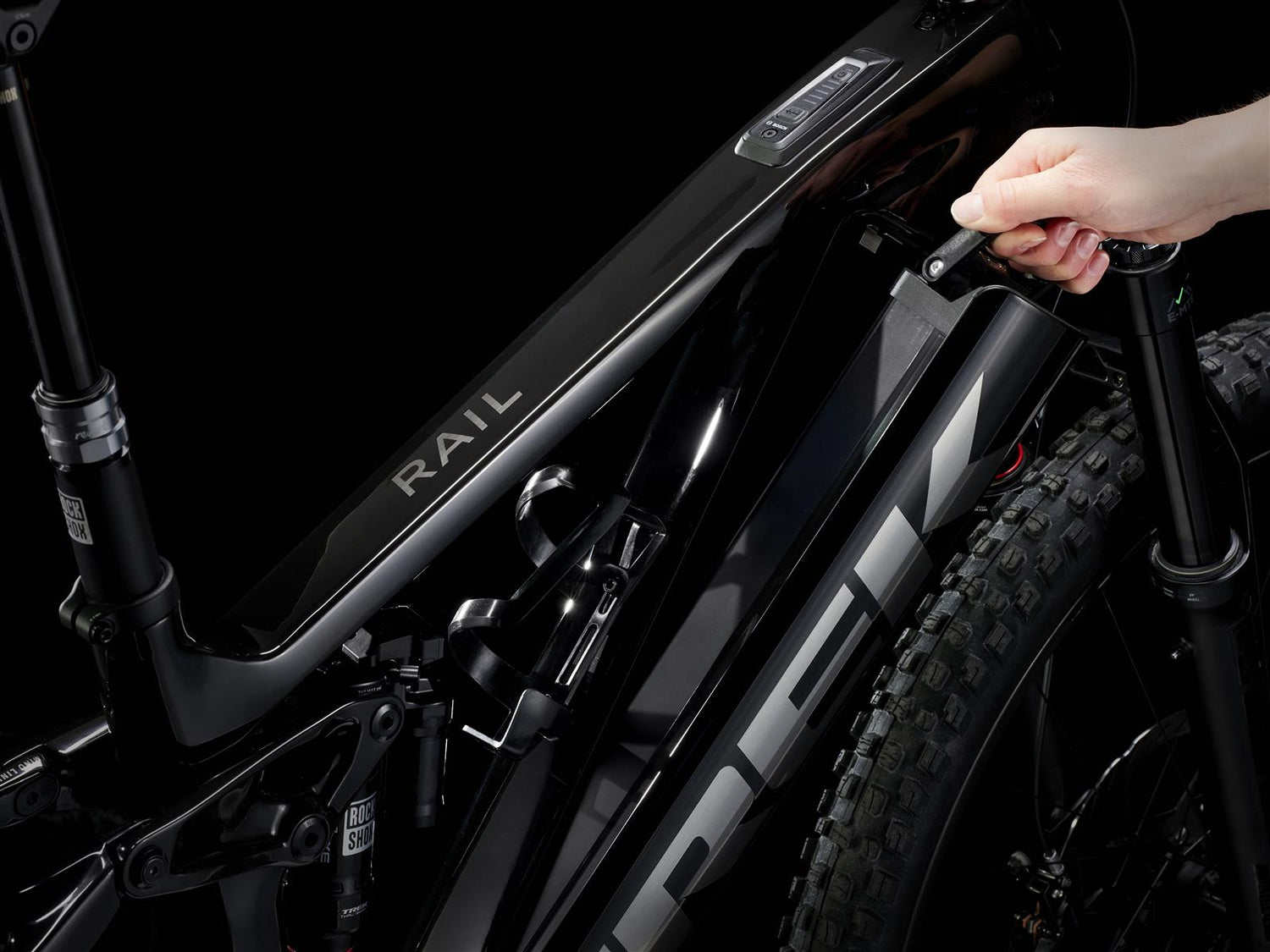

• Trek's Removable Integrated Battery (RIB) looks good and is extremely user-friendly: The battery is fully integrated into the frame and thus well protected, can be easily removed without tools, and leaves space for a bottle holder.

Equipment:

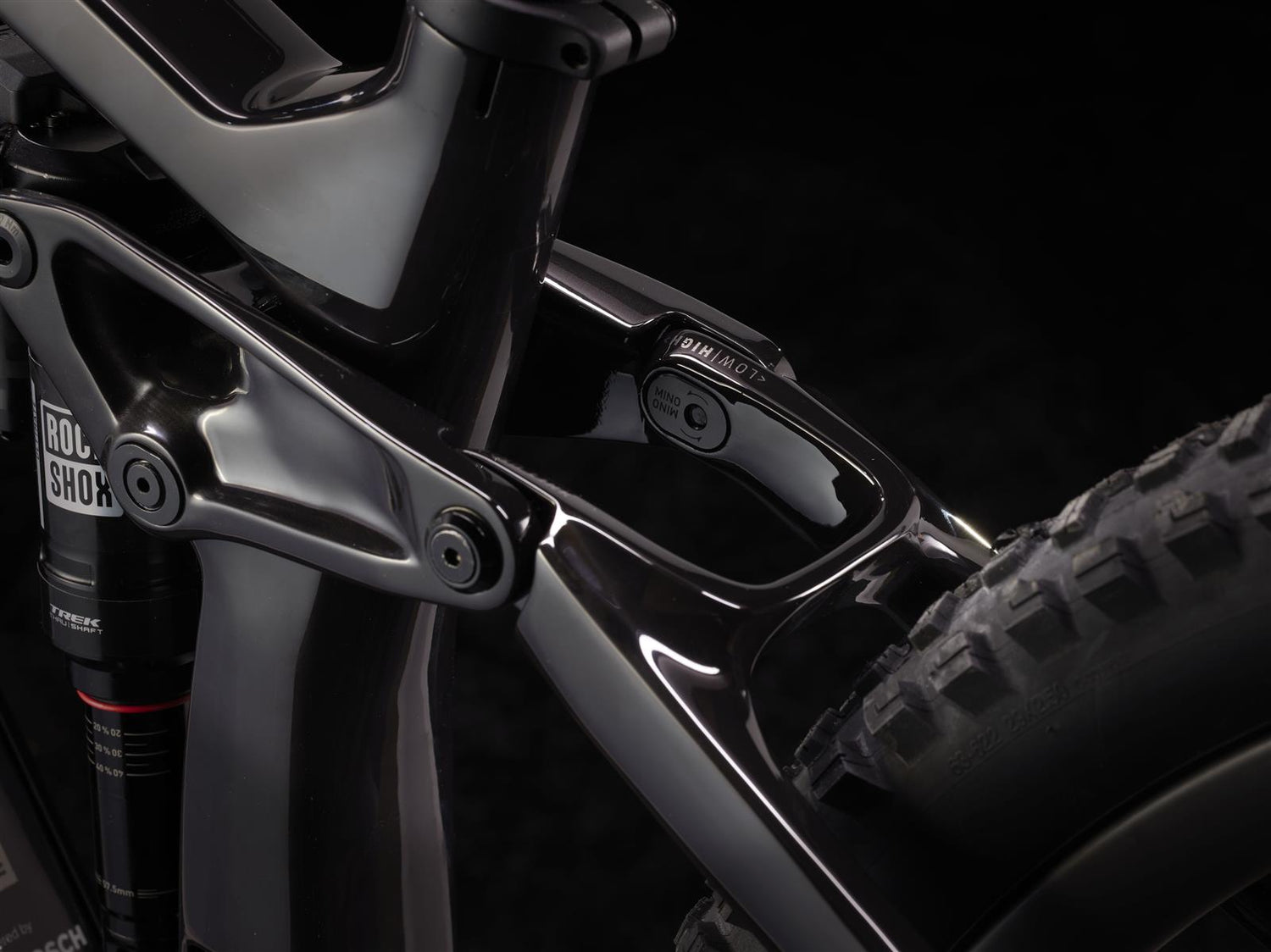

Frame: Main frame made of OCLV Mountain Carbon, 1.8" lower top tube, compatible with Bosch System Controller, Removable Integrated Battery (RIB), Knock Block 2.0, guided internal cable routing, 34.9 mm seat tube diameter, magnesium rocker link, Motor Armor, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel
Fork: RockShox ZEB Ultimate, AirWiz, DebonAir spring, Charger 3 RC2 damper, tapered 1.8" oversized steerer, e-MTB optimized fork crown, 44 mm offset, Boost110, 15 mm Maxle Stealth axle, 160 mm travel+

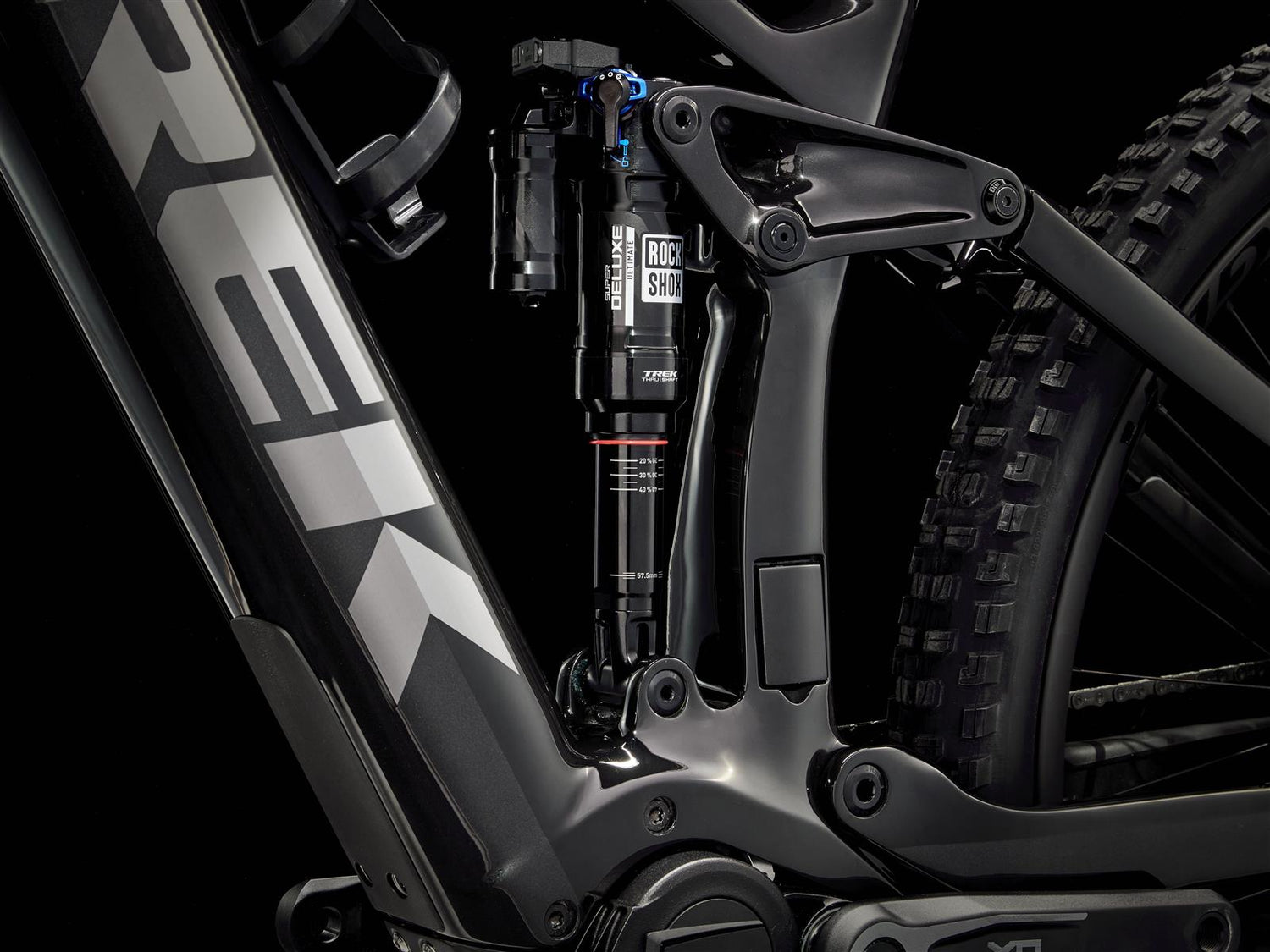

Shock: RockShox Super Deluxe Thru Shaft, AirWiz, 230 x 57.5 mm
Max. compatible fork travel: 170mm (580mm axle to crown)
Front wheel: Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt disc mount, Boost110, 15 mm thru axle
Rear wheel: Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt disc mount, SRAM XD freehub body, Boost148, 12 mm thru axle
HR quick release: Bontrager Switch thru axle, removable lever
*Tire Size: S, M, L, XL: Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewall protection, Aramid bead core, 120 TPI, 29 x 2.50
Size S, M, L, XL: Bontrager SE6 Team Issue, Tubeless Ready, Core Strength sidewall protection, Aramid bead core, 120 TPI, 29 x 2.50
*Tire replacement part size: S, M, L, XL: Bontrager TLR sealant, 177 ml
Size S, M, L, XL: Quarq TyreWiz tire pressure sensors
Rim tape: Bontrager TLR
Max. tire size: Frame: 29 x 2.60", Fork: See manufacturer

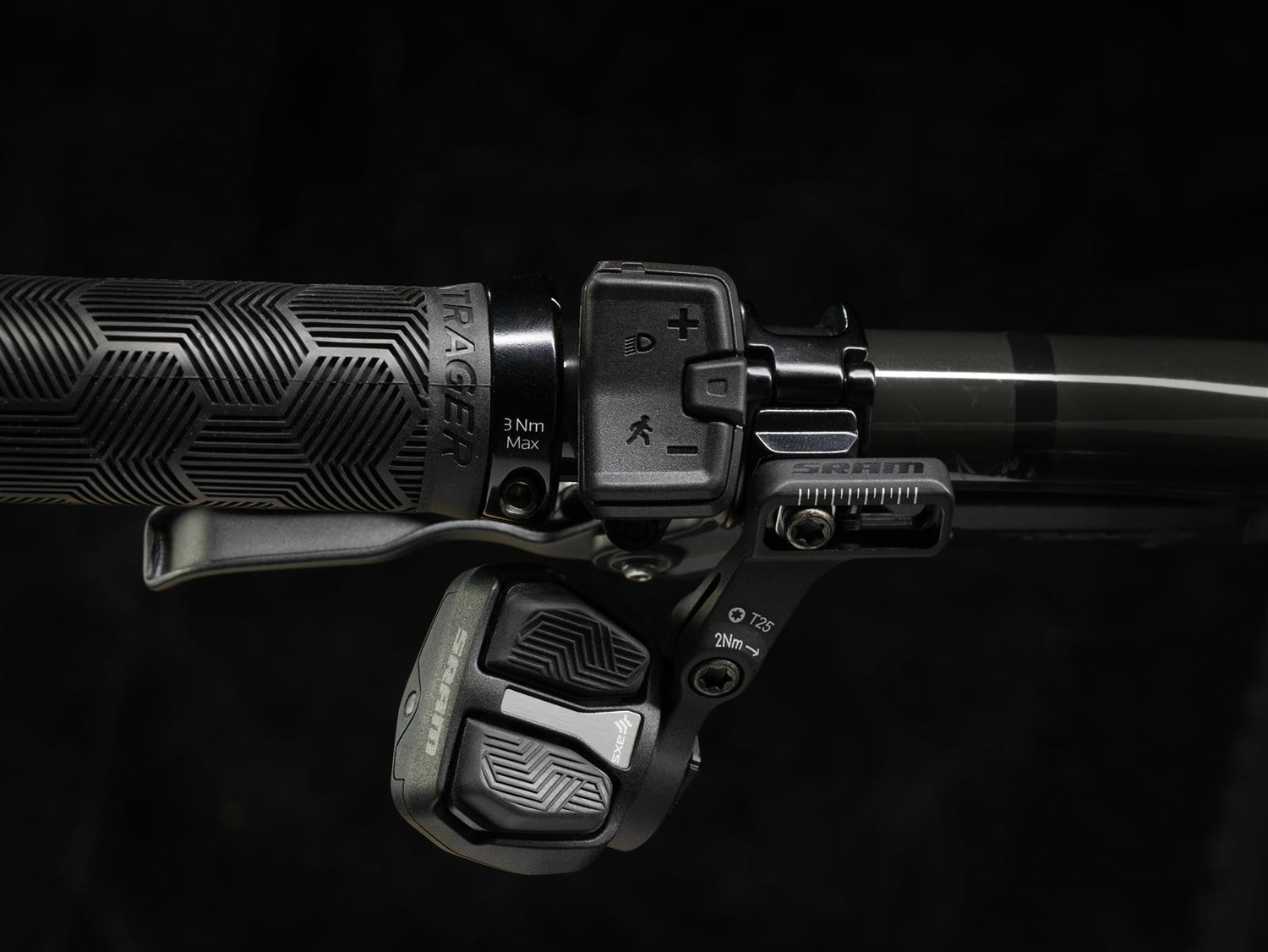

Shifter: SRAM AXS POD Ultimate, coupled with dropper post

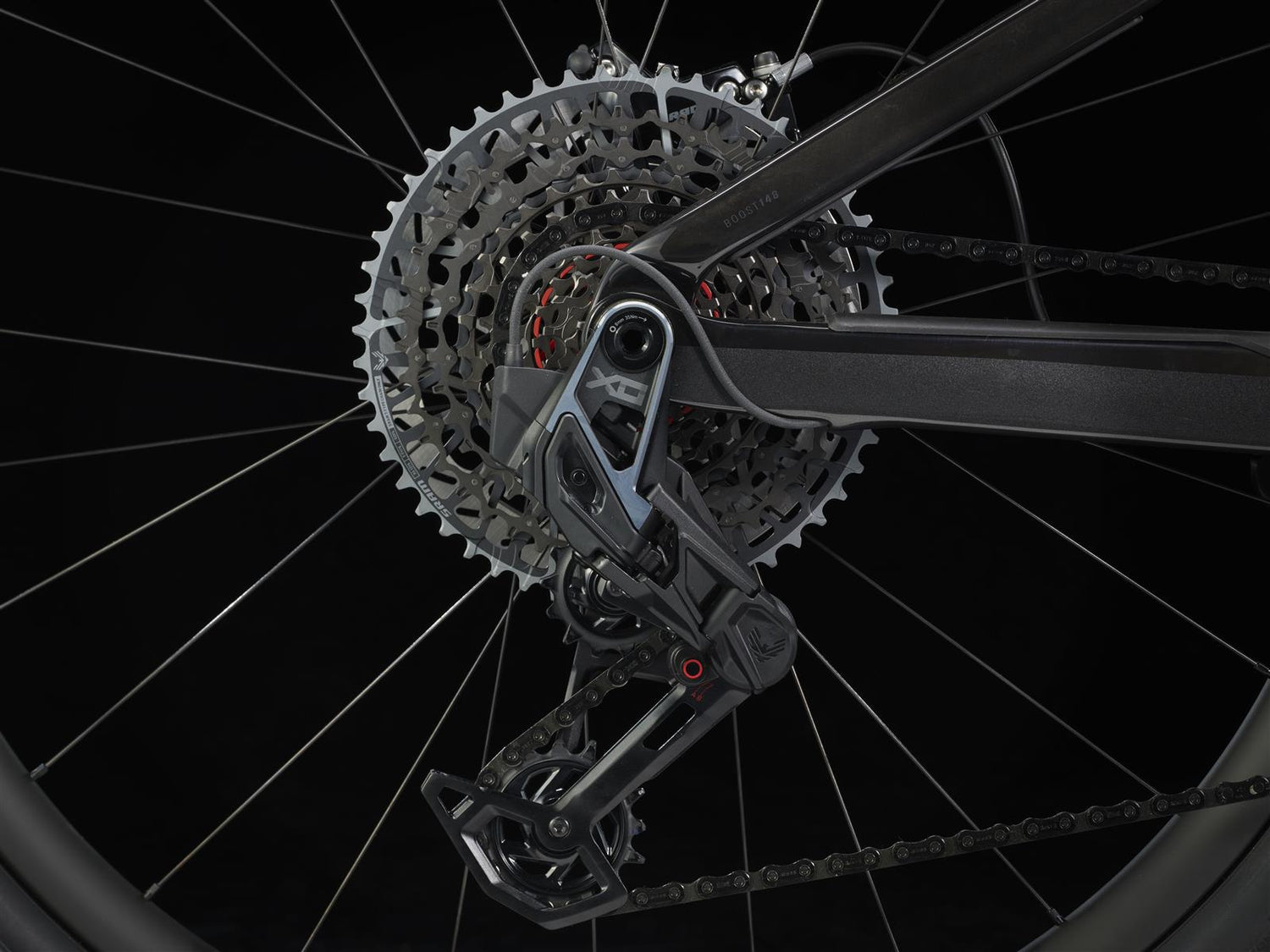

Rear derailleur: SRAM X0 Eagle AXS, T-Type
Crank: SRAM X0 Eagle, 34 T, T-Type, 160 mm crank arm length
Chainring: SRAM XX T-Type, 34 T, Steel
Cassette: SRAM Eagle XS-1295, T-Type, 10-52 T, 12-speed
Chain: SRAM X0 Eagle, T-Type, 12-speed
Pedal: VP-536, Nylon platform
Max. chainring size: 1x: 34 teeth
Saddle: Bontrager Arvada, Austenite rails, 138 mm width
*Seatpost size: S: RockShox Reverb AXS, 100 mm travel, wireless, 34.9 mm, 340 mm length
Size M: RockShox Reverb AXS, 150 mm travel, wireless, 34.9 mm, 440 mm length
Size L, XL: RockShox Reverb AXS, 170 mm travel, wireless, 34.9 mm, 480 mm length
Handlebar/Stem: (integrated) Bontrager RSL, integrated handlebar/stem unit, OCLV Carbon, 27.5 mm rise, 820 mm width, stem with 0-degree rise, 45 mm stem length
Grips: Bontrager XR Trail Elite, Nylon clamp
Brake: Hydraulic 4-piston disc brake SRAM Code Silver
Brake disc: SRAM, 6-bolt, 200 mm
Brake disc diameter: Max. brake disc diameter - Frame: 200mm, Fork: see fork manufacturer
*Battery size: S: Bosch PowerTube 625 Wh, Smart System
Size M, L, XL: Bosch PowerTube 750 Wh, Smart System
Charger: Bosch Standard charger 4 A, 230 V, Smart System

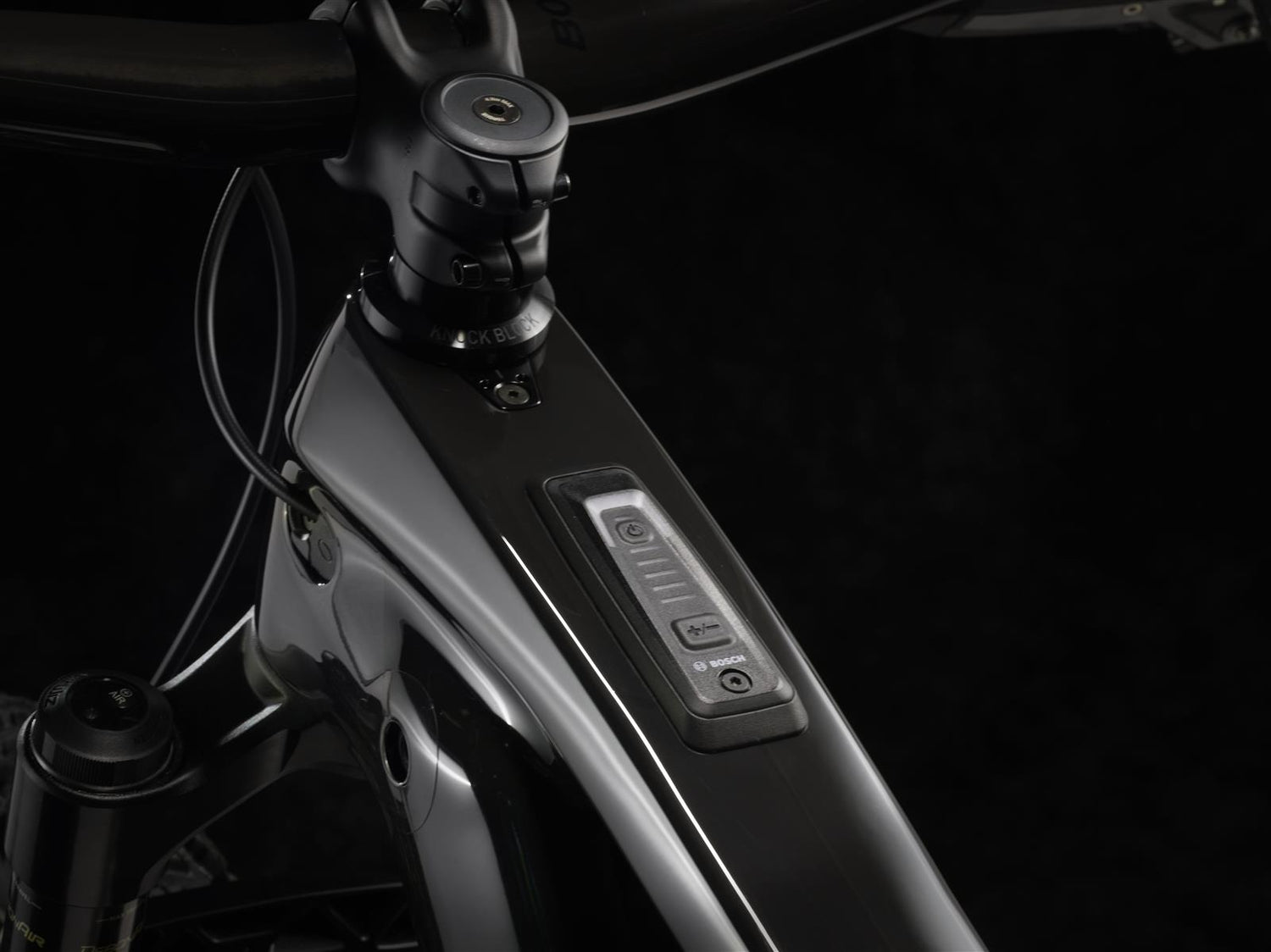

*Controller size: S, M, L, XL: Bosch System Controller BRC3100, Smart System
Size S, M, L, XL: Bosch Mini-Remote BRC3300, Smart System, 22.2 mm

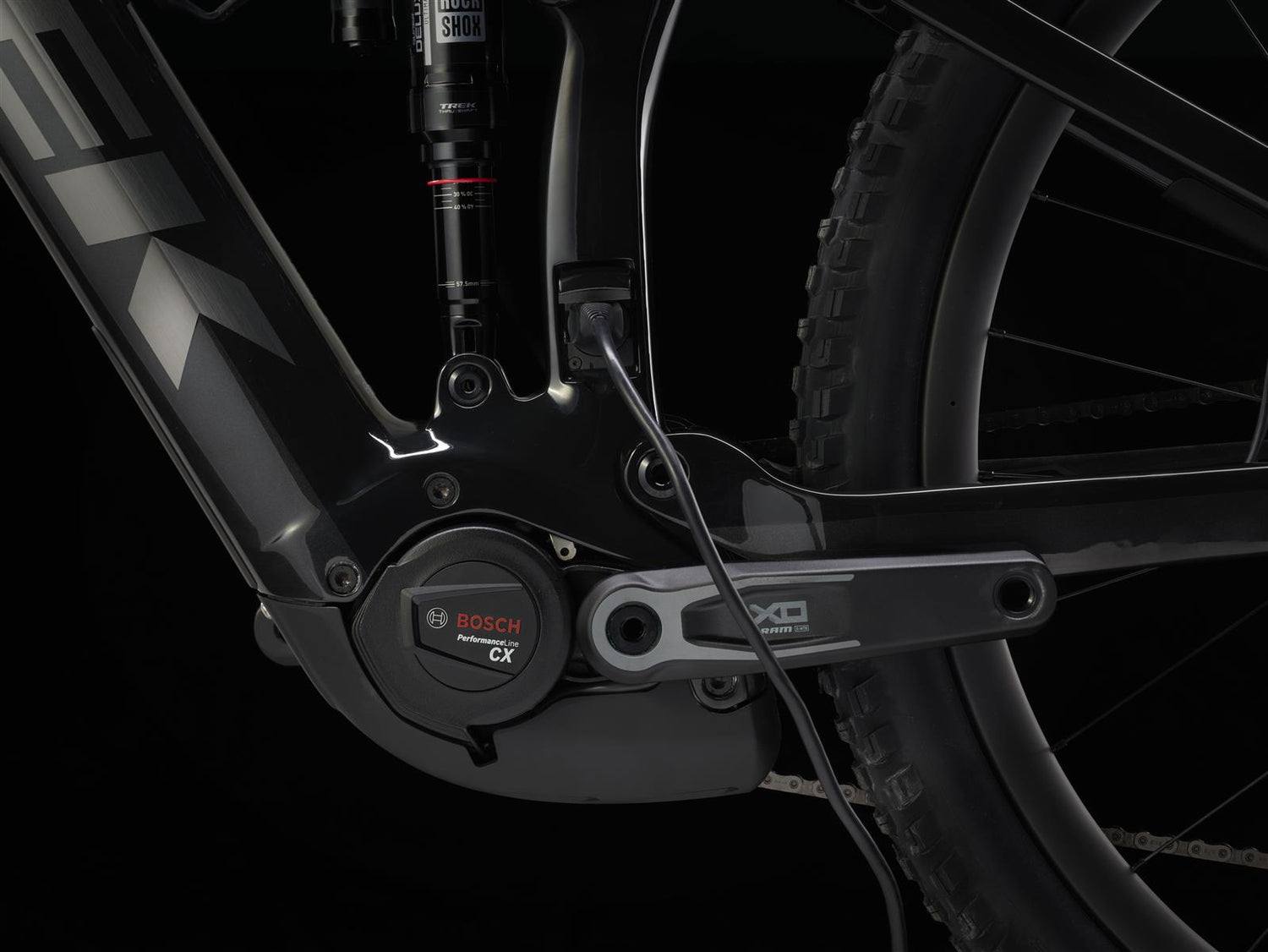

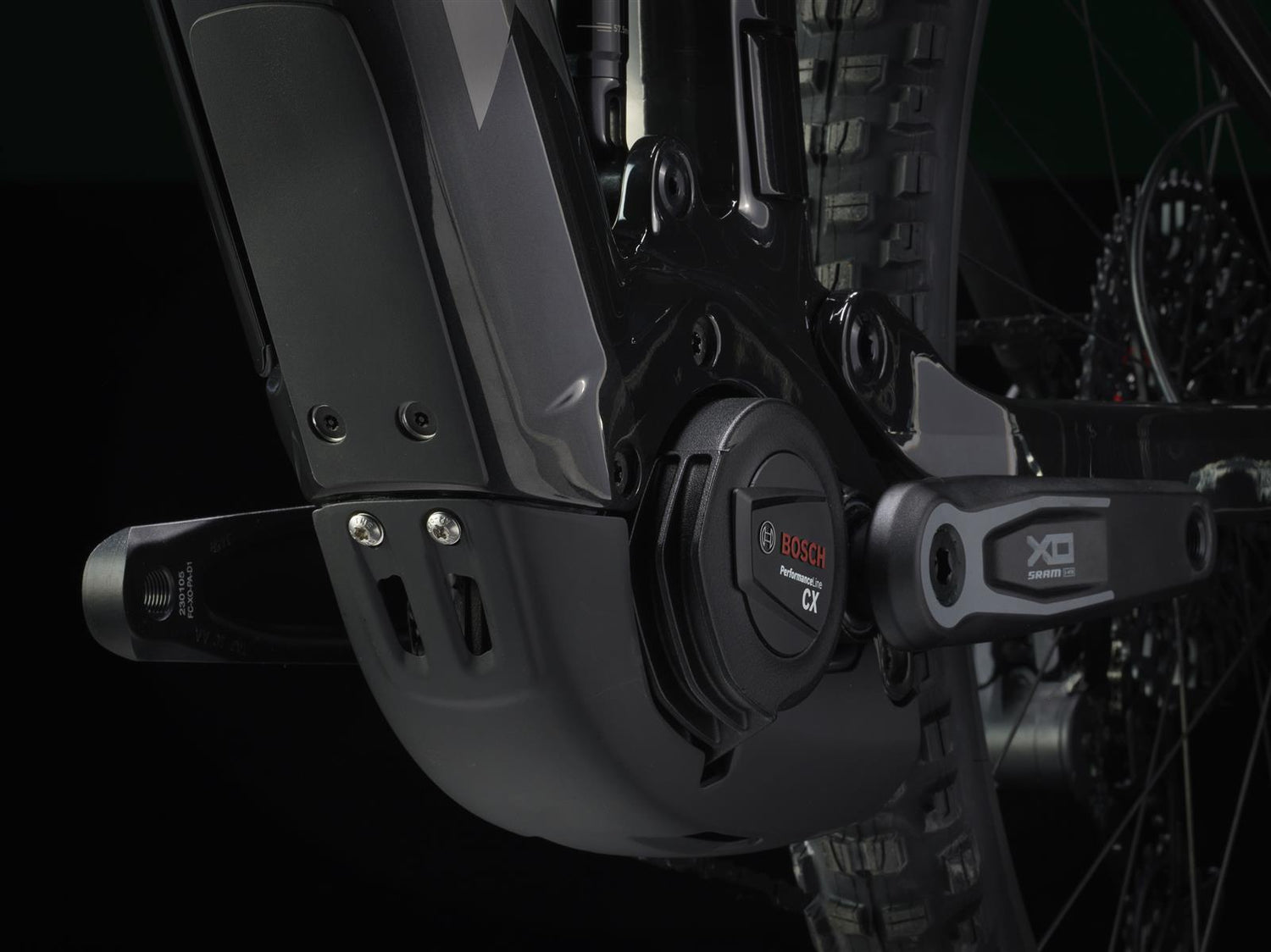

Motor: Bosch Performance Line CX, Smart System, Magnesium motor housing, 85 Nm
Weight: M – 23.75 kg (with TLR tire sealant, without tubes)
Max. weight: This bike has a maximum weight limit (bike, rider, and load) of 136 kg.

*Please note - the specification applies to all sizes unless otherwise listed
