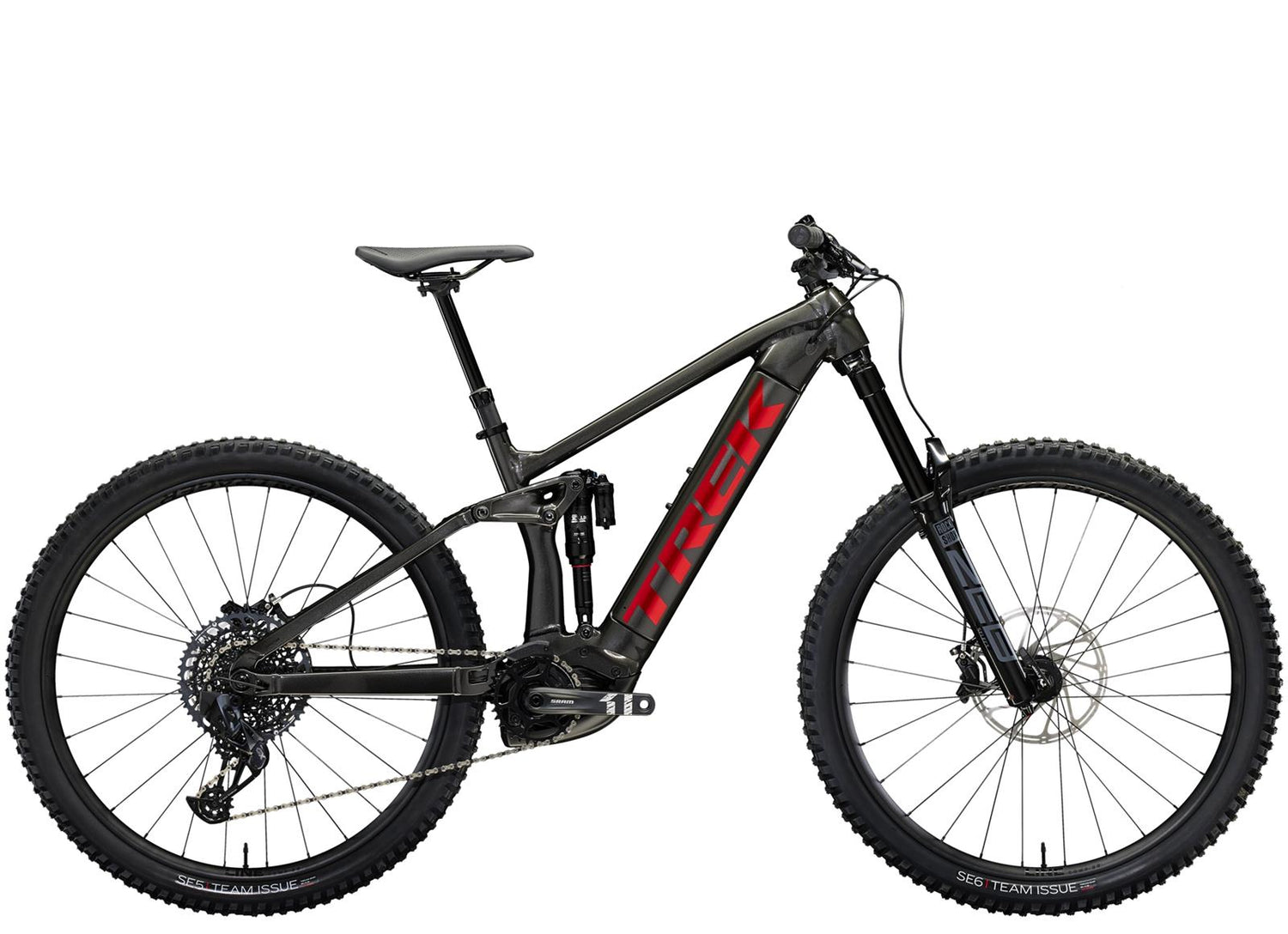

Trek Rail 9 GX AXS Gen 3 Gloss Dnister Black

The Rail 9 is our highest quality electric aluminum mountain bike with plenty of suspension travel. Its suspension setup and parts are suitable for the toughest enduro use, while the powerful Bosch drive system gets you back up the mountain in no time. The wireless SRAM AXS drivetrain ensures reliable shifting and a tidy cockpit.

Equipment:

Frame: Alpha Platinum Aluminum, removable integrated battery (RIB), tapered head tube, internal Control Freak cable routing, magnesium rocker link, Motor Armor, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel
Battery: Bosch PowerTube 625 Wh, Smart System
Charger: Bosch Standard Charger 4 A, 230 V, Smart System
Controller: Bosch LED Remote, Smart System
Motor: Bosch Performance Line CX, Smart System, magnesium motor housing, 85 Nm, 32 km/h max support speed (25 km/h max support speed in EU and APAC)
Fork: RockShox ZEB Select+, DebonAir spring, Charger 3 RC2 damper, E-MTB optimized fork crown, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth axle, 160 mm travel
Shock: RockShox Super Deluxe Ultimate RT3, DebonAir spring, Thru Shaft damper with 3 positions, 230 x 57.5 mm
Max compatible fork travel: 170 mm (580 mm axle to crown)
Front hub: Bontrager, aluminum, sealed bearing, aluminum axle, 6-bolt disc mount, Boost110, 15 mm thru axle
Rear hub: Bontrager, aluminum, sealed bearing, 6-bolt disc mount, Rapid Drive (108 points), SRAM XD driver body, Boost148, 12 mm thru axle
Rear quick release: Bontrager Switch thru axle, removable lever
Rim: Bontrager Line Comp 30, Tubeless Ready, 28-hole, Presta valve
Tire: Bontrager SE6 Team Issue, Tubeless Ready, Core Strength sidewall protection, aramid bead, 120 TPI, 29 x 2.50
Rim tape: Bontrager TLR
Max tire size frame: 29 x 2.60
Shifter: SRAM GX Eagle AXS, 12-speed
Rear derailleur: SRAM GX Eagle AXS
Crank: SRAM X1 1000, 34 teeth, 165 mm crank arm length
Cassette: SRAM Eagle XG-1275, 10-52 teeth, 12-speed
Chain: SRAM GX Eagle, 12-speed
Max chainring size: 34 teeth
Saddle: Bontrager Arvada, CrMo rail, 138 mm width
Seatpost: Bontrager Line Elite Dropper, 100 mm travel, MaxFlow, internal cable routing, 31.6 mm, 340 mm length (S)
Seatpost: Bontrager Line Elite Dropper, 150 mm travel, MaxFlow, internal cable routing, 31.6 mm, 440 mm length (M)
Seatpost: Bontrager Line Elite Dropper, 170 mm travel, MaxFlow, internal cable routing, 31.6 mm, 480 mm length (L/XL)
Handlebar: Bontrager Line, aluminum, 35 mm, 27.5 mm rise, 780 mm width
Grips: Bontrager XR Trail Elite, nylon clamp
Stem: Bontrager Elite, 35 mm, 0 degree, 45 mm length
Brake disc: SRAM Centerline, 6-hole, rounded edge, 180 mm / SRAM CenterLine, 6-hole disc mount, rounded edge, 200 mm
Brake Set: SRAM Code R, hydraulic 4-piston disc brake
Max. rear disc diameter: 203 mm
Lighting: Supernova Mini 2, 5-21 V LED headlight / LED taillight Supernova E3 Mini-2
Weight: M - 23.60 kg / 52.03 lbs
Max. Weight: This bicycle has a maximum weight limit (bicycle, rider, and load) of 136 kg.

* Specification may vary in details in exceptional cases, depending on the manufacturer.
