SRAM Red XPLR crank, 13-speed, 42 teeth, FC-RED-1W-E1

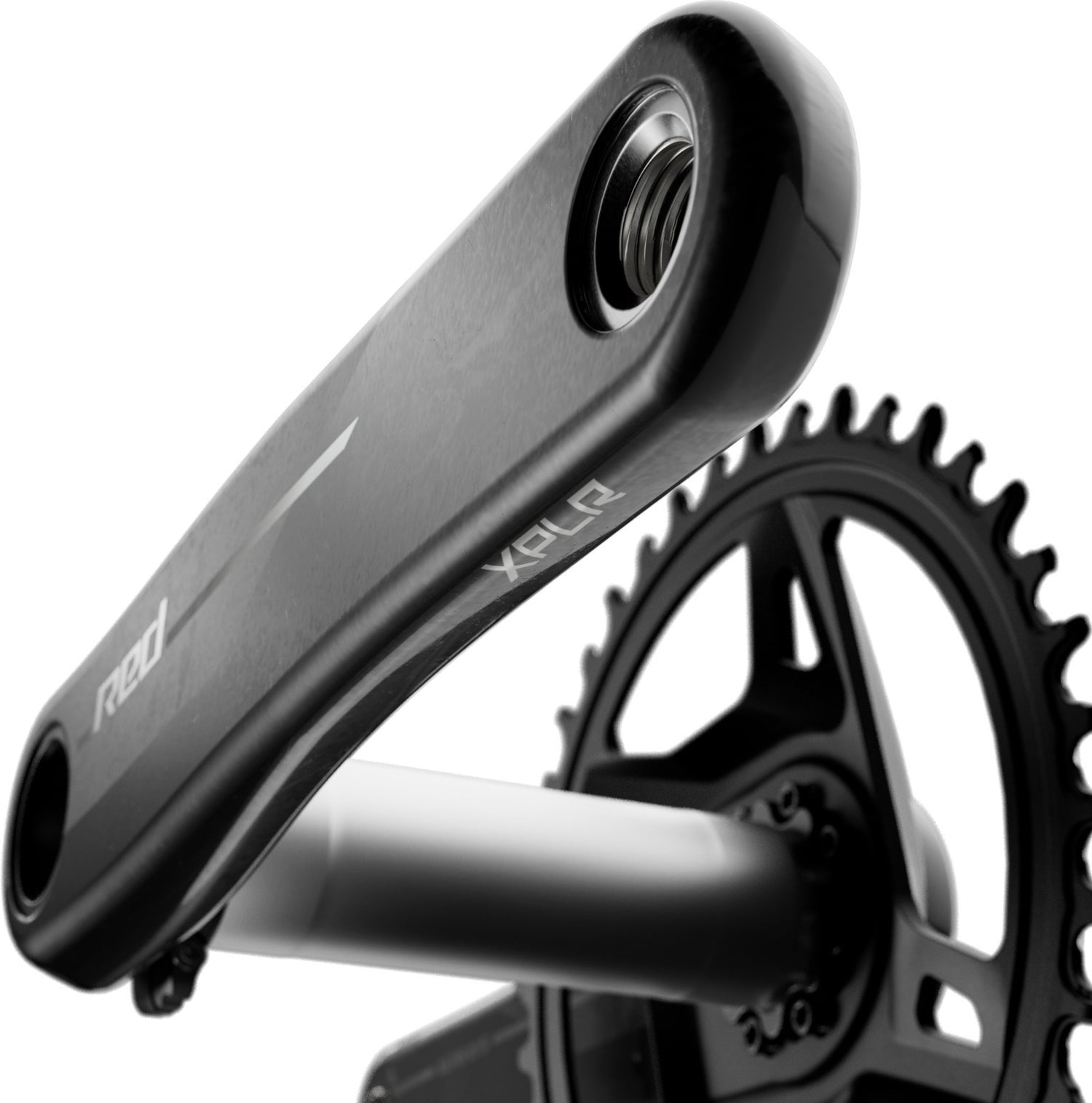

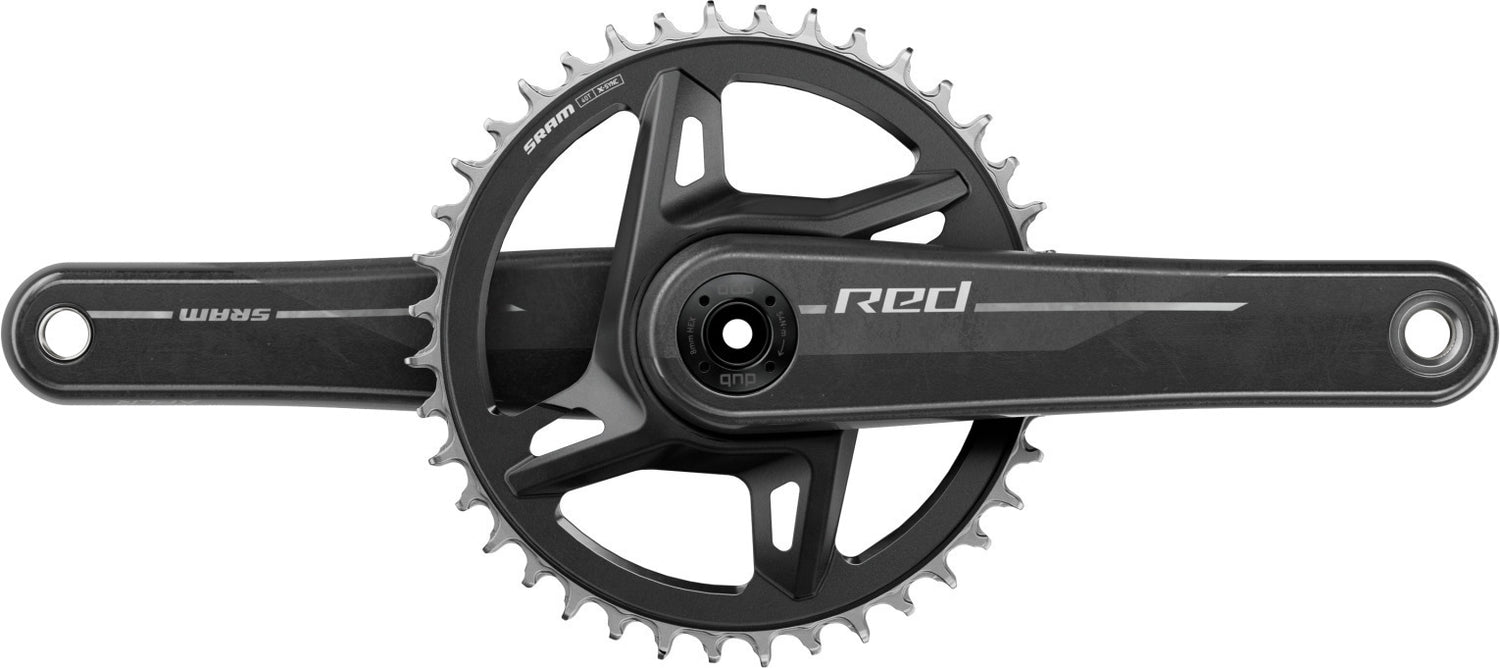

Gravel bikes also deserve our lightest and stiffest cranks. The RED XPLR crankset maximizes tire clearance and features our hollow carbon arms, paired with the direct-mount 1x chainring of your choice. Now also available with a 160 mm crank arm length, this crank is built to satisfy every rider, including those who prefer the unpaved path.

Features:

• Single-ring drive system simplifies functionality and reduces weight
• Direct-mount non-aero chainrings from 38T to 46T can be swapped with a single tool
• SRAM X-SYNC technology with wide and narrow teeth for maximum chain control
• Ultra-light, hollow carbon fiber crank arms
• DUB bottom bracket for increased durability and simplicity
• Can be upgraded to a power meter
• Available in lengths 160, 165, 167.5, 170, 172.5, and 175 mm
• Chainline: 47.5 mm

Manufacturer number: 00.6118.685.012 (160 mm)
Manufacturer number: 00.6118.685.013 (165 mm)
Manufacturer number: 00.6118.685.014 (167.5 mm)
Manufacturer number: 00.6118.685.015 (170 mm)
Manufacturer number: 00.6118.685.016 (172.5 mm)
Manufacturer number: 00.6118.685.017 (175 mm)
