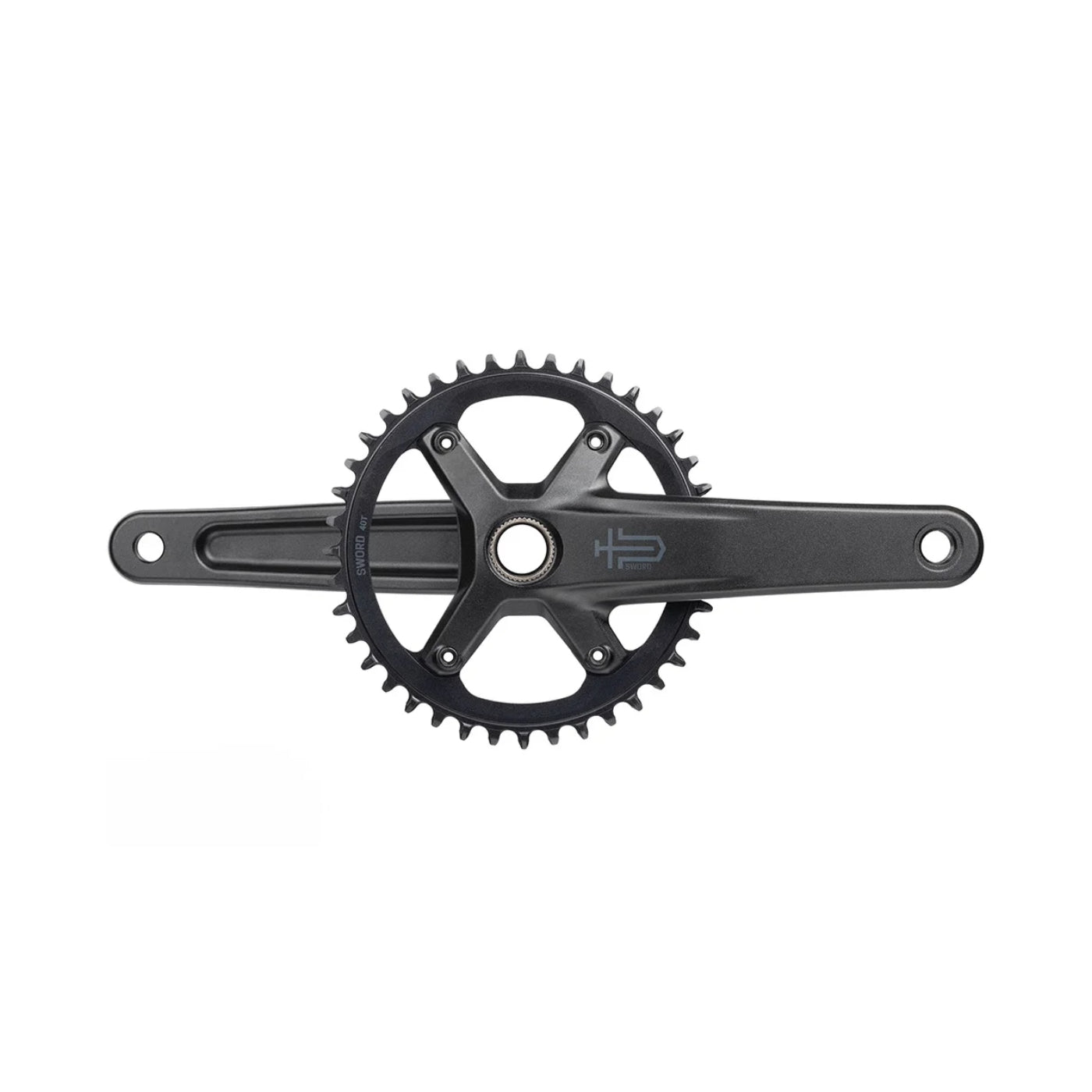

microSHIFT Sword Crankset 1x, 40T

The Sword 1x crankset is designed for simplicity. With a single chainring mounted in the outer position of the crankset, it perfectly matches the rest of the Sword 1x drivetrain and offers the stiffness, chain security, and easy maintenance expected from a 1x drivetrain. It is designed to be as compatible as possible: The 24 mm spindle is compatible with many aftermarket bottom brackets, and converting from 1x to 2x is easy by installing our 2x chainrings.

Features:

• Wide design, optimized for a 50 mm chainline
• 24 mm spindle compatible with Shimano bottom brackets
• 1x chainring with chain guide, ideal for derailleurs with clutch
• Easy conversion from 2x to 1x

Group: Sword
Speed: 10-speed
Number of chainrings: 1x (Single)
Arm lengths: 165 mm, 170 mm, 172.5 mm, 175 mm
Chainring size: 40 teeth
Chainline: 50 mm
Chainring bolt circle diameter (BCD): 110 asymmetric
Axle diameter: Standard 24 mm
Bottom bracket shell width: Press Fit 86.5 mm, Threaded 68 mm
Chainring material: Aluminum
Weight: 790 g (172.5 mm)
