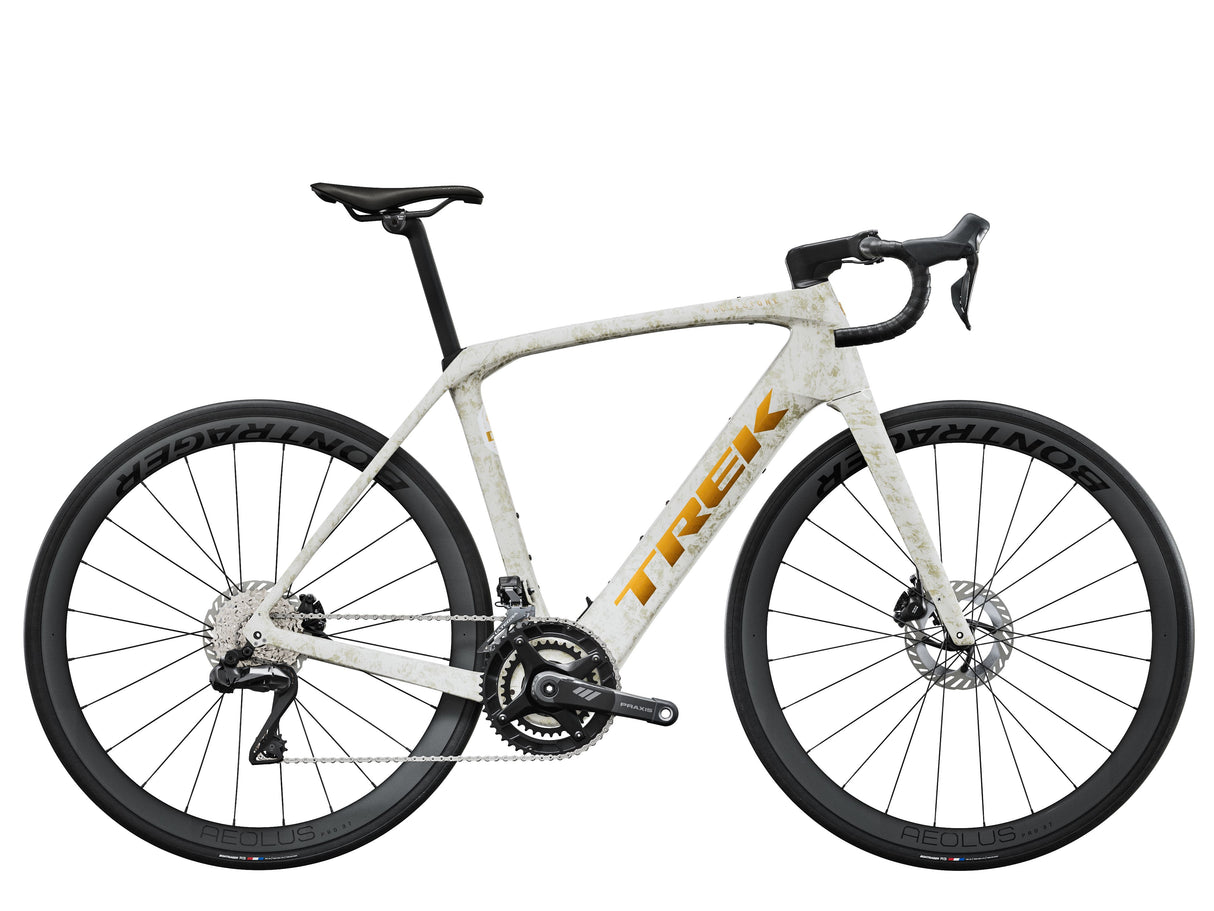

Trek Domane+ SLR 7 - Era White 360Wh

The Domane+ SLR 7 is an e-road bike that sets new standards in the world of e-road bikes with its incredibly lightweight frame made from our innovative 800 Series OCLV Carbon. A compact, innovative motor is hidden in the bike, supporting you in a whisper-quiet, natural way while staying discreetly in the background, allowing you to fully immerse yourself in your surroundings and benefit from additional propulsion on challenging climbs and long adventures. The lightning-fast gear changes of the Shimano Ultegra Di2 drivetrain complete the exceptional performance of this bike.

Frame Set

• Frame: 800 Series OCLV Carbon, drive system, tapered head tube, rear IsoSpeed, internal cable routing, flat mount disc brake mount, fender mounts, 142x12 mm thru axle
• Fork: Domane+ Carbon, tapered carbon steerer, internal brake cable routing, fender mounts, flat mount disc brake mount, 12x100 mm thru axle
• Frame Fit: Endurance

Weight

• Weight: 56 - 12.59 kg / 27.76 lbs (with TLR tire sealant, without tubes)
• Max. Weight: This bike has a maximum weight limit (bike, rider, and cargo) of 125 kg.

E-System

• Battery: TQ 360 Wh, Shimano BT-DN300
• Charger: TQ charger, 4 A, with charging cable
• Computer: TQ LED display with Bluetooth & ANT+ connectivity
• Motor: TQ-HPR50, 50 Nm, 250 W max. rated continuous power, 300 W max power

Drivetrain

• Shift Levers: Shimano Ultegra R8170 Di2, 12-speed
• Front Derailleur: Shimano Ultegra R8150 Di2, braze-on, down swing
• Rear Derailleur: Shimano Ultegra R8150 Di2, max. 34T on largest cog
• Crank:
  • Size: 50, 52: Praxis Carbon, 170 mm crank arm length
  • Size: 54, 56: Praxis Carbon, 172.5 mm crank arm length
  • Size: 58, 60, 62: Praxis Carbon, 175 mm crank arm length
• Chainring: Praxis, 50/34T, 12-speed
• Cassette: Shimano Ultegra R8101, 11-34, 12-speed
• Chain: Shimano Ultegra/XT M8100, 12-speed
• Max. Chainring Size: 1x: 46 teeth, 2x: 52/36

Wheels

• Front Wheel: Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 37 mm rim height, 100 x 12 mm thru axle
• Rear Wheel: Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 37 mm rim height, 11-speed freehub from Shimano, 142 x 12 mm thru axle
• Front Quick Release: Bontrager Switch thru axle, removable lever
• Rear Quick Release: Bontrager Switch thru axle, removable lever
• Tires: Bontrager R3 Hard-Case Lite, Tubeless-Ready, Aramid bead, 120 TPI, 700 x 32 mm
• Tire Spare Part: Bontrager TLR sealant, 177 ml
• Rim Tape: Bontrager TLR
• Max. Tire Size: 40mm without fenders, 35mm with fenders

Components

• Saddle:
  • Size: 50, 52: Verse Short Elite, struts made of magnesium tube, 155 mm width
  • Size: 54, 56, 58, 60, 62: Verse Short Elite, struts made of magnesium tube, 145 mm width
• Seatpost:
  • Size: 50, 52, 54, 56: KVF Aero carbon seatpost, 20 mm offset, 280 mm length
  • Size: 58, 60, 62: KVF Aero carbon seatpost, 20 mm offset, 320 mm length
• Handlebar:
  • Size: 50, 52: Bontrager Pro IsoCore VR-SF, 40 cm
  • Size: 54, 56: Bontrager Pro IsoCore VR-SF, 42 cm
  • Size: 58, 60, 62: Bontrager Pro IsoCore VR-SF, 44 cm
• Handlebar tape: Bontrager Supertack Perf handlebar tape
• Stem:
  • Size: 50: Trek RCS Pro, -7 degrees, 80 mm length
  • Size: 52, 54: Trek RCS Pro, -7 degrees, 90 mm length
  • Size: 56, 58: Trek RCS Pro, -7 degrees, 100 mm length
  • Size: 60, 62: Trek RCS Pro, -7 degrees, 110 mm length
• Brake: Shimano Ultegra hydraulic disc, BR-R8170 flat mount caliper, resin pad w/fin
• Brake disc: Shimano CL800, Center Lock disc mount, 160 mm
• Brake disc diameter: Max. brake disc diameter: 180mm front, 160mm rear

* Specification may vary in details in exceptional cases, depending on the manufacturer.
