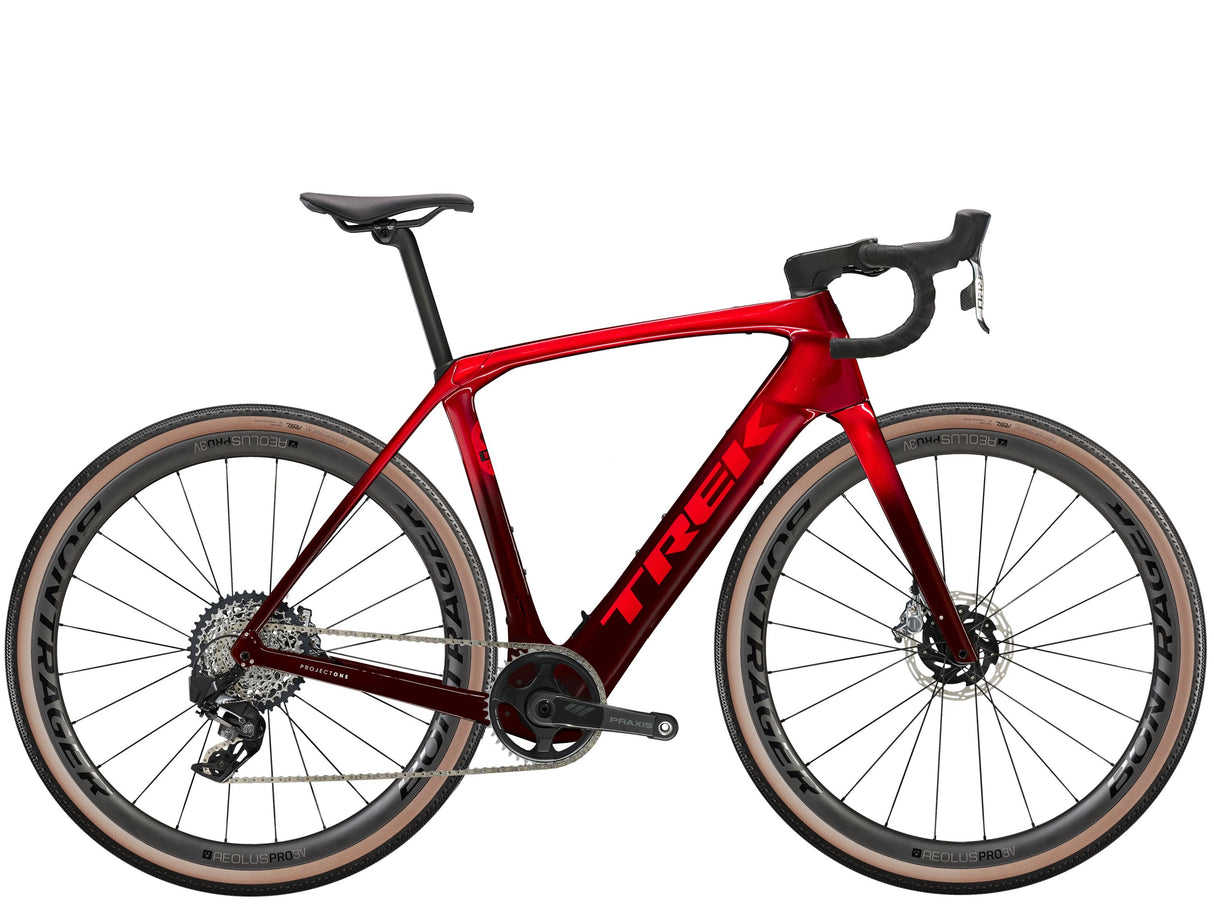

Trek Domane+ SLR 8 AXS - Carbon Red Smoke 360Wh

The Domane+ SLR 8 is a groundbreaking E-carbon road bike that clearly distinguishes itself from other E-road bikes in terms of aesthetics, fit, and ride feel. The frame made of 800 Series OCLV Carbon conceals a compact, refined motor that provides maximum riding pleasure thanks to its quiet, natural support. You benefit from a smooth boost to comfortably tackle steep climbs and long distances, while the clean-shifting SRAM RED AXS 1x12 drivetrain of the previous generation impresses with its unparalleled performance on both asphalt and gravel.

Frame Set

• Frame: 800 Series OCLV Carbon, drive system, tapered head tube, rear IsoSpeed, internal cable routing, flat mount disc brake mount, fender mounts, 142x12 mm thru axle
• Fork: Domane+ Carbon, tapered carbon steerer, internal brake cable routing, fender mounts, flat mount disc brake mount, 12x100 mm thru axle
• Frame Fit: Endurance

Weight

• Max. Weight: This bike has a maximum weight limit (bike, rider, and load) of 125 kg.

E-System

• Battery: TQ 360 Wh
• Charger: TQ Charger, 4 A
• Computer: TQ LED Display with Bluetooth & ANT+ connectivity
• Motor: TQ-HPR50, 50 Nm, 250 W max. rated continuous power, 300 W maximum power

Drivetrain

• Shift Lever: SRAM RED eTap AXS, 12-speed
• Rear Derailleur: SRAM RED eTap AXS, max. 36T on largest cog
• Crank:
  • Size: 50, 52: Praxis Carbon, 170 mm crank arm length
  • Size: 54, 56: Praxis Carbon, 172.5 mm crank arm length
  • Size: 58, 60, 62: Praxis Carbon, 175 mm crank arm length
• Chainring: SRAM X-SYNC, 42T, Aluminum
• Cassette: SRAM XG-1271, 10-44T, 12-speed
• Chain: SRAM RED D1, 12-speed
• Max. Chainring Size: 1x: 46 teeth, 2x: 52/36

Wheels

• Front Wheel: Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25 mm internal width, 100 x 12 mm thru axle
• Rear Wheel: Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25 mm internal width, 142 x 12 mm thru axle
• Front Quick Release: Bontrager Switch thru axle, removable lever
• Rear Quick Release: Bontrager Switch thru axle, removable lever
• Tires: Bontrager GR1 Team Issue, Tubeless-Ready, Inner Strength casing, Aramid bead, 120 TPI, 700 x 40 mm
• Tire Spare Part: Bontrager TLR Sealant, 177 ml
• Rim Tape: Bontrager TLR
• Max. Tire Size: 40mm without fender, 35mm with fender

Components

• Saddle:
  • Size: 50, 52: Verse Short Pro, carbon rails, 155 mm width
  • Size: 54, 56, 58, 60, 62: Verse Short Pro, carbon rails, 145 mm width
• Seatpost:
  • Size: 50, 52, 54, 56: KVF Aero carbon seatpost, 20 mm offset, 280 mm length
  • Size: 58, 60, 62: KVF Aero-Carbon Seatpost, 20 mm Offset, 320 mm Length
• Handlebar:
  • Size: 50, 52: Bontrager Pro IsoCore VR-SF, 40 cm
  • Size: 54, 56: Bontrager Pro IsoCore VR-SF, 42 cm
  • Size: 58, 60, 62: Bontrager Pro IsoCore VR-SF, 44 cm
• Handlebar Tape: Bontrager Supertack Perf Handlebar Tape
• Stem:
  • Size: 50: Trek RCS Pro, -7 Degrees, 80 mm Length
  • Size: 52, 54: Trek RCS Pro, -7 Degrees, 90 mm Length
  • Size: 56, 58: Trek RCS Pro, -7 Degrees, 100 mm Length
  • Size: 60, 62: Trek RCS Pro, -7 Degrees, 110 mm Length
• Brake Disc: SRAM CenterLine X, Center Lock Disc Mount, Rounded Edge, 160 mm
• Brake Disc Diameter: Max. Brake Disc Diameter: 180mm Front, 160mm Rear

* Specification may vary in details in exceptional cases, depending on the manufacturer.
