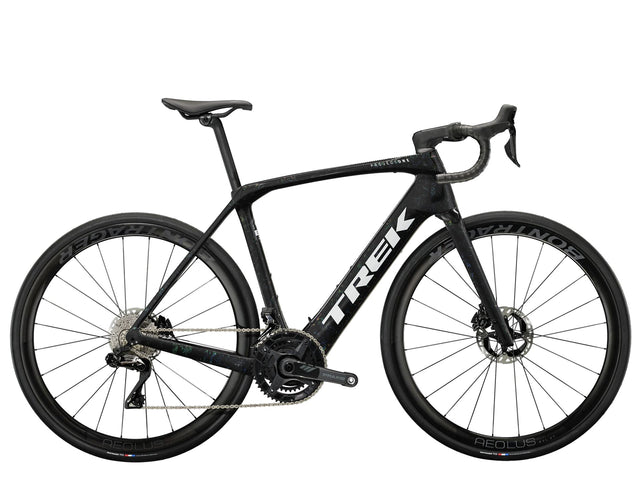

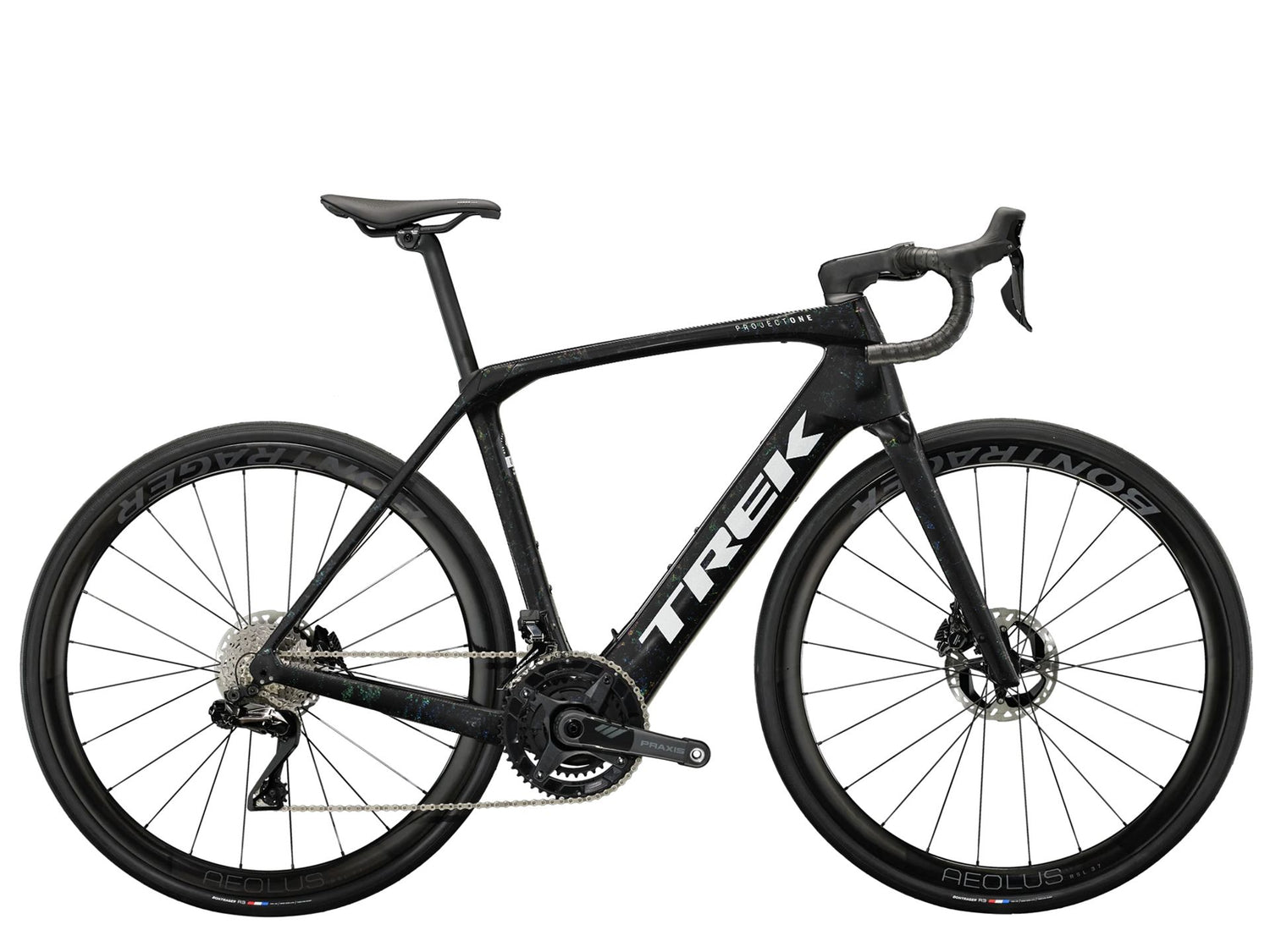

Trek Domane+ SLR 9 - Prismatic Pearl 360Wh

The Domane+ SLR 9 is a unique carbon e-road bike that stands out from any conventional e-bike with its appearance, fit, and riding feel. It is based on a frame made from 800 Series OCLV Carbon with an almost invisibly integrated, particularly compact, and sophisticated motor that provides maximum riding pleasure thanks to its natural pedaling feel. The whisper-quiet motor provides gentle support at the right moments and enables an unadulterated road bike experience. As an additional highlight, it is equipped with absolute premium components, such as Shimano's road-specific wireless electronic Dura-Ace Di2 shifting.

Frame Set

• Frame: 800 Series OCLV Carbon, drive system, tapered head tube, rear IsoSpeed, internal cable routing, flat mount disc brake mount, fender mounts, 142x12 mm thru axle
• Fork: Domane+ Carbon, tapered carbon steerer, internal brake cable routing, fender mounts, flat mount disc brake mount, 12x100 mm thru axle
• Frame Fit: Endurance

Weight

• Weight: 56 – 11.75 kg (with TLR tire sealant, without tubes)
• Max. Weight: This bike has a maximum weight limit (bike, rider, and load) of 125 kg.

E-System

• Battery: TQ 360 Wh, Shimano BT-DN300
• Charger: TQ charger, 4 A
• Computer: TQ LED display with Bluetooth & ANT+ connectivity
• Motor: TQ-HPR50, 50 Nm, 250 W max. rated continuous power, 300 W maximum power

Drivetrain

• Shift Levers: Shimano Dura-Ace R9270 Di2, 12-speed
• Front Derailleur: Shimano Dura-Ace R9250 Di2, braze-on, down swing
• Rear Derailleur: Shimano Dura-Ace R9250 Di2, max. 34T on largest cog
• Crank:
  • Size: 50, 52: Praxis Carbon, 170 mm crank arm length
  • Size: 54, 56: Praxis Carbon, 172.5 mm crank arm length
  • Size: 58, 60, 62: Praxis Carbon, 175 mm crank arm length
• Chainring: Praxis, 50/34T, 12-speed
• Cassette: Shimano Dura-Ace R9200, 11-34T, 12-speed
• Chain: Shimano Dura-Ace/XTR M9100, 12-speed
• Max. Chainring Size: 1x: 46T, 2x: 52/36

Wheels

• Front Wheel: Bontrager Aeolus RSL 37, OCLV Carbon, Tubeless Ready, 37 mm profile height, 100 x 12 mm thru axle
• Rear Wheel: Bontrager Aeolus RSL 37, OCLV Carbon, Tubeless Ready, 37 mm profile height, 142 x 12 mm thru axle
• Front Quick Release: Bontrager Switch thru axle, removable lever
• Rear Quick Release: Bontrager Switch thru axle, removable lever
• Tires: Bontrager R3 Hard-Case Lite, Tubeless-Ready, Aramid bead, 120 TPI, 700 x 32 mm
• Tire Spare Part: Bontrager TLR sealant, 177 ml
• Rim Tape: Bontrager TLR
• Max. Tire Size: 40 mm without fenders, 35 mm with fenders

Components

• Saddle:
  • Size: 50, 52: Verse Short Pro, carbon rails, 155 mm width
  • Size: 54, 56, 58, 60, 62: Verse Short Pro, carbon rails, 145 mm width
• Seat post:
  • Size: 50, 52, 54, 56: KVF Aero carbon seat post, 20 mm offset, 280 mm length
  • Size: 58, 60, 62: KVF Aero carbon seat post, 20 mm offset, 320 mm length
• Handlebar:
  • Size: 50, 52: Bontrager Pro IsoCore VR-SF, 40 cm
  • Size: 54, 56: Bontrager Pro IsoCore VR-SF, 42 cm
  • Size: 58, 60, 62: Bontrager Pro IsoCore VR-SF, 44 cm
• Handlebar tape: Bontrager Supertack Perf handlebar tape
• Stem:
  • Size: 50: Trek RCS Pro, -7 degrees, 80 mm length
  • Size: 52, 54: Trek RCS Pro, -7 degrees, 90 mm length
  • Size: 56, 58: Trek RCS Pro, -7 degrees, 100 mm length
  • Size: 60, 62: Trek RCS Pro, -7 degrees, 110 mm length
• Brake: Shimano Dura-Ace BR-9270 hydraulic disc, flat mount caliper, resin pad w/fin
• Brake disc: Shimano CL900, Center Lock disc mount, 160 mm
• Brake disc diameter: Max. brake disc diameter: 180 mm front, 160 mm rear

* Specification may vary in details in exceptional cases, depending on the manufacturer.
