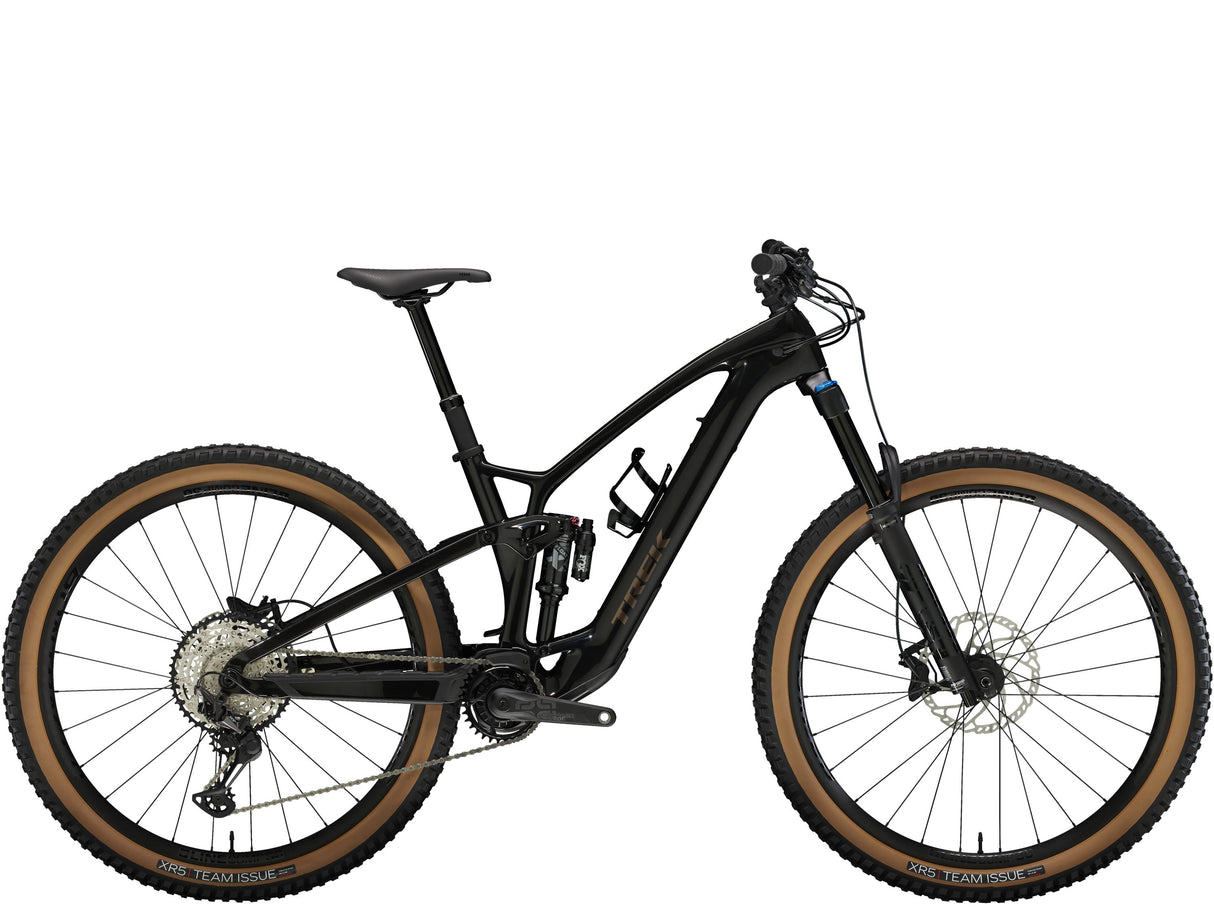

Trek Fuel EXe 9.7 - Deep Smoke 360Wh

With its revolutionary, cleverly integrated motor within the frame, the Fuel EXe 9.7 redefines E-Mountainbikes. This lightweight, agile bike is not only as playful as a non-assisted mountain bike but also effortlessly tackles longer climbs thanks to its efficient drive support. With its revised suspension package and selected component mix, crisp gear changes and precise maneuvers on the trail are easy. This high-quality equipment paired with a lightweight carbon chassis guarantees a bike with high dynamics and stiffness as well as the optimal amount of vibration damping, even when things get a bit rough on the trail.

Frame Set

• Frame: OCLV Mountain Carbon, removable battery, internal cable routing, aluminum rocker link, 34.9 mm seat tube diameter, mount for upper chain guide, 55 mm chainline, Mino Link, ABP, Boost148, UDH, 140 mm travel
• Fork: FOX Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 150 mm travel
• Shock: FOX Performance Float X, 2-position damping, 205 x 60 mm
• Max. compatible fork travel: See maintenance manual

Wheels

• Front Wheel: Bontrager Line Comp 30, Tubeless Ready, 6-bolt disc mount, Boost110, 15 mm thru axle, 29"
• Rear Wheel: Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt disc mount, Boost148, 12 mm thru axle, 29"
• Rear Quick Release: Bontrager Switch thru axle, removable lever
• Tires: Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 TPI, 29 x 2.50"
• Tire Spare Part: Bontrager TLR sealant, 177 ml
• Rim Tape: Bontrager TLR
• Max. Tire Size: Frame: 29 x 2.60" (XS: 27.5 x 2.60"), Fork: Refer to manufacturer

E-System

• Battery: TQ 360 Wh
• Charger: TQ Charger, 4 A

Drivetrain

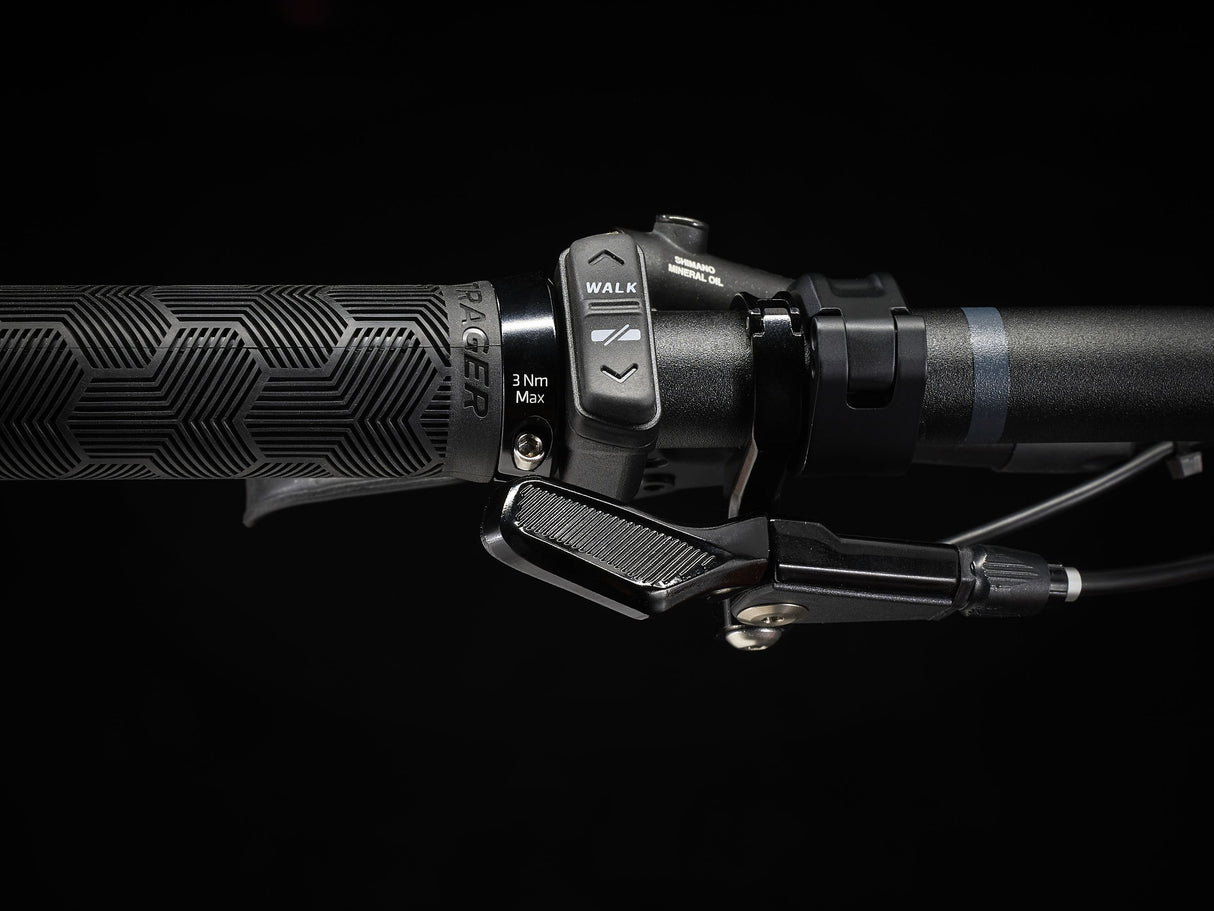

• Shifter: Shimano SLX M7100, 12-speed
• Rear Derailleur: Shimano XT M8100, long cage
• Crank: e*thirteen e*spec Plus, 165 mm crank arm length
• Chainring: E*thirteen E*spec, 32 T aluminum chainring, 55 mm chainline
• Cassette: Shimano SLX M7100, 10-51 teeth, 12-speed
• Chain: Shimano SLX M7100, 12-speed
• Max. Chainring Size: 1x: 34 teeth, min. 30 teeth

Components

• Saddle:
  • Bontrager Arvada, CrMo rail, 138 mm width
  • Bontrager Verse P3, CrMo rails
• Seatpost:
  • Size: S: TranzX JD-YSP39, 100 mm travel, internal cable routing, 34.9 mm
  • Size: M: TranzX JD-YSP39, 150 mm travel, internal cable routing, 34.9 mm
  • Size: L, XL: TranzX JD-YSP39, 170 mm travel, internal cable routing, 34.9 mm
• Handlebar:
  • Bontrager Line, aluminum, 35 mm, 27.5 mm rise, 780 mm width
  • Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 780 mm width
• Grips: Bontrager XR Trail Elite, nylon clamp
• Stem: Bontrager Elite, 35 mm, 0 degrees, 45 mm length
• Brake: Hydraulic 4-piston disc brake by Shimano, M6100 brake lever, M6120 caliper
• Brake disc: Shimano RT66, 6-bolt disc mount, 203 mm
• Brake disc diameter: Max. brake disc diameter - frame: 203 mm, min. 180 mm, fork: see fork manufacturer

Weight

• Weight: M - 19.33 kg / 42.62 lbs (with TLR tire sealant, without tubes)
• Max. weight: This bicycle has a maximum weight limit (bicycle, rider, and cargo) of 136 kg.

* Specification may vary in details in exceptional cases, depending on the manufacturer.
