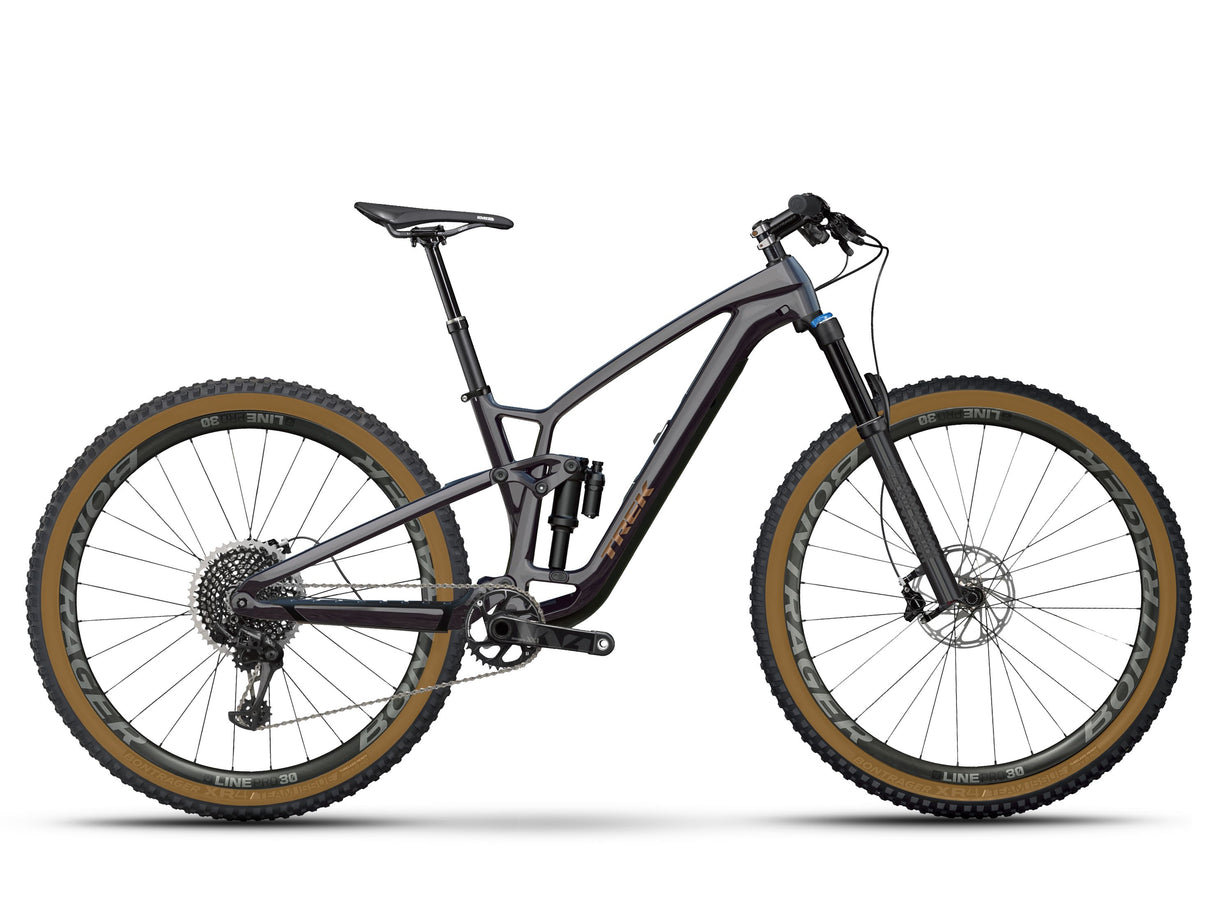

Trek Fuel EXe 9.9 X0 AXS T-Type - Deep Smoke 360Wh

The Fuel EXe 9.9 X0 AXS enables mountain biking on a whole new level. It explores previously untouched terrain between traditional mountain bikes and e-bikes – with a new support technology that lets you enjoy the tranquility of nature while the best components in the industry guarantee unparalleled riding fun. With its lightweight carbon frame, stiff carbon wheels, and compact yet powerful TQ motor, the Fuel EXe 9.9 is designed to be raced over trails. For this bike, only the best is good enough, like the precise and robust SRAM X0 AXS drivetrain and the ultimate RockShox suspension package with AirWiz technology for a perfect setup at any time.

Frame Set

• Frame: OCLV Mountain Carbon, removable battery, internal cable routing, aluminum rocker link, 34.9 mm seat tube diameter, mount for upper chain guide, 55 mm chainline, Mino Link, ABP, Boost148, UDH, 140 mm travel
• Fork: RockShox Lyrik Ultimate, DebonAir+ with ButterCups, Charger 3.1 RC damper, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth axle, 150 mm travel
• Shock: RockShox Super Deluxe Ultimate RC2T, 205 x 60 mm
• Max. compatible fork travel: See maintenance manual

Wheels

• Front Wheel: Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt disc mount, Boost110, 15 mm thru axle, 29"
• Rear Wheel: Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt disc mount, SRAM XD freehub body, Boost148, 12 mm thru axle, 29"
• Rear Quick Release: Bontrager Switch thru axle, removable lever
• Tires: Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewall protection, aramid bead, 120 TPI, 29 x 2.50"
• Tire Spare Part: Bontrager TLR sealant, 177 ml
• Rim Tape: Bontrager TLR
• Max. Tire Size: Frame: 29 x 2.60" (XS: 27.5 x 2.60"), Fork: Refer to manufacturer

E-System

• Battery: TQ 360 Wh or SRAM eTap battery pack (with charger)
• Charger: TQ charger, 4 A
• Computer: TQ LED display with Bluetooth & ANT+ connectivity
• Motor: TQ-HPR50, 50 Nm, 250 W max. rated continuous power, 300 W peak power

Drivetrain

• Rear Derailleur: SRAM X0 Eagle AXS, T-Type
• Crank: SRAM X0 Eagle, 165 mm crank arm length
• Cassette: SRAM Eagle XS-1295, T-Type, 10-52 teeth, 12-speed
• Chain: SRAM X0 Eagle, T-Type, 12-speed
• Max. Chainring Size: 1x: 34 teeth, min. 30 teeth

Components

• Saddle: Verse Short Pro, carbon rails, 145 mm width
• Seatpost:
  • Size: S: RockShox Reverb AXS, 100 mm travel, wireless, 34.9 mm, 340 mm length
  • Size: M: RockShox Reverb AXS, 150 mm travel, wireless, 34.9 mm, 440 mm length
  • Size: L, XL: RockShox Reverb AXS, 170 mm travel, wireless, 34.9 mm, 480 mm length
• Handlebar: Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 780 mm width
• Grips: Bontrager XR Trail Elite, nylon clamp
• Stem: Bontrager Line Pro, 35 mm, Blendr compatible, 0 degrees, 35 mm length
• Brake: Hydraulic 4-piston disc brake SRAM Maven Silver
• Brake disc: SRAM, 6-hole, 200 mm
• Brake disc diameter: Max. brake disc diameter - frame: 203 mm, min. 180 mm, fork: see fork manufacturer

Accessories

• Tool: Bontrager BITS Integrated Multi-Tool

Weight

• Weight: M - 18.93 kg / 41.74 lbs (with TLR tire sealant, without tubes)
• Max. weight: This bicycle has a maximum weight limit (bicycle, rider, and cargo) of 136 kg.

* Specification may vary in details in exceptional cases, depending on the manufacturer.
