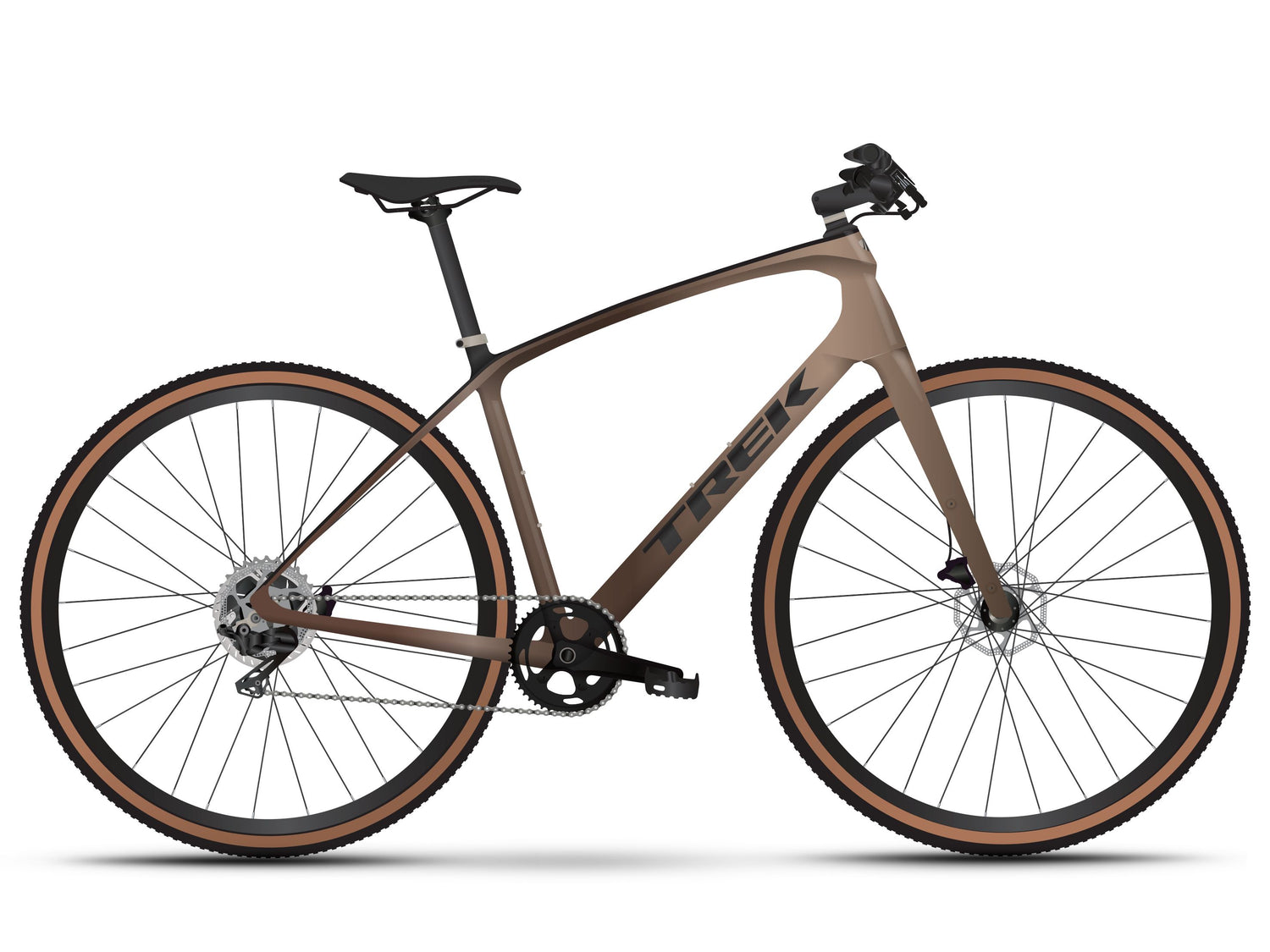

Trek FX Sport 6 - Matte Bronze Age/Deep Smoke

The FX Sport 6 is an ultra-light, fast fitness bike. It features all the performance characteristics of a high-end racing bike but offers more comfort and control thanks to its flat handlebar. The lightweight frame made of 400 Series OCLV Carbon, the wireless electronic SRAM shifting, and the Bontrager carbon wheels make this bike the best choice for passionate fitness riders with ambitious goals.

Frame Set

• Frame: 400 Series OCLV Carbon, internal cable routing, 3S chain guide, DuoTrap S compatible, fender mounts, flat mount disc brake mount, 135 x 5 mm ThruSkew
• Frame with Fork: 400 Series OCLV Carbon, internal cable routing, 3S chain guide, DuoTrap S compatible, fender mounts, flat mount disc brake mount, 135 x 5 mm ThruSkew
• Fork: Carbon, hidden fender mounts, flat mount disc brake mount, 100 x 5 mm ThruSkew axle

Weight

• Weight: M - 9.50 kg / 20.95 lbs
• Max. Weight: This bike has a maximum weight limit (bike, rider, and load) of 136 kg.

Drivetrain

• Rear Derailleur: SRAM Apex XPLR eTap AXS, max. 44T on largest cog
• Crank:
  • Size: XS, S: SRAM Apex 1, 40T, DUB Wide, 170 mm crank arm length
  • Size: M, L, XL: SRAM Apex 1, 40T, DUB Wide, 175 mm crank arm length
• Bottom Bracket: SRAM DUB, 86.5 mm, Pressfit
• Cassette: SRAM XPLR PG-1231, 11-44T, 12-speed
• Chain: SRAM Apex, 12-speed
• Pedal: VPE-993T
• Max. Chainring Size: 1x: 44 teeth

Wheels

• Front Wheel: Bontrager Aeolus Elite 35, OCLV Carbon, Tubeless Ready, 100 x 5 mm quick-release axle
• Rear Wheel: Bontrager Aeolus Elite 35, OCLV Carbon, Tubeless Ready, Shimano 11-speed freehub, 135x5mm skewer
• Front Hub: Bontrager Affinity, Tubeless Ready, centerlock, 100x5mm axle
• Front Quick Release: 135 x 5 mm bolt-on axle
• Rear Hub: Bontrager Affinity Comp, Shimano 11/12 speed freehub, 142x5mm
• Rear Quick Release: 169 x 5 mm bolt-on axle
• Tires: Bontrager Girona Pro, Tubeless-Ready, GR puncture protection, Aramid bead core, 60 TPI, 700 x 42 mm
• Max. Tire Size: 42mm without fenders, 40mm with fenders

Components

• Saddle: Bontrager Montrose Comp, steel rails, 138 mm width
• Seatpost: Bontrager Comp, 6061 aluminum, 27.2 mm, 8 mm offset, 330 mm length
• Handlebar:
  • Size: XS, S, M: Bontrager Satellite Plus IsoZone, aluminum, 31.8 mm, 15 mm rise, 600 mm length
  • Size: L, XL: Bontrager Satellite Plus IsoZone, aluminum, 31.8 mm, 15 mm rise, 660 mm length
• Grips: Bontrager Satellite Plus IsoZone, lock-on, ergonomic
• Stem:
  • Size: XS: Bontrager Elite, 31.8 mm clamp diameter, Blendr compatible, 7 degrees, 90 mm length
  • Size: S, M: Bontrager Elite, 31.8 mm clamp diameter, Blendr compatible, 7 degrees, 100 mm length
  • Size: L, XL: Bontrager Elite, 31.8 mm clamp diameter, Blendr compatible, 7 degrees, 110 mm length
• Brake:
  • Hydraulic disc brake by Shimano, MT201 brake lever, UR300 caliper
  • Shimano hydraulic disc, MT201 lever, UR300 caliper
• Brake disc: Shimano RT10, Center Lock disc mount, 160 mm
• Brake disc diameter: Max. brake disc diameter: 160 mm front & rear

* Specification may vary in details in exceptional cases, depending on the manufacturer.
