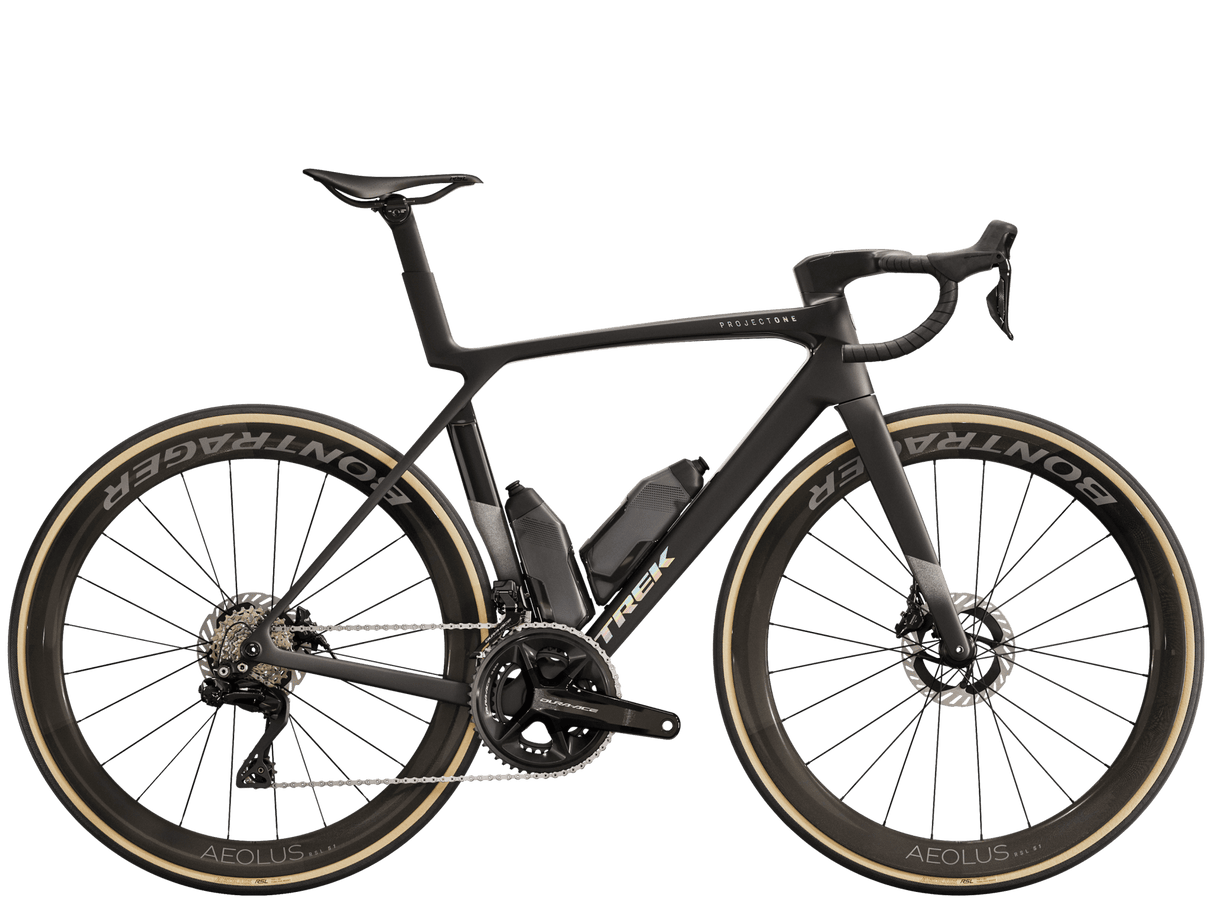

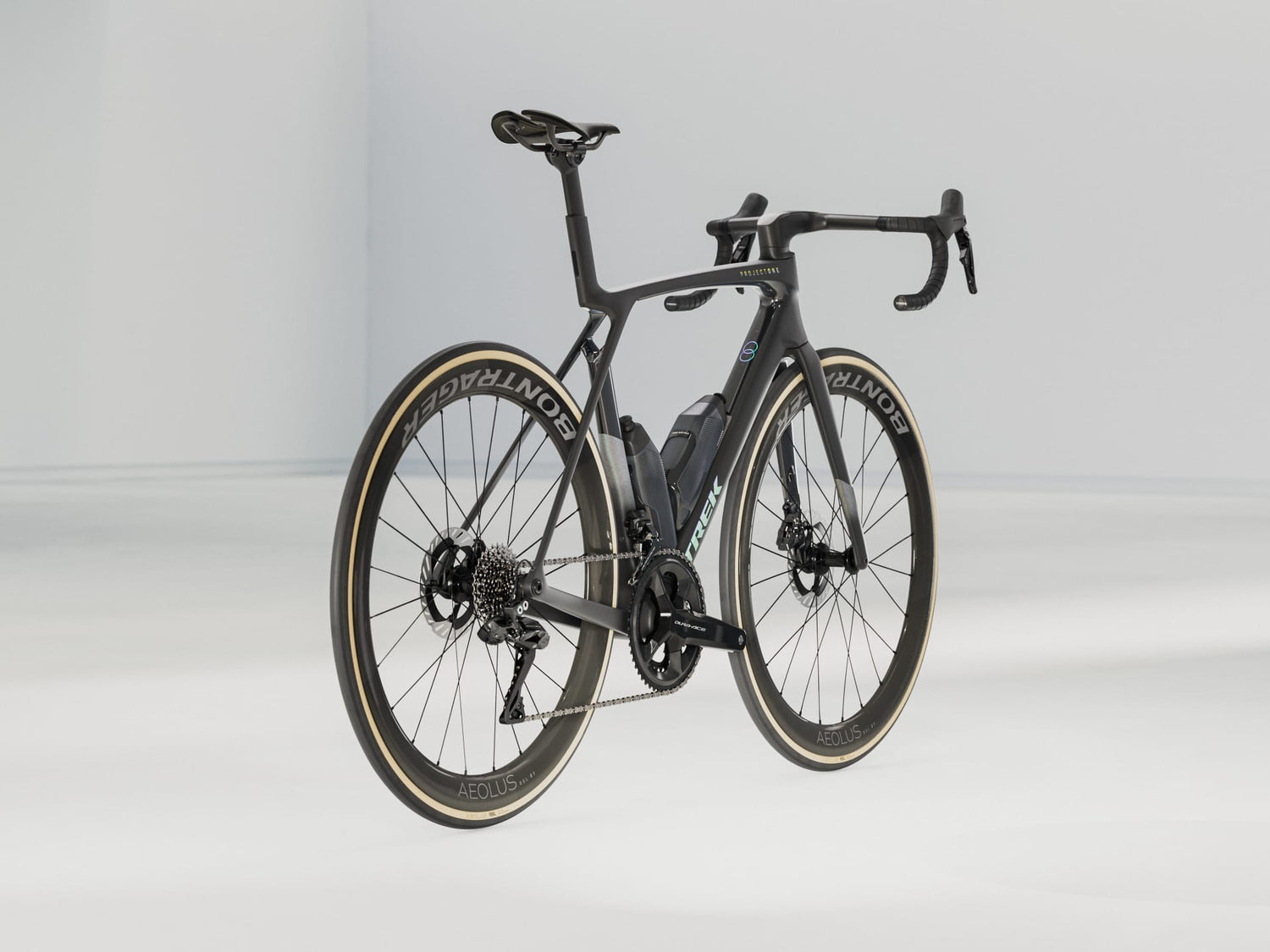

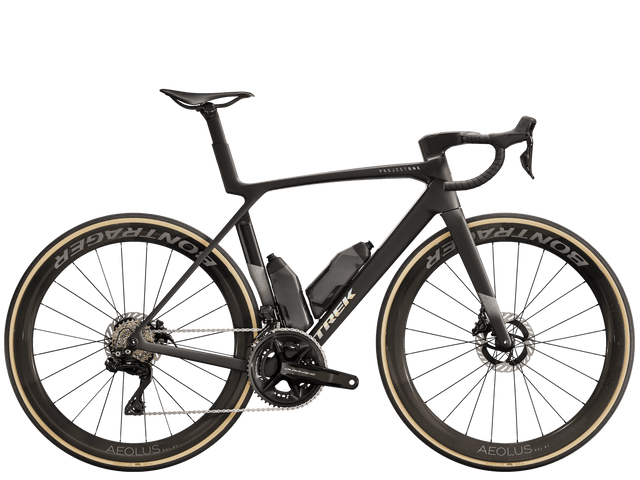

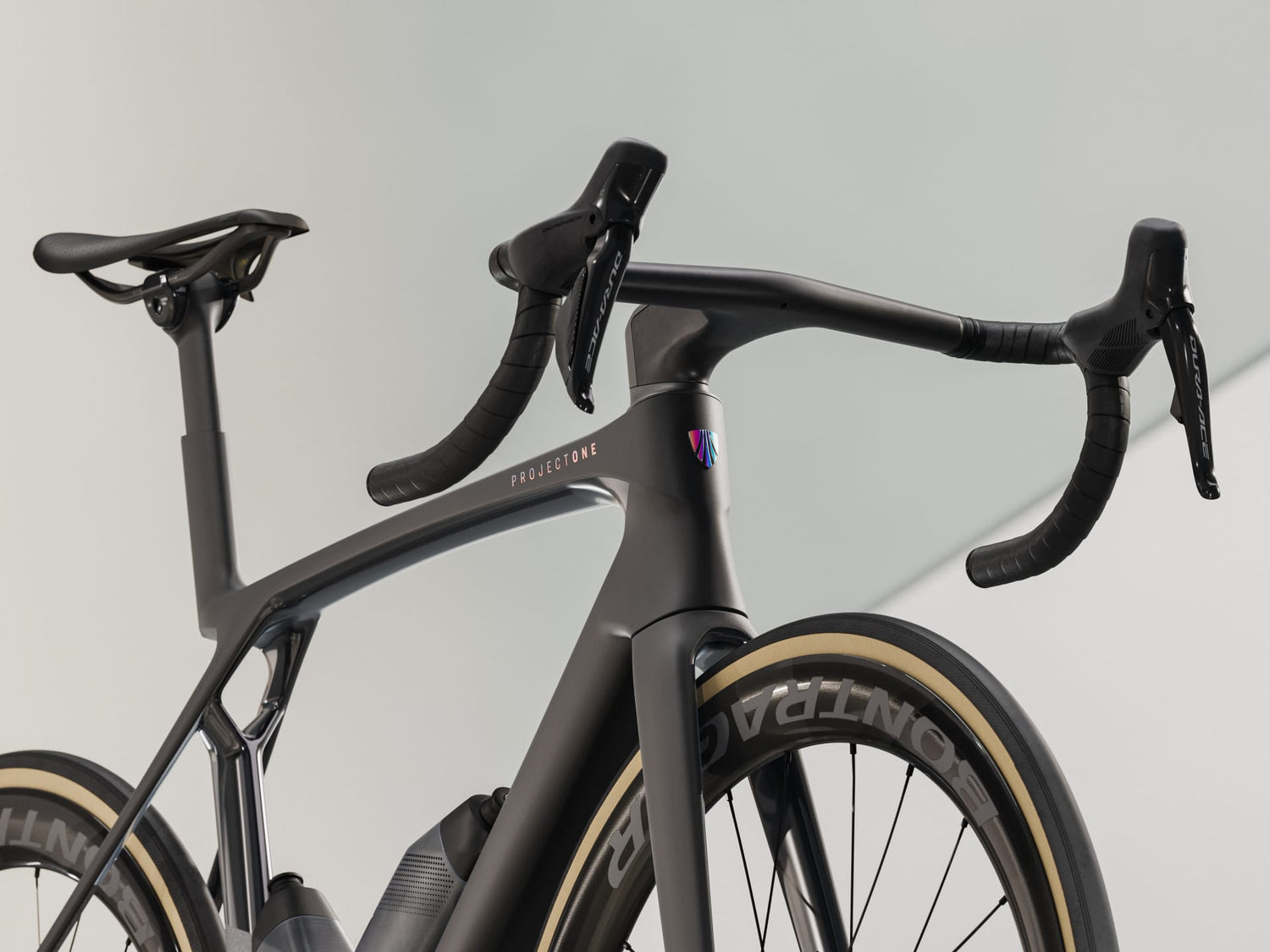

Trek Madone SLR 9 Gen 8 - Matte/Gloss Carbon Smoke

The equally lightweight and aerodynamic Madone SLR 9 Gen 8 dominates the road with inimitable speed. It is made from our highest quality 900 Series OCLV Carbon, which is not only incredibly light but also allows for unparalleled speed downhill and on the flat thanks to its aerodynamic profile. The lightweight IsoFlow frame technology ensures that the performance and speed of the Madone do not come at the expense of comfort. This superbike is geared for victory: Shimano's highest quality Dura-Ace Di2 drivetrain, lightweight carbon wheels, a one-piece Trek Aero RSL handlebar/stem unit made of carbon, and aerodynamically optimized RSL Aero water bottles and bottle cages.

• The revolutionary Full System Foil tube profiles ensure an extremely fast Look and give the entire bike an unprecedented aerodynamic efficiency.

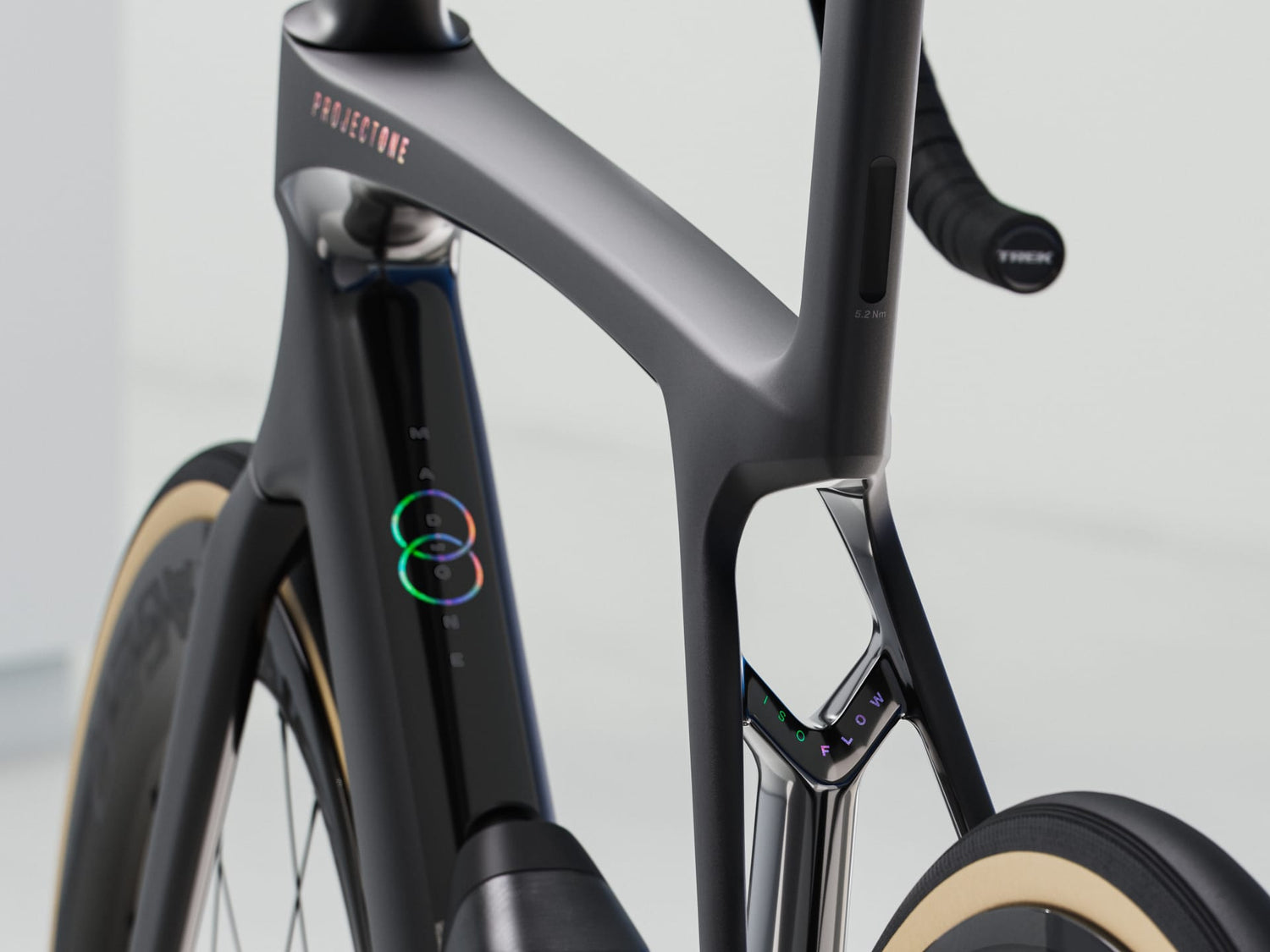

• The incredibly lightweight frame made from our highest quality 900 Series OCLV Carbon is stiff where the greatest forces act and compliant where additional comfort is desired.
• For efficient climbs and confident descents, the carbon wheels reduce weight and increase performance.

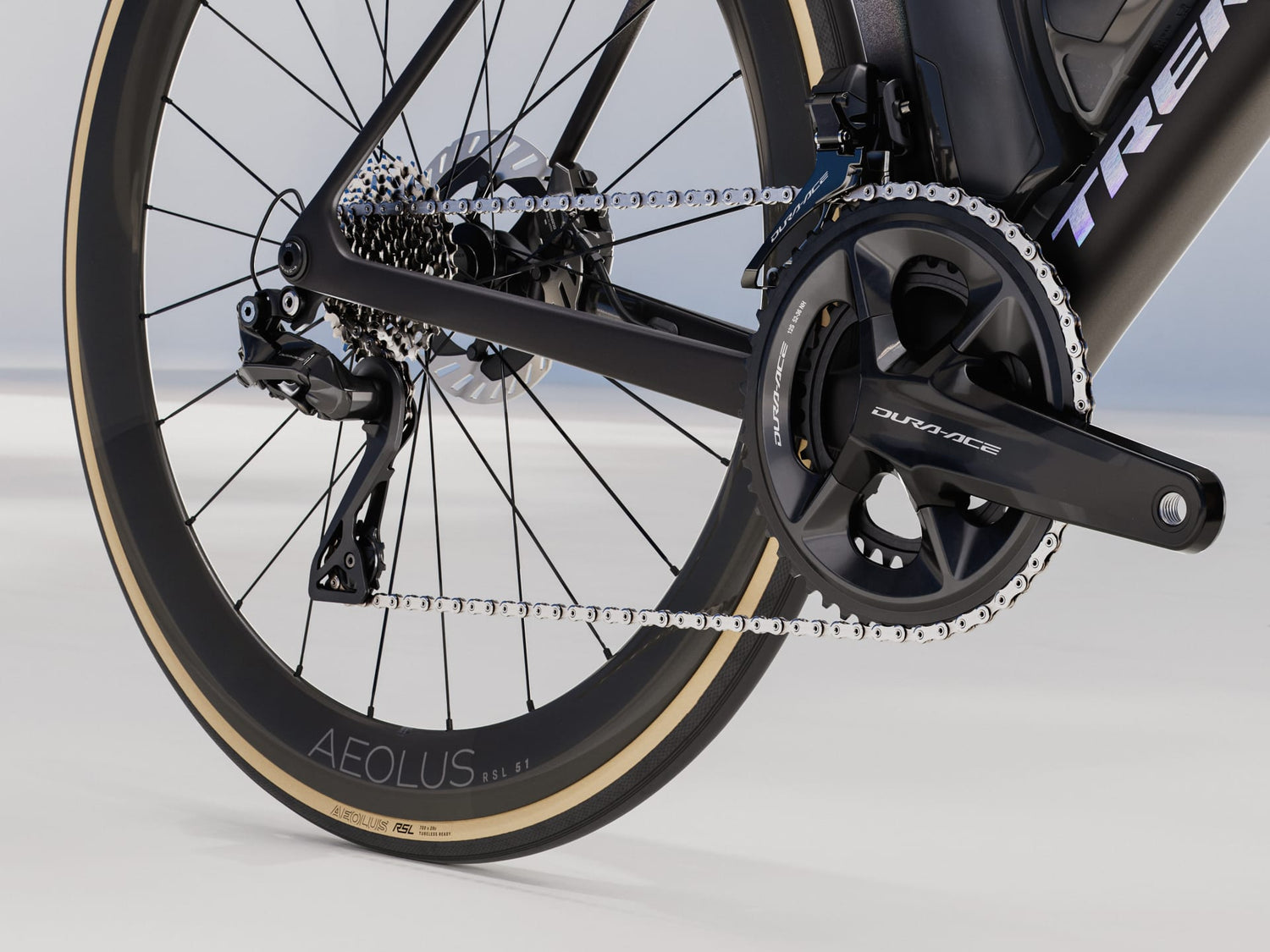

• You benefit from the lightning-fast shifting of Shimano's lightest drivetrain system: Dura-Ace Di2.
• The RSL Aero water bottles and bottle cages make the entire system even more aerodynamic and faster.
• With the Blendr system on the handlebar/stem unit, a daytime running light can be easily attached and removed.



Equipment:
Frame:  900 Series OCLV Carbon, Full System Foil tube profiles, IsoFlow seat tube, RCS Headset System, only electronic shifting possible, removable Aero chain guide, T47 bottom bracket, Flat Mount disc brake mount, UDH, 142 x 12 mm thru axle
Fork: Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle
Front Wheel: Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51 mm profile height, 100 x 12 mm thru axle
Rear Wheel: Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51 mm profile height, 11/12-speed freehub from Shimano, 142 x 12 mm thru axle
Front/Rear Quick Release:  Bontrager Switch chamfered thru axle, removable lever
Tires: Bontrager Aeolus RSL RD, Tubeless-Ready, cotton carcass, aramid bead core, 170 TPI, 700 x 28 mm
Tire Spare Part: Bontrager TLR Sealant, 177 ml
Max. Tire Size: 32 mm (as measured, exact details can be found in the manual)
Battery: Shimano BT-DN300
Shift Lever: Shimano Dura-Ace R9270 Di2, 12-speed
Front Derailleur: Shimano Dura-Ace R9250 Di2, braze-on, Down Swing
Rear Derailleur: Shimano Dura-Ace R9250 Di2, max. 34 teeth on largest sprocket
Crank: Shimano Dura-Ace R9200, 52/36, 165 mm crank arm length (XS, S)
Crank: Shimano Dura-Ace R9200, 52/36, 170 mm crank arm length (M)
Crank: Shimano Dura-Ace R9200, 52/36, 172.5 mm crank arm length (ML, L)
Crank: Shimano Dura-Ace R9200, 52/36, 175 mm crank arm length (XL)
Bottom Bracket:  Practice, T47, with thread, internally mounted
Cassette: Shimano Dura-Ace R9200, 11-30, 12-speed
Chain: Shimano Dura-Ace/XTR M9100, 12-speed
Max. Chainring size: 1x: 54 T., 2x: 56/43
Saddle: Aeolus RSL, carbon rails, 155 mm width (XS, S)
Saddle: Aeolus RSL, carbon rails, 145 mm width (M, ML, L, XL)
Seatpost: Madone, aero seatpost made of carbon, 0 mm offset, short length  (XS, S, M)
Seatpost: Madone, aero seatpost made of carbon, 0 mm offset, long length (ML, L, XL)

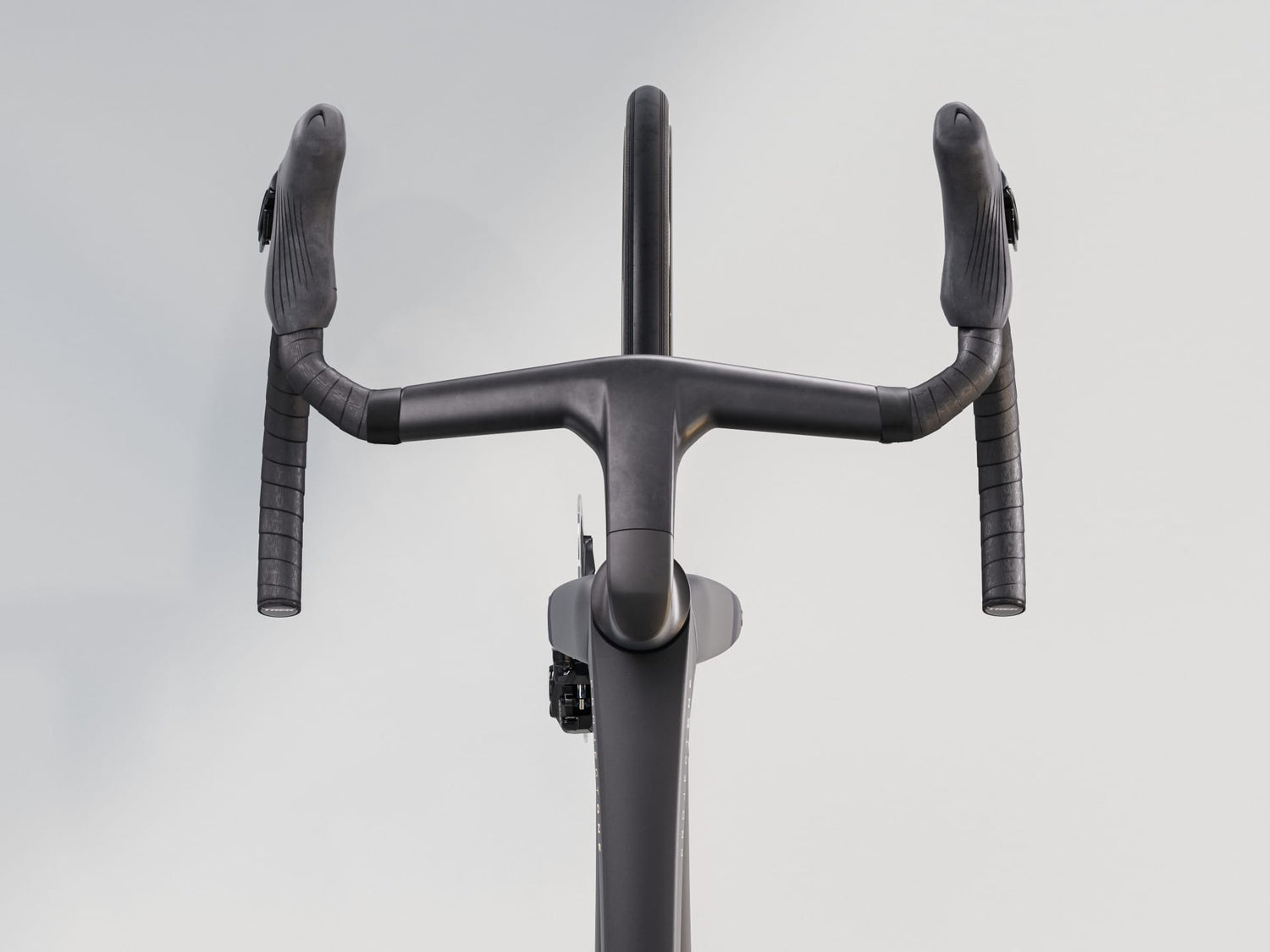

Integrated handlebar-stem unit: Trek Aero RSL Road integrated handlebar/stem unit, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 35 cm upper handlebar width, 38 cm lower handlebar width, 80 mm stem length (XS)
Integrated handlebar-stem unit: Trek Aero RSL Road integrated handlebar/stem unit, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 37 cm upper handlebar width, 40 cm lower handlebar width, 90 mm stem length (S)
Integrated handlebar-stem unit: Trek Aero RSL Road integrated handlebar/stem unit, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 39 cm upper handlebar width, 42 cm lower handlebar width, 90 mm stem length (M)
Integrated handlebar-stem unit:  Trek Aero RSL Road integrated handlebar/stem unit, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 39 cm upper handlebar width, 42 cm lower handlebar width, 100 mm stem length (ML, L)
Integrated handlebar-stem unit: Trek Aero RSL Road integrated handlebar/stem unit, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 41 cm upper handlebar width, 44 cm lower handlebar width, 110 mm stem length (XL)
Brake disc diameter: Max. brake disc diameter: 180 mm front, 160 mm rear
Weight: M/L – 7.08 kg (with TLR tire sealant, without tubes)
Max. weight: This bicycle has a maximum weight limit (bicycle, rider, and cargo) of 125 kg.

* Specification may vary in details in exceptional cases due to manufacturer.
