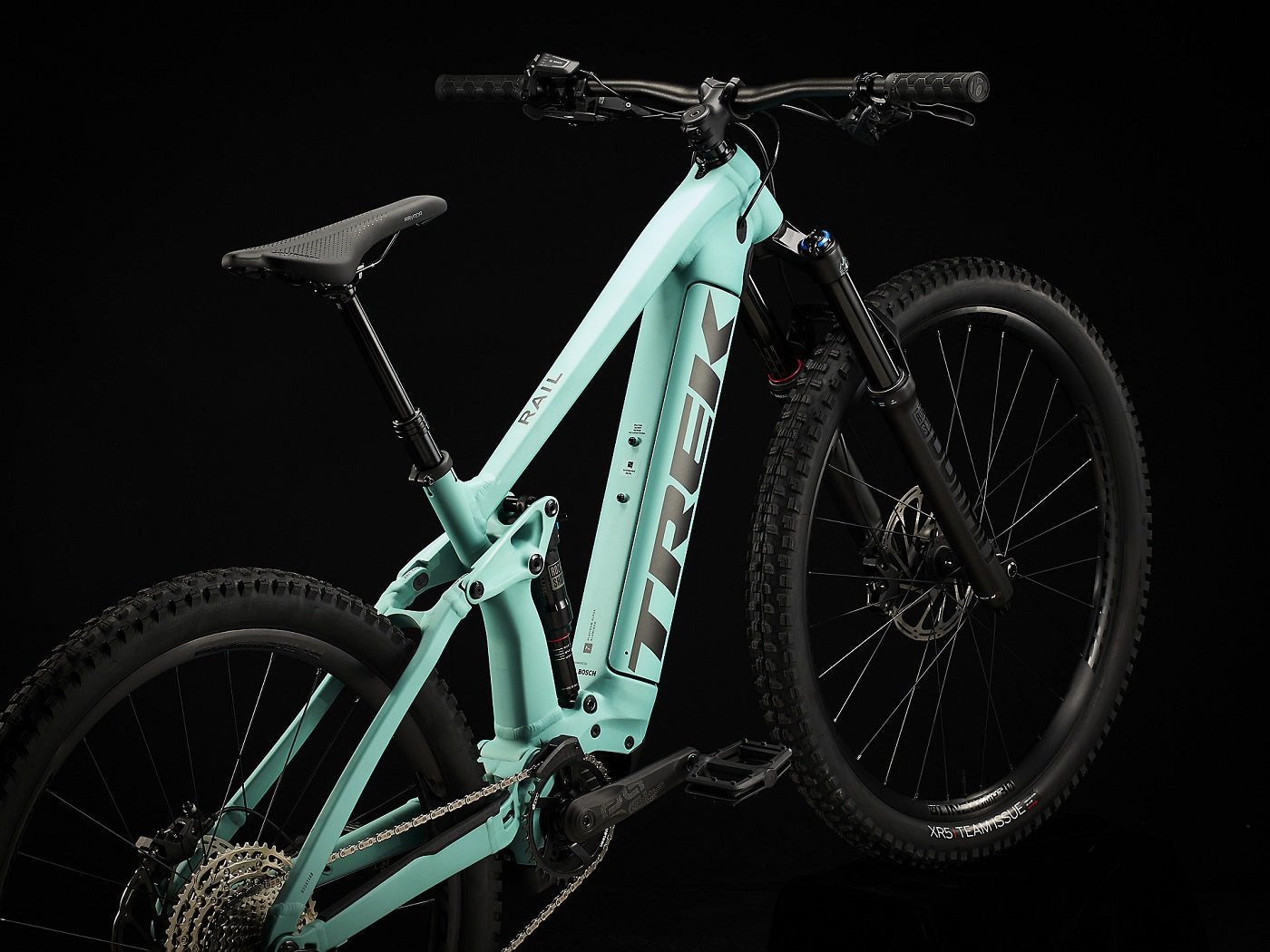

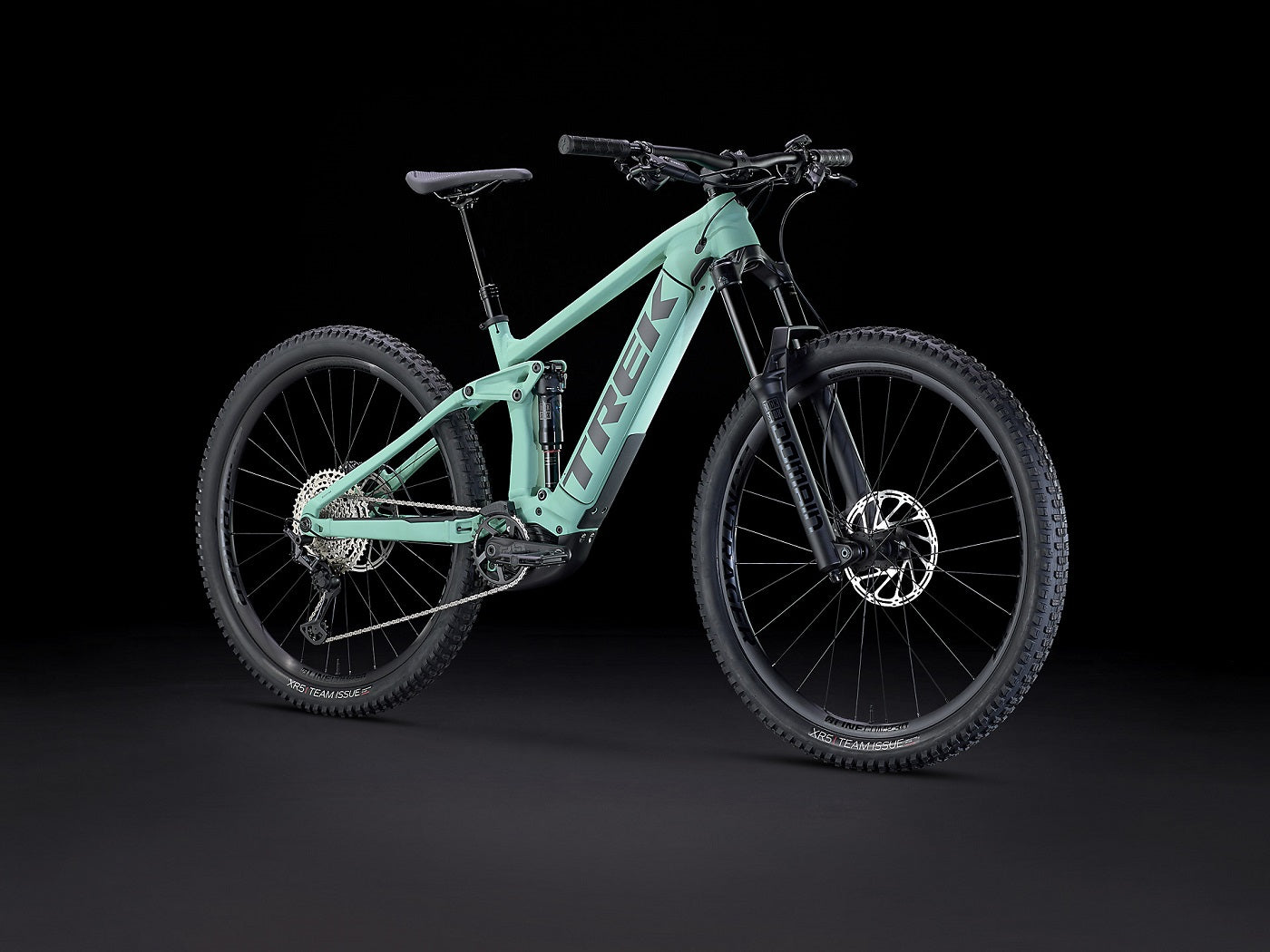

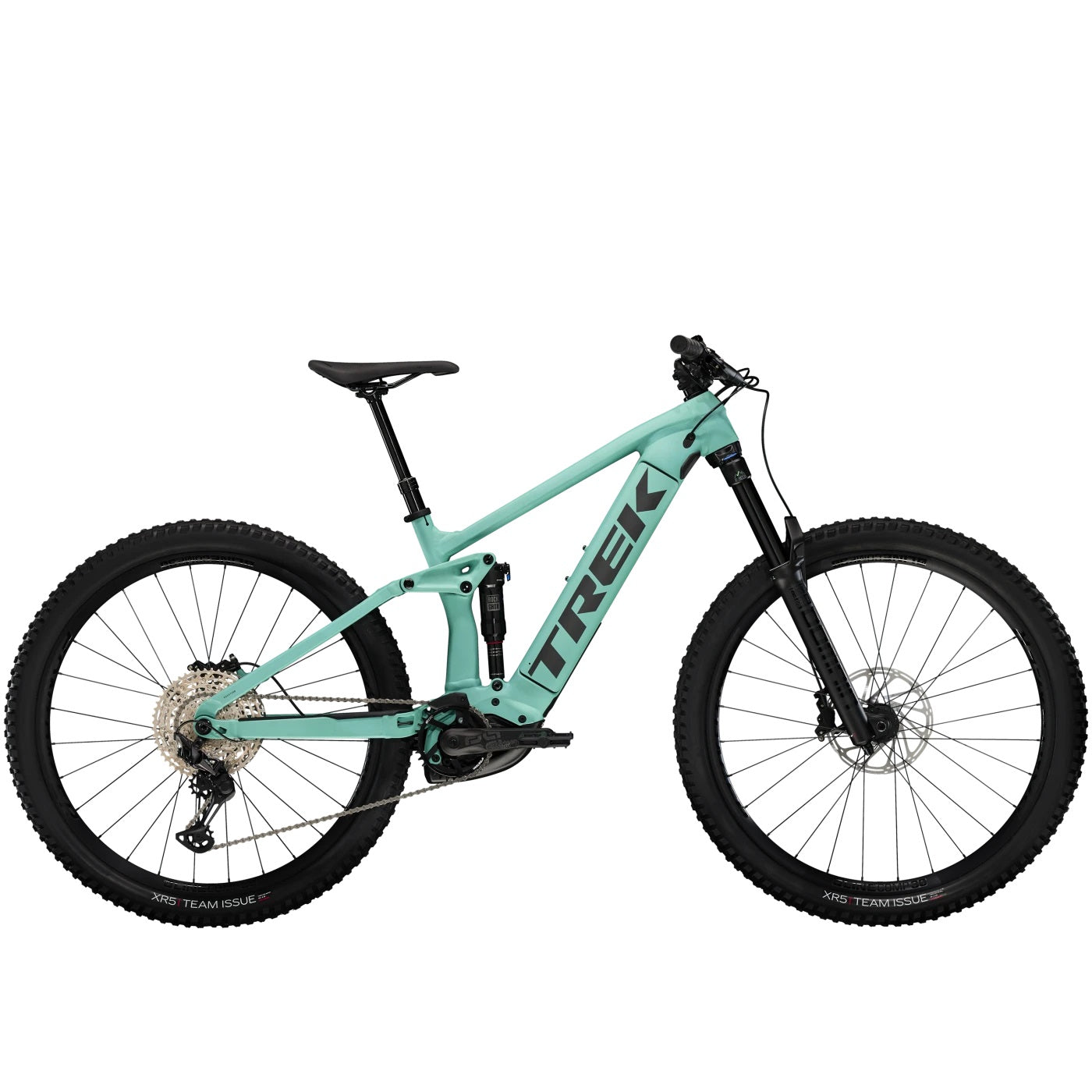

Trek Rail 7 Deore/XT Gen 3 Matte Blue Sage

The Rail 7 is an electric long-travel mountain bike for rough terrain. It comes with the same high-end features as our non-electric trail bikes, benefits from upgrades to the suspension fork, drivetrain, and battery, and is propelled forward by Bosch's powerful drive system.

Equipment:

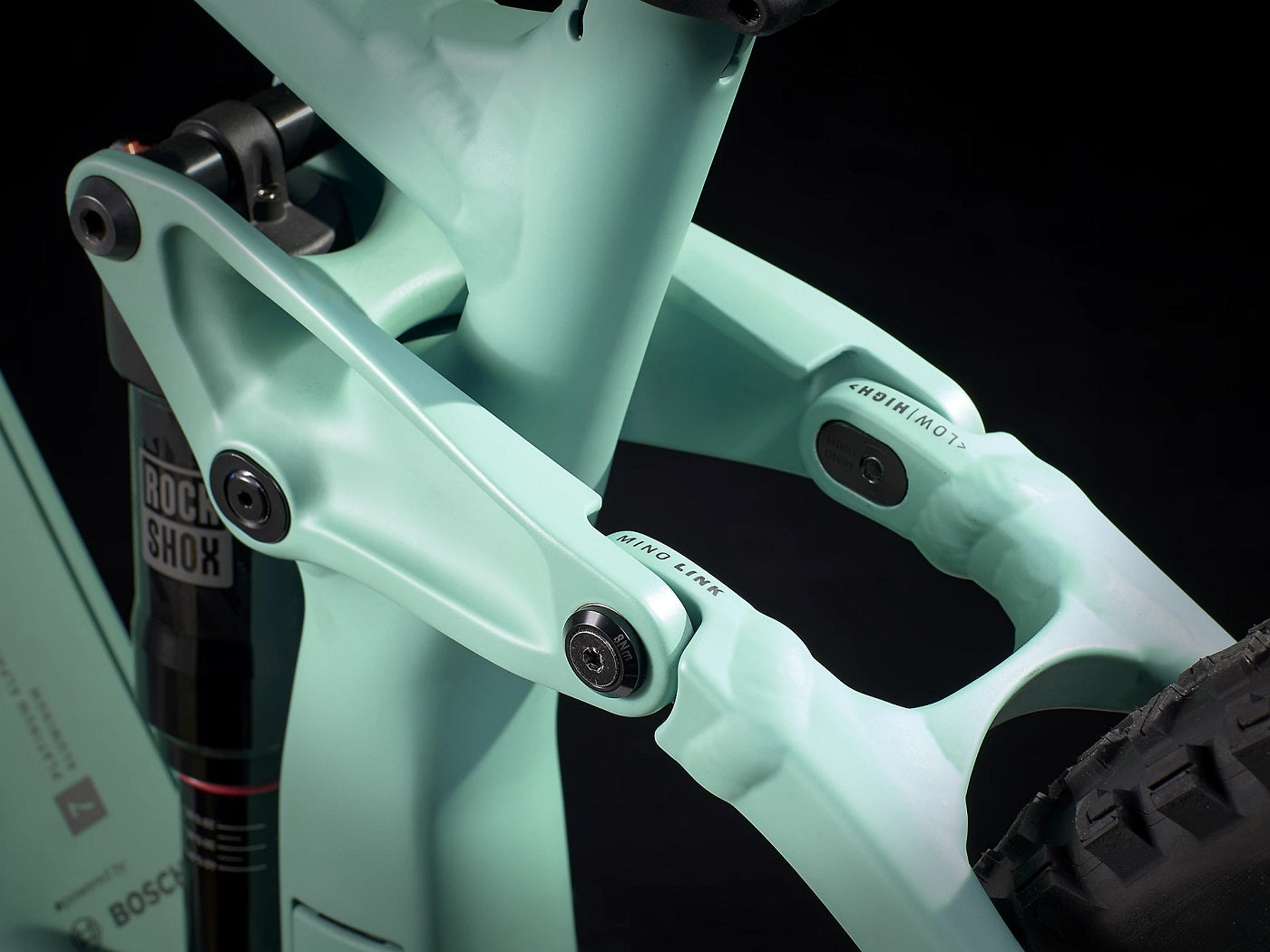

Frame: Alpha Platinum Aluminum, removable integrated battery (RIB), tapered head tube, internal Control Freak cable routing, magnesium rocker link, Motor Armor, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel

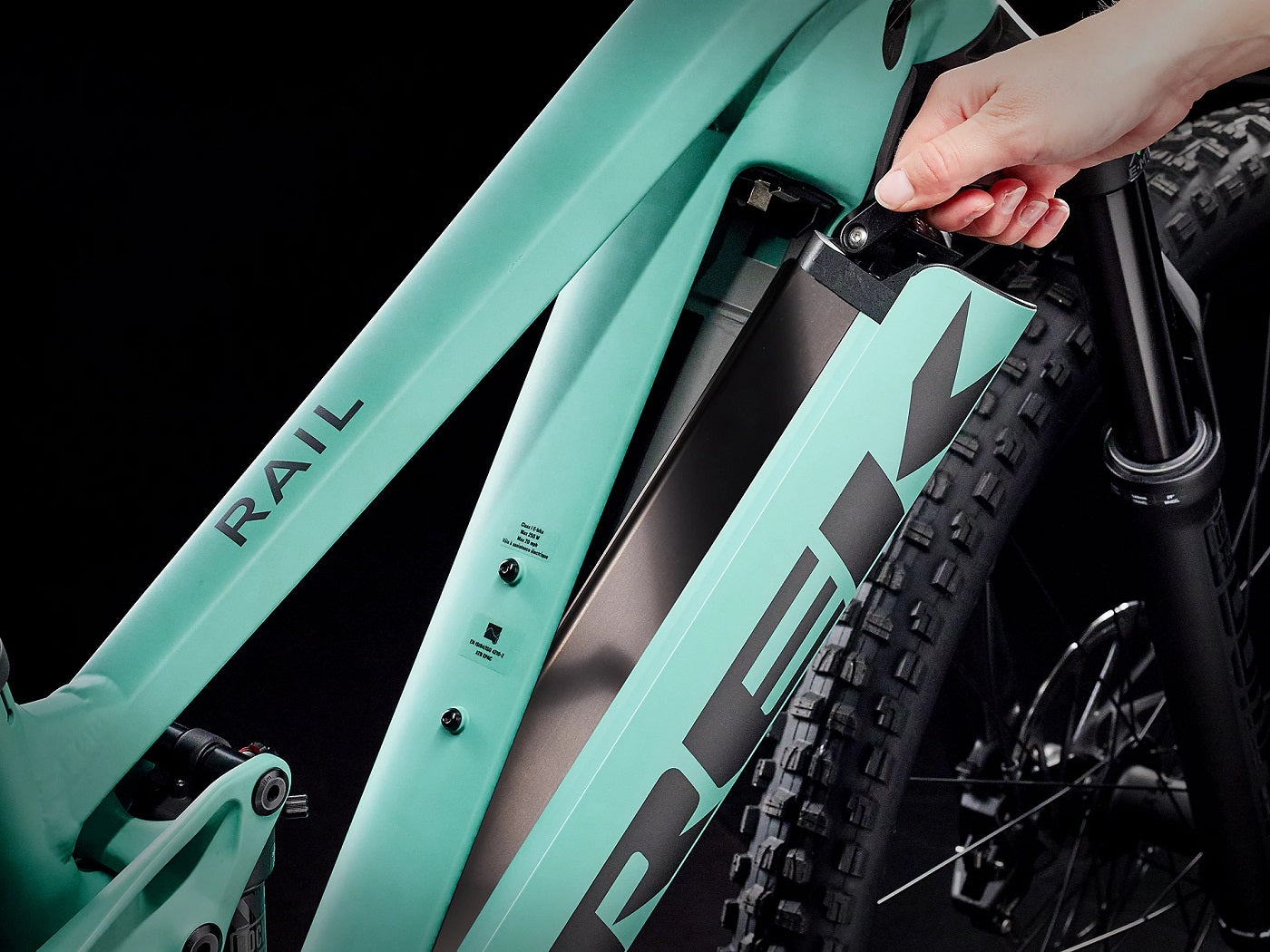

Battery: Bosch PowerTube 625 Wh, Smart System
Charger: Bosch Standard charger 4 A, 230 V, Smart System

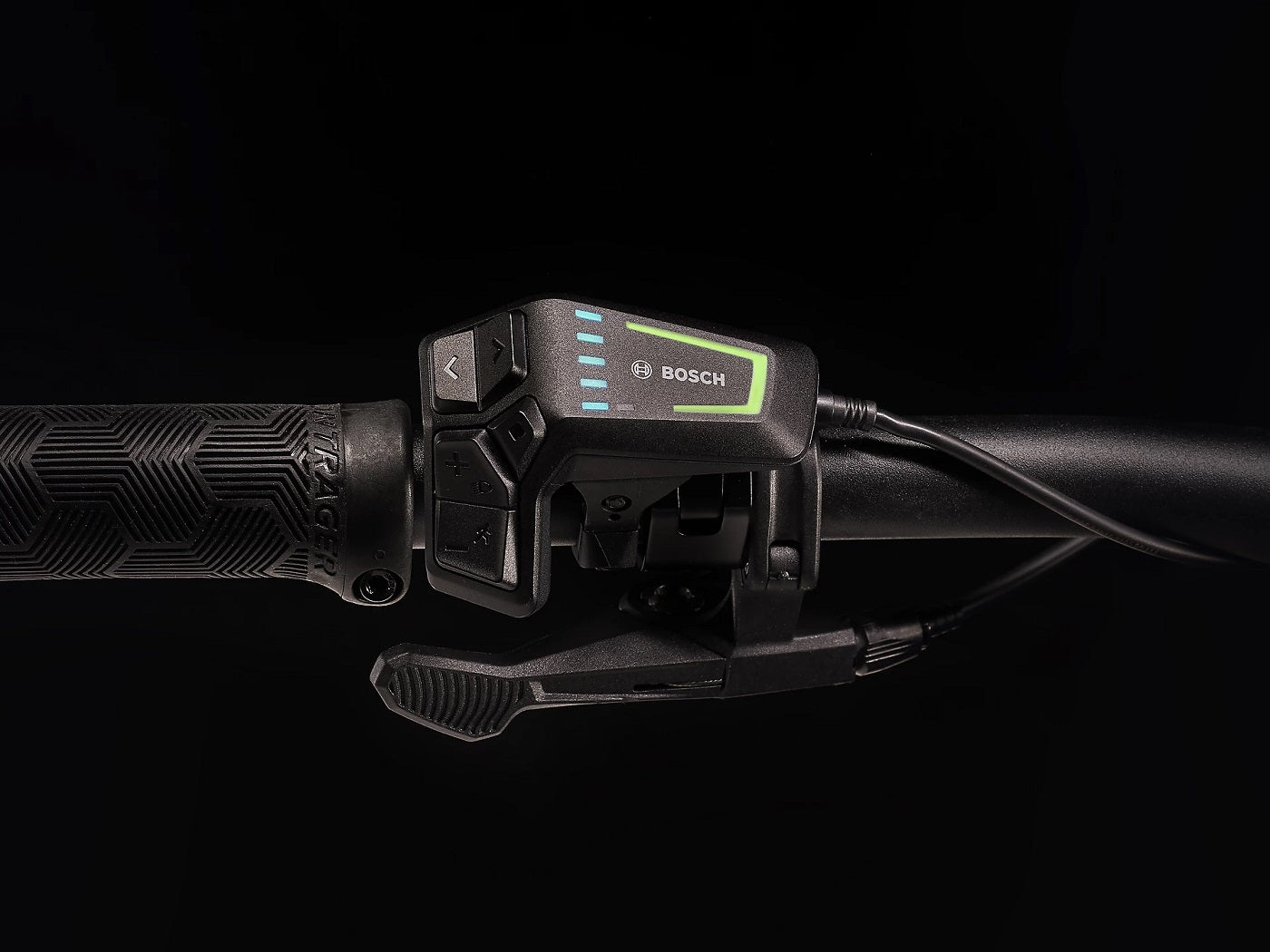

Controller: Bosch LED Remote, Smart System

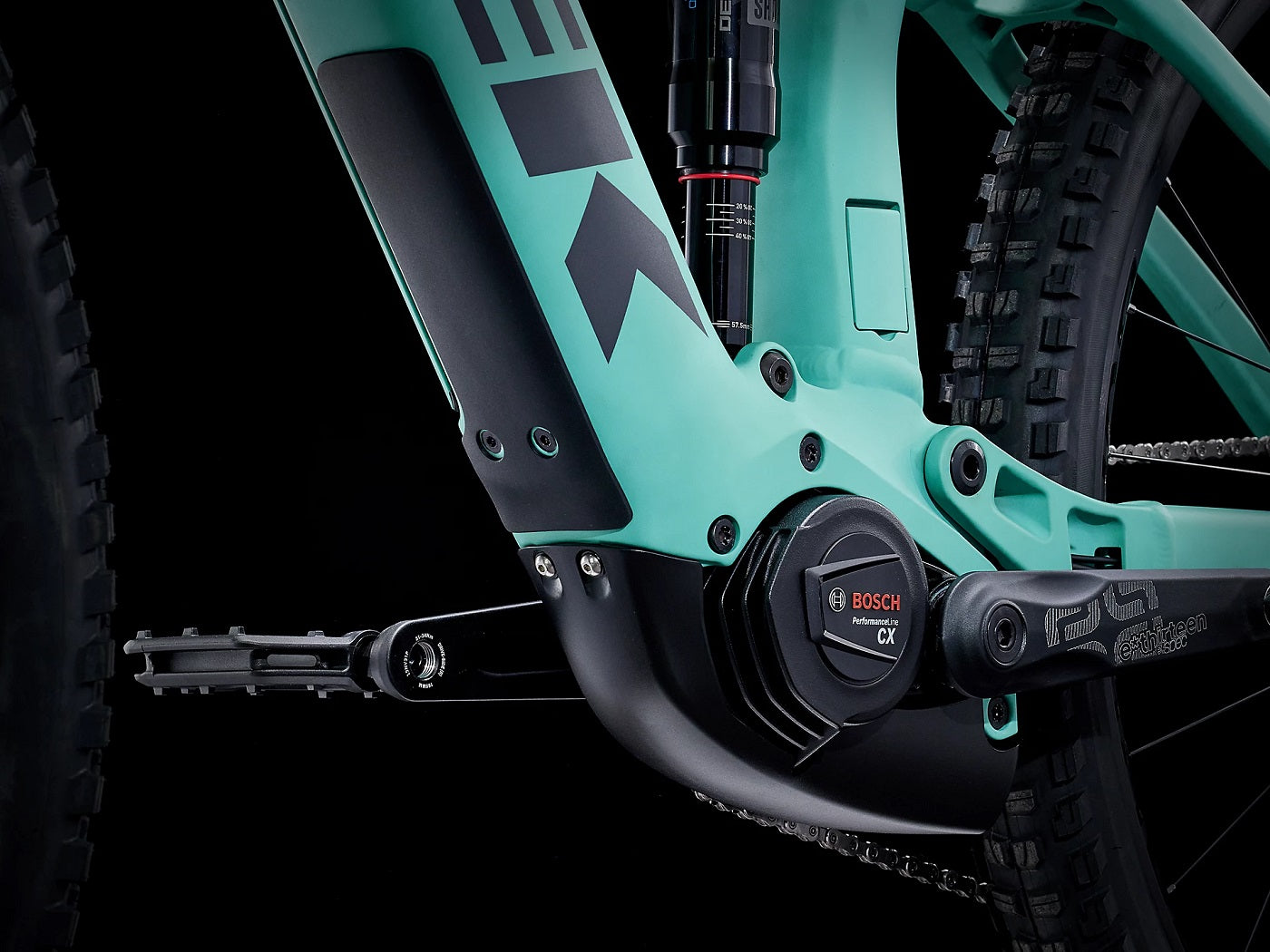

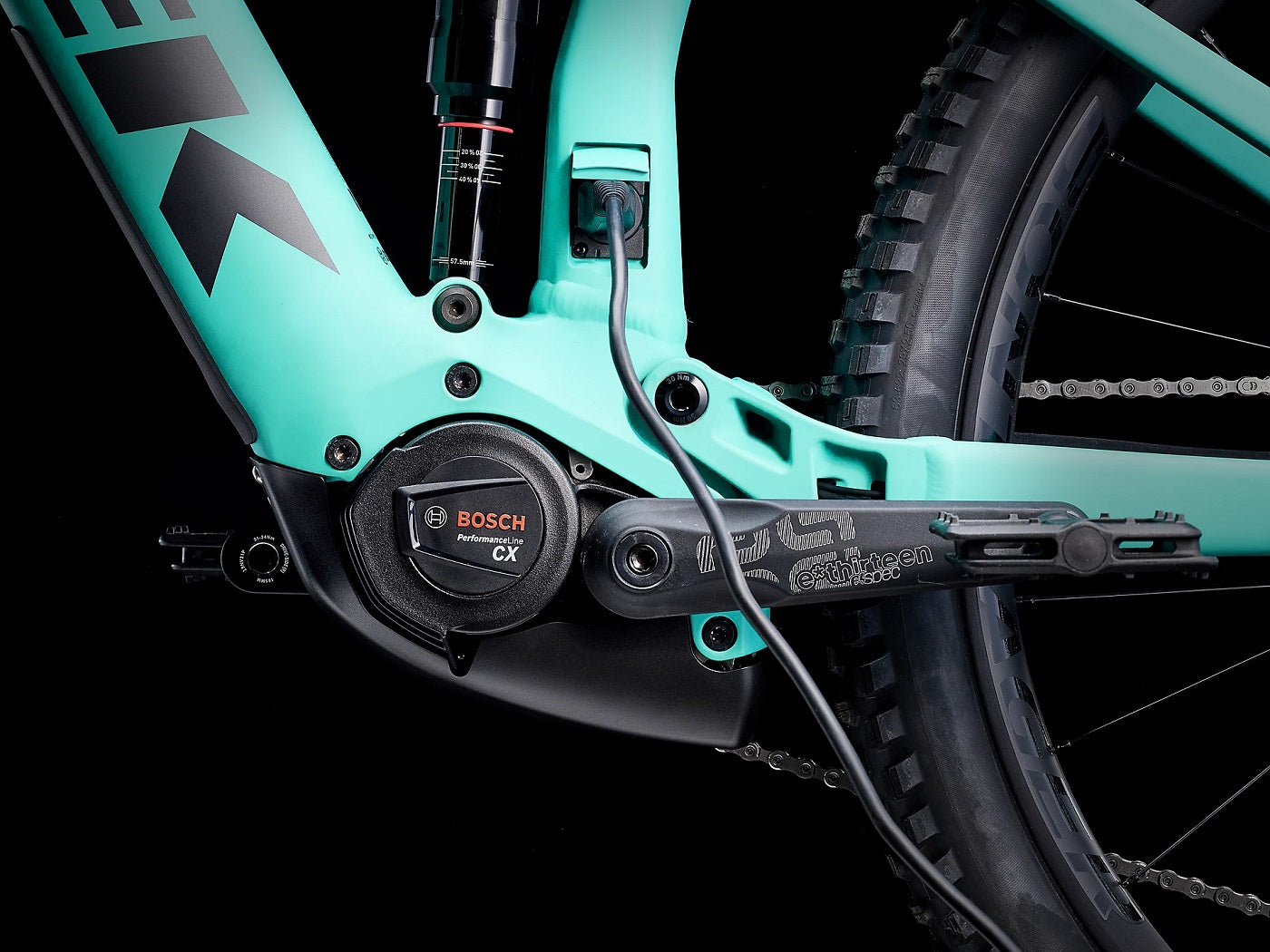

Motor: Bosch Performance Line CX, Smart System, magnesium motor housing, 85 Nm, 32 km/h max. support speed (25 km/h max. support speed in EU and APAC)
Fork: RockShox Domain RC, DebonAir, Motion Control damping, lockout, tapered steerer, 44 mm offset, oversized fork crown for E-MTB, Boost110, 15 mm Maxle Stealth axle, 160 mm travel

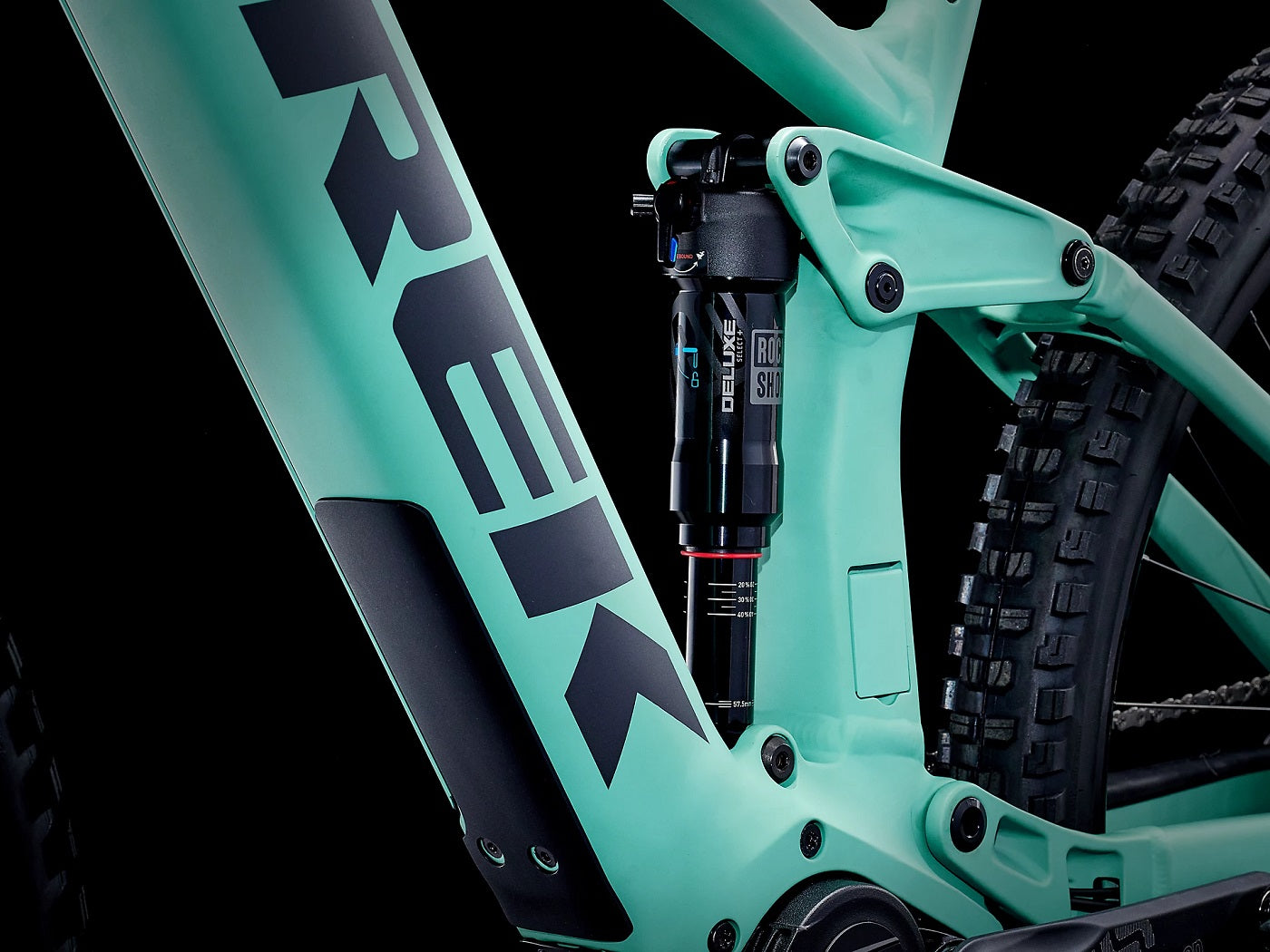

Shock: RockShox Deluxe Select+ RT, 230 x 57.5 mm
Max. compatible fork travel: 170 mm (580 mm axle to crown)
Front hub: Bontrager, aluminum, sealed bearing, aluminum axle, 6-bolt disc mount, Boost110, 15 mm thru axle
Rear hub: Bontrager, aluminum, sealed bearing, 6-bolt disc mount, Rapid Drive 108, Shimano MicroSpline freehub, Boost148, 12 mm thru axle
Rear quick release: Bontrager Switch thru axle, removable lever

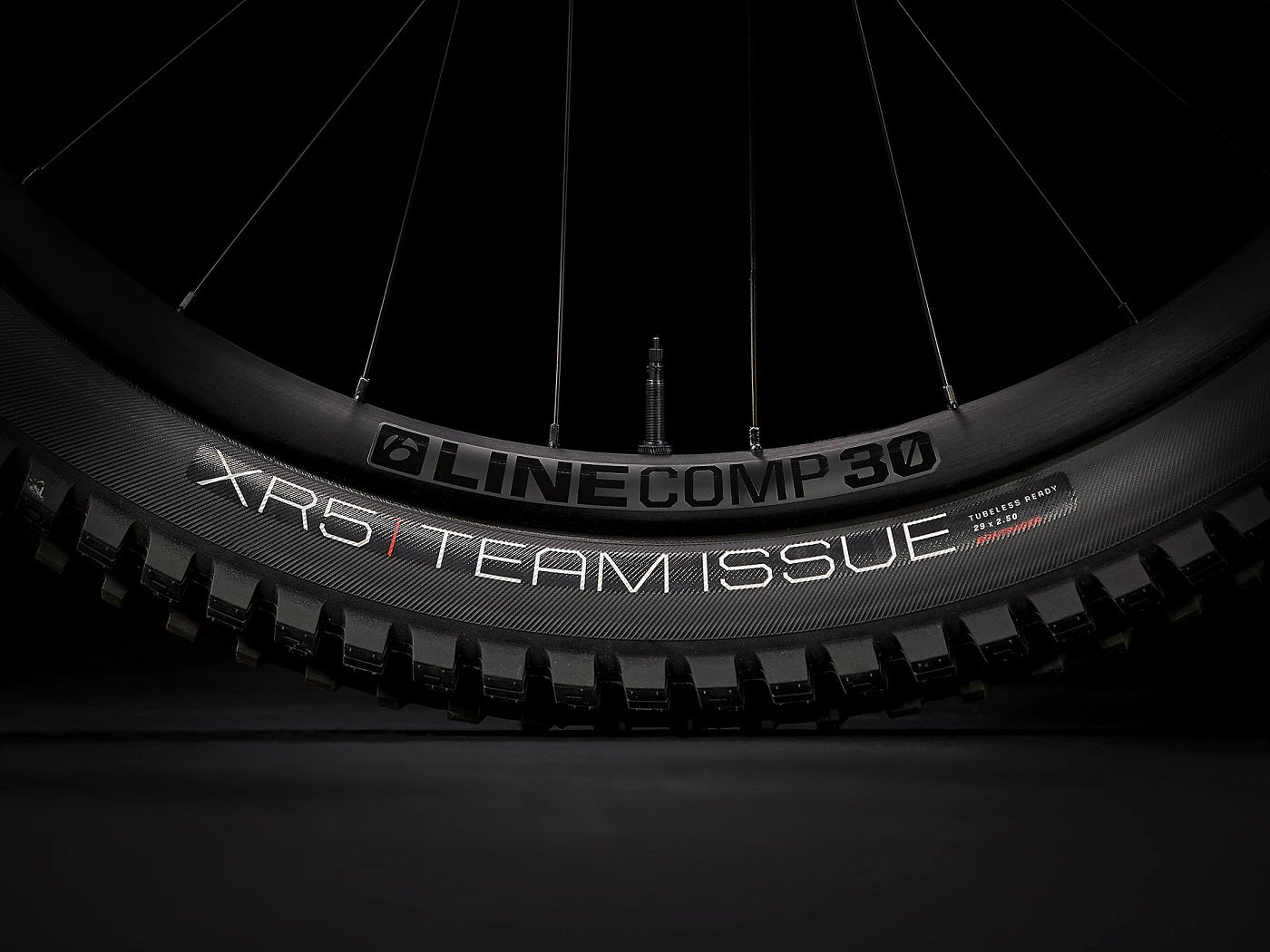

Rim: Bontrager Line Comp 30, Tubeless Ready, 28-hole, Presta valve
Tire: Bontrager XR5 Team Issue, Tubeless Ready, aramid bead, 120 TPI, 29 x 2.50
Rim tape: Bontrager TLR
Max. tire size frame: 29 x 2.60
Shifter: Shimano SLX M7100, 12-speed

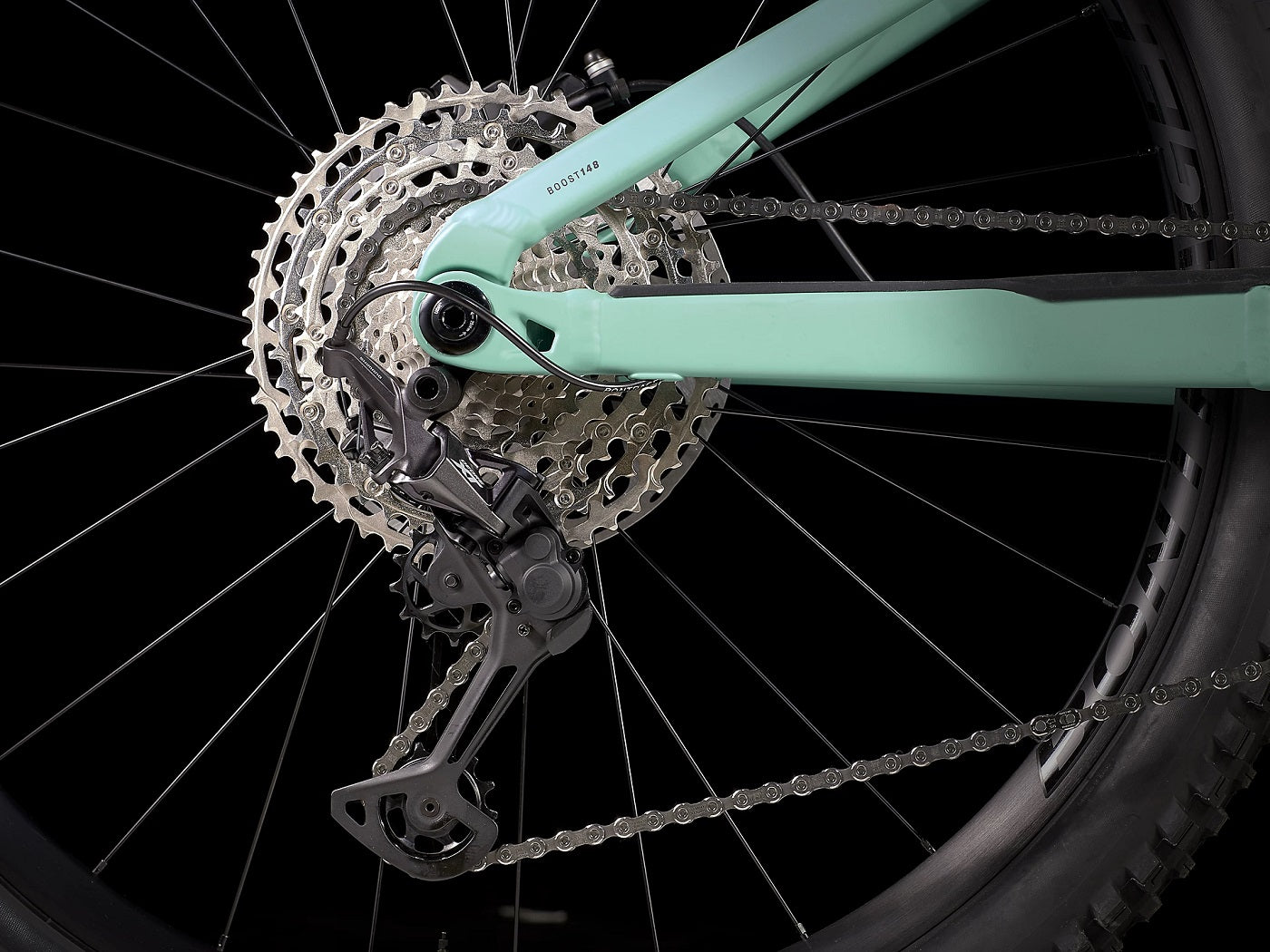

Rear derailleur: Shimano XT M8100, long cage
Crank: E*thirteen E*spec Plus, 34 T.
Cassette: Shimano Deore M6100, 10-51 T., 12-speed
Chain: Shimano Deore M6100
Max. chainring size: 34 teeth
Saddle: Bontrager Arvada, steel rails, 138 mm width
Seatpost: TranzX JD-YSP18, 100 mm travel, internal cable routing, 31.6 mm, 361 mm length (S)
Seatpost: TranzX JD-YSP18, 150 mm travel, internal cable routing, 31.6 mm, 470 mm length (M/L/XL)
Handlebar: Bontrager Rhythm Comp, aluminum, 31.8 mm, 15 mm rise, 780 mm width
Grips: Bontrager XR Trail Comp, nylon clamp

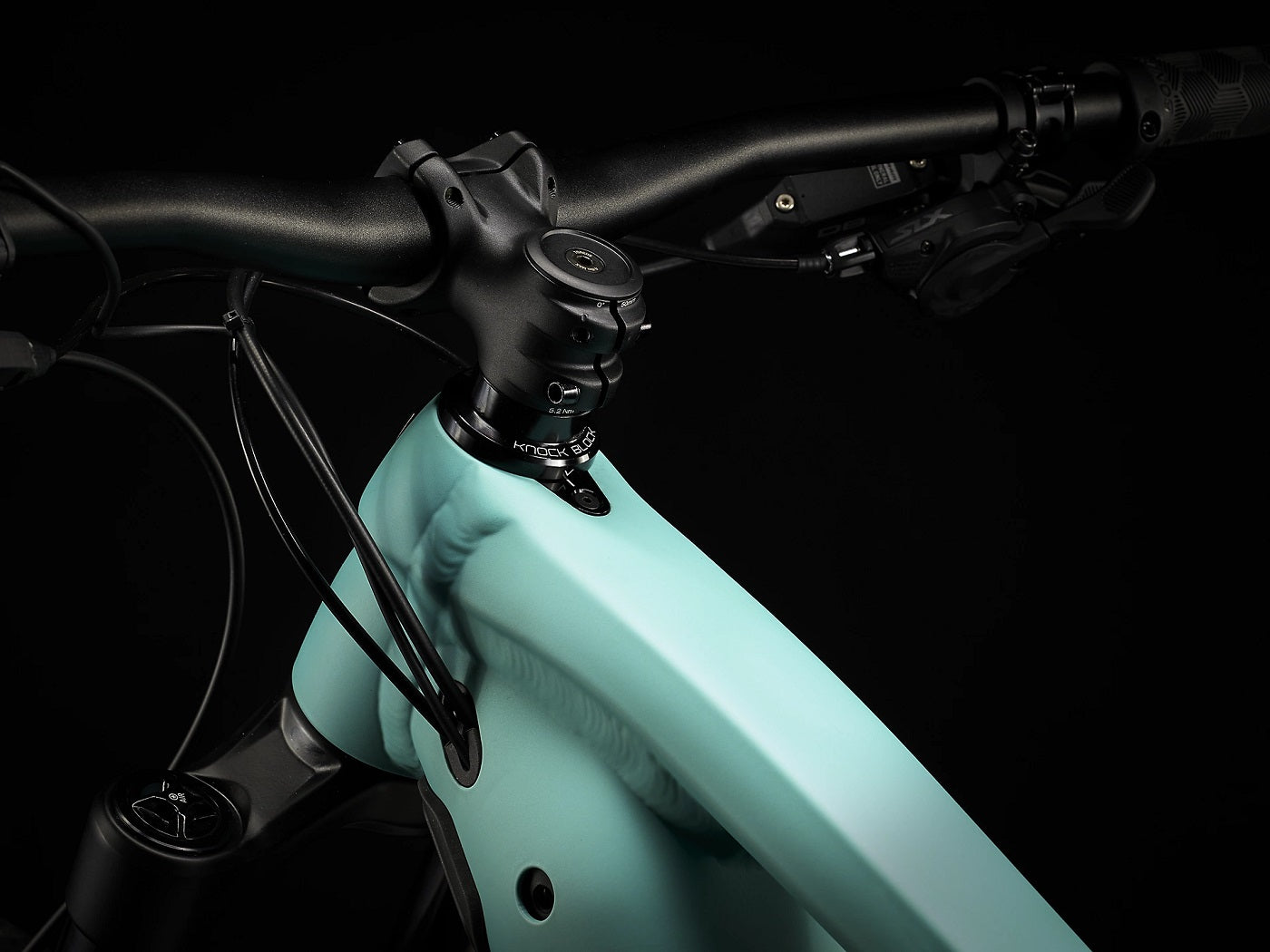

Stem: Bontrager Rhythm Comp, Knock Block, 31.8 mm, 0 degrees, 50 mm length
Brake rotor: SRAM CenterLine, 6-bolt disc mount, rounded edge, 200 mm
Brake set: SRAM Code R, hydraulic 4-piston disc brake
Max. rear brake rotor diameter: 203 mm
Lighting: Supernova Mini 2, 5-21 V LED headlight / LED taillight Supernova E3 Mini-2
Max. weight: This bike has a maximum weight limit (bike, rider, and cargo) of 136 kg.

* Specification may vary in details in exceptional cases, depending on the manufacturer.
