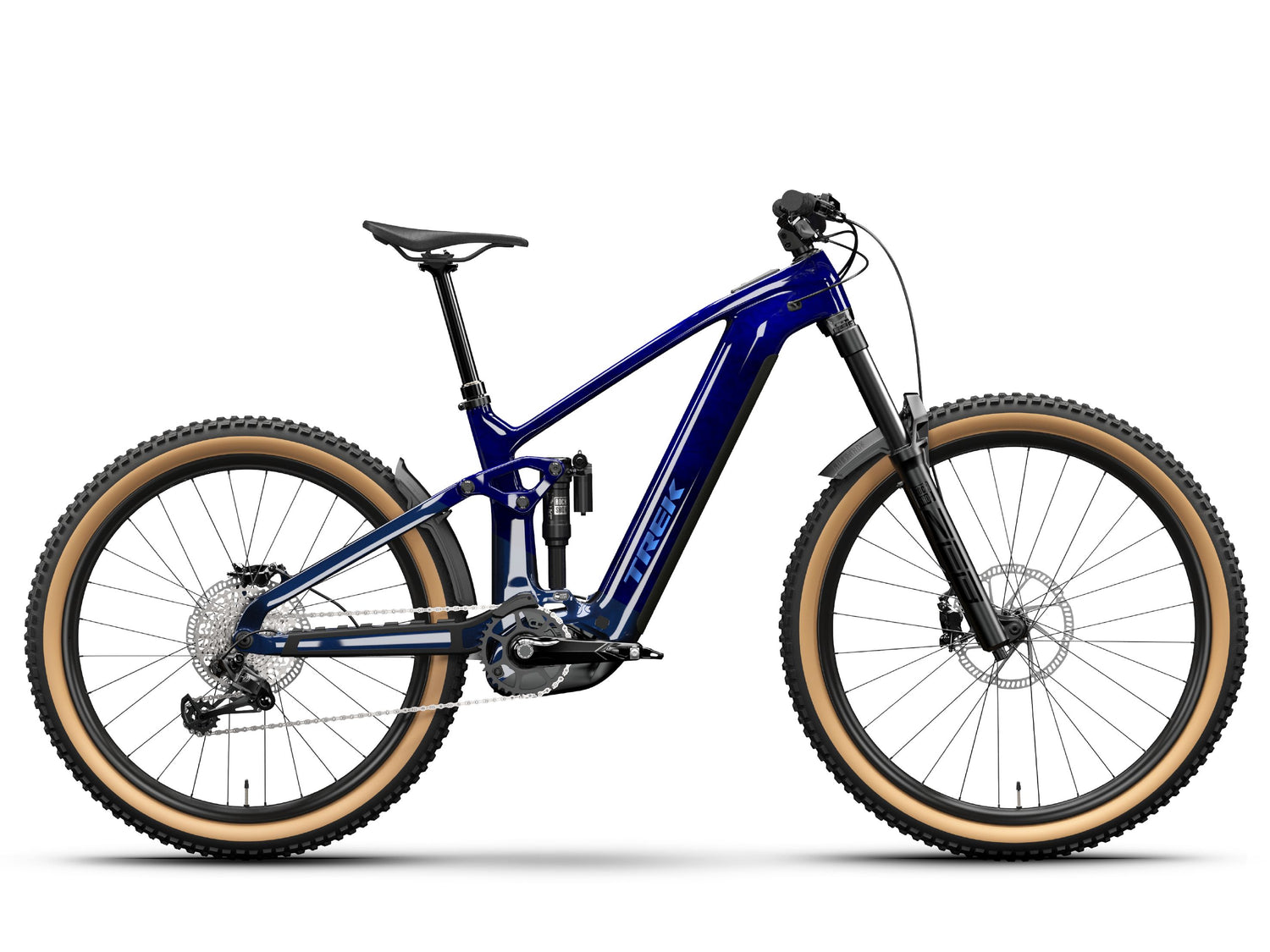

Trek Rail+ 9.7 Gen 5 - Navy Smoke 800Wh

The Rail+ 9.7 is an electric carbon enduro bike for your biggest terrain adventures. With 160 mm of front and rear travel, the Rail+ is ready to confidently take you through any terrain, while the powerful Bosch Performance CX drive system makes long climbs more bearable and even faster runs possible. Its adjustable geometry allows you to adapt the bike to the terrain and your riding style, the powerful battery lets you do endless laps, and the Shimano drivetrain ensures quick and reliable gear changes.

Frame Set

• Frame: OCLV Mountain Carbon, Removable Integrated Battery (RIB 2.0), tapered head tube, internal Control Freak cable routing, Motor Armor, Boost148, 12 mm thru axle, 160 mm travel
• Fork: RockShox ZEB Select, DebonAir spring, Charger RC damper, tapered steerer, 44 mm offset, Boost110, Maxle Stealth axle, 170 mm travel
• Shock: RockShox Super Deluxe Select+ RT, 205 x 65 mm
• Max. compatible fork travel: 180 mm

Wheels

• Front Wheel: Bontrager Line Comp 30, Tubeless Ready, 6-bolt disc mount, Boost110, 15 mm thru axle, 27.5" (Size: S); 29" (Size: M, L, XL)
• Rear Wheel: Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt disc mount, Boost148, 12 mm thru axle
• Rear Skewer: Bontrager Switch thru axle, removable lever
• Tires: Bontrager Brevard Pro XR, Tubeless-Ready, Dual Compound, Aramid bead, 60 TPI, 27.5 x 2.50 (Size: S); 29 x 2.50 (Size: M, L, XL)
• Tire Sealant: Bontrager TLR Sealant, 177 ml
• Rim Tape: Bontrager TLR
• Max. Tire Size: Frame: 27.5 x 2.60"

E-System

• Controller: Bosch System Controller BRC3100, Smart System
• Motor: Bosch Smart System Performance Line CX BDU38, 250 Watt, 85 Nm, 25 km/h

Drivetrain

• Shifter: Shimano SLX M7100, 12-speed
• Rear Derailleur: Shimano XT M8100, long cage
• Cassette: Shimano SLX M7100, 10-51 teeth, 12-speed
• Chain: Shimano SLX M7100, 12-speed
• Pedals: Non-slip pedals with reflectors
• Max. Chainring Size: 1x: 36T

Components

• Saddle: Bontrager Verse P3, CrMo rails
• Seatpost: Size: S - Bontrager Line Dropper, 150 mm travel, MaxFlow, internal routing, 34.9 mm, 410 mm length; Size: M - 170 mm travel, 450 mm length; Size: L, XL - 200 mm travel, 515 mm length
• Handlebar: Bontrager Line, Aluminum, 35 mm, 27.5 mm rise, 780 mm width
• Grips: Bontrager XR Trail Comp, Nylon clamp
• Stem: Bontrager Elite, 35 mm, 0 degree, 45 mm length
• Brakes: Hydraulic 4-piston disc brake SRAM DB 8
• Brake Rotor: SRAM CenterLine, 6-bolt disc mount, rounded edge, 200 mm
• Brake Rotor Diameter: Max. brake rotor diameter: Frame: 220 mm

Weight

• Max. Weight: This bicycle has a maximum weight limit (bicycle, rider, and load) of 136 kg.

* Specification may vary in details in exceptional cases, depending on the manufacturer.
