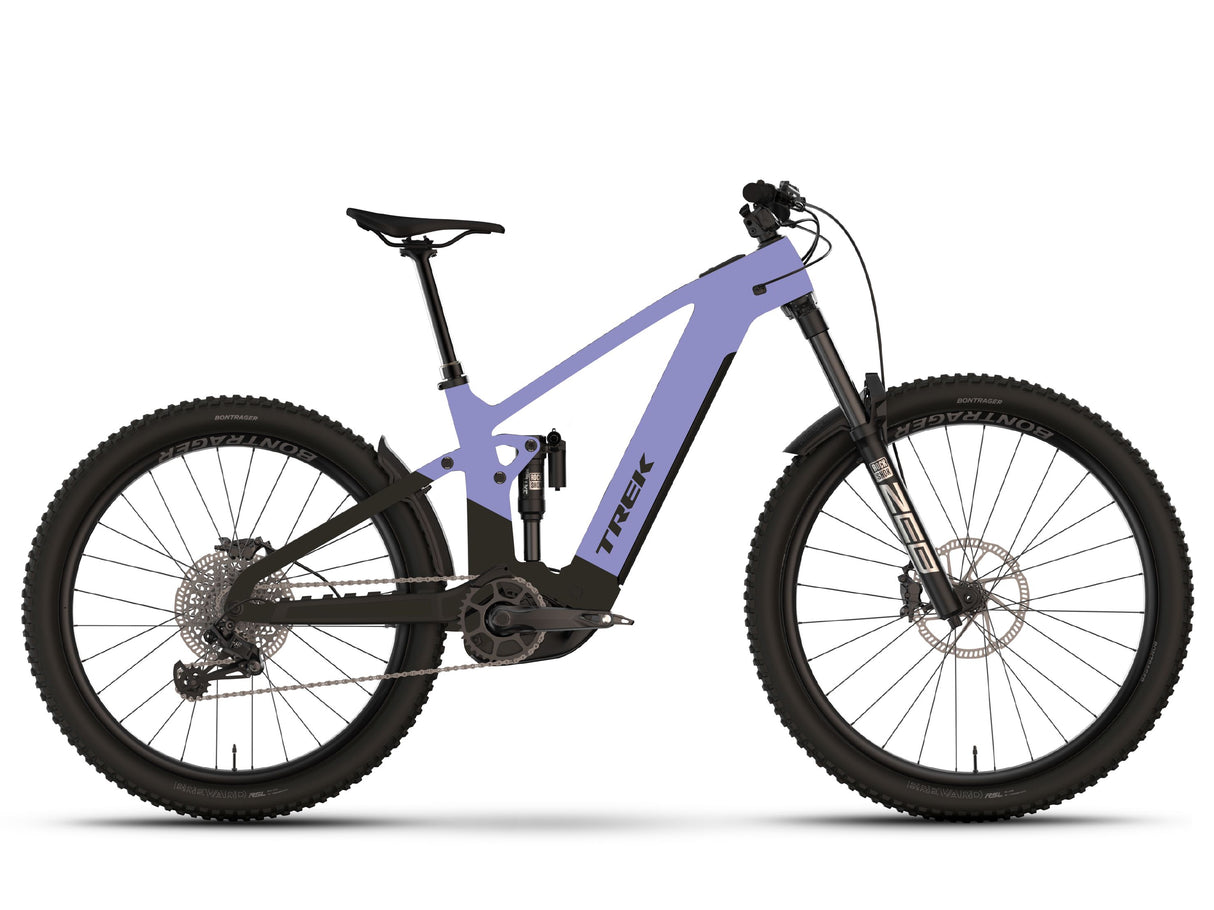

Trek Rail+ 9.9 X0 AXS T-Type Gen 5 - Lavender Haze 800Wh

As our best electric carbon enduro bike, the Rail+ 9.9 is built for your most epic runs. The robust carbon frame comes with a high-quality RockShox suspension with 160 mm front and rear travel and can be adjusted to your riding style thanks to adjustable geometry. A Bosch CX Line motor with plenty of torque and a removable, integrated RIB 2.0 battery with 800 Wh pushes you up even the most challenging and longest climbs with confidence. It is rounded off by a package of features that leaves nothing to be desired – such as the carbon wheels and the wireless SRAM X0 transmission.

Equipment:
Frame: OCLV Mountain Carbon, Removable Integrated Battery (RIB 2.0), tapered head tube, internal Control Freak cable routing, Motor Armor, Boost148, 12 mm thru axle, 160 mm travel
Fork: RockShox ZEB Ultimate, DebonAir spring, Charger 3.1 RC2 damping, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth axle, 160 mm travel
Shock: RockShox Super Deluxe Ultimate RC2T, 205 x 65 mm
Max. compatible fork travel: 180 mm
Front wheel: Size: S: Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt disc mount, Boost110, 15 mm thru axle, 27.5", Size: M, L, XL: Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt disc mount, Boost110, 15 mm thru axle, 29"
Rear wheel: Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless-Ready, Rapid Drive 108, 6-bolt disc mount, Boost148, 12 mm thru axle, 27.5"
Rear quick release: Bontrager Switch thru axle, removable lever
Tires: Bontrager Brevard RSL SE, Tubeless-Ready, Triple Compound, Aramid bead core, 60 TPI, 27.5 x 2.50, Size: M, L, XL: Bontrager Brevard RSL SE, Tubeless-Ready, Triple Compound, Aramid bead core, 60 TPI, 29 x 2.50
Tire spare part: Bontrager TLR sealant, 177 ml
Rim tape: Bontrager TLR
Max. tire size: Frame: 27.5 x 2.60"
Battery: Bosch PowerTube 800 Wh, Smart System
Charger: Bosch Standard charger 4 A, 230 V, Smart System
Controller: Bosch System Controller BRC3100, Smart System
Motor: Bosch Smart System Performance Line CX BDU38, 250 Watt, 85 Nm, 25 km/h
Derailleur: SRAM X0 Eagle AXS, T-Type
Crank: SRAM X0 Eagle, 160 mm crank arm length
Cassette: SRAM Eagle XS-1295, T-Type, 10-52 T., 12-speed
Chain: SRAM X0 Eagle, T-Type, 12-speed
Pedal: Non-slip pedals with reflectors
Max. chainring size: 1x: 36T
Saddle: Verse Short Comp, steel rails, 145 mm width
Seatpost: Size: S: RockShox Reverb AXS, 100 mm travel, wireless, 34.9 mm, 340 mm length,
Size: M, L, XL: RockShox Reverb AXS, 170 mm travel, wireless, 34.9 mm, 480 mm length
Handlebar: Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 780 mm width
Grips: Bontrager XR Trail Elite, nylon clamp
Stem: Bontrager Line Pro, 35 mm, Blendr compatible, 0 degree, 45 mm length
Headset:  Integrated compact bearings, 1 1/8" top, 1.5" bottom, compatible with tapered cups
Brake: Hydraulic 4-piston disc brake SRAM Code Silver
Brake disc: SRAM, 6-hole, 200 mm, SRAM HS2, 6-hole, 220 mm
Brake disc diameter: Max. brake disc diameter: Frame: 220 mm
Max. weight: This bike has a maximum weight limit (bike, rider, and load) of 136 kg.

* Specification may vary in details in exceptional cases, depending on the manufacturer.
