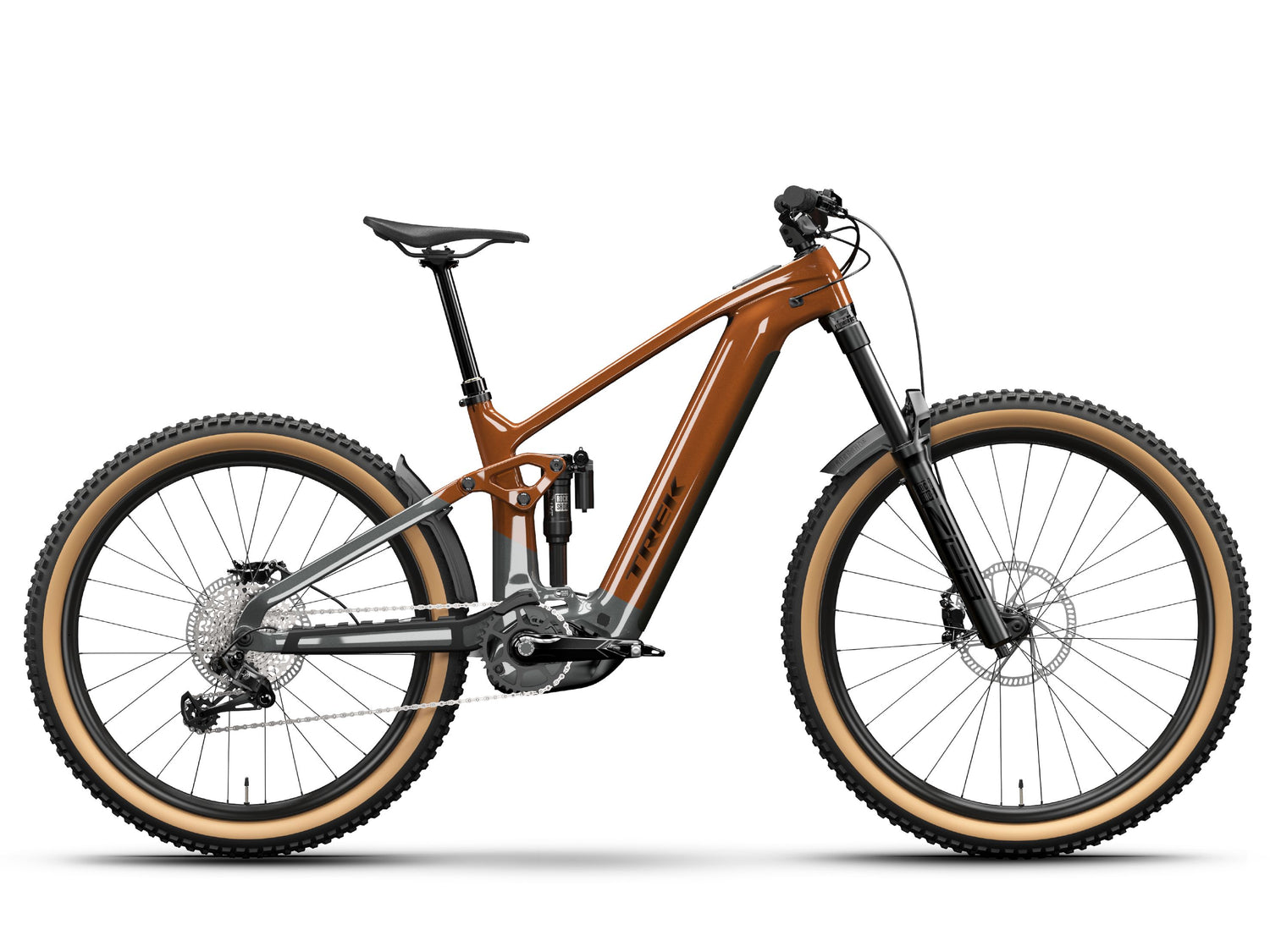

Trek Rail+ 9.9 XX AXS T-Type Gen 5 - Pennyflake 800Wh

As our best electric carbon enduro bike, the Rail+ 9.9 is built for your most epic runs. The robust carbon frame comes with a high-quality RockShox suspension with 160 mm front and rear travel and can be adjusted to your riding style thanks to adjustable geometry. A Bosch CX Line motor with plenty of torque and a removable, integrated RIB 2.0 battery with 800 Wh pushes you confidently up even the most challenging and longest climbs. It is rounded off with an equipment package that leaves nothing to be desired - such as the carbon wheels and the wireless SRAM XX Transmission.

Frame Set

• Frame: OCLV Mountain Carbon, Removable Integrated Battery (RIB 2.0), tapered head tube, internal Control Freak cable routing, Motor Armor, Boost148, 12 mm thru axle, 160 mm travel
• Fork: RockShox ZEB Ultimate, DebonAir spring, Charger 3.1 RC2 damping, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth axle, 160 mm travel
• Shock: RockShox Super Deluxe Ultimate RC2T, 205 x 65 mm
• Max. compatible fork travel: 180 mm

Wheels

• Front Wheel:
  • Size: S: Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt disc mount, Boost110, 15 mm thru axle, 27.5"
  • Size: M, L, XL: Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt disc mount, Boost110, 15 mm thru axle, 29"
• Rear Wheel: Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless-Ready, Rapid Drive 108, 6-bolt disc mount, Boost148, 12 mm thru axle, 27.5"
• Rear Quick Release: Bontrager Switch thru axle, removable lever
• Tires:
  • Bontrager Brevard RSL SE, Tubeless-Ready, Triple Compound, Aramid bead core, 60 TPI, 27.5 x 2.50
  • Size: M, L, XL: Bontrager Brevard RSL SE, Tubeless-Ready, Triple Compound, Aramid bead core, 60 TPI, 29 x 2.50
• Tire Spare Part: Bontrager TLR Sealant, 177 ml
• Rim Tape: Bontrager TLR
• Max. Tire Size: Frame: 27.5 x 2.60"

E-System

• Charger: Bosch Standard Charger 4 A, 230 V, Smart System
• Controller: Bosch System Controller BRC3100, Smart System
• Motor: Bosch Smart System Performance Line CX BDU38, 250 Watt, 85 Nm, 25 km/h

Drivetrain

• Derailleur: SRAM XX Eagle AXS, T-Type
• Crank: SRAM XX Eagle, 165 mm crank arm length
• Cassette: SRAM Eagle XS-1297, T-Type, 10-52 T, 12-speed
• Chain: SRAM XX Eagle, T-Type, 12-speed
• Pedal: Non-slip pedals with reflectors
• Max. Chainring Size: 1x: 36T

Components

• Saddle: Verse Short Comp, steel rails, 145 mm width
• Seatpost:
  • Size: S: RockShox Reverb AXS, 100 mm travel, wireless, 34.9 mm, 340 mm length
  • Size: M, L, XL: RockShox Reverb AXS, 170 mm travel, wireless, 34.9 mm, 480 mm length
• Handlebar: Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 780 mm width
• Grips: Bontrager XR Trail Elite, nylon clamp
• Stem: Bontrager Line Pro, 35 mm, Blendr compatible, 0 degrees, 45 mm length
• Headset: Integrated compact bearings, 1 1/8" top, 1.5" bottom, compatible with tapered cups
• Brake: SRAM Maven Ultimate hydraulic 4-piston disc brake
• Brake disc:
  • SRAM, 6-bolt, 200 mm
  • SRAM HS2, 6-bolt, 220 mm
• Brake disc diameter: Max. brake disc diameter: Frame: 220 mm

Weight

• Max. weight: This bike has a maximum weight limit (bike, rider, and cargo) of 136 kg.

* Specification may vary in details in exceptional cases, depending on the manufacturer.
