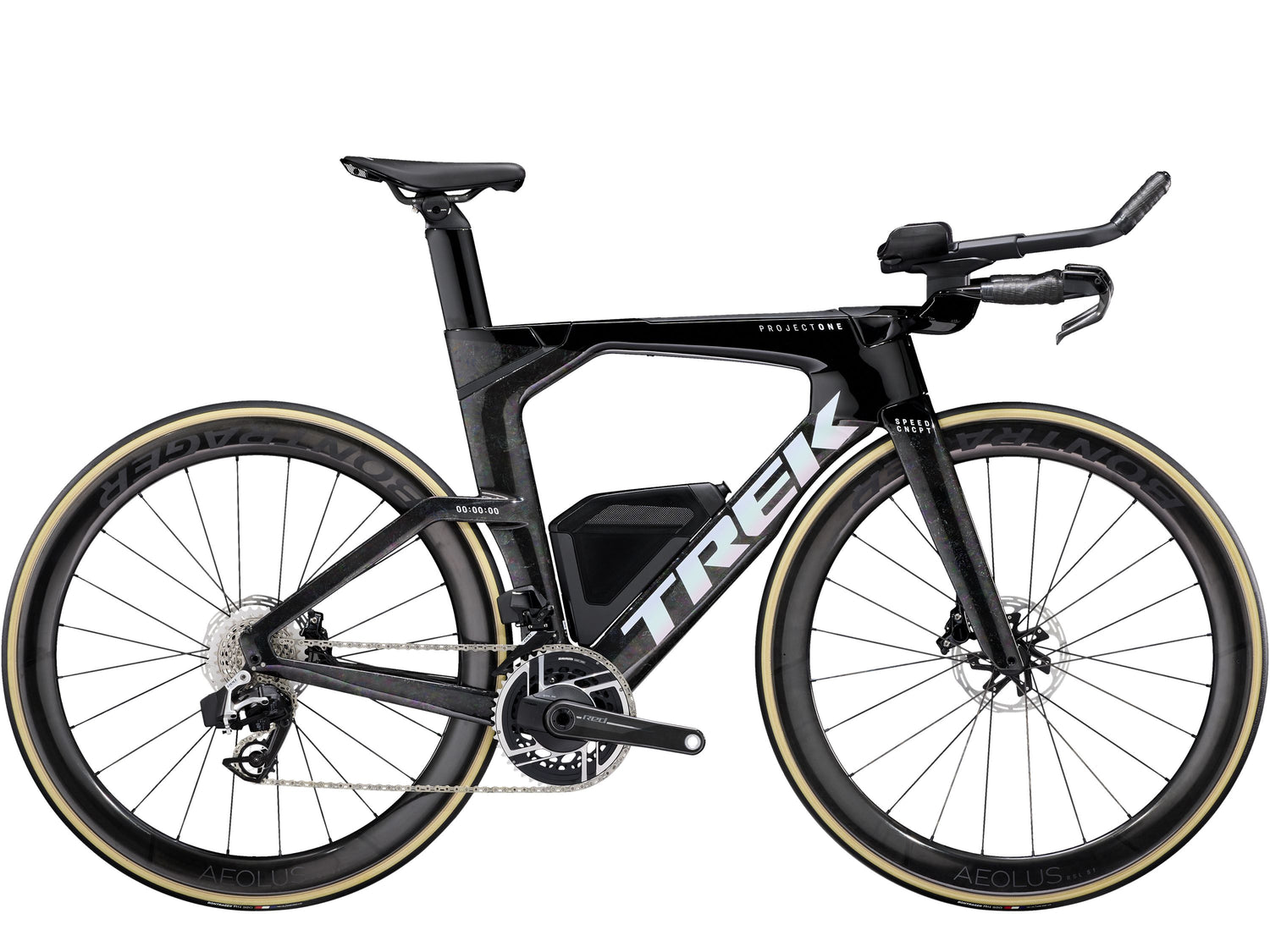

Trek Speed Concept SLR 9 AXS - Prismatic Pearl/Trek Black

The Speed Concept SLR 9 AXS is an aerodynamic triathlon bike with a carbon frame, designed for breathtaking speeds and seamless integration. From the lightweight aero frame to the vibration-damping IsoSpeed and the well-thought-out nutrition and hydration system, every detail on this bike helps you break your personal record – again and again. It comes with world-class components like the wireless SRAM RED drivetrain, so you can get the best out of yourself and your bike at any time.

Frame Set

• Frame: 800 Series OCLV Carbon, KVF tube profile (Kammtail Virtual Foil), T47 bottom bracket, integrated Bento Box, integrated downtube storage compartment
• Fork: Speed Concept, Carbon, Aero profile, brake and stem integrated

Weight

• Weight: M – 8.80 kg / 19.41 lbs
• Max. Weight: This bike has a maximum weight limit (bike, rider, and cargo) of 125 kg.

E-System

• Battery: SRAM eTap battery pack (with charger)

Drivetrain

• Shifters:
• SRAM eTap AXS Wireless Blips, base handlebar mount
• SRAM eTap AXS BlipBox
• Front Derailleur: SRAM RED AXS E1, clamp version
• Rear Derailleur: SRAM RED AXS E1, max. 36 T on largest cog
• Crank:
• Size: S: SRAM RED AXS E1, power meter, 48/35 T, DUB, 165 mm crank arm length
• Size: M, L: SRAM RED AXS E1, power meter, 48/35 T, DUB, 170 mm crank arm length
• Size: XL: SRAM RED AXS E1, power meter, 48/35 T, DUB, 172.5 mm crank arm length
• Bottom Bracket: SRAM DUB, T47, threaded, internal bearing
• Cassette: SRAM RED XG-1290, 10-33 T, 12-speed
• Chain: SRAM RED E1, 12-speed
• Max. Chainring Size: 1x: 58 teeth, 2x: 55/44

Wheels

• Front Wheel: Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51 mm profile height, 100 x 12 mm thru axle
• Rear Wheel: Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51 mm profile height, SRAM XD-R freehub, 142 x 12 mm thru axle
• Front Quick Release: Bontrager Switch thru axle, removable lever
• Rear Quick Release: Bontrager Switch thru axle, removable lever
• Tires: Bontrager R4 320, 700 x 25 mm
• Max. Tire Size: 28 mm rear, 25 mm front

Components

• Saddle: Bontrager Hilo Pro Carbon
• Seatpost:
• Size: S: Speed Concept SLR, 11.5 mm or -20 mm offset, short version
• Size: M, L, XL: Speed Concept SLR, 11.5 mm or -20 mm offset, long version
• Handlebar Replacement Part:
• Size: S, M: Speed Concept 30 mm Base Tower
• Speed Concept 45 mm Base Tower
• Size: S: Speed Concept Cockpit Tower Topper Near
• Size: M, L, XL: Speed Concept Cockpit Tower Topper Mid
• Size: L, XL: Speed Concept 60 mm Base Tower

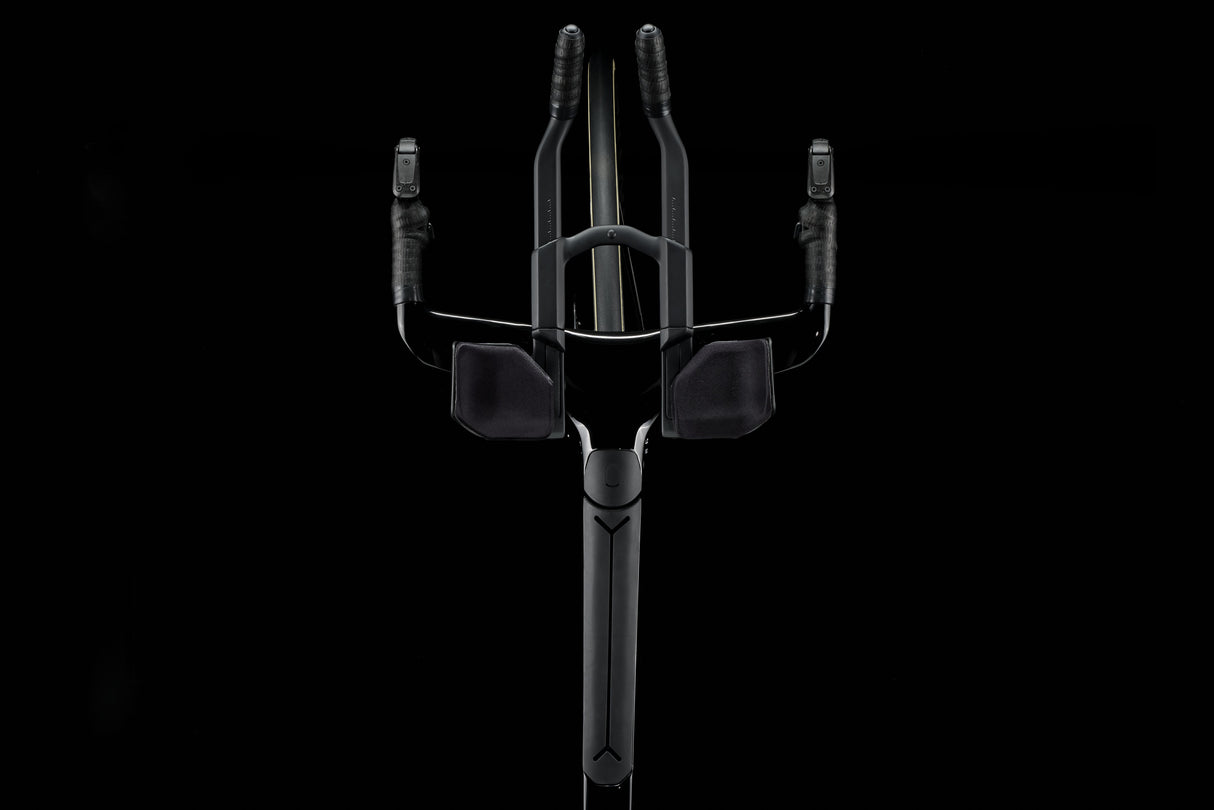

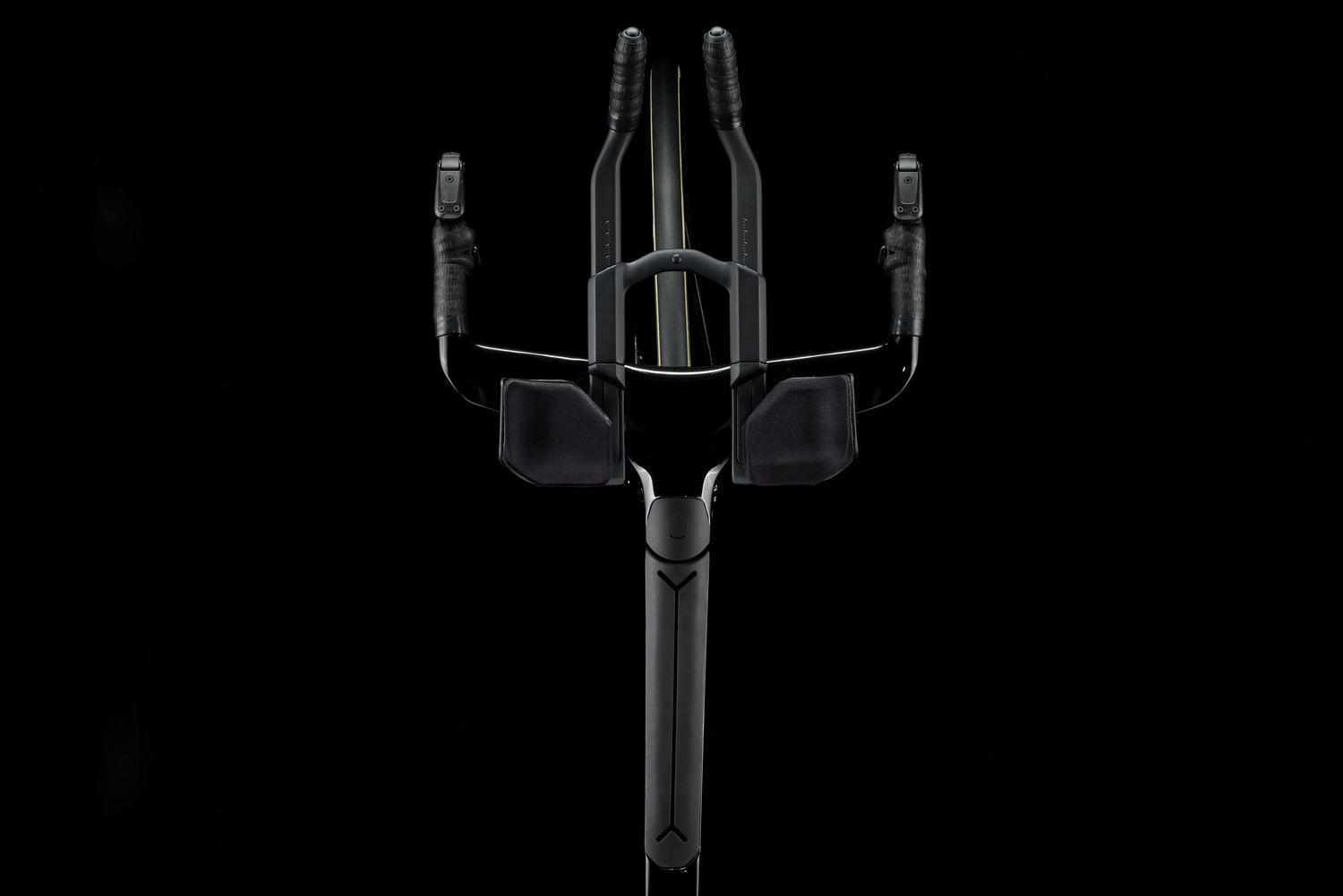

• Handlebar/Stem (integrated): Speed Concept mid-rise bar/stem
• Brake Levers: SRAM S-900 Aero
• Disc Diameter: Max. disc diameter: 160 mm front & rear

Accessories

• Cage: Speed Concept downtube bottle holder
• Bottle: Speed Concept downtube drinking bottle

* In rare cases, our manufacturers supply bikes with modified but equivalent components.
