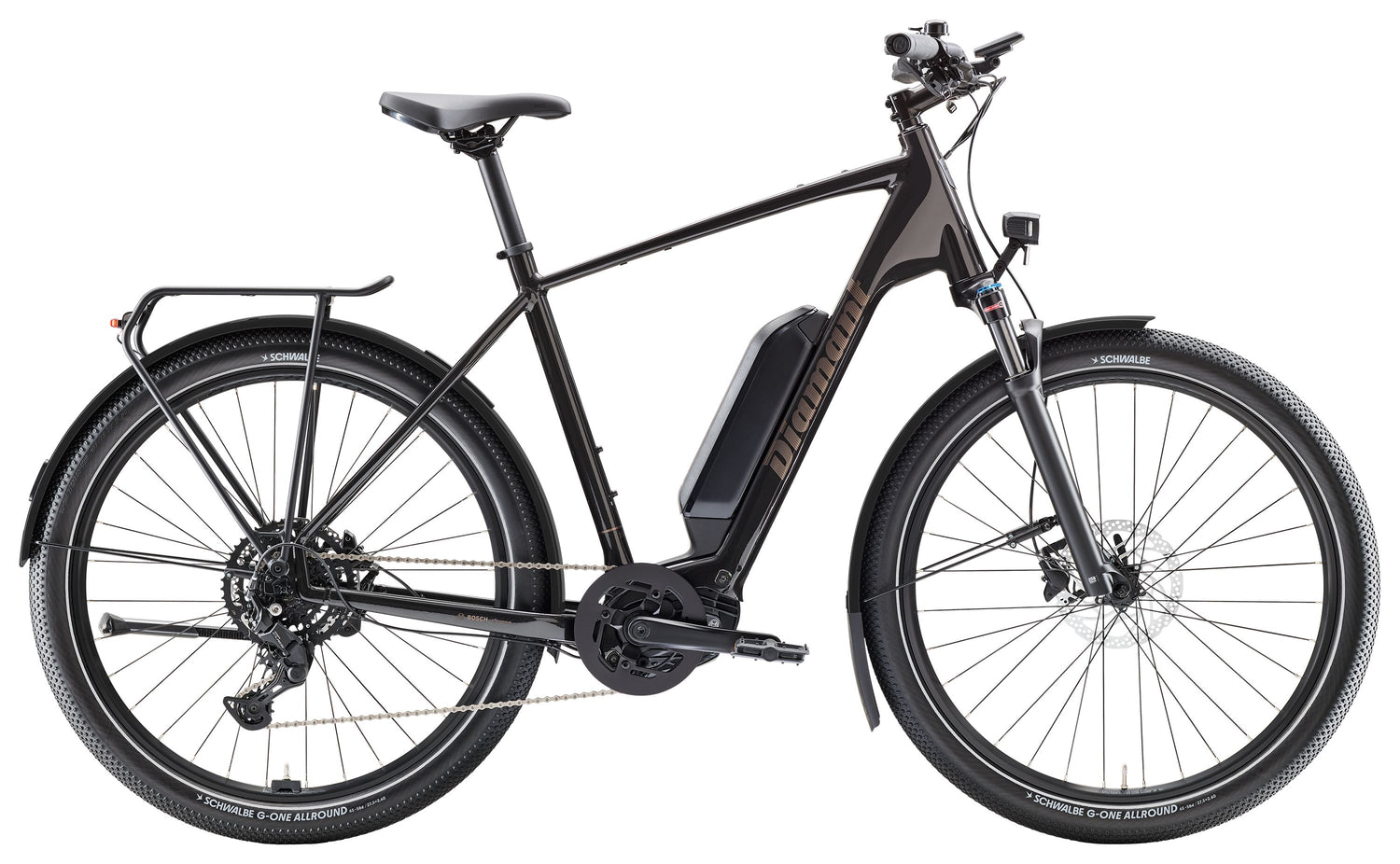

Diamant Rad Zing Trip Core (Stepover) - Velvet Black Metallic 545Wh

The Zing Trip Core combines low weight with high performance and offers everything needed for everyday life and vacations. Thanks to the external battery, which can be easily removed for charging, storage, transportation, and overnight stays, it is particularly practical. The thoughtful equipment emphasizes the optimal price-performance ratio and is tailored to people interested in longer and dynamic trekking tours.

Frame Set

• Fork: SR Suntour XCR32, steel spring, adjustable preload

Wheels

• Front Hub: Shimano QC300, Centerlock
• Rear Hub: Shimano QC400, 32 holes, Centerlock, 135x5 mm quick release
• Rim: Bontrager Kovee, hollow chamber rim, tubeless ready, 32-hole, 23 mm internal width, Presta valve
• Spokes: 14 g, stainless steel, black
• Tires: Schwalbe G-One Allround, with reflective stripe, wire bead core, puncture protection, 65-584

E-System

• Charger: Bosch Standard charger 4 A, 230 V, smart system
• Controller: Bosch Intuvia 100, smart system
• Computer: Bosch LED-Remote, smart system
• Motor: Bosch Smart System Performance Line CX BDU38, 250 watts, 85 Nm, 25 km/h

Drive

• Shift Lever: Shimano CUES U4000 with optical gear display, 9-speed
• Derailleur: Shimano CUES U4000
• Crank:
  • Size: S, M: ProWheel, aluminum, 165 mm crank arm length
  • Size: L, XL: ProWheel, aluminum, 170 mm crank arm length
• Chainring: Aluminum, 40 teeth, narrow-wide tooth profile, chain guard
• Cassette: Shimano LINKGLIDE LG300, 11-46 teeth, 9-speed
• Chain: Shimano LG500
• Pedal: Non-slip pedals with reflectors

Components

• Saddle: Selle Royal Vivo Moderate Ergo with Royalgel
• Seatpost: Bontrager aluminum, 31.6 mm, 12 mm offset, 330 mm length
• Handlebar: Ergotec Ergo Series XXL, 31.8 mm, 30 mm rise, 16° sweep
• Grips: Bontrager XR Endurance Comp, with clamp
• Stem: Bontrager aluminum, 31.8 mm, adjustable, Blendr compatible
• Headset: Integrated FSA headset, sealed cartridge bearing, 1 1/8" top, 1.5" bottom
• Brake: Hydraulic disc brake Shimano MT200
• Brake Disc: Shimano RT30, Centerlock disc mount, 180 mm

Accessories

• Light:
  • Herrmans Nordic MR5-E, 140 lumens, LED
  • Spanninga Pimento Large, with integrated brake light
• Mudguard: SKS, plastic

Weight

• Max. Weight: This bicycle has a maximum weight limit (bicycle, rider, and load) of 136 kg.

* Specification may vary in details in exceptional cases, depending on the manufacturer.
