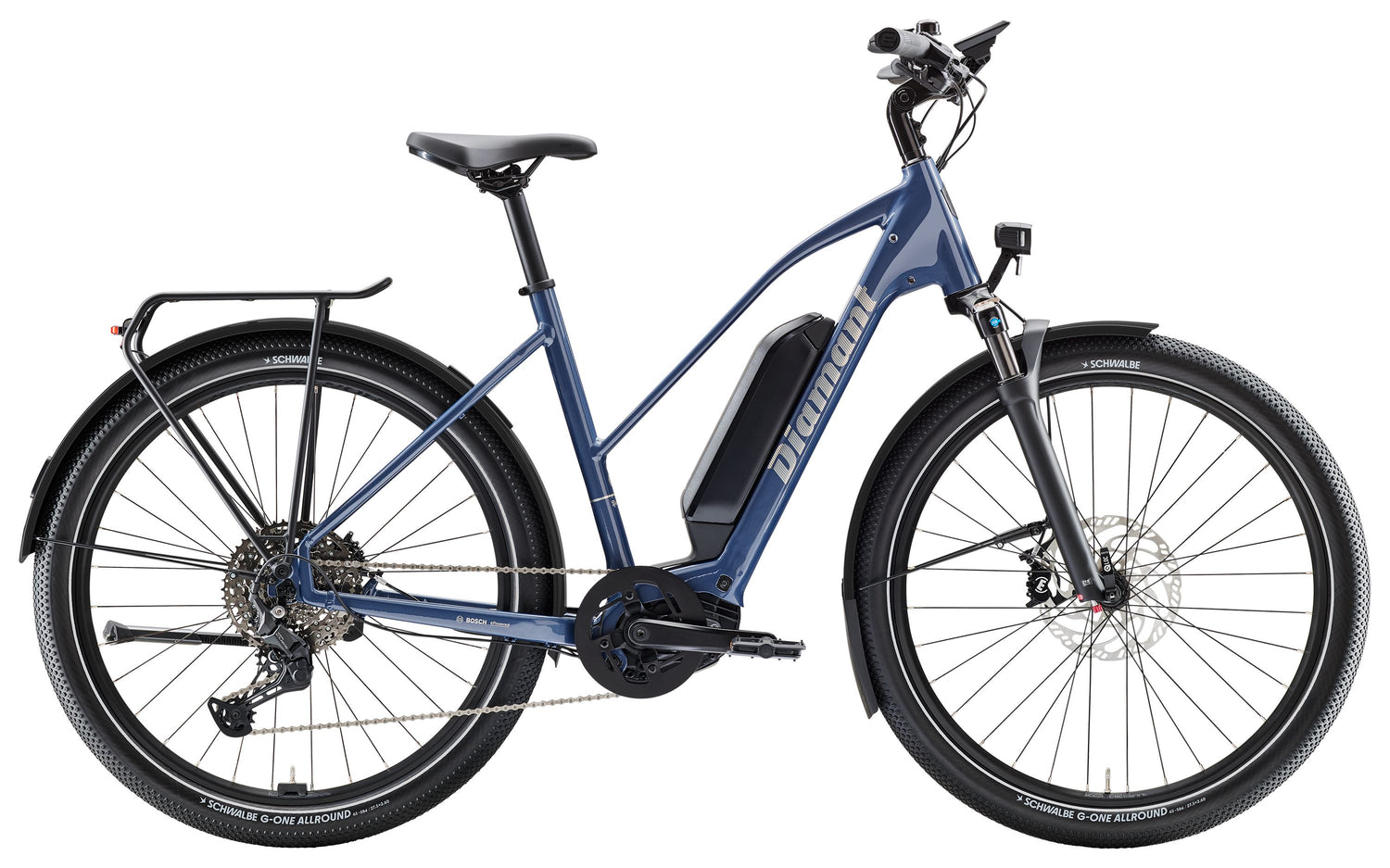

Diamant Rad Zing Trip Plus (Midstep) - Forget-me-not Blue Metallic 725Wh

Light e-bikes have weak motors, strong e-bikes are too heavy? Not at all! The completely newly developed Zing Trip Plus combines low weight and high performance - and does not skimp on equipment, but is equipped as standard for everyday use and holidays. This is made possible by the external battery, which can be easily removed for charging, storage, transport, and overnight stays. The further equipment caters to more demanding people with an interest in extended and dynamic trekking tours.

Frame Set

• Fork: SR Suntour Mobie 34, air suspension, adjustable rebound and compression, 100mm thru-axle, 60mm travel

Wheels

• Front Hub: Shimano TC500, Centerlock, 110x15mm thru-axle
• Rear Hub: Shimano QC400, 32 hole, Centerlock, 135x5 mm quick release
• Rim: Bontrager Kovee, hollow chamber rim, tubeless ready, 32-hole, 23 mm internal width, Presta valve
• Spokes: 14 g, stainless steel, black
• Tires: Schwalbe G-One Allround, with reflective stripe, wire bead core, puncture protection, 65-584

E-System

• Charger: Bosch Standard charger 4 A, 230 V, Smart System
• Controller: Bosch Kiox 500, smart system
• Computer: Bosch LED-Remote, Smart System
• Motor: Bosch Smart System Performance Line CX BDU38, 250 Watt, 85 Nm, 25 km/h

Drive

• Shift Lever: Shimano CUES U6000 with optical gear display, 10-speed
• Derailleur: Shimano CUES U6000 GS
• Crank:
  • Size: S, M: ProWheel, aluminum, 165 mm crank arm length
  • Size: L: ProWheel, aluminum, 170 mm crank arm length
• Chainring: Aluminum, 40 teeth, narrow-wide tooth profile, chain guard
• Cassette: Shimano CUES LG400, LINKGLIDE, 11-48 teeth, 10-speed
• Chain: Shimano LG500
• Pedal: Non-slip pedals with reflectors

Components

• Saddle: Selle Royal Vivo Moderate Ergo with Royalgel
• Seat Post: Bontrager aluminum, 31.6 mm, 12 mm offset, 330 mm length
• Handlebar: Ergotec Ergo Series XXL, 31.8 mm, 30 mm rise, 16° sweep
• Grips: Ergotec EG Active Flex, with clamp, with damping adjustment
• Stem: Bontrager aluminum, 31.8 mm, adjustable, Blendr compatible
• Headset: Integrated FSA headset, sealed cartridge bearing, 1 1/8" top, 1.5" bottom
• Brake: Hydraulic 4-piston disc brake, Magura MT Thirty
• Brake Disc:
  • Magura MDR-C, 180mm
  • Magura MDR-C 203mm

Accessories

• Light:
  • Herrmans Nordic MR9-E, 190 lumens, LED
  • Spanninga Pimento Large, with integrated brake light
• Mudguard: SKS, plastic

Weight

• Max. Weight: This bicycle has a maximum weight limit (bicycle, rider, and cargo) of 136 kg.

* Specification may vary in details in exceptional cases, depending on the manufacturer.
