Ass Savers WGS-2 Win Wing Gravel - Bits n' Peaces

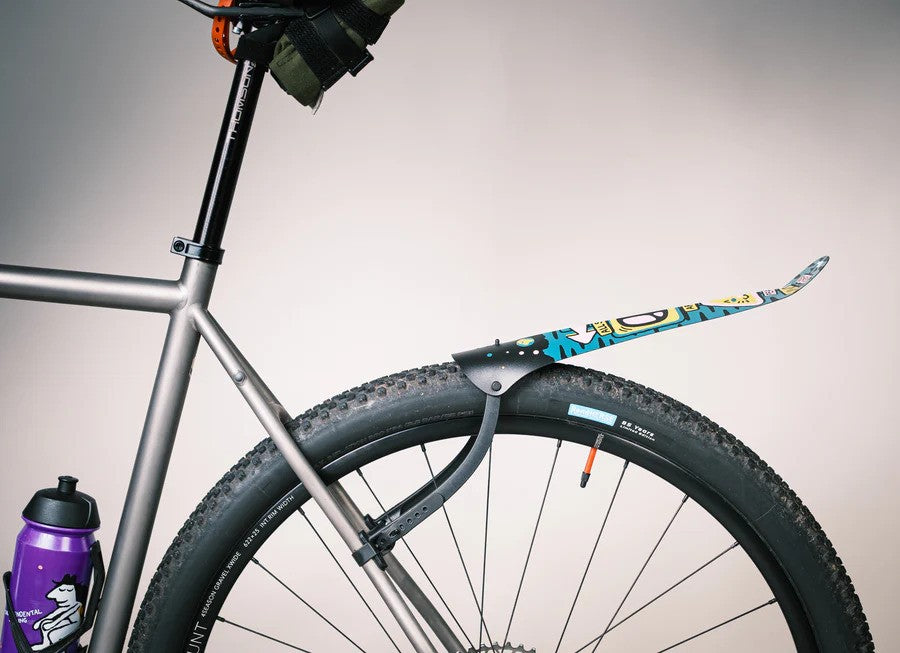

Comprehensive clip-on splash guard for the rear wheel

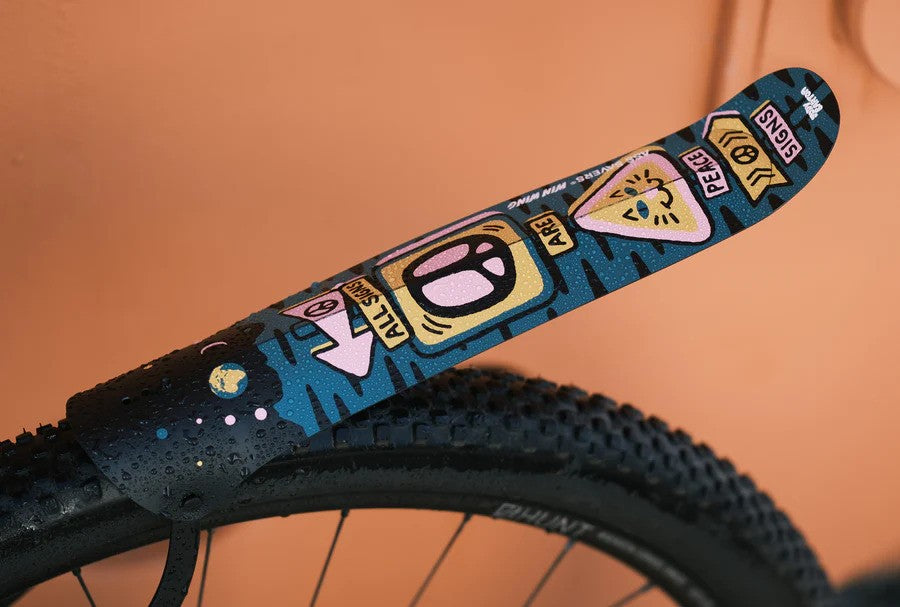

• Special Edition by Jody Barton

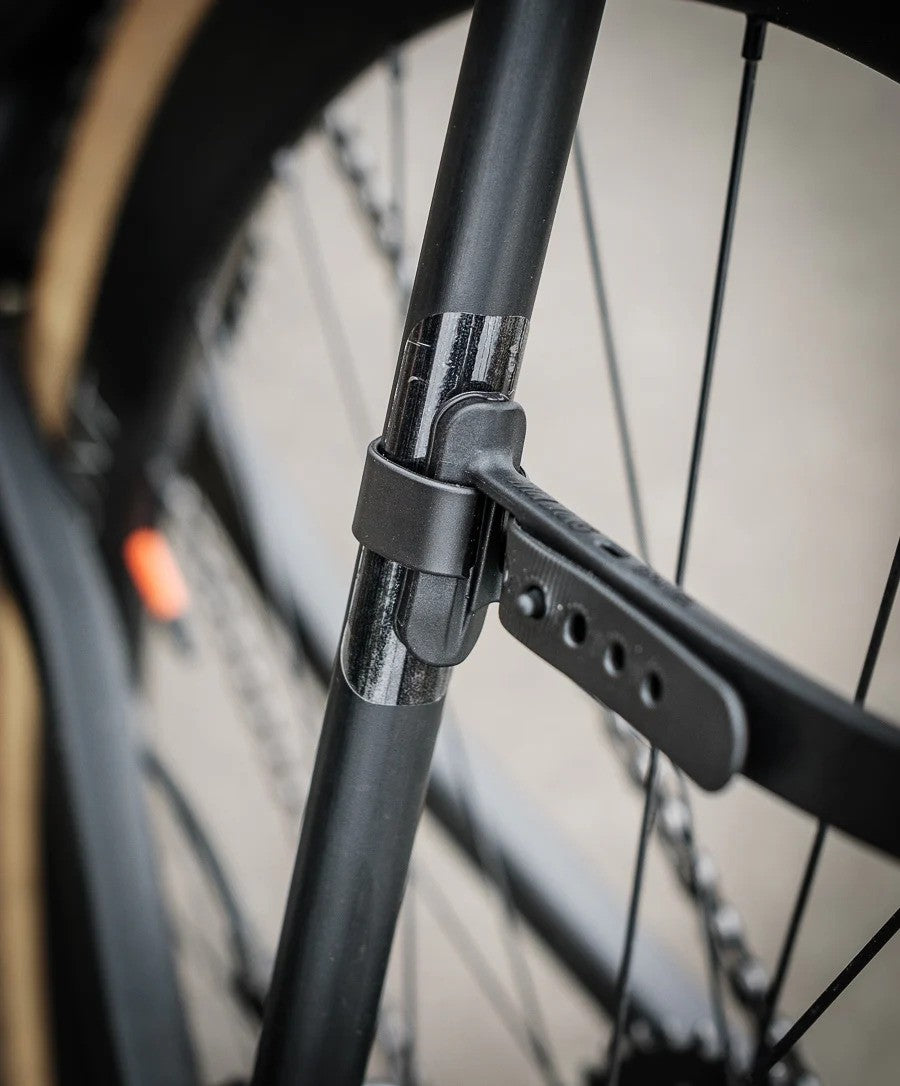

• Tool-free mounting on the seat stays thanks to the wishbone mounting system
• Application area: Gravel
• Suitable for tire widths up to 60 mm
• Material: 0.9 mm polypropylene / glass fiber reinforced polyamide
• Dimensions: 375 x 85 mm
• Weight: 72 g

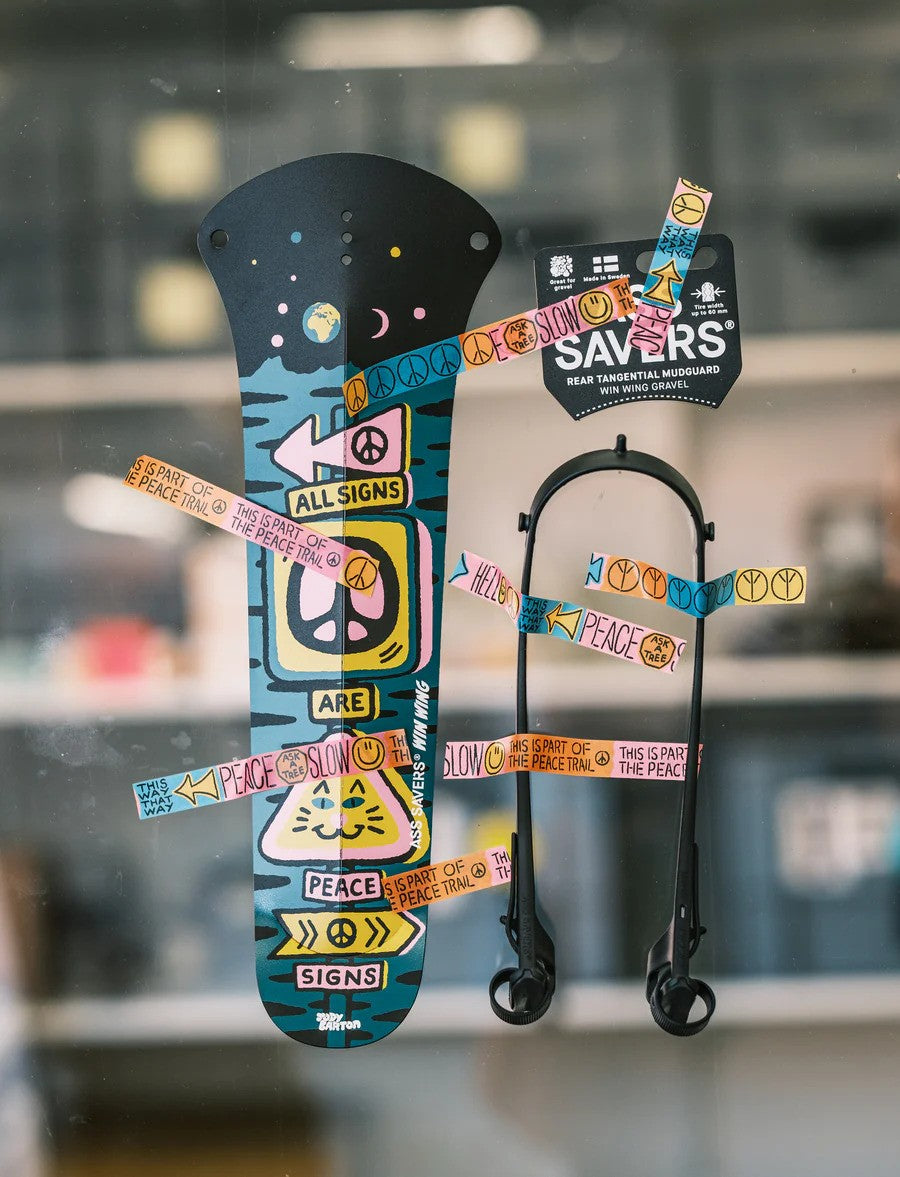

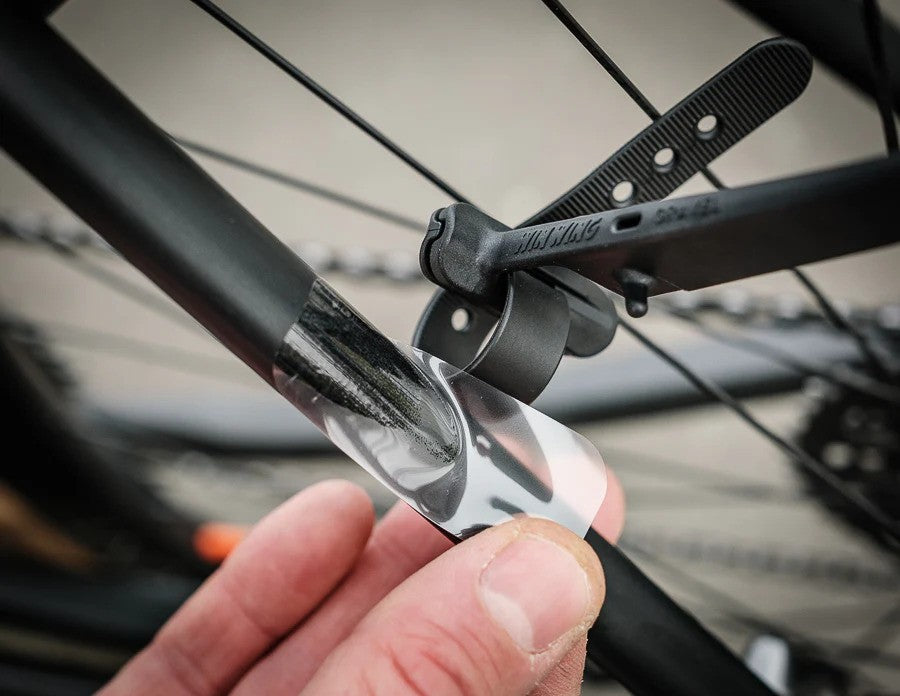

• Includes protective stickers for the frame

Mount correctly, mount tightly

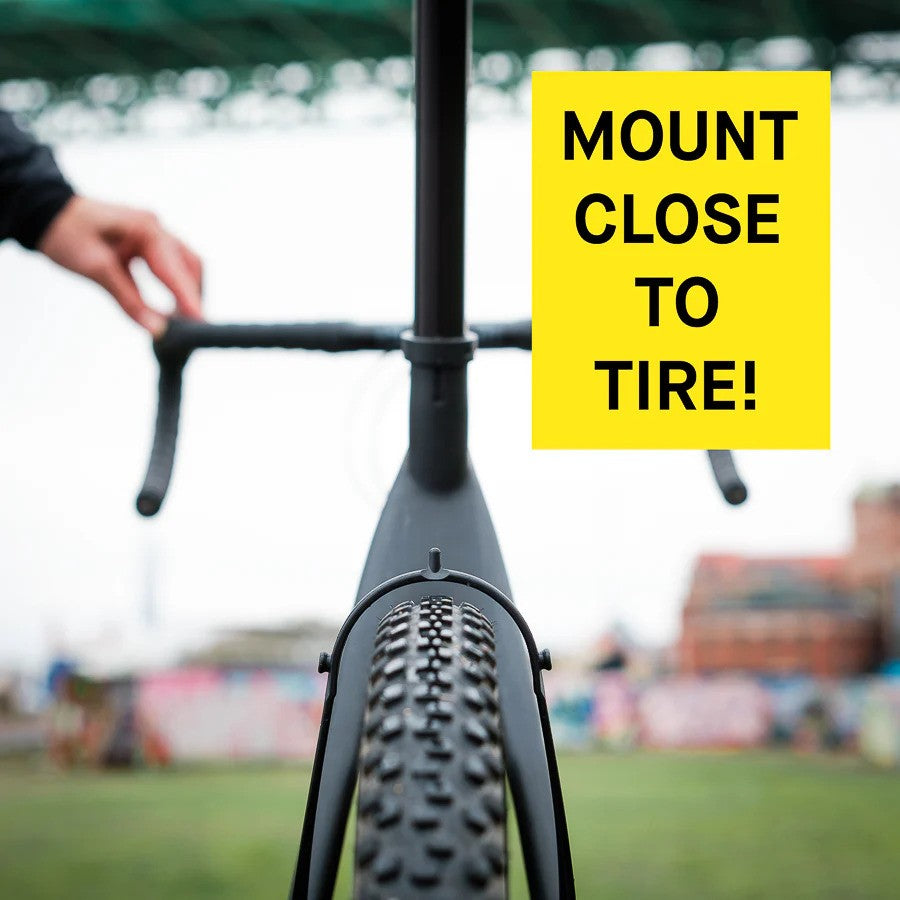

• For the tangential coverage to work properly, the mudguard must be mounted very close to the wheel. Aim for a tire clearance of 5-10 mm to achieve maximum coverage.

The right angle

• Just as important as a secure fit is the angle of the mudguard. There are three different settings to compensate for the angle of your seat stays. Choose the setting that allows for a horizontal or upward position. Avoid a downward angle as this will affect the effectiveness of the mudguard.

Fasten tightly

• The straps are made of extremely durable TPU and should be tightened as much as you can comfortably manage by hand. If you find that the mudguard is not stable, try using the next hole in the strap.

Anti-jam

• While the Win-Wing is robust, it can bend in the event of an accident and is designed not to jam if large natural debris gets caught on your wheel.

Anti-theft

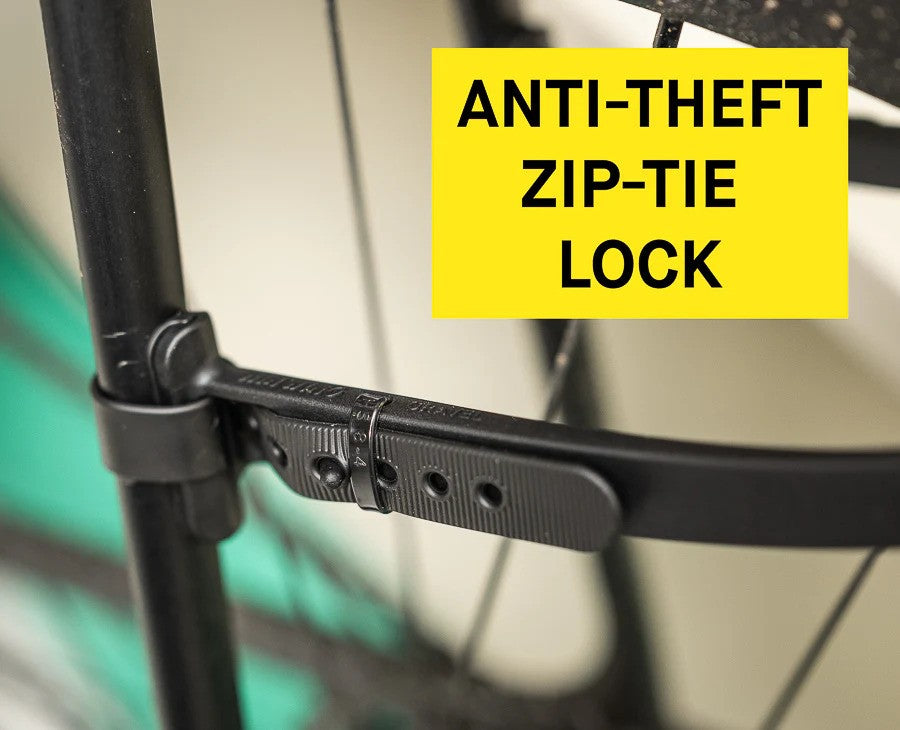

• If you want to attach it permanently to your bike, the Win-Wing can be secured with a standard cable tie through a designated slot on your bike, making it easier for people with sticky fingers to resist.
