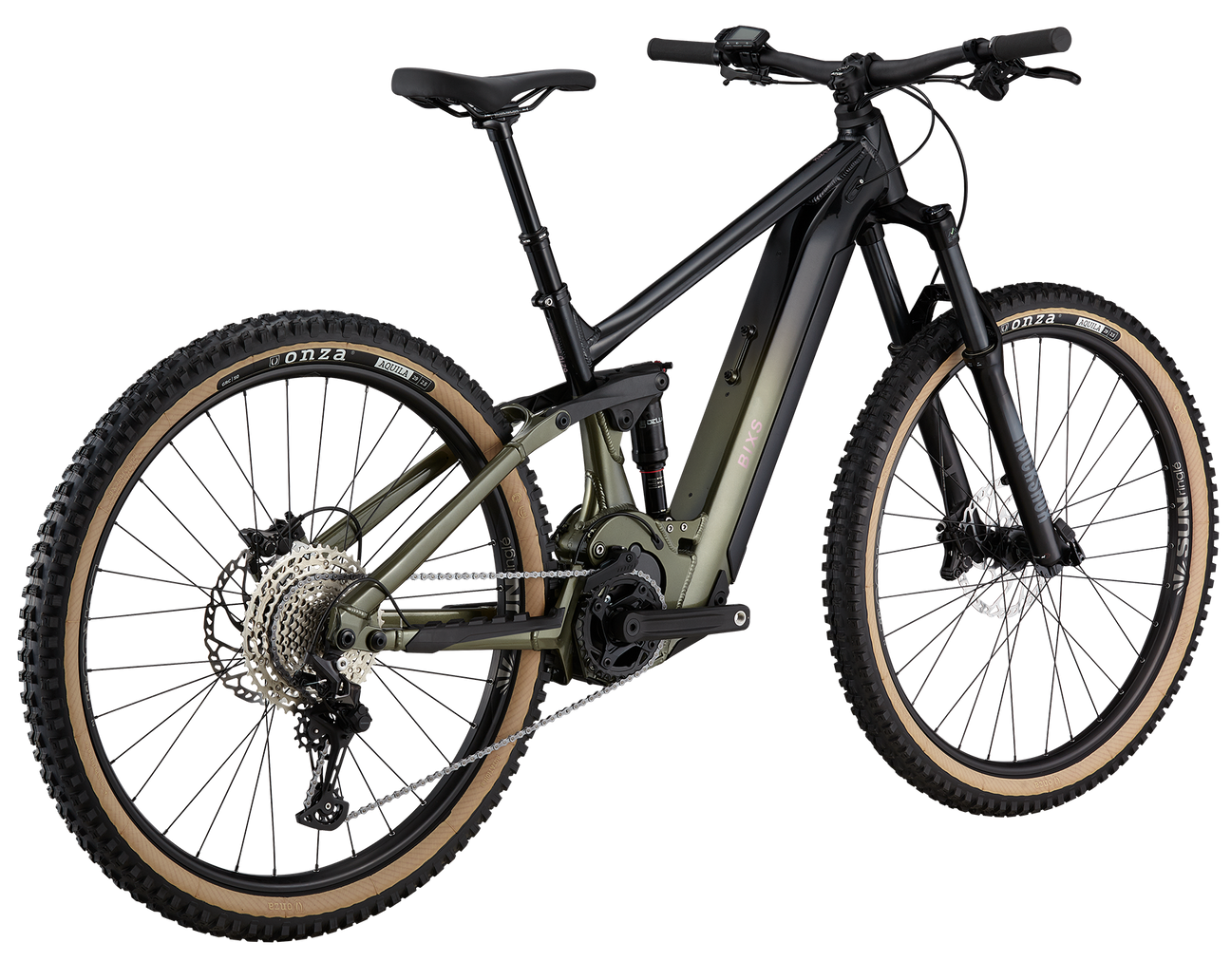

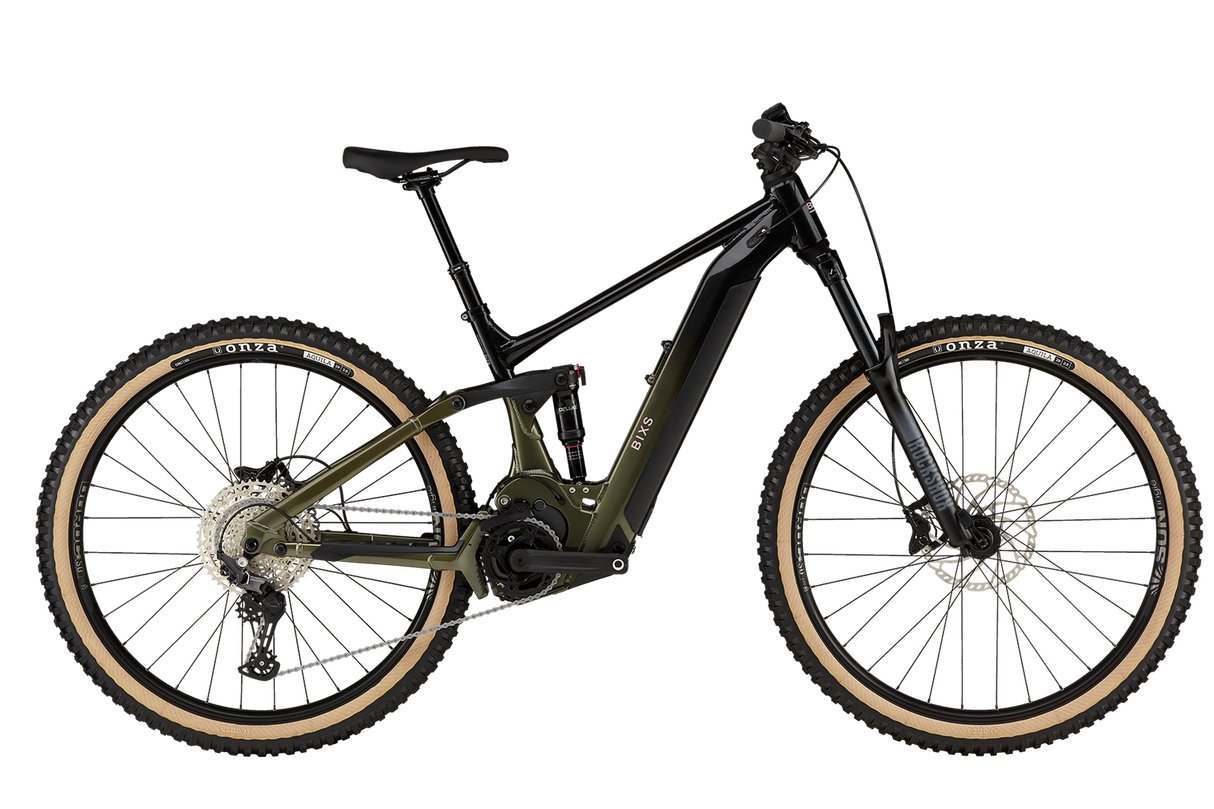

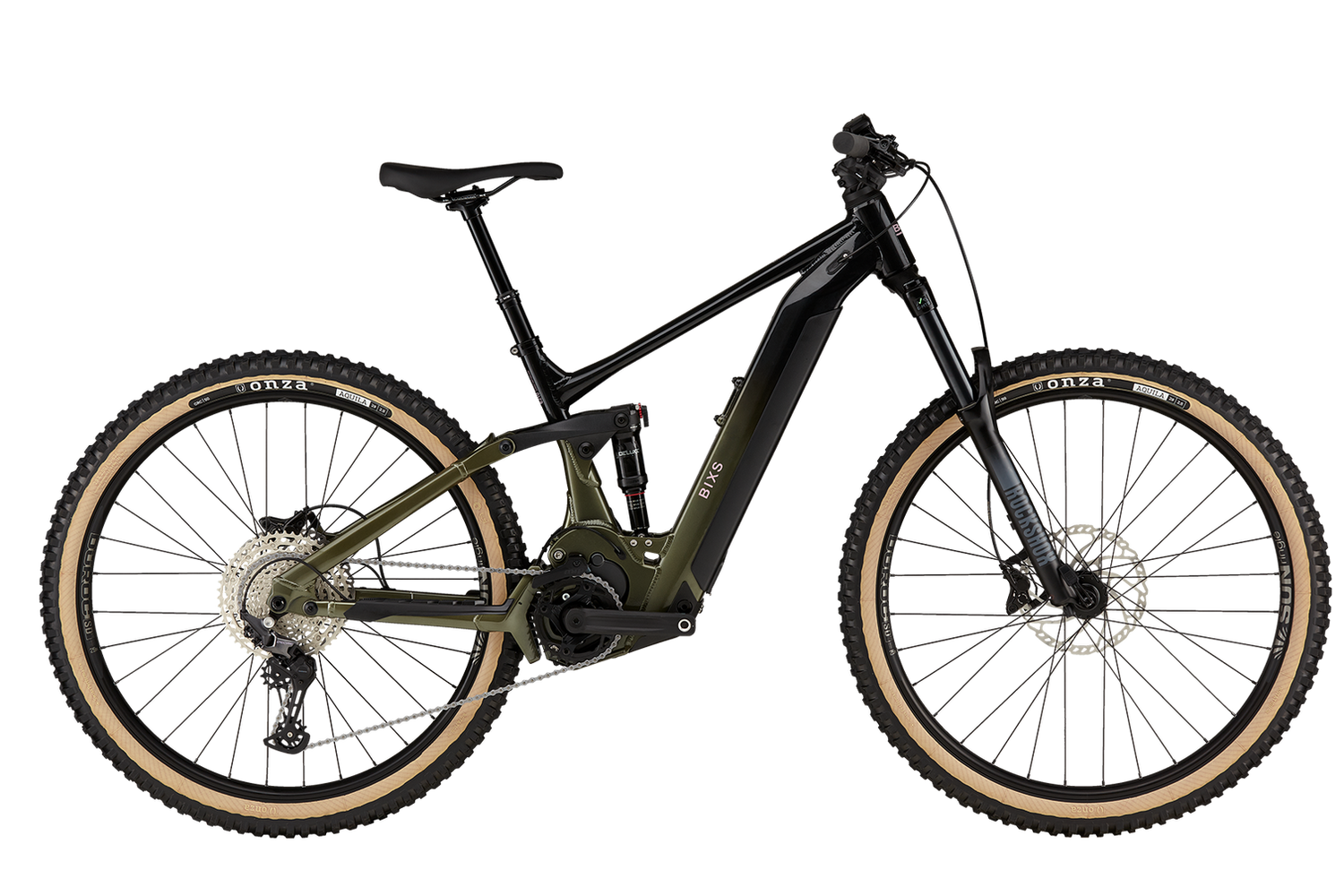

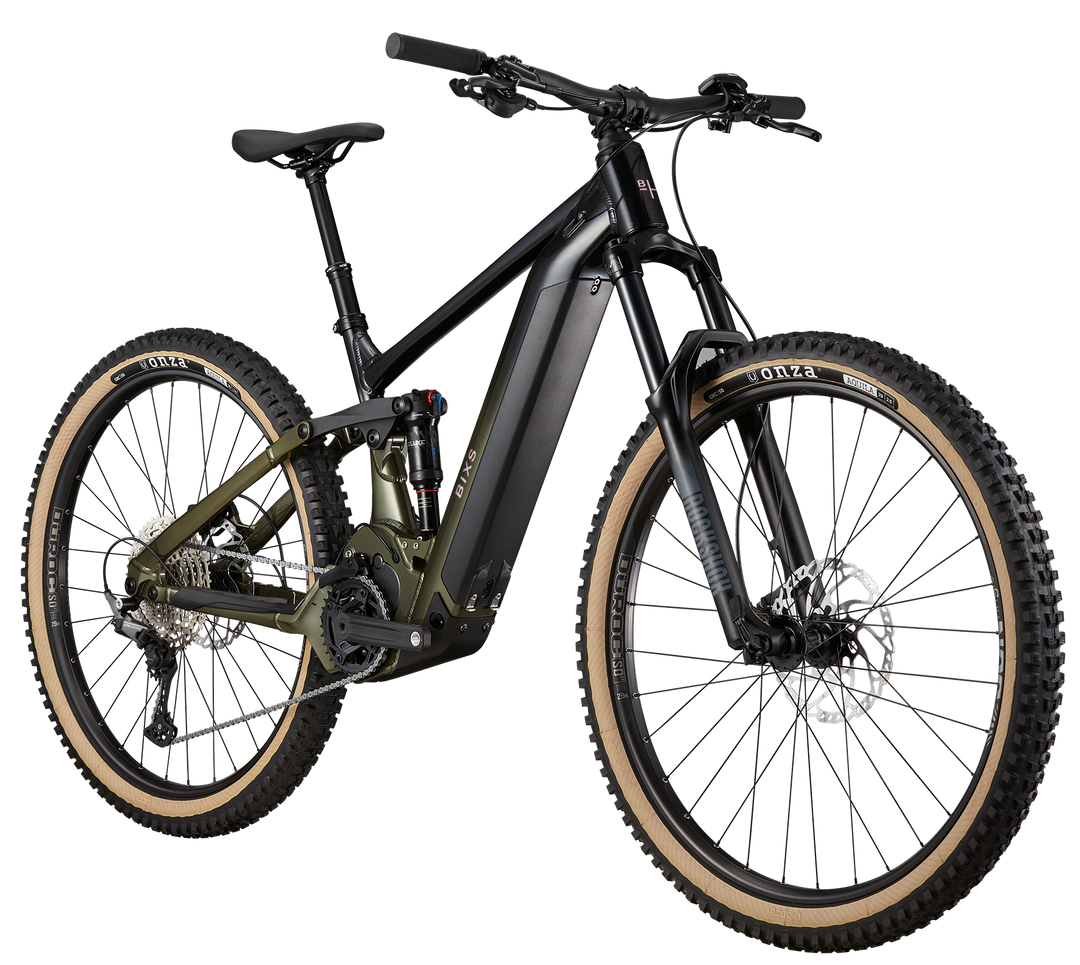

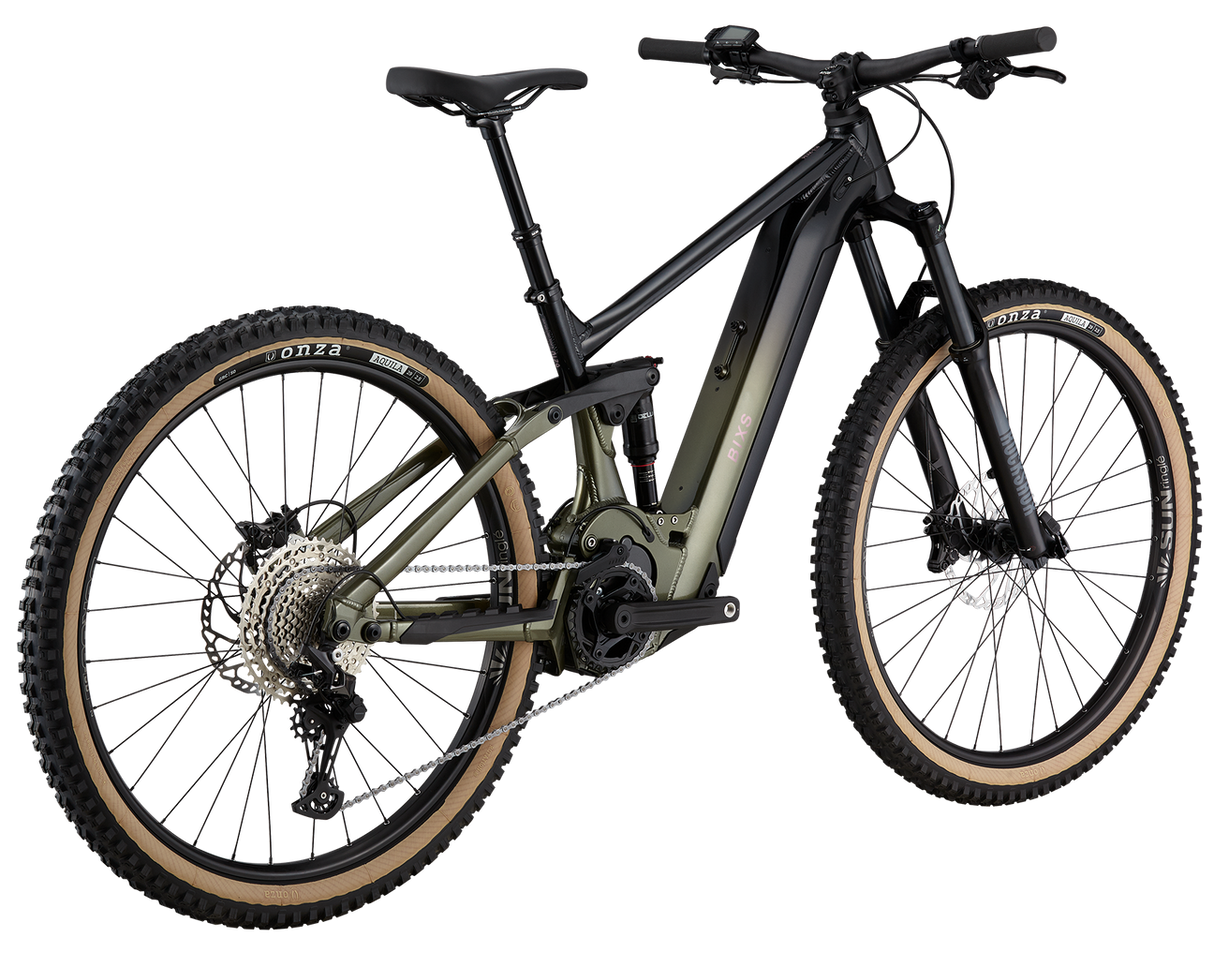

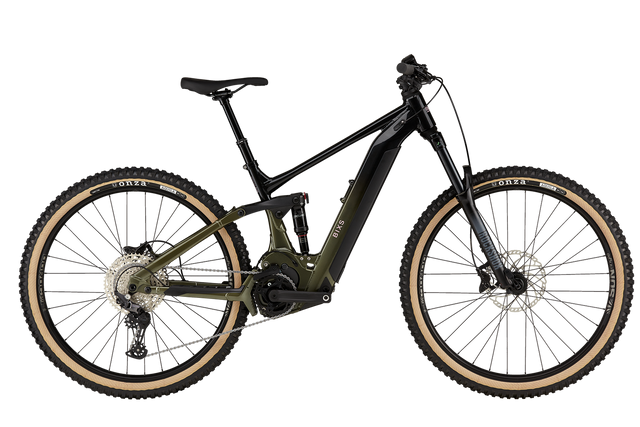

BIXS Peak-E14 Mariposa Green Black

Technical trails at high altitudes and on remote peaks are your goal when you choose the Peak-E. The Peak-E is based on the Lane-E and was designed as a lighter package specifically for such missions. The Peak-E stands for Free Touring like no other bike. Just like the Lane-E, the powerful Yamaha PWX3 motor, together with a 630-Wh battery, supports you in reaching new goals and epic trails.

Equipment:
Frame: E-Trail Geometry, Alloy 6061, 140mm Travel, Alloy Rocker, Dropout 148x12mm Boost, 29"
Fork: Rock Shox 35 Silver TK Solo Air 29", 15x110mm Axle, Tapered, 150mm Travel, Rebound, Comp. to Lock
Motor: Yamaha PW-X 3 Series, 250 Watt
Batteries: Simplo, 36V, 630Wh
Display: Yamaha Display A
Support Levels: Eco+, Eco, Standard, High, Extra Power, Automatic
E-Bike Speed: 25 km/h
Shock: Rock Shox Deluxe Select+ RT, Lever, 185x55mm, Trunnion Mount, Hardware: 20mmx8mm
Derailleur: Shimano Deore RD-M6100 SGS Shadow Plus Design, 12-Speed
Shifter: Shimano Deore SL-M6100, Direct Attach to Brake Lever, ISpec EV
Crankset: FSA CK320, ISIS, Boost, Steel Chainring, 34 Teeth
Cassette: Shimano CS-M6100, 10-51 Teeth, 12-Speed
Chain: KMC E12 Sport, EPT Anti-Rust
Brakes: Shimano BR-MT420, 4-Piston Hydraulic Disc Brake, Resin Pads, F:203mm, R:203mm Rotors
Brake Lever: Shimano BL-M4100, ISpec EV
Front Hub: SunRingle Wheelset Duroc 37SD Comp, 32 Holes, 15x110mm Thru Axle
Rear Hub: SunRingle Wheelset Duroc 37SD Comp, 32 Holes, 12x148mm Boost, Thru Axle
Front Tire: Onza Aquila, Kevlar Foldable, Tubeless Ready, 29x2.5", GRC, Skinwall
Rear Tire: Onza Aquila, Kevlar Foldable, Tubeless Ready, 29x2.5", GRC, Skinwall
Stem: BIXS 0° Angle, 35mm Clamp
Handlebar: BIXS Rizer Bar, 760mm, 9° Backsweep, 15mm Rise, 35mm
Headset: Acros Customized for Integrated Cable Routing, 1.5" Block Lock
Seatpost: Kind Shock Ragei, S: 100mm, M: 125mm, L: 150mm Travel, Westy Lever Remote, 31.6mm
Saddle: BIXS VL-3450
Weight: 26.4 kg


* Specification may vary in details in exceptional cases, depending on the manufacturer.
