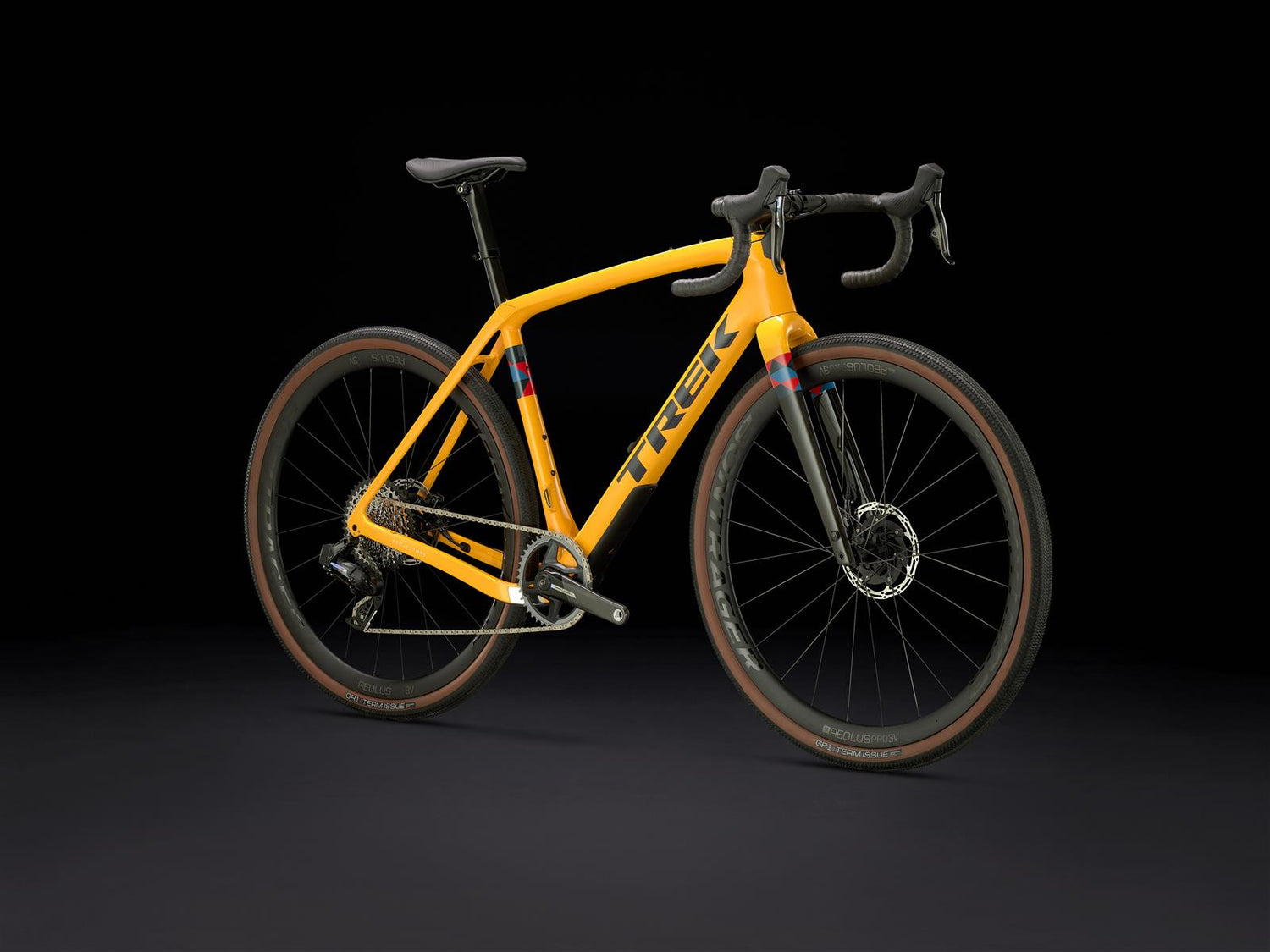

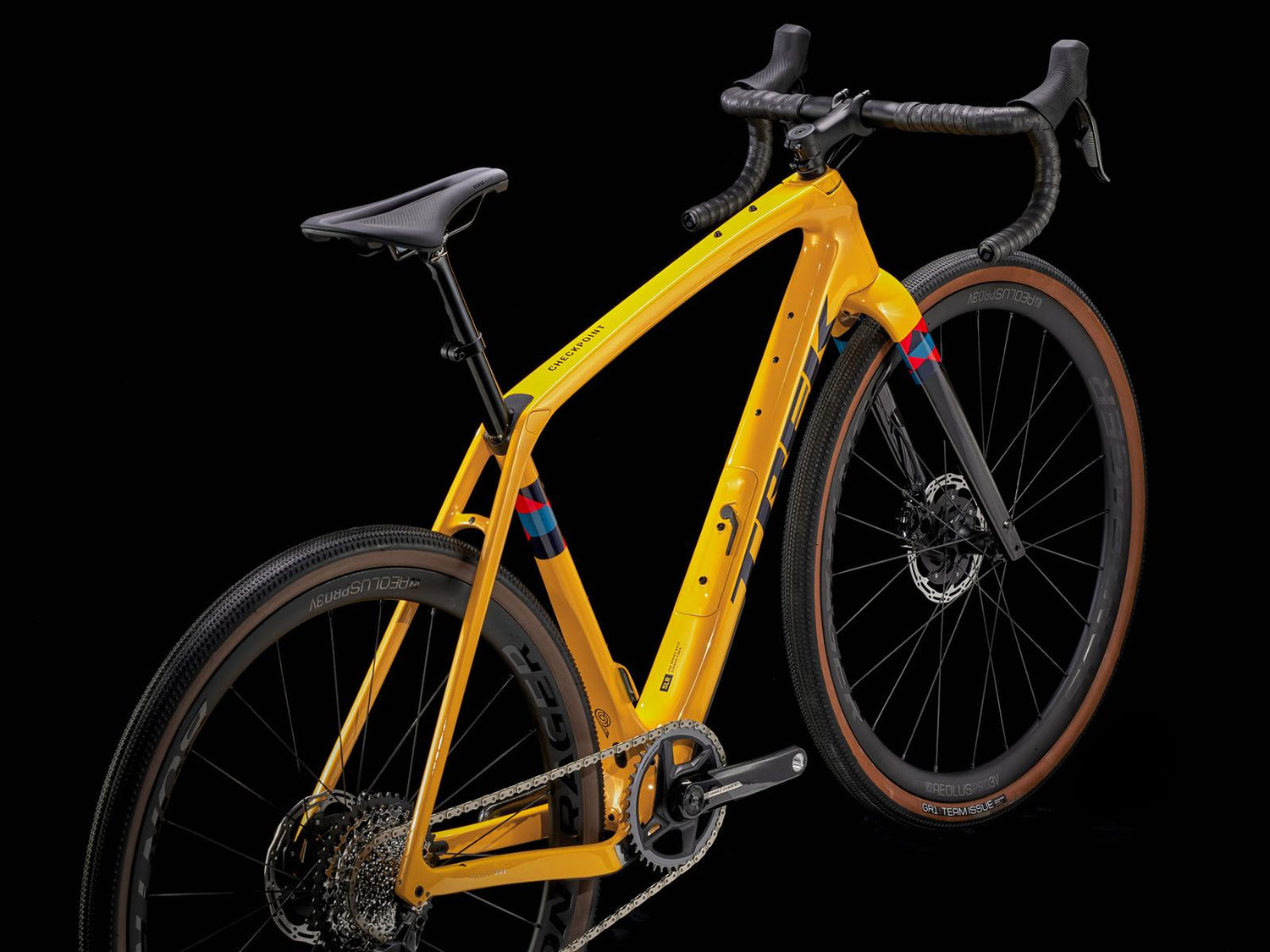

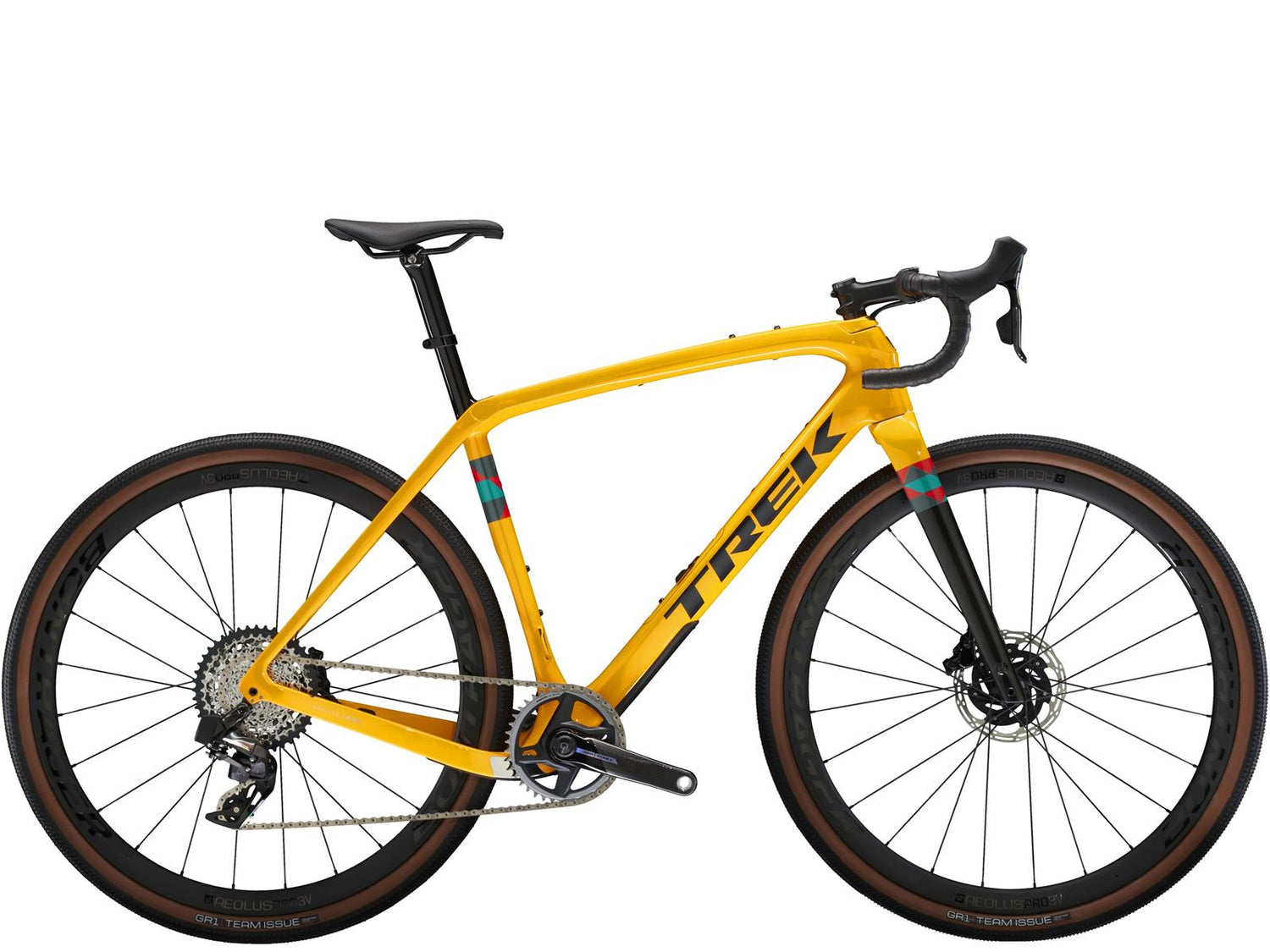

Trek Checkpoint SLR 7 AXS Marigold/Nautical Navy

The Checkpoint SLR 7 AXS is a high-quality carbon gravel bike born to dominate the most epic gravel races in the world. The lightweight frame made of 700 Series OCLV Carbon easily handles the roughest gravel tracks thanks to vibration-damping IsoSpeed and an agile yet stable progressive geometry. Other highlights include the wireless, electronic SRAM Force XPLR AXS D2 drivetrain for ultra-fast, smooth gear changes and practical mounting options for equipment and accessories.

Trek offers you a frame made of 700 Series OCLV Carbon with front IsoSpeed and Carbon Armor, a progressive geometry that is stable at high speeds and efficient on steep climbs, an internal storage compartment, hidden cables that don't interfere with your bags, and integrated mounting points for a frame bag and fenders. You also get a carbon fork, SRAM's wireless, electronic Force XPLR AXS D2 1x12 drivetrain with a wide gear range, Bontrager's Aeolus Pro 3V wheels made of OCLV Carbon, and wide gravel tires in size 700 x 40C for additional stability and traction. The frame accommodates tires up to a width of 45C.

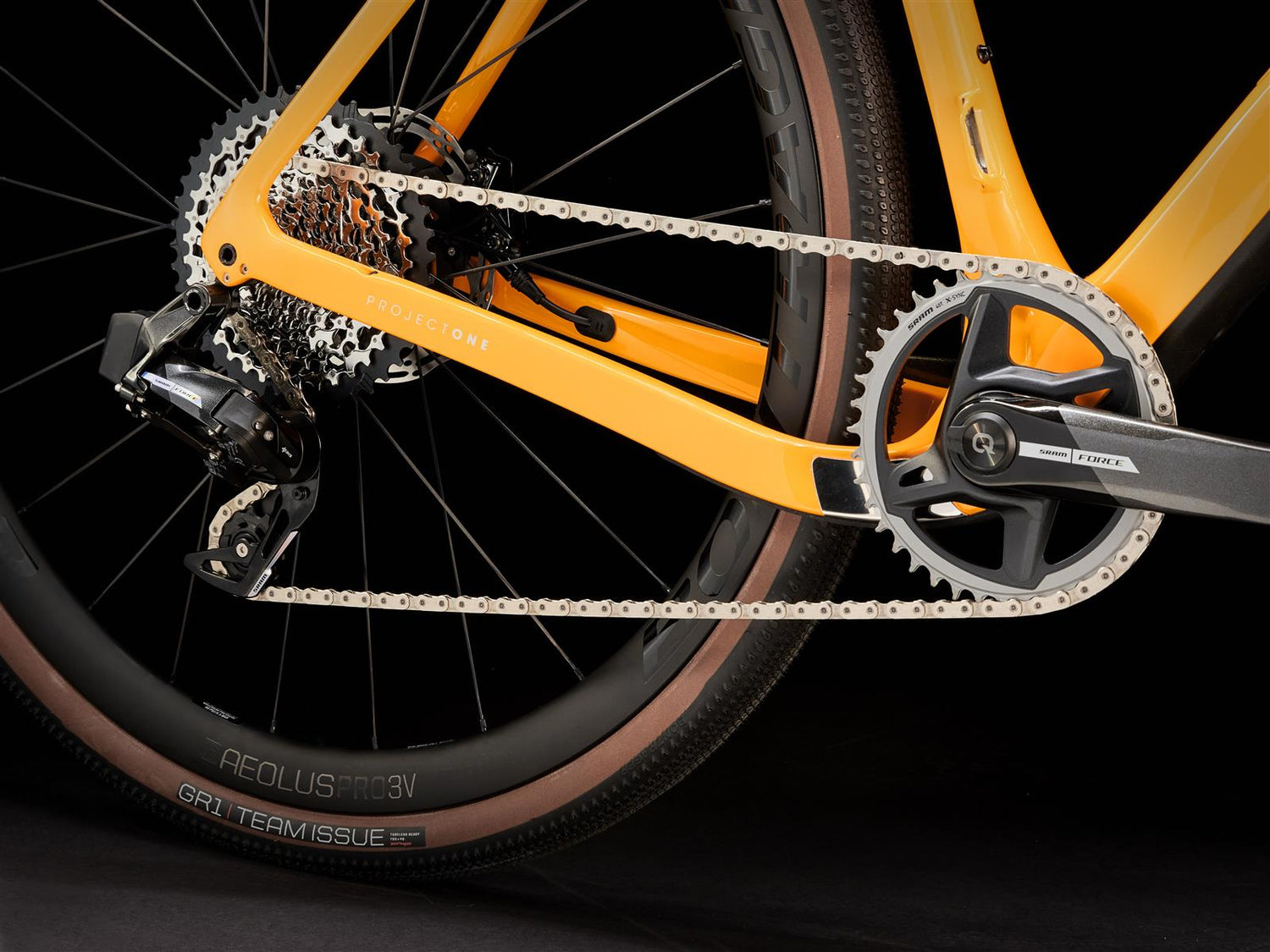

• The Force XPLR AXS D2 drivetrain from SRAM shifts intelligently, smoothly, and completely wirelessly.
• The IsoSpeed decoupler absorbs tiring bumps and prevents a "bouncing" rear end thanks to controlled rebound.
• Thanks to the enormous tire clearance, you can ride tires up to 45C for more traction and stability under all conditions.

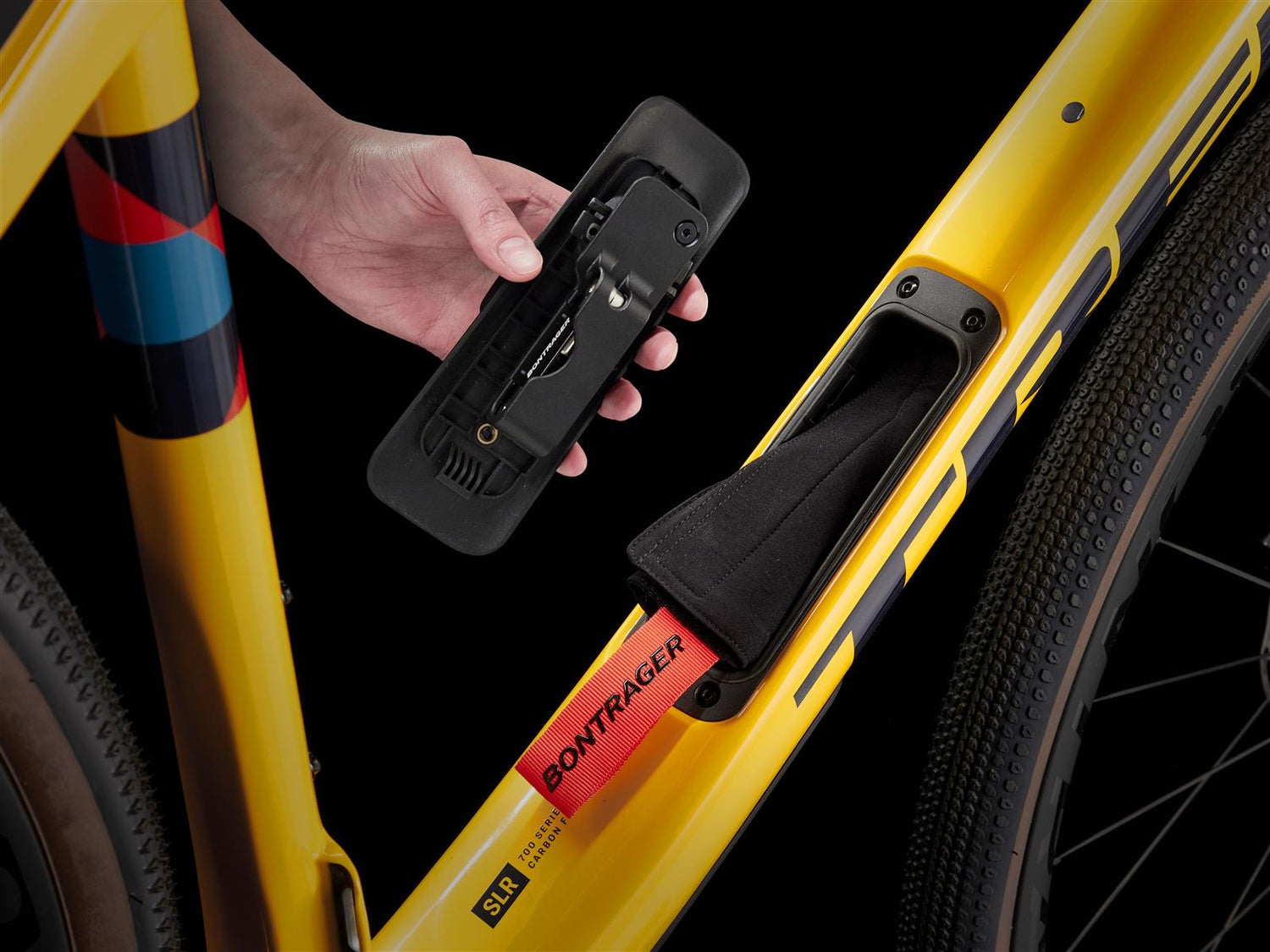

• A sleek, frame-integrated storage compartment allows for the storage of tools and equipment.

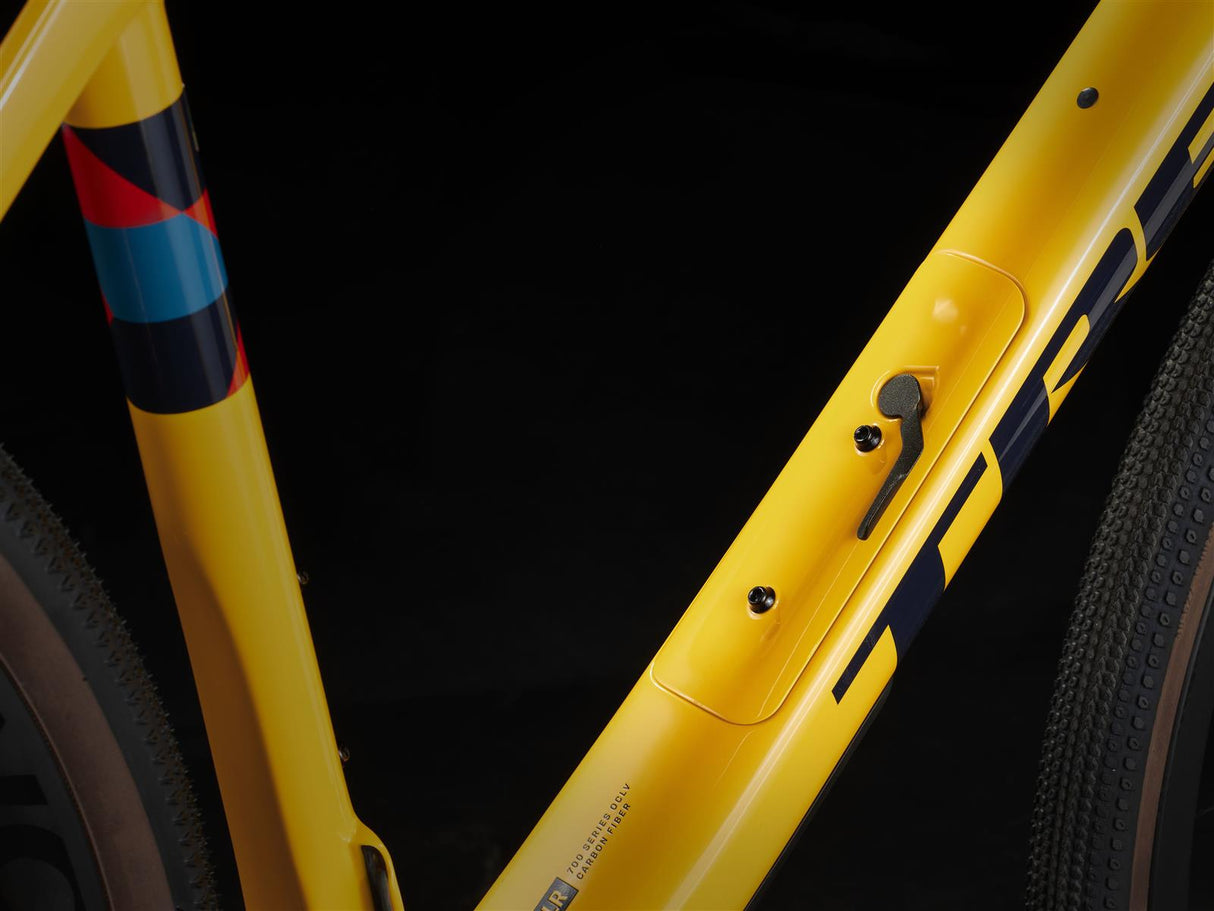

• The integrated mounting points for a frame bag and fenders make it easier to carry additional equipment and water bottles.



Equipment:

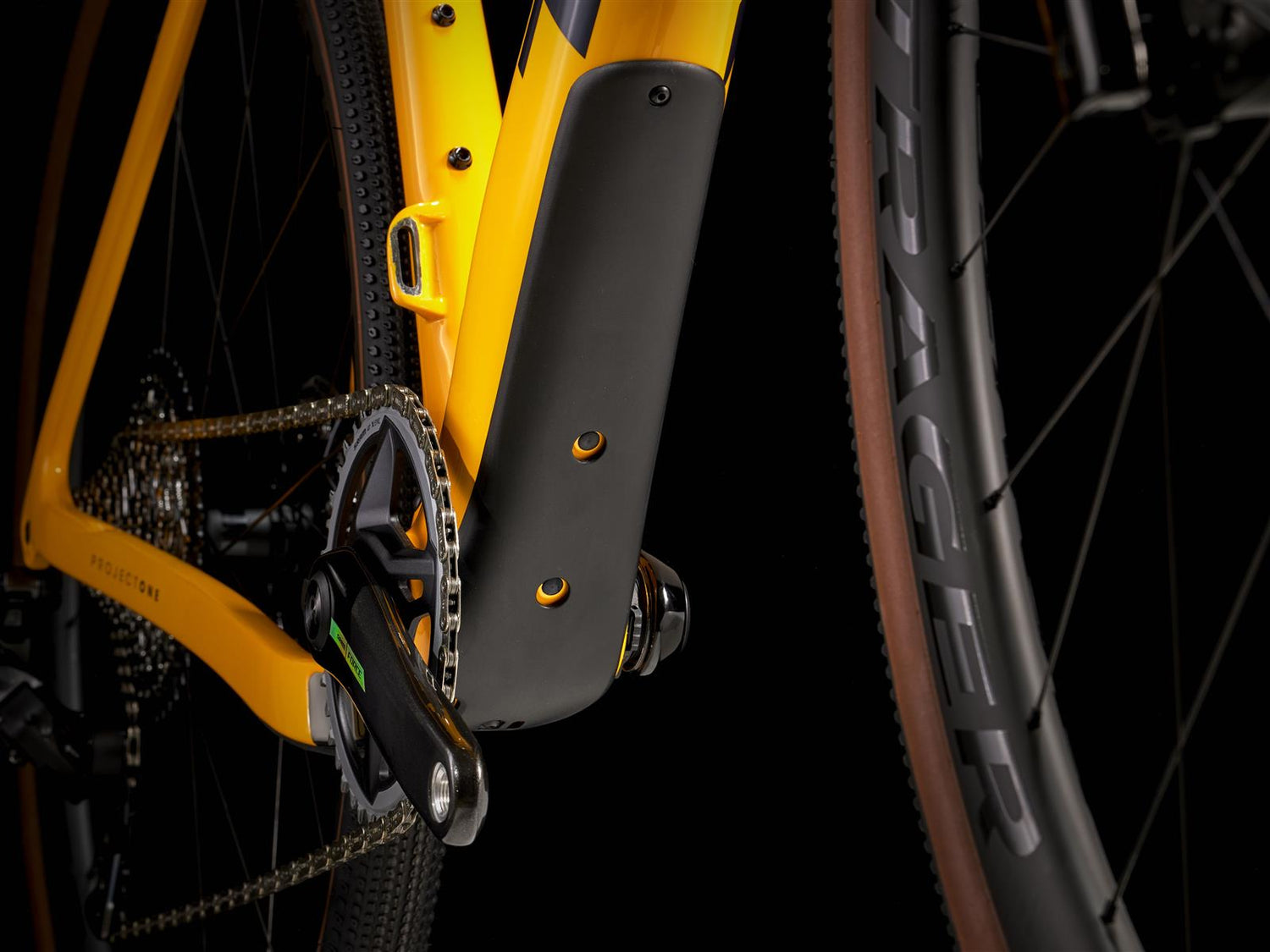

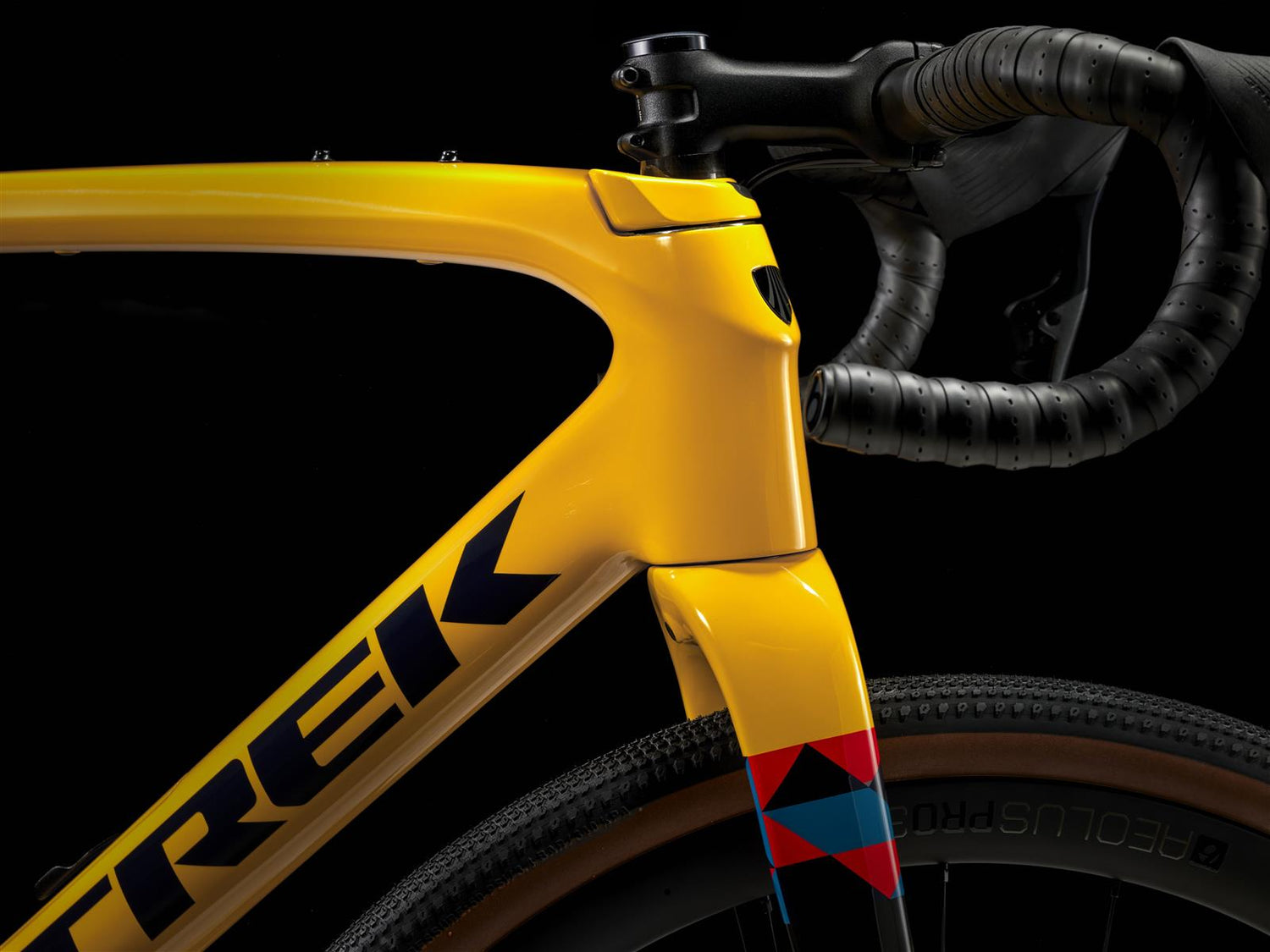

Frame: 700 Series OCLV Carbon, IsoSpeed, downtube storage compartment, internal cable routing, Ride Tuned seat mast, chain guide, T47 bottom bracket, fender mounts, integrated mounting elements for frame bag, flat mount disc brake mount, 142 x 12 mm thru axle

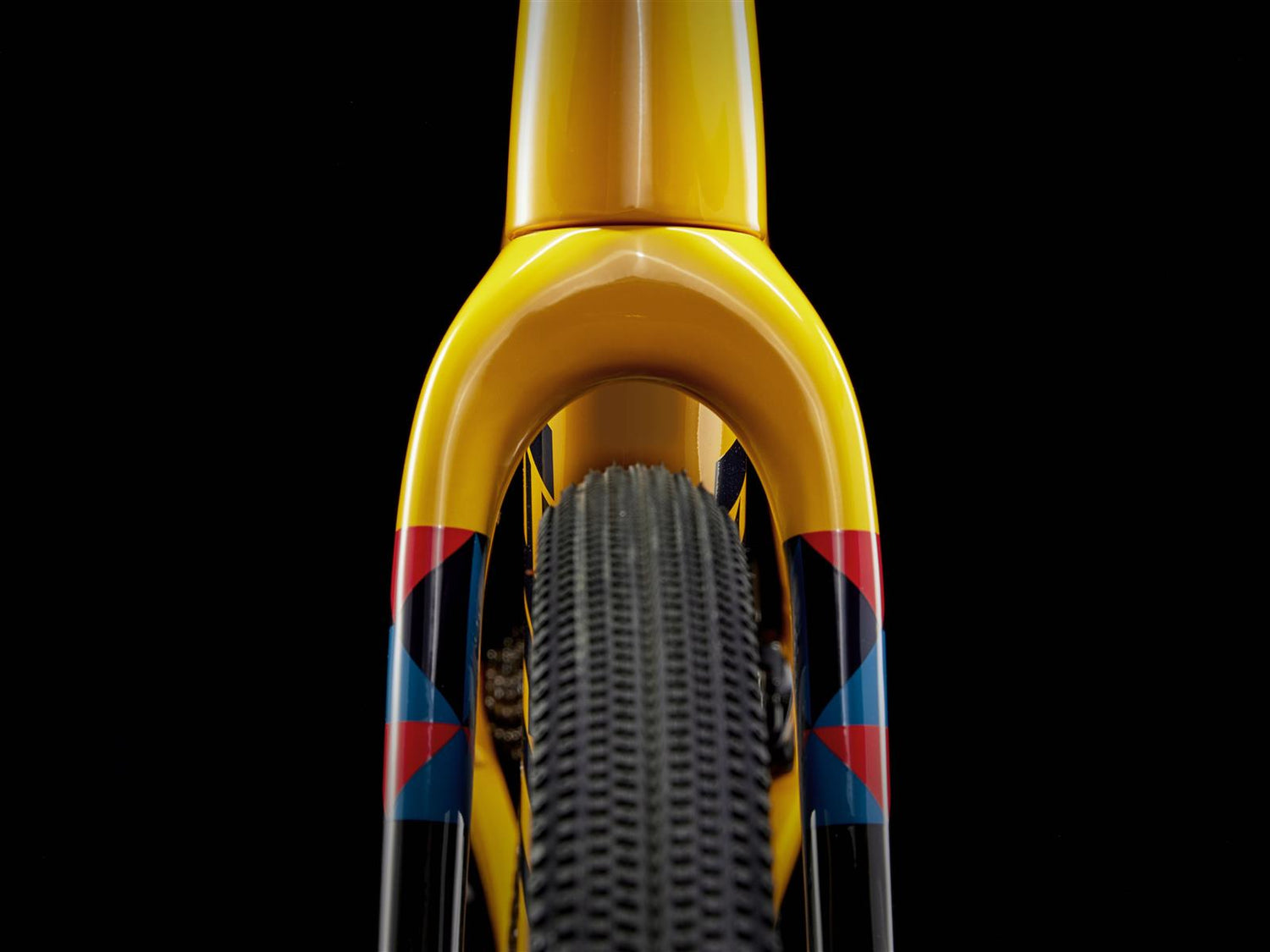

Fork: Checkpoint Carbon, tapered carbon steerer, rack and fender mounts, flat mount disc brake mount, 12 x 100 mm thru axle
Weight: 8.50 kg / 18.74 lbs
Max. Weight: This bike has a maximum weight limit (bike, rider, and load) of 125 kg.
Shift Levers: SRAM Force AXS D2, 12-speed
Rear Derailleur: SRAM Force XPLR AXS D2, max. 44T on largest cog
*Crank Size: 49 SRAM Force 1 AXS D2 with power meter, 40T, DUB, 165 mm crank arm length
Size 52 SRAM Force 1 AXS D2 with power meter, 40T, DUB, 170 mm crank arm length
Size 54, 56, 58, 61 SRAM Force 1 AXS D2 with power meter, 40T, DUB, 172.5 mm crank arm length
Bottom Bracket: SRAM DUB, T47, threaded, internally housed
Cassette: SRAM XG-1271, 10-44T, 12-speed
Chain: SRAM Force, 12-speed
Max. Chainring Size: 1x: 46 teeth, 2x: 50/37
Front Wheel: Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless-Ready, 25 mm internal width, 100 x 12 mm thru axle
Rear Wheel: Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless-Ready, 25 mm internal width, 142 x 12 mm thru axle
Front Quick Release: Bontrager Switch thru axle, removable lever
Rear quick release: Bontrager Switch thru axle, removable lever
Tires: Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, Aramid bead core, 120 TPI, 700 x 40C
Tire spare part: Bontrager TLR sealant, 177 ml
Rim tape: Bontrager TLR
Max. tire size: 700 x 45mm / 650 x 2.10"
*Saddle size: 49, 52: Verse Short Elite, magnesium rail, 155 mm width
Size 54, 56, 58, 61: Verse Short Elite, magnesium rail, 145 mm width
*Seatpost size: 49, 52, 54, 56: Bontrager, carbon seat mast cap, 5 mm offset, short
Size 58, 61: Bontrager, aluminum seat mast cap, 5 mm offset, long

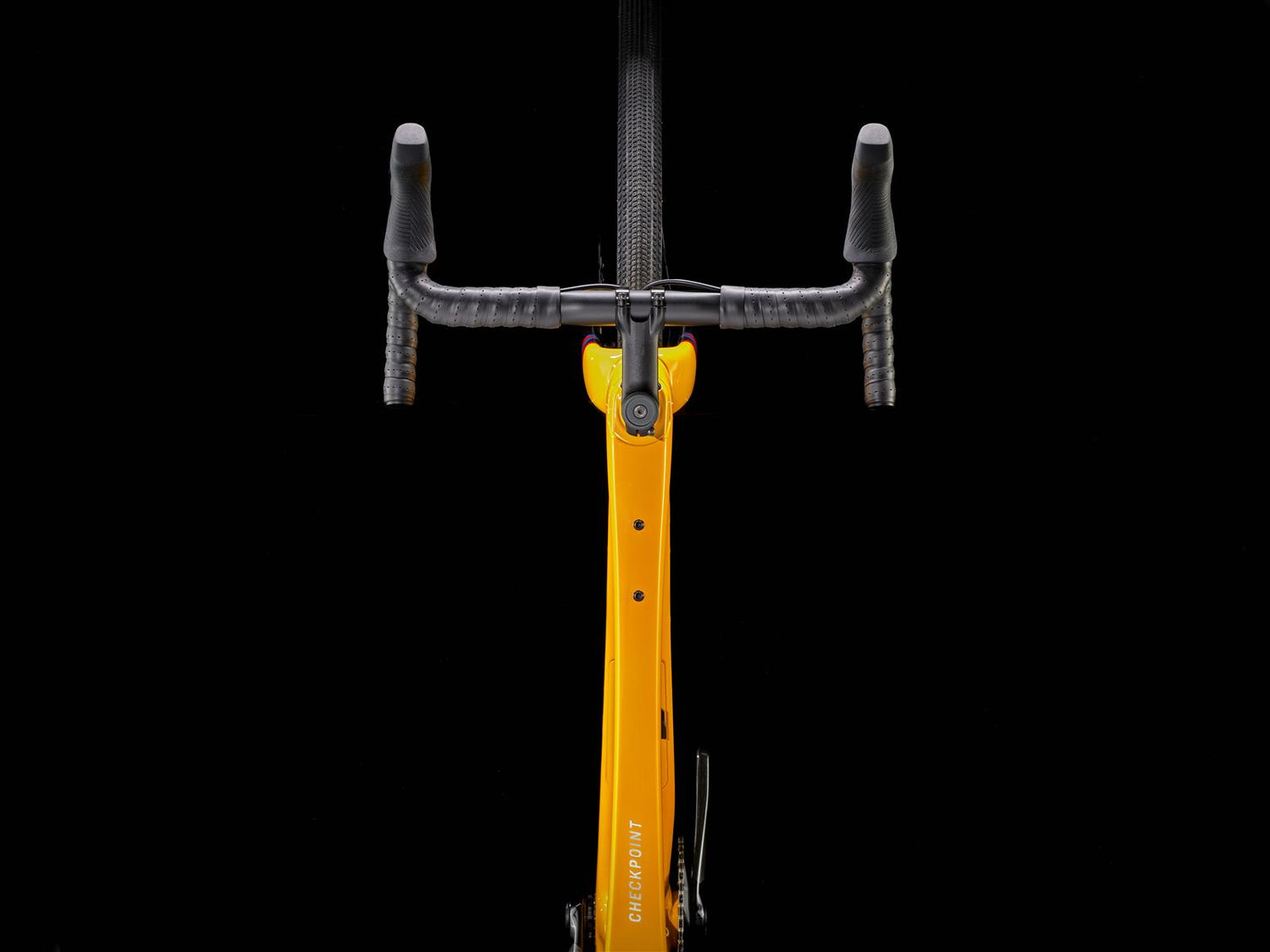

*Handlebar size: 49: Bontrager Pro IsoCore VR-SF, 38 cm
Size 52: Bontrager Pro IsoCore VR-SF, 40 cm
Size 54, 56: Bontrager Pro IsoCore VR-SF, 42 cm
Size 58, 61: Bontrager Pro IsoCore VR-SF, 44 cm
Handlebar tape: Bontrager Supertack Perf handlebar tape
*Stem size: 49: Bontrager Pro, 31.8 mm, Blendr compatible, 7 degrees, 70 mm length
Size 52, 54: Bontrager Pro, 31.8 mm, Blendr compatible, 7 degrees, 80 mm length
Size 56, 58: Bontrager Pro, 31.8 mm, Blendr compatible, 7 degrees, 90 mm length
Size 61: Bontrager Pro, 31.8 mm, Blendr compatible, 7 degrees, 100 mm length
Brake: Hydraulic disc brake SRAM Force AXS
Brake disc: SRAM CenterLine X, Center Lock disc mount, rounded edge, 160 mm
Brake disc diameter: Max. brake disc diameter: 160mm front & rear
Battery: SRAM eTap battery pack (with charger)
Bag: Bontrager BITS Integrated Frame Bag

*Please note - the specification applies to all sizes unless otherwise listed
