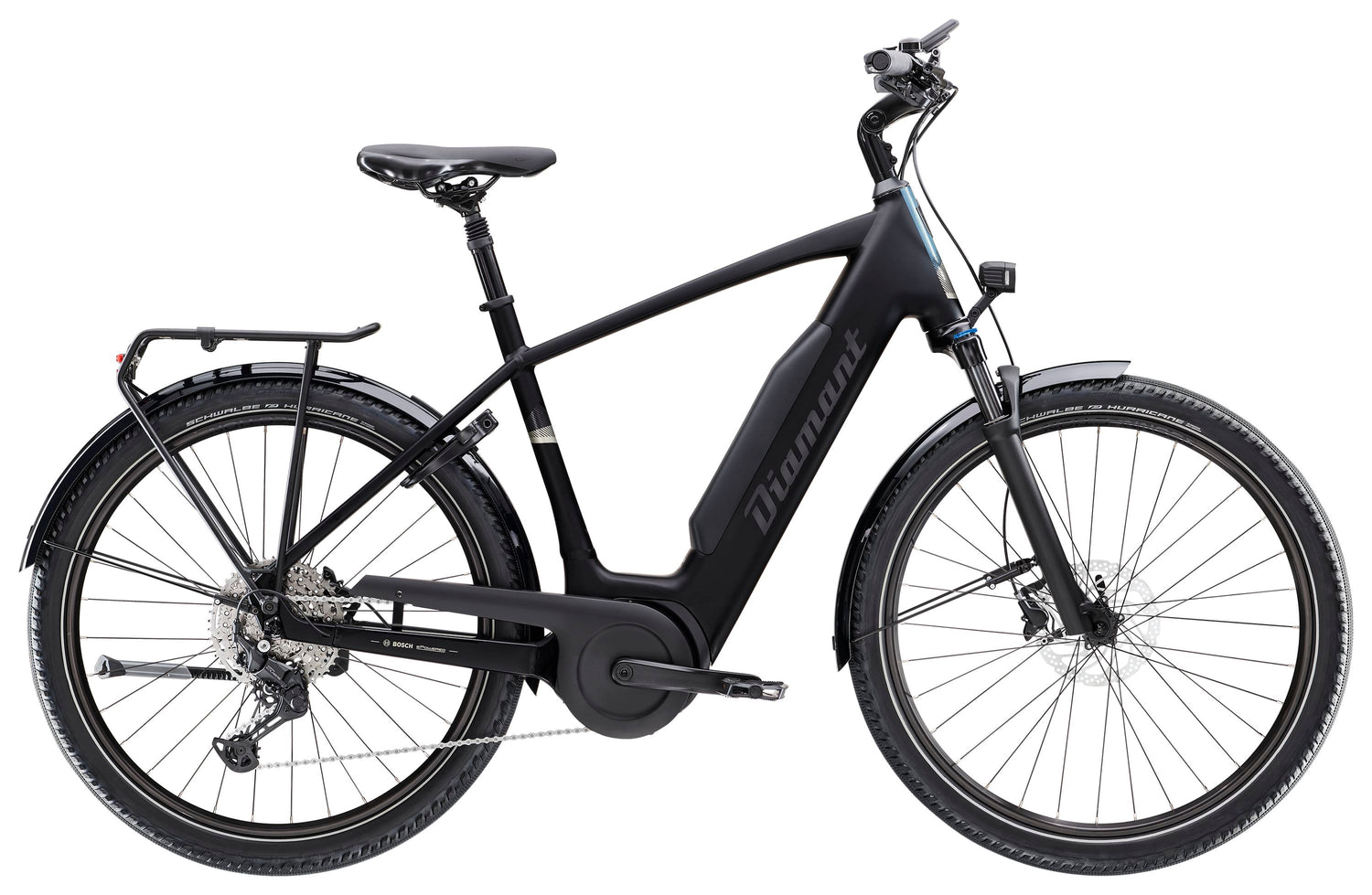

Diamant Rad Mandara Gen 3 (CUES) (Entry: high) - Deep Black 800Wh

The Mandara is a bike for the desire for clarity and comfort: The upright position suits a Trekking® E-Bike for pleasure rides. In addition, the Mandara offers a solid, balanced assembly of components that is suitable for shorter rides in the local area as well as for day trips and multi-day tours on vacation.

Equipment:
Frame: Alpha Smooth Aluminum, Removable Integrated Battery, internal cable routing, Motor Armor, Post Mount disc brake mount, 135 x 5 mm quick-release axle
Fork: SR Suntour XCR32, steel spring, adjustable preload
Wheels
Front Hub: Shimano QC300, Centerlock
Rim: Bontrager Connection, double-walled rim, 32-hole, 20 mm internal width, Presta valve
Tire: Schwalbe Hurricane, reflective, wire bead core, 57-584
E-System
Charger: Bosch Standard charger 4 A, 230 V, Smart System
Controller: Bosch Intuvia 100, smart system
Computer: Bosch LED-Remote, Smart System
Motor: Bosch Performance Line, 250 W, 75 Nm, 25 km/h
Drive
Shift Lever: Shimano CUES U6000 with optical gear display, 10-speed
Derailleur: Shimano CUES U6000 GS
Crank:
Size: M ProWheel, aluminum, 170 mm crank arm length
Size: L, XL ProWheel, aluminum, 175 mm crank arm length
Chainring: ProWheel, 38 T., Narrow/Wide, steel, with aluminum chain guard
Cassette: Shimano CUES LG400, LINKGLIDE, 11-48 teeth, 10-speed
Chain: Shimano Ultegra HG701, 11-speed
Pedal: Bontrager City Pedals
Components
Saddle: Selle Royal Nuvola
Seatpost: Aluminum, suspended, 31.6 mm, 300 mm length
Handlebar: Aluminum low riser, 31.8 mm, 25 mm rise, 11-degree bend, 690 mm width
Grips: Herrmans Clik, ergonomic, with clamp
Stem: Bontrager aluminum, 31.8 mm, adjustable, Blendr-compatible
Brake: Hydraulic disc brake Shimano MT200
Brake Disc:
Shimano RT30, Centerlock disc mount, 180 mm
Shimano EM300, Centerlock disc mount, 180 mm
Accessories
Light:
Herrmans Nordic MR5-E, 140 lumens, LED
Rear light Spanninga Pimento XE
Kickstand: Pletscher Comp Flex 18
Mudguard:
SKS Plastic, rear
SKS Plastic, front
Weight
Weight: L - 27.59 kg (400 Wh) / 28.4 kg (545 Wh) / 29.22 kg (725 Wh) / 29.31 kg (800 Wh)
Max. Weight: This bike has a maximum weight limit (bike, rider, and load) of 136 kg.

* Specification may vary in details in exceptional cases, depending on the manufacturer.
