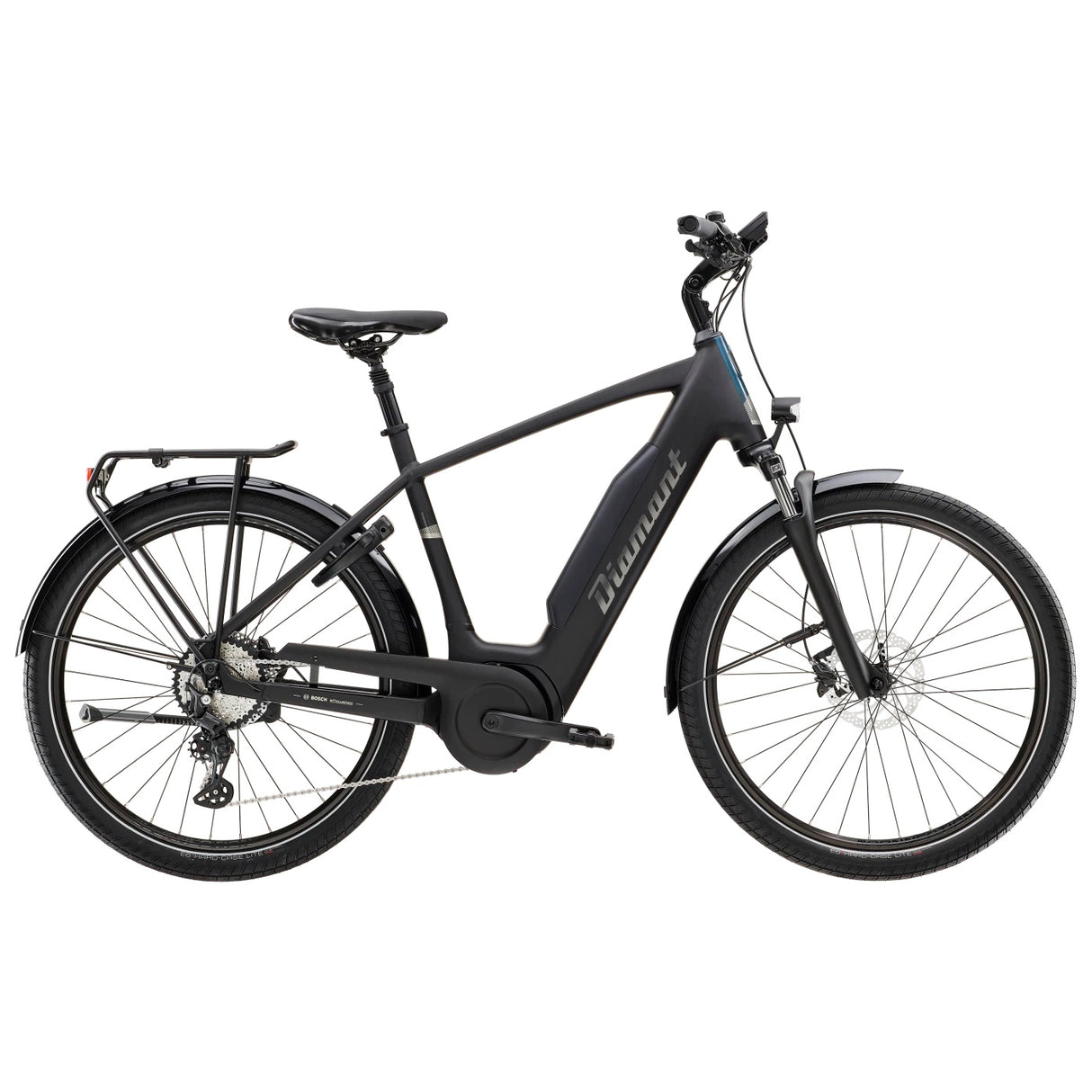

Diamant Rad Mandara Gen 3 Men's Deep Black 725Wh

The Mandara is a bike for the desire for clarity and comfort: no visible battery, no disturbing motor noise, one key for everything, and above all: an upright position.

It's the right bike for you if...

You like to ride upright and comfortably, but don't want to be limited to paved, flat river bike paths. The e-bike is supposed to support you in exploring places you wouldn't otherwise reach.

This is the equipment you get...

The partially cast frame is the innovative highlight of the Mandara. In addition, the Mandara offers a solid, balanced assembly of components - just like a classic Trekking® e-bike. With a bit more suspension travel, slightly wider tires, and a bit more gearing, the new Mandara takes a gentle step towards even more potential.

Why you will love it

• The new, particularly stable frame is partially cast, saving many weld seams. The integrated cable routing sets a new standard.
• The SR Suntour NVX30 increases the suspension travel to a comfortable 60mm. The suspension seat post is also adapted to the upright seating position.
• The Shimano Deore gear system gives you ten gears - so you always ride with the cadence you feel comfortable with.
• The Bosch Performance Line is well-dosed. The acceleration is lively but not overwhelming. The new generation is compatible with the digitally connected Bosch Smart System.
• The practical luggage rack with MIK system from Basil transports everything you want, stable and shock-protected - up to a limit of 25kg.
• The frame lock and battery installed at the factory are used with the same key. The One-Key concept increases your security without bothering you with many keys.

Equipment:
Frame: High-performance aluminum frame with hydroformed tubes, Removable Integrated Battery, internal cable routing, Motor Armor, Post Mount disc brake mount, 135 x 5 mm quick-release axle
Battery: Bosch Powerpack 545 / 725, Smart System
Controller: Bosch Intuvia 100, Smart System
Motor: Bosch Performance Line, 25km/h, Smart System
Fork: SR Suntour NVX30, coil spring, adjustable preload, 100-mm quick-release axle, 60 mm travel,
Front Hub: Shimano
Rear Hub: Shimano Alivio M4050, 135 x 5 mm quick-release axle
Rims: Bontrager Connection, double-wall rim, 32-hole, 20 mm internal width, Presta valve
Tires: Bontrager E6 Hard-Case Lite, reflective, wire bead, 60tpi, 27.5x2.40"
Shifters: Shimano Deore M5130, 10-speed
Rear Derailleur: Shimano Deore M5130, GS, Shadow Plus
Crankset: Prowheel alloy, 38T steel ring
Cassette: Shimano LinkGlide, 11-43, 10 speed
Chain: Shimano LG500
Pedals: Plastic w/non-slip rubber tread
Saddle: Selle Royal Nuvola
Seatpost: Alloy, suspension, 31.6mm
Handlebar: Alloy lowriser, 31.8mm, 25mm rise, 11 degree backsweep
Grips: Herrmans Clik, ergonomic, with clamp
Stem: Bontrager alloy, 31.8mm clamp, adjustable rise, Blendr compatible
Headset: Integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom
Brakes: Hydraulic disc brake Shimano MT200
Headlight: Herrmans H-Black MR4-E, 120 lumens, 40 lux, LED
Taillight: Spanninga SOLO for e-bike, LED
Max. Weight: This bike has a maximum weight limit (bike, rider, and cargo) of 136 kg.

* Specification may vary in details in exceptional cases, depending on the manufacturer.
