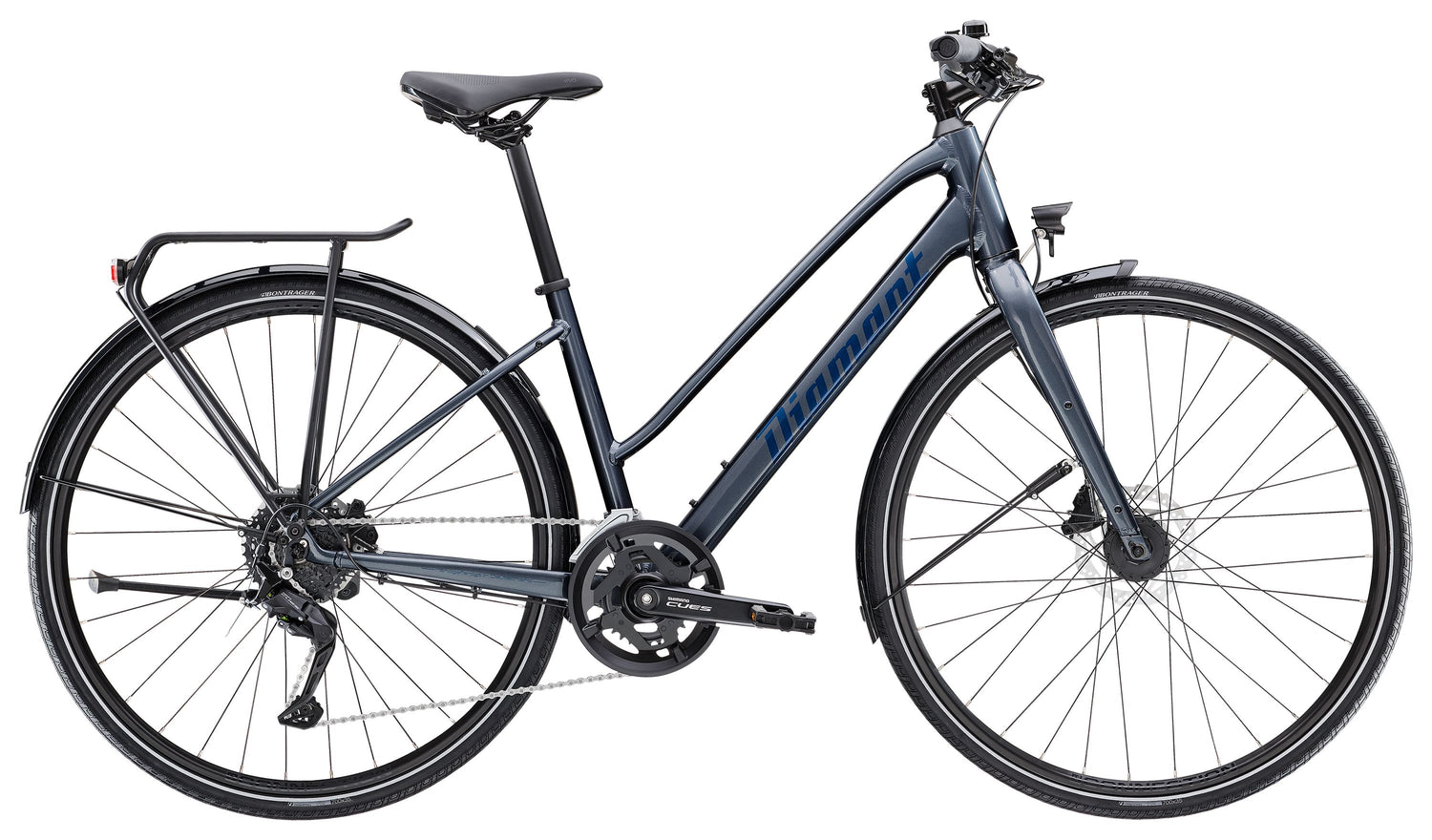

Diamant Rad Ruby (CUES) (Entry: medium) - Magnetite Gray Metallic

Not every bike needs a suspension fork. With a classic fork, the Rubin weighs and costs less, but performs at least as well on city paths as classic Trekking® bikes. For this reason, you can carry it up the stairs at the S-Bahn station more easily.

Equipment:
Frame: Alpha Gold Aluminum, internal cable routing, rack and fender mounts, post mount disc brake mount, kickstand mount 135 x 5 mm quick release axle
Wheels
Front Hub: Shimano hub dynamo 3.0 watt
Front Quick Release: 139 x 5 mm bolt-on axle
Rear Hub: Shimano QC300, 32 hole, centerlock, 135x5 mm quick release
Rim: Bontrager Connection, double wall rim, 32-hole, 20 mm internal width, Presta valve
Tire: Bontrager H2 Comp, wire bead core, 30 TPI, 700 x 35 mm
Drivetrain
Shifters:
Shimano CUES U4000 with optical gear display, 9-speed
Shimano CUES U4000 with optical gear display, 2-speed
Front Derailleur: Shimano CUES U4010
Rear Derailleur: Shimano CUES U3020 SGS
Crank: Shimano CUES U4010, 46/30 teeth
Cassette: Shimano CUES LG300, LINKGLIDE, 11-36 teeth, 9-speed
Chain: Shimano LG500
Pedal: non-slip pedals with reflectors
Components
Saddle: Selle Royal Vivo Moderate Ergo
Seatpost:
Size: M, L Bontrager, aluminum, 27.2 mm, 12 mm offset, 330 mm length
Size: XL Bontrager, aluminum, 27.2 mm, 12 mm offset, 400 mm length
Handlebar: aluminum lowriser, 31.8 mm, 25 mm rise, 11-degree sweep, 690 mm width
Grips: Herrmans Clik, ergonomic, with clamp
Stem:
Size: M Bontrager Comp, 31.8 mm, Blendr compatible, 7 degrees, 80 mm length
Size: L Bontrager Comp, 31.8 mm, Blendr compatible, 7 degrees, 90 mm length
Size: XL Bontrager Comp, 31.8 mm, Blendr compatible, 7 degrees, 100 mm length
Brake: Hydraulic disc brake by Shimano, MT201 brake lever, UR300 caliper
Brake Disc: Shimano RT10, center lock disc mount, 160 mm
Accessories
Light:
Spanninga Brio, 15 Lux, LED headlight
Spanninga Vivo XDS, stand light function, LED
Kickstand: Pletscher Comp 18
Rack: MIK-compatible rear rack made of aluminum, max load capacity 25 kg
Fender:
SKS plastic, rear
SKS plastic, front
Weight
Max. Weight: This bike has a maximum weight limit (bike, rider, and cargo) of 136 kg.

* Specification may vary in details in exceptional cases, depending on the manufacturer.
