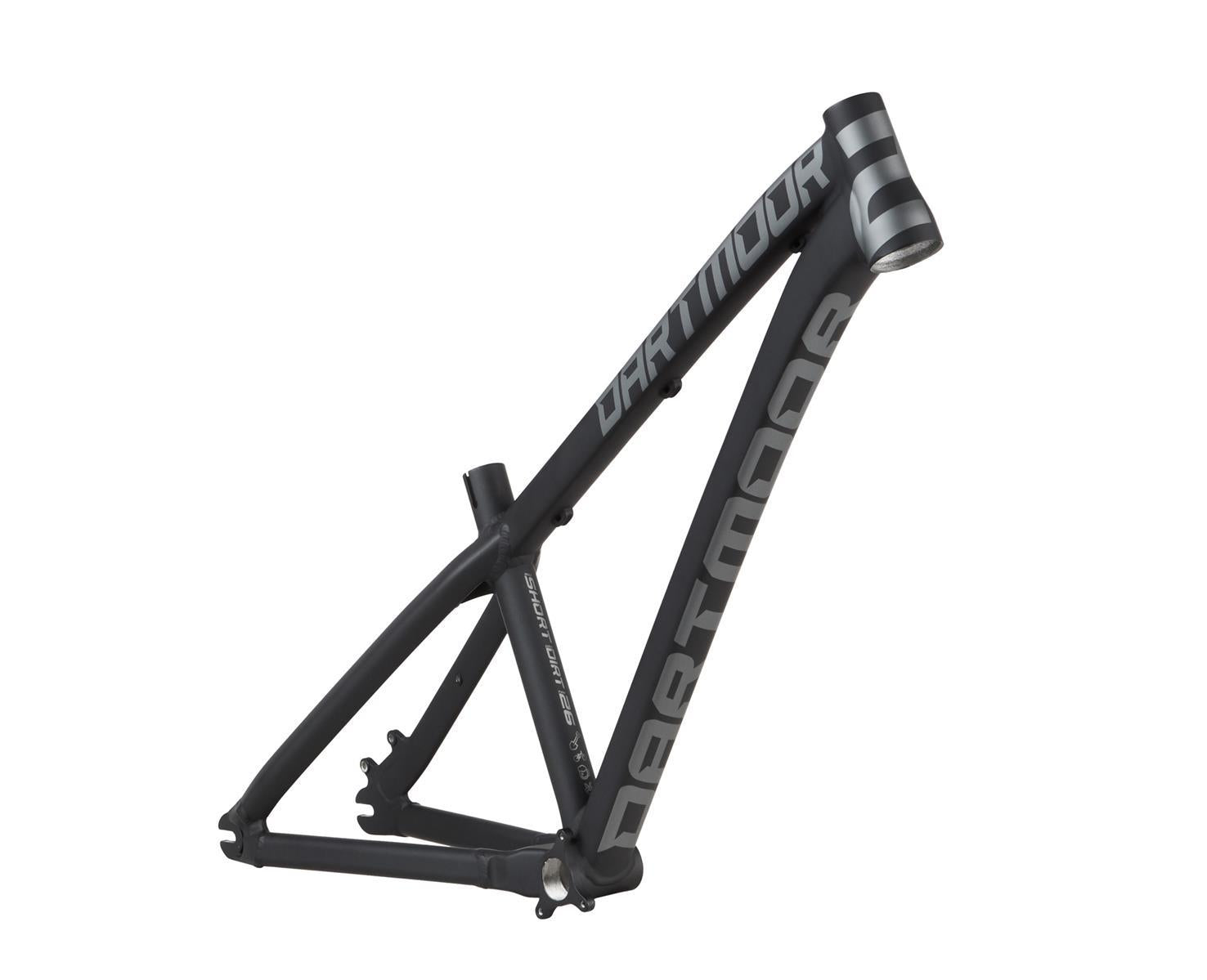

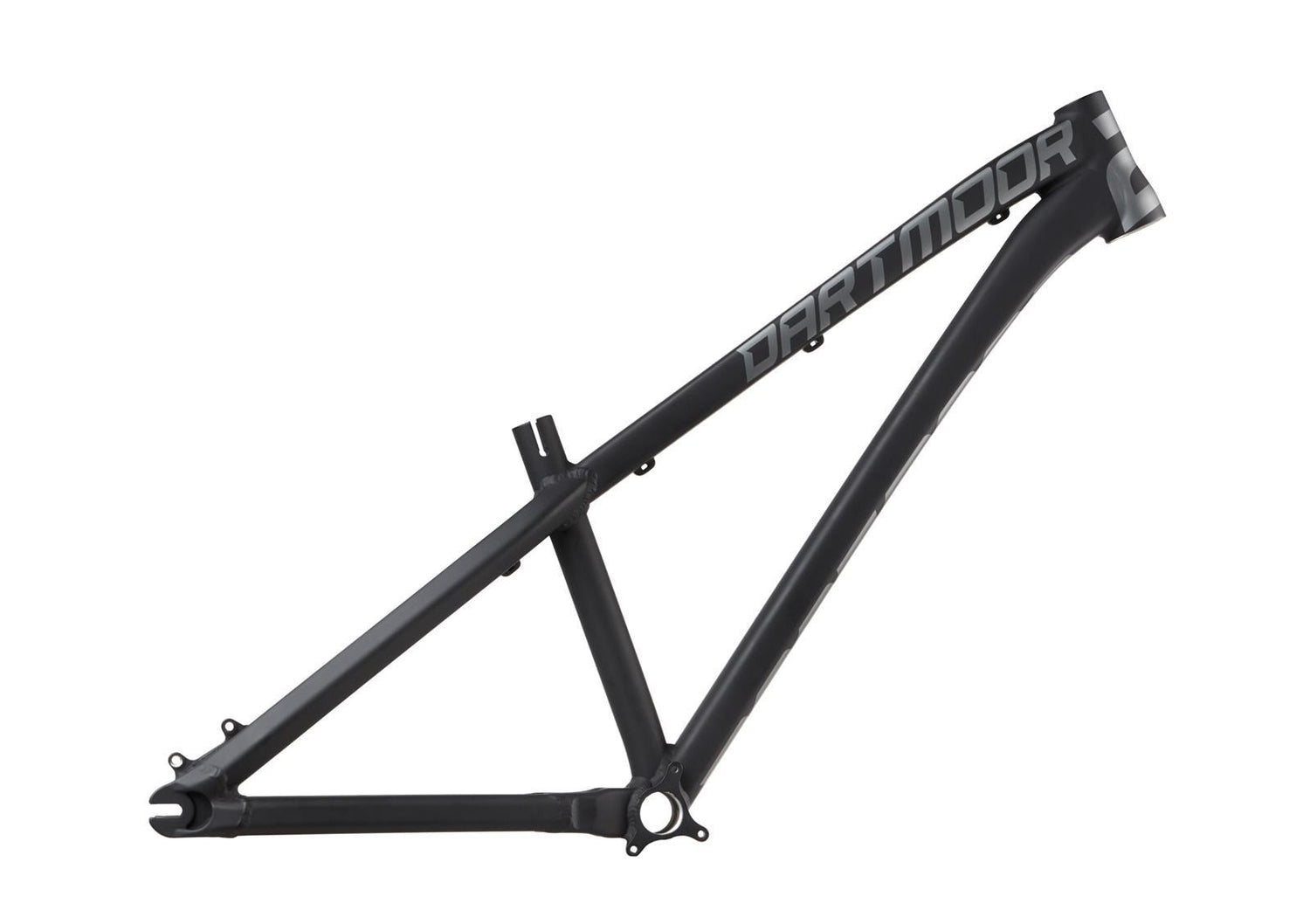

Dartmoor Dirt Bike Frame Quinnie tapered Glossy Black/Grey
Dirt Bike Frame Quinnie tapered Glossy Black/Grey is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Ab 150€ Warenwert
Muc Off
Bike Cleaner Spray Bottle 1 Liter
Do you have questions about the product?
Dirt Bike Frame Quinnie tapered Glossy Black/Grey
Description
Description
The new version of the Quinnie frame now features a more modern geometry and additionally a longer top tube and lower bottom bracket. To upgrade the frame, we have also added a new head tube in the IS42/IS52 standard, which harmonizes perfectly with our Blink headsets. The Quinnie is made of high-quality Japanese Cr-Mo 4130 steel tubes with Euro BB and an integrated seat clamp. Now available in the color black! #RideYourWide
Geometry
Reach: 412
Stack: 558
Seat tube length: 300
Top tube length: 576
Seat tube angle: 72.0
Head tube length: 110
Head tube angle: 69.0
Chainstay length: 383
Wheelbase: 1054
Bottom bracket drop: 15
Technical Data
Suspension fork: 80 - 110 mm
Tire size: 26 x 2.35 inches
Installation standard: 135 x 10 mm
Seat post: 27.2 mm
Headset type: IS42/IS52 tapered
Maximum brake disc size: 160 mm
Frame weight: 2.45 kg
Warranty: 2 years
